50Hz 32kW 40kVA Diesel Generator with Deutz BFM3T G2 Engine
Introduction
The GENLITEC POWER GPD40D5 / GPD40S5 diesel generator set is a compact and reliable power solution designed for prime power, standby power and backup power applications.

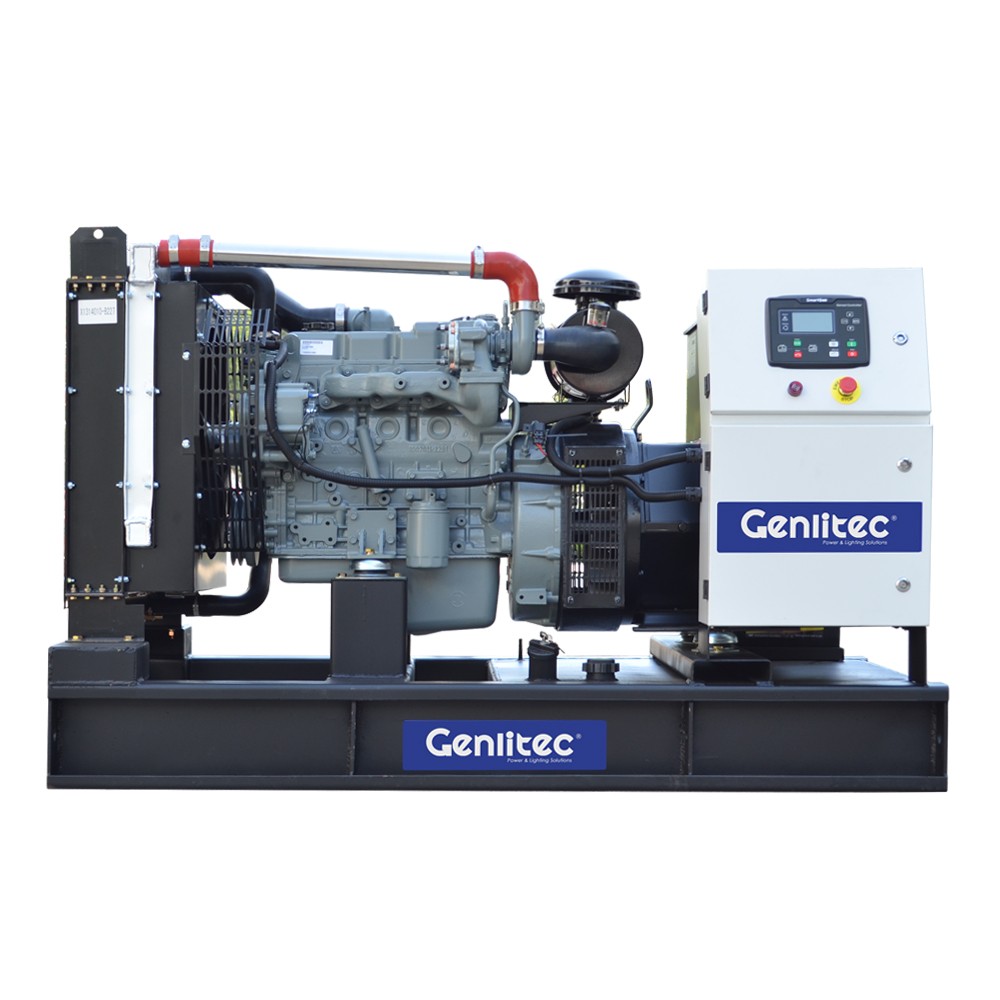

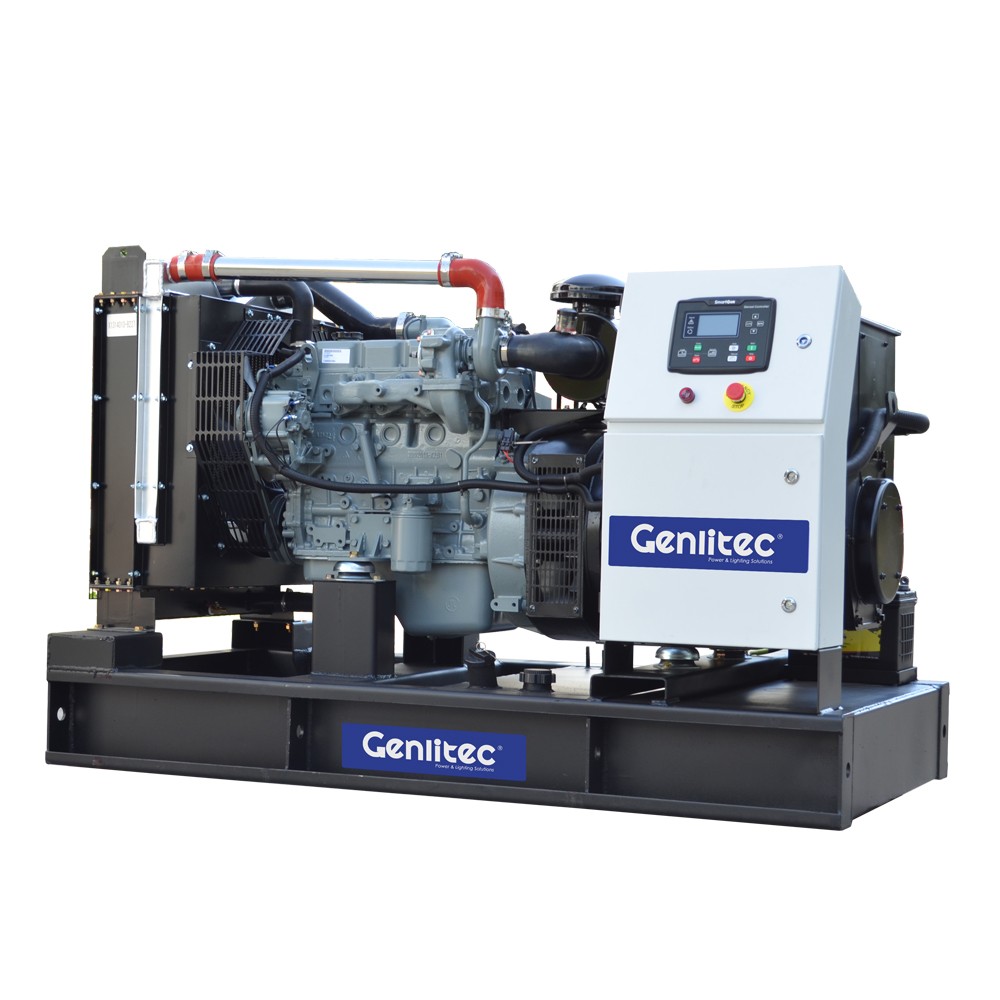

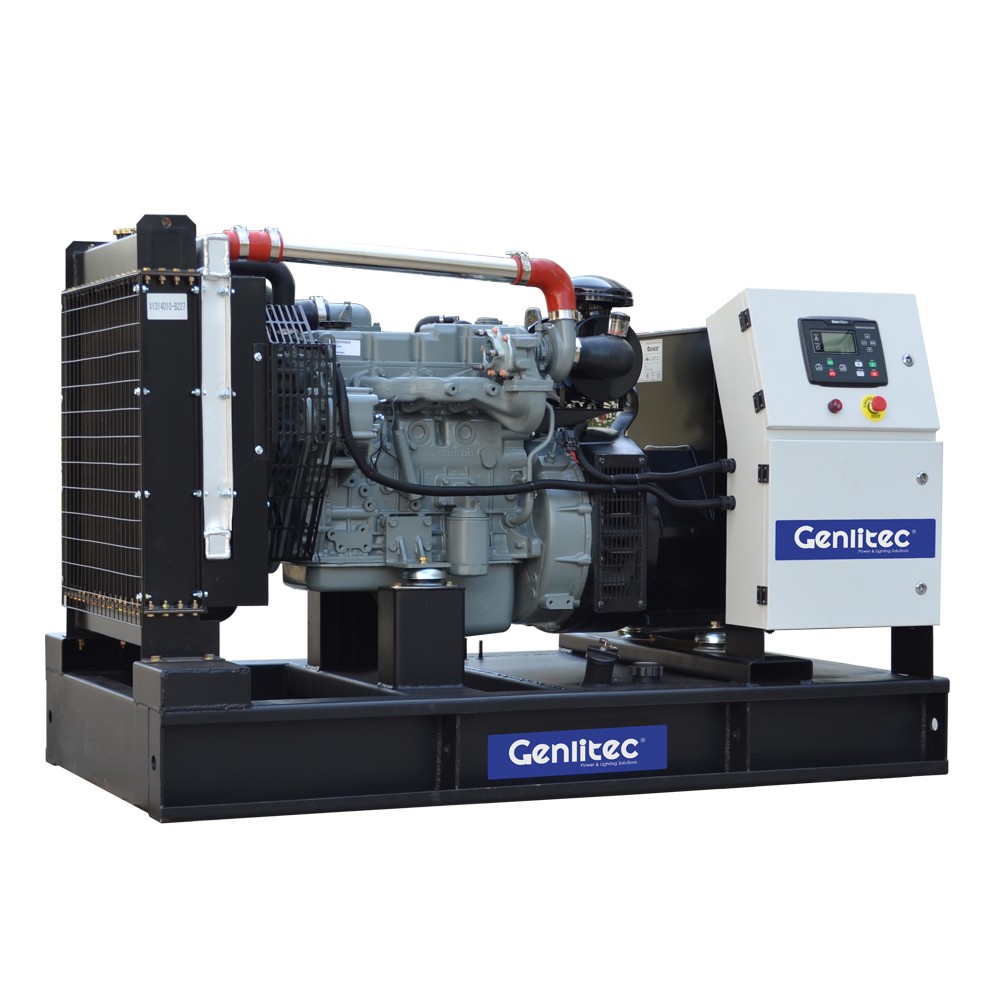

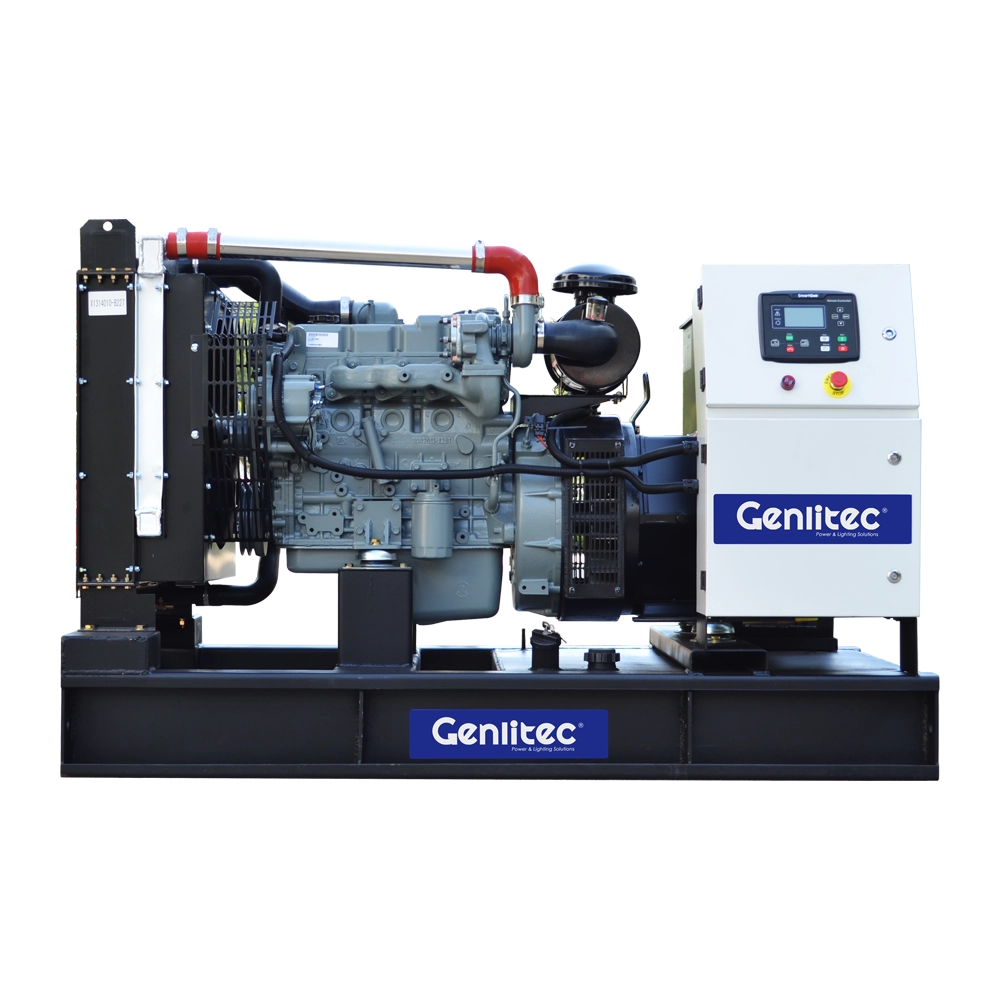

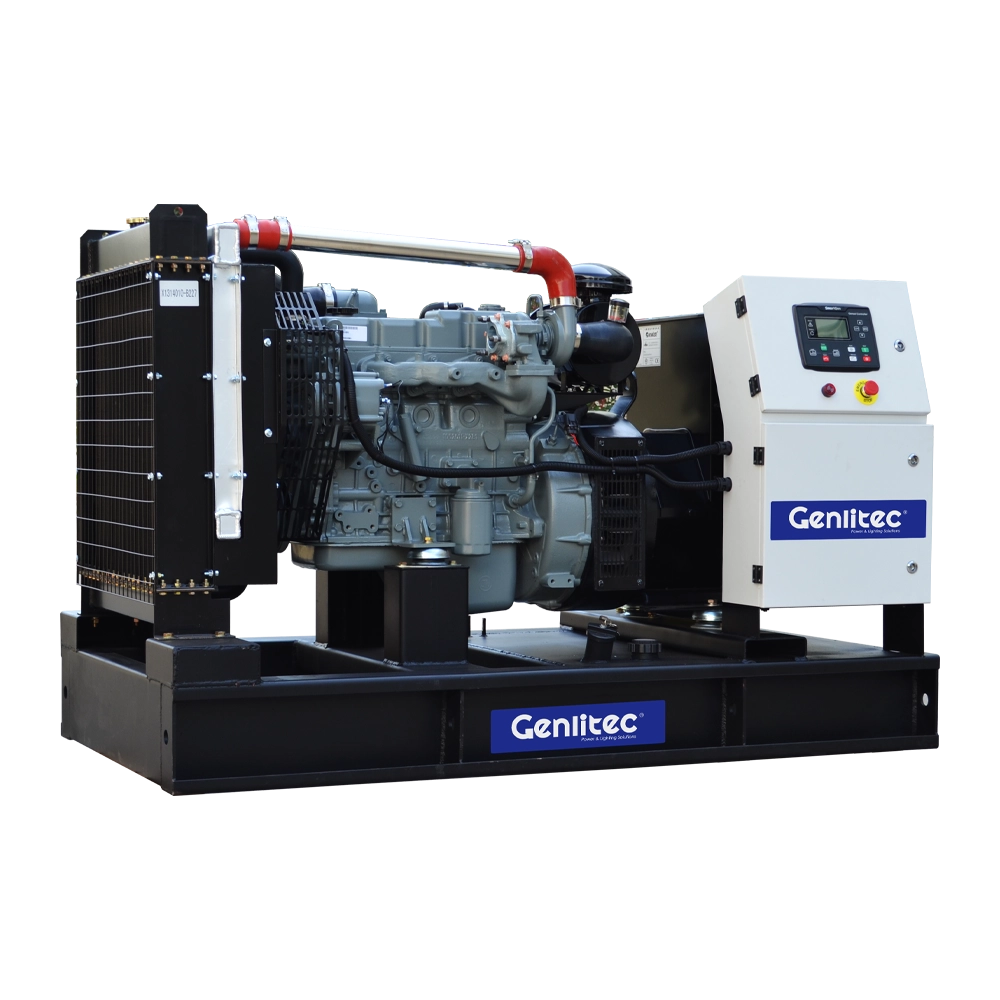

Powered by a DEUTZ BFM3T G2 turbocharged diesel engine, the generator set delivers 32kW/40kVA at 50Hz and 1500RPM. Featuring a 60L fuel tank, a four-cylinder inline engine and multiple voltage configurations, this diesel generator is suitable for commercial facilities, industrial applications, construction sites, agricultural operations and telecommunications installations. The GPD40D5 is the open-type model, while the GPD40S5 features a sound-attenuated enclosure.
Generator Set
| Open Type Model | GPD40D5 |
| Silent Type Model | GPD40S5 |
| Frequency | 50Hz |
| Phase & Wires | 3 Phase, 4 Wires |
| Power Factor | 0.8 |
| Prime Power | 32kW/40kVA |
| Standby Power | Not specified; confirm the approved generator set rating |
| Rated Voltage | 220/380V; 230/400V; 240/415V (subject to configuration) |
| Rated Speed | 1500 RPM |
| Fuel Tank Capacity | 60L |
Diesel Engine
| Engine Model | DEUTZ BFM3T G2 |
| Cylinder Number | 4 |
| Cylinder Arrangement | In-line |
| Engine Type | 4-Stroke Diesel |
| Aspiration System | Turbocharged |
| Cooling Method | Water Cooled |
| Governor Type | Governor performance according to engine specification; confirm final governor configuration |
| Bore x Stroke | 93 x 100 mm |
| Compression Ratio | 18.3:1 |
| Rated Speed | 1500 RPM |
| Displacement | 2.72L |
| Prime Power (Engine Gross Output) | 40kW @ 1500 RPM |
| Standby Power (Engine Gross Output) | 44kW LTP @ 1500 RPM |
| Net Flywheel Power | 41kW |
| Fuel System | In-line Pump |
| Oil Capacity | 7L |
| Oil Specification | CF-4 |
| Oil Consumption | Approximately 0.5% of fuel consumption |
| Coolant Capacity | 4.8L (Engine Only) |
| Electric Starting System | DC 12V |
| Starter Motor | 3.5kW |
| Charging Alternator | 50A |
| Minimum Battery Capacity | 1 x 120Ah |
| Engine Dry Weight | Approximately 240kg, without cooling system |
Fuel Consumption
| 100% Prime Load | 10.1L/H |
| 75% Prime Load | 7.9L/H |
| 50% Prime Load | 5.4L/H |
| 25% Prime Load | 3.0L/H |
Fuel consumption figures are based on the DEUTZ BFM3T G2 engine datasheet at 1500 RPM. Actual generator set fuel consumption may vary depending on electrical load, ambient conditions and operating conditions.
Alternator
| Number of Phase | 3 |
| Rated Power | 32kW/40kVA |
| Frequency | 50Hz |
| Power Factor | 0.8 |
| Poles | 4 |
| Temperature Rise | 125K |
| Terminals | 6/12 |
| Insulation Class | H Class |
| Ambient Temperature | 40℃ |
| IP Rating | IP23 |
| Excitation System | Self-Excited |
| Bearing | Single Bearing |
| Coating | Vacuum Impregnation |
| Voltage Regulator | A.V.R |
| Coupling | Flexible Disc |
Control Panel
| ○ Emergency stop button | ○ Main circuit breaker |
| ○ Float battery charger | ○ Manual/Auto start control panel |
| ○ Fuel level meter | ○ Controller power switch |
| ○ Alarm buzzer | ○ Remote monitoring interface |
SOUND ATTENUATED ENCLOSURE

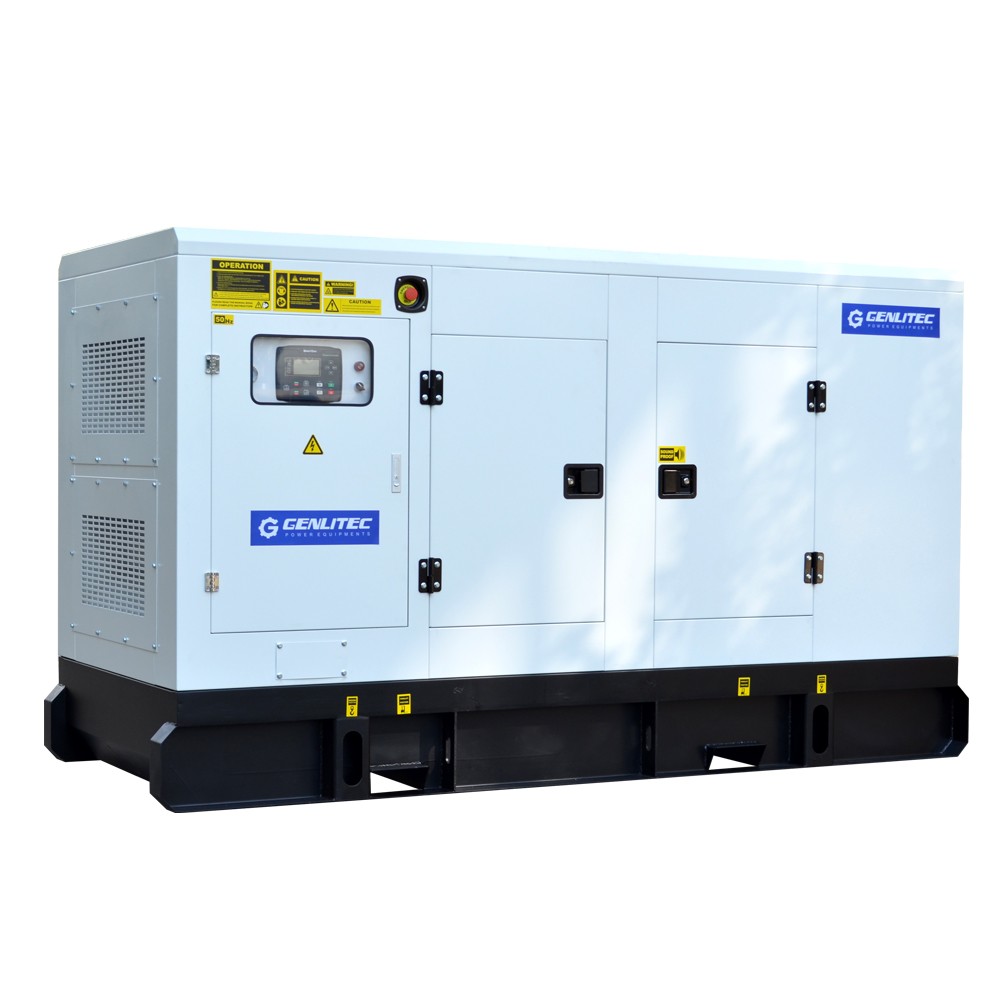

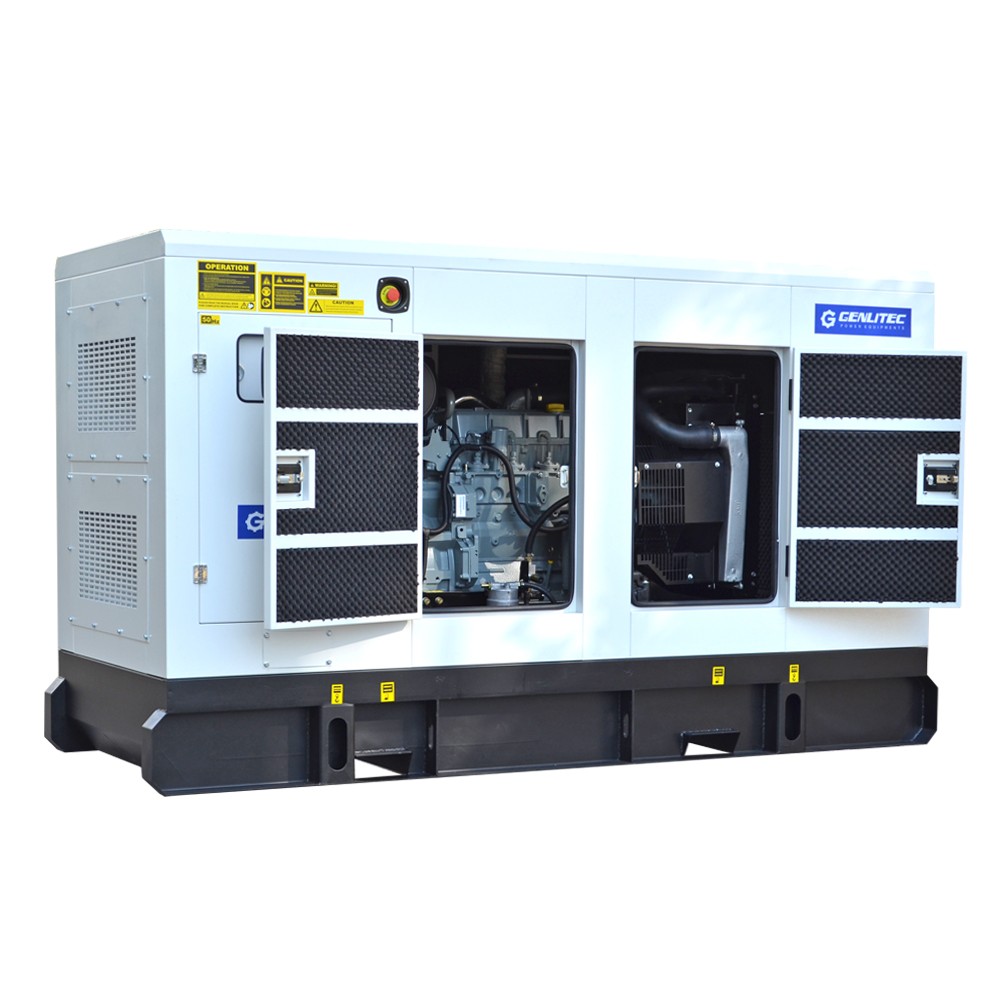

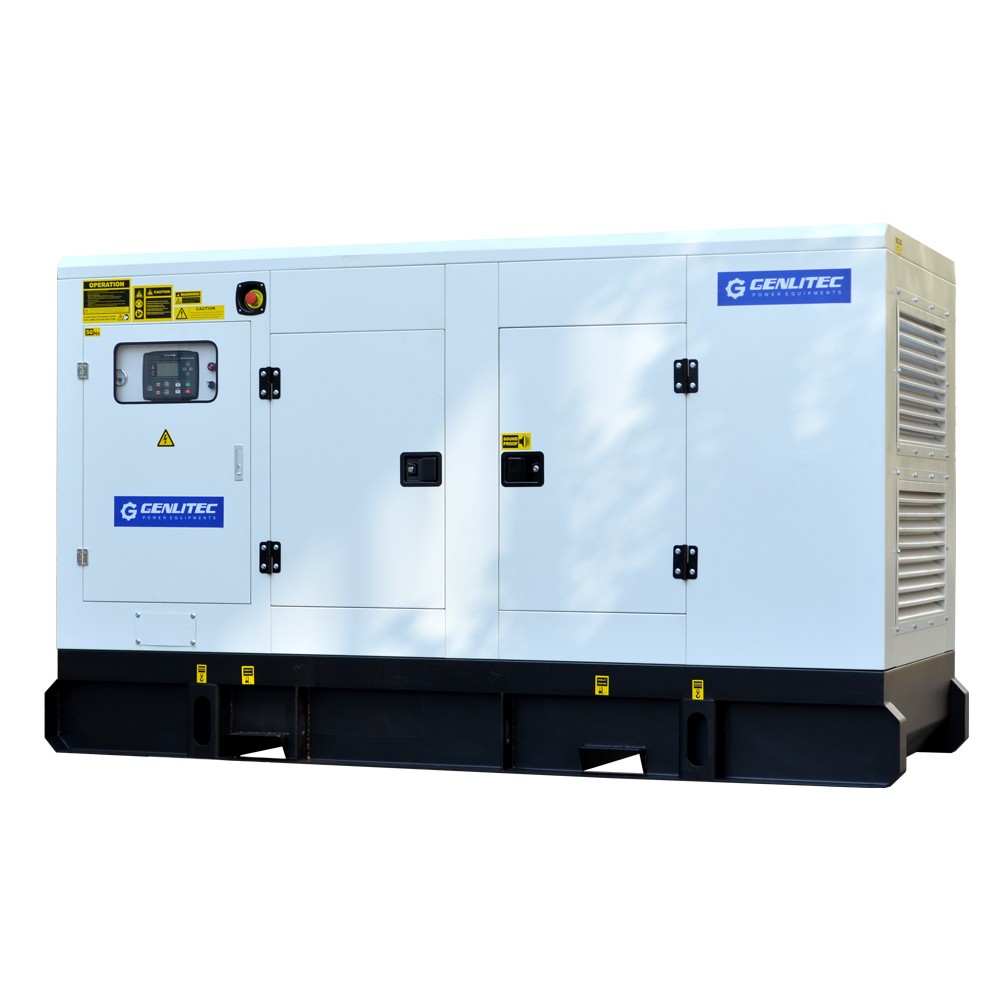

The GPD40S5 silent type generator set is equipped with a sound-attenuated enclosure designed to reduce operating noise and provide protection for outdoor applications.
○ Sound-attenuated enclosure for reduced noise levels
○ Weatherproof design for outdoor installation
○ Internal exhaust silencer for noise reduction
○ Corrosion-resistant construction for outdoor use
○ Service access doors for convenient maintenance
○ Suitable for commercial, industrial and standby power applications
Options
○ ATS for automatic start and stop when utility power fails or returns
○ Remote Monitoring System
○ Water-Jacket Heater
○ Larger-capacity fuel tank
○ External fuel tank connection
○ Power sockets, including CEE or AUS standards
Applications
The GENLITEC POWER 32kW/40kVA diesel generator set is suitable for a wide range of prime, standby and backup power applications, including:
○ Commercial and office buildings
○ Industrial facilities and workshops
○ Construction and job sites
○ Agricultural and rural facilities
○ Telecommunications and remote sites
○ Emergency and standby power systems
Why Choose GENLITEC POWER
GENLITEC POWER diesel generator sets are designed to provide dependable power, practical configurations and reliable performance for a wide range of applications.
○ DEUTZ diesel engine for dependable power generation
○ Prime power rating of 32kW/40kVA
○ Multiple voltage configurations available
○ Open and sound-attenuated configurations available
○ Suitable for commercial, industrial and backup power applications
○ Factory-direct supply with customized generator set solutions
For more information, please visit the GENLITEC POWER® Why Choose GENLITEC POWER page.
Warranty
GENLITEC POWER provides a standard warranty of 12 months or 1000 working hours, whichever comes first. For details, please refer to the GENLITEC POWER® Warranty Policy.
