50Hz 120kW 150kVA Diesel Generator with Cummins 6BTAA5.9-G12 Engine
Short Description
GENLITEC POWER GPC138D5/GPC138S5, prime power 110kW/138kVA diesel generators with Cummins 6BTAA5.9-G2 engine, available in open and silent types
- ModelGPC150D5 | GPC150S5
- Frequency50Hz
- Prime Power120KW/150KVA
- Standby Power132KW/165KVA
- EngineCummins 6BTAA5.9-G12
- AlternatorStamford/Leroy Somer/Genlitec Power
- MOQ1 Set
Product Details
Product Tags
Video
Introduction

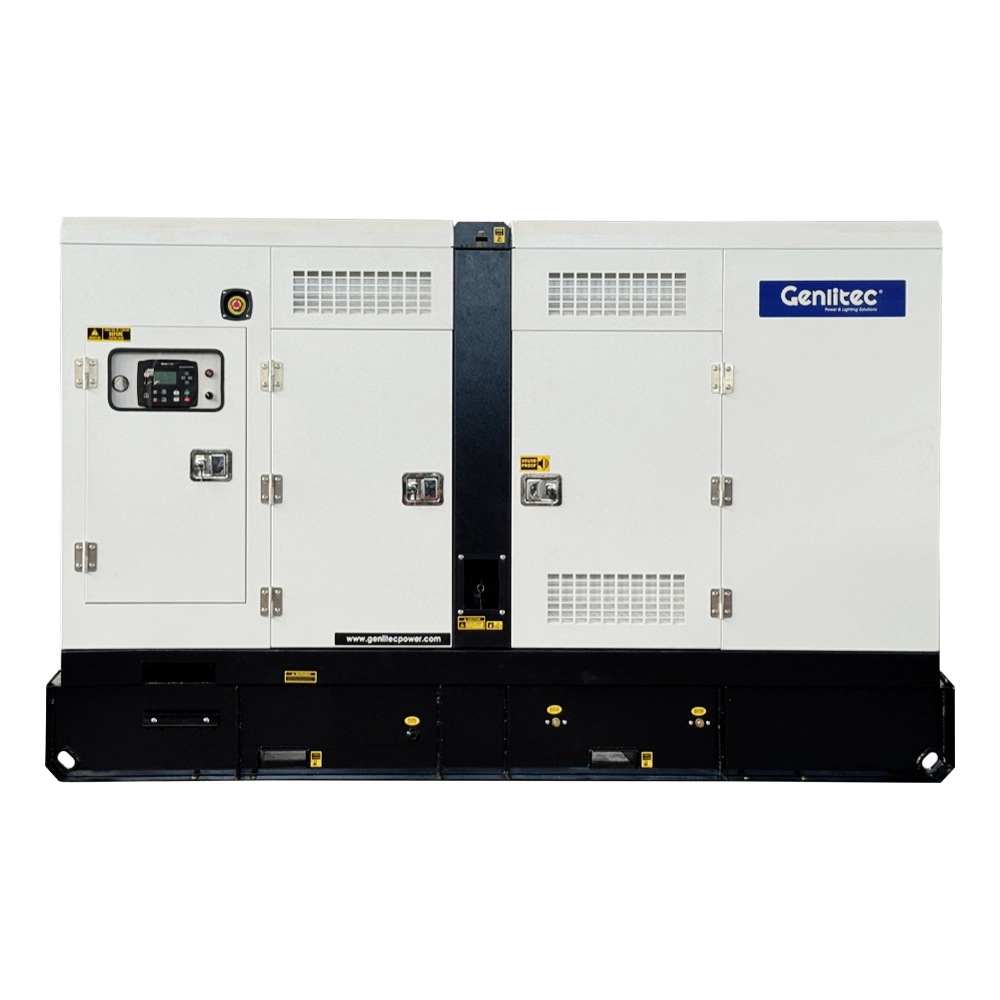

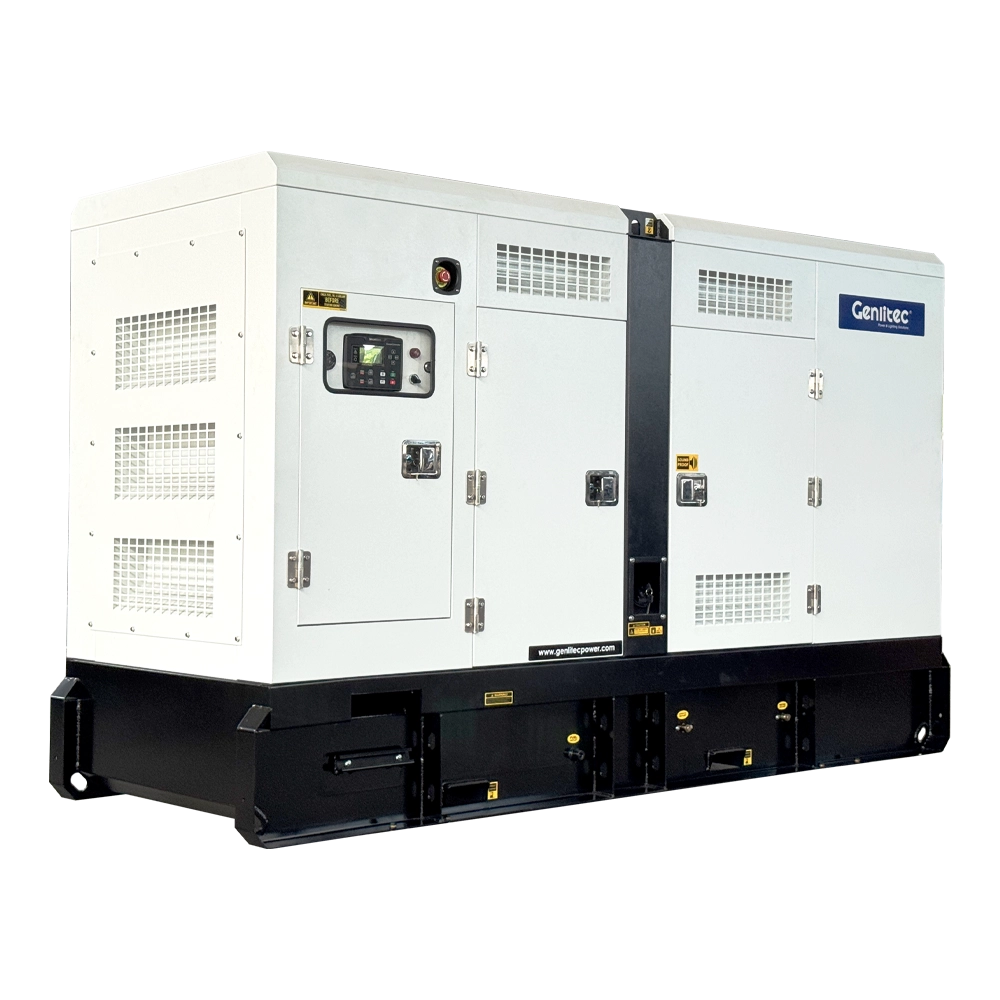

The GENLITEC POWER® GPC150D5 open type and GPC150S5 silent type diesel generator sets provide 120kW/150kVA prime power and 132kW/165kVA standby power. Powered by a Cummins 6BTAA5.9-G12 six-cylinder water-cooled diesel engine and coupled with a brushless copper alternator, they are designed to deliver stable and reliable power for commercial, industrial, construction and backup applications.
Designed for 50Hz operation at 1500RPM, the generator sets provide three-phase, four-wire power with flexible voltage configurations of 220/380V, 230/400V and 240/415V. The package features a 24V DC electric starting system, engine-driven cooling system, anti-vibration mountings and a digital control system for dependable operation and convenient monitoring.
Generator Set
| Open Type Model | GPC150D5 |
| Silent Type Model | GPC150S5 |
| Prime Power | 120kW/150kVA |
| Standby Power | 132kW/165kVA |
| Phase & Wire | 3 Phase, 4 Wires |
| Power Factor | 0.8 |
| Frequency | 50Hz |
| Rated Voltage | 220/380V, 230/400V, 240/415V |
| Rated Speed | 1500RPM |
Diesel Engine
| Engine Model | Cummins 6BTAA5.9-G12 |
| Cylinder | 6 In-Line |
| Aspiration System | Turbocharged, Air to Air Cooling |
| Cooling Method | Water Cooled |
| Governor Type | Electronic |
| Bore x Stroke | 102 x 120 mm |
| Compression Ratio | 17.3:1 |
| Rated Speed | 1500 RPM |
| Displacement | 5.9 L |
| Rated Power | 140 KW |
| Fuel System | P7100 Type |
| Oil Capacity | 16.4 L |
| Coolant Capacity | 29 L |
| Electric Starting System | DC 24V-40A |
Fuel Consumption
| 100% Prime Load | 35 L/H |
| 75% Prime Load | 26 L/H |
| 50% Prime Load | 17 L/H |
| 25% Prime Load | 9 L/H |
Alternator
| Number of Phase | 3 |
| Rated Power | 120KW/150KVA |
| Frequency | 50 Hz |
| Power Factor | 0.8 |
| Poles | 4 |
| Temperature Rise | 125K |
| Terminals | 12 |
| Insulation Type | H Class |
| Ambient Temperature | 40°C |
| IP Rating | IP23 |
| Excitation System | Self-Excited |
| Bearing | Single Bearing |
| Coating | Vacuum Impregnation |
| Voltage Regulator | A.V.R |
| Coupling | Flexible Disc |
Control Panel
| ○ Emergency stop button | ○ Main circuit breaker |
| ○ Float battery charger | ○ Manual/Auto start control panel |
| ○ Fuel level meter | ○ Controller power switch |
| ○ Alarm buzzer |
Sound Attenuated Enclosure
○ Fully weatherproof sound-attenuated enclosure with internal exhaust silencer
○ Highly corrosion-resistant construction
○ Available for GPC150S5 silent type generator set
Options
○ ATS for automatic start and stop when utility power fails or returns
○ Single axle trailer
○ 12-hour fuel tank
○ 24-hour fuel tank
○ Power sockets, including CEE or AUS standards
○ Water-jacket heater
○ Space heater
○ AREM & PMG
○ Remote & Monitoring System
Applications
The GENLITEC POWER 120kW/150kVA diesel generator set is suitable for a wide range of prime, standby and backup power applications, including:
○ Commercial and office buildings
○ Industrial facilities
○ Construction and job sites
○ Agricultural and rural facilities
○ Telecommunication and remote sites
○ Emergency and backup power systems
Why Choose GENLITEC POWER
GENLITEC POWER is a professional manufacturer and exporter of diesel generator sets and mobile lighting towers, providing reliable power generation solutions for construction, mining, telecommunications, infrastructure, industrial, commercial and other demanding applications. With international project experience and flexible product configurations, GENLITEC POWER works with established engine, alternator and controller brands to meet different power requirements, operating environments and customer specifications.
○ Professional manufacturer and exporter of diesel generator sets and mobile lighting towers
○ 10+ years of experience in power generation equipment
○ 2,500+ generator sets annual production capacity
○ Products and projects serving customers in 50+ countries
○ Multiple engine, alternator and controller brand options
○ Flexible configurations for different applications and installation environments
○ Professional manufacturing, testing and quality control
○ International export and project experience
○ Technical support and after-sales service
For more information, please visit the GENLITEC POWER® Why Choose GENLITEC POWER page.
Warranty
GENLITEC POWER provides a standard warranty of 12 months or 1000 working hours, whichever comes first. For details, please refer to the GENLITEC POWER® Warranty Policy.
