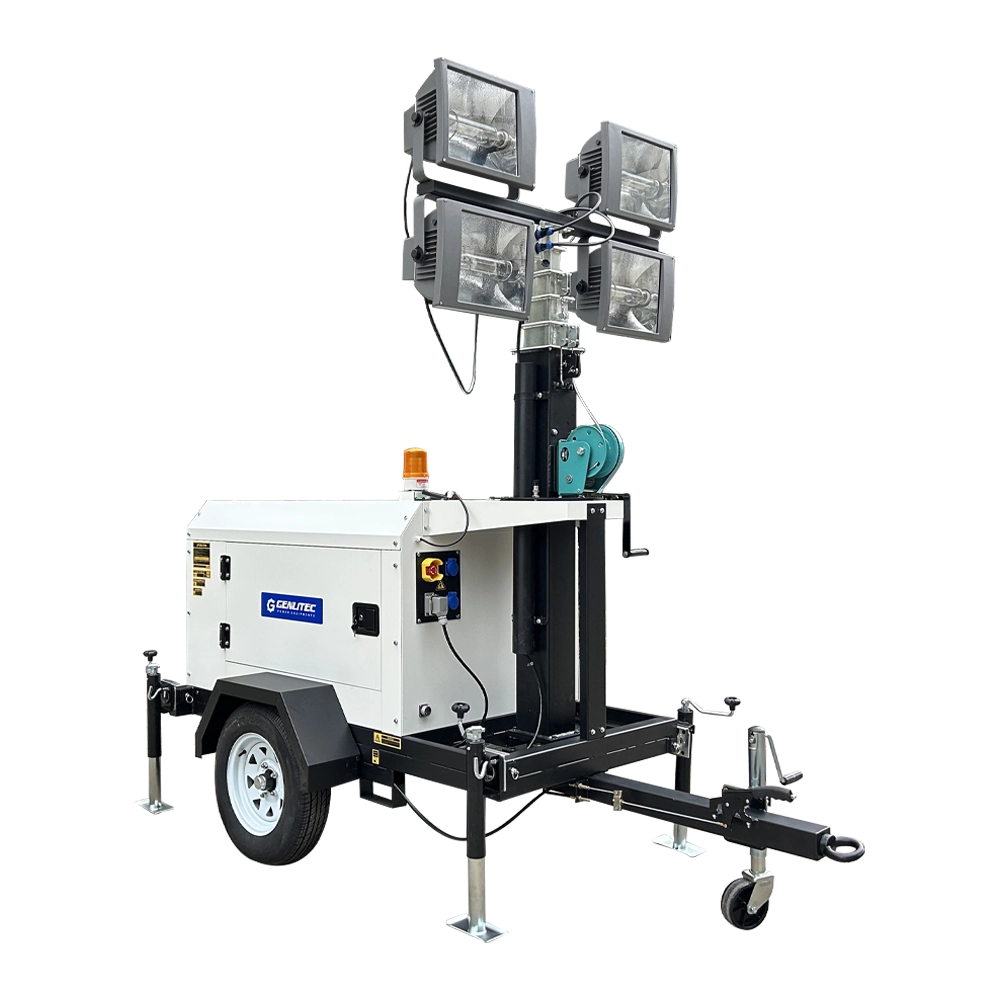

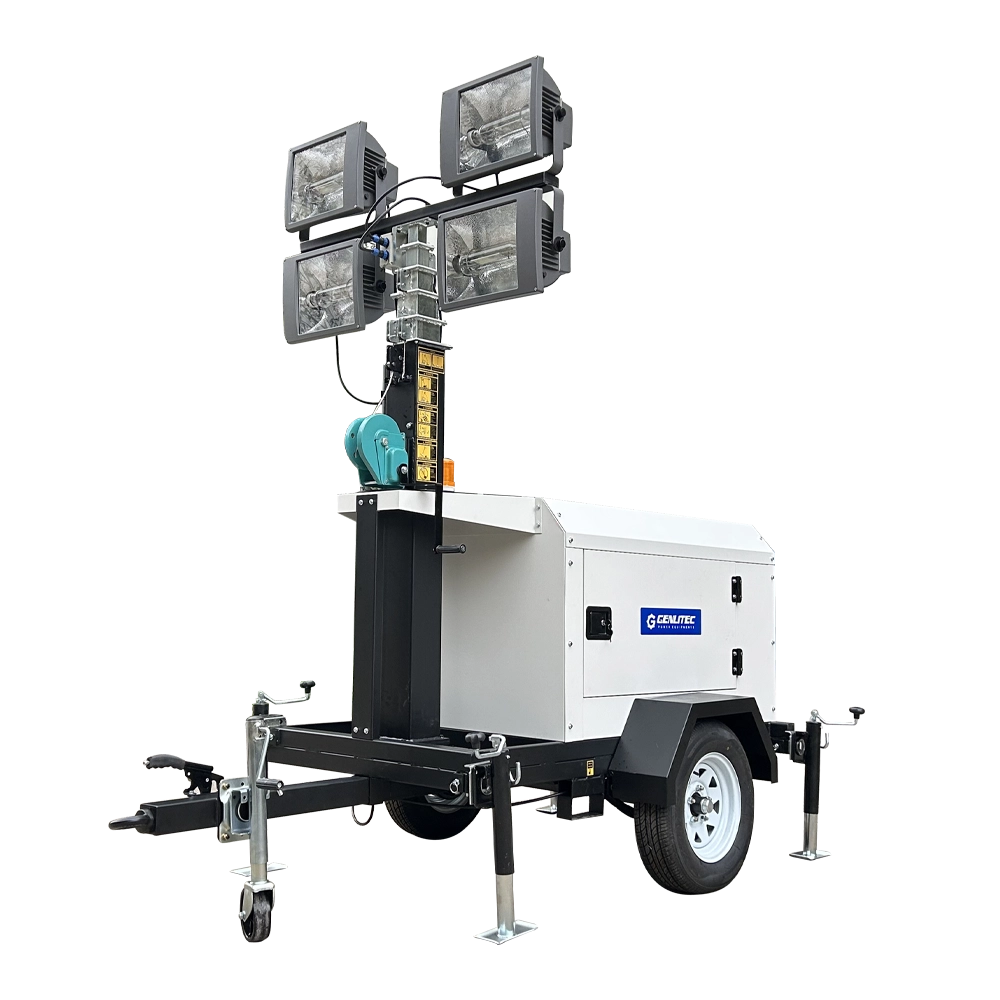

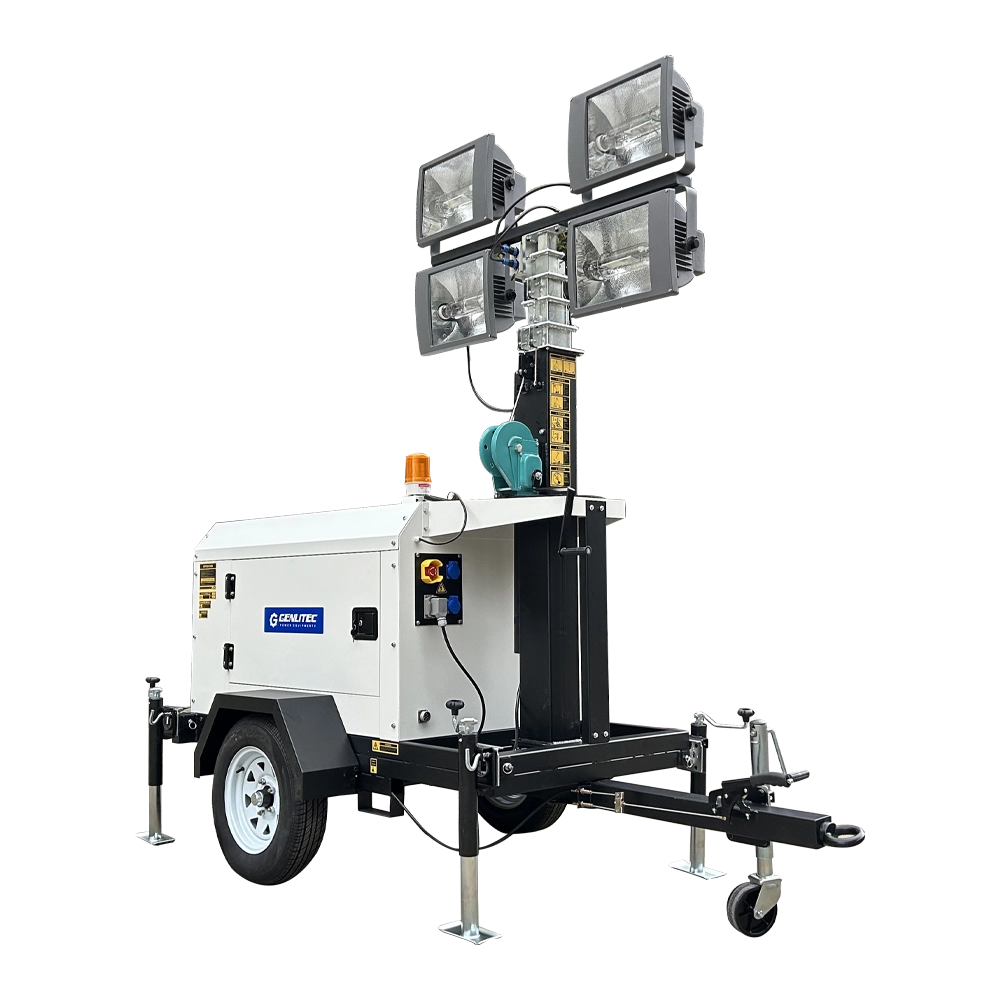

7m Manual 4x1000W MH Light Tower with Rehlko KDW1003 Diesel Engine
Short Description
GENLITEC POWER GLT4000-7VMR is a 7m diesel light tower with 4x1000W metal halide lamps, Rehlko engine and manual mast for construction, mining and events.
- ModelGLT4000-7VMR
- Lifting System7 Metres Vertical Manual
- Power of Lamps4x1000W Metal Halide
- Total Light Capacity300,000 Lumens
- EngineRehlko KDW1003
- Generator Power6.0KW/50Hz; 7.0KW/60Hz
- EmissionEU Stage 5; EPA Tier 4F
- MOQ1 Set
Product Details
Product Tags
Video
Introduction
The GENLITEC POWER® GLT4000-7VMR is a 7-meter vertical manual diesel generator mobile light tower equipped with four 1000W metal halide floodlights. Powered by a reliable REHLKO KDW1003 three-cylinder water-cooled diesel engine, it provides powerful and dependable lighting for construction sites, mining operations, road and highway projects, infrastructure development, outdoor events, oil and gas sites, and emergency lighting.

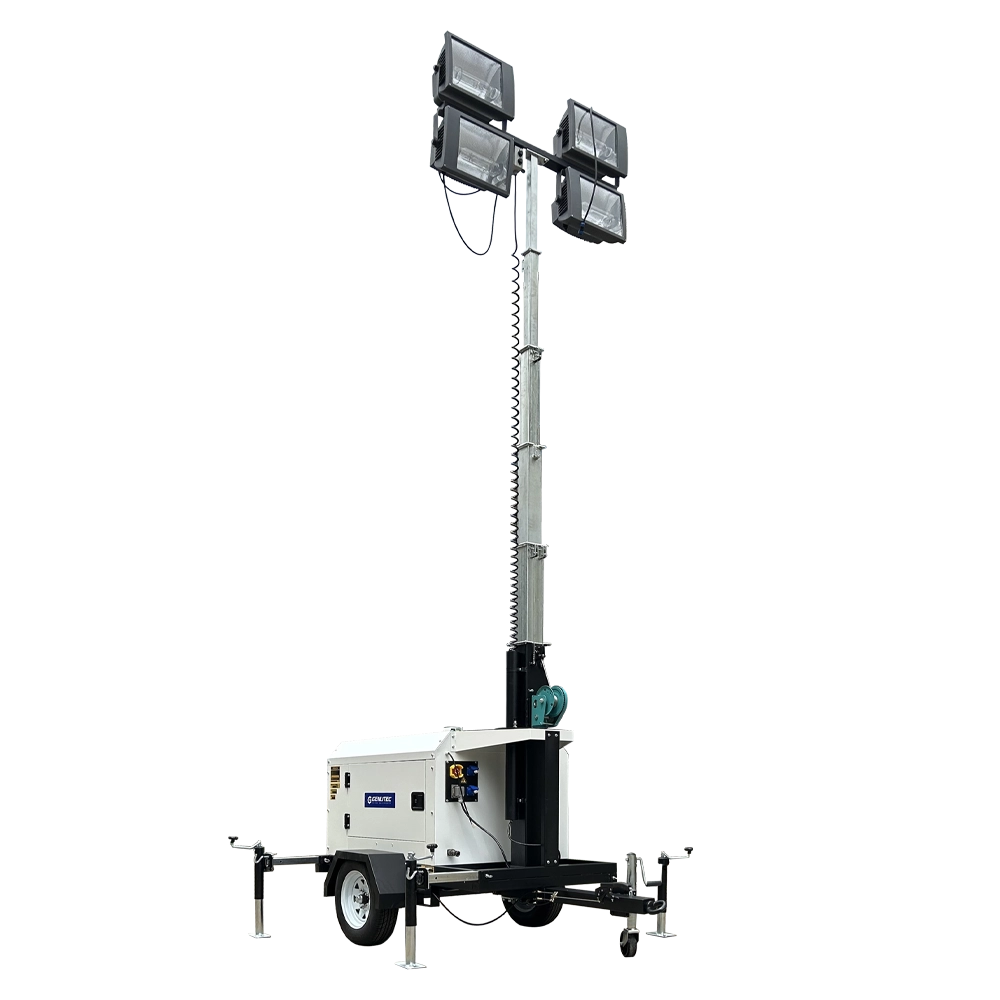

The vertical manual mast extends to a maximum height of 7 meters and uses a self-lock winch lifting system with 358° manual rotation for flexible lighting positioning. The trailer-mounted design allows convenient transportation and rapid deployment, while four high-output 1000W metal halide floodlights provide powerful illumination with a total lighting capacity of 300,000 lumens. With a single-axle trailer, 13-inch tyres, IP65 floodlights and a reliable REHLKO KDW1003 diesel engine, the GLT4000-7VMR is designed for demanding outdoor lighting applications.
Light Tower
| Model | GLT4000-7VMR |
| Lifting System | 7 Metres, Vertical Type Manual Lifting |
| Mast Rotation System | 358° Manual |
| Total Power of Lights | 4 x 1000W Metal Halide Lamps |
| Frequency | 50Hz |
| Voltage | 220~240V |
| Phase | Single |
| Rated Power | 6.0KW/50Hz; 7.0KW/60Hz |
| Trailer Structure | Single Axle, 13-inch Tyres |
Diesel Engine
| Engine Model | REHLKO KDW1003 |
| Cylinder Number | 3 |
| Aspiration System | Natural |
| Cooling Method | Water Cooled |
| Combustion System | Indirect Injection |
| Bore x Stroke | 75 x 77.6 mm |
| Compression Ratio | 21.8:1 |
| Engine Speed | 1500/1800 RPM |
| Displacement | 1.028L |
| Rated Power | 8.0kW/1500 RPM; 9.0kW/1800 RPM |
| Fuel Injection Pump | Mechanical Pump |
| Oil Capacity | 4.7L |
| Governor Type | Mechanical |
| Electric Starting System | DC 12V |
| Emission Standard | EPA Tier 4 Final / EU Stage V |
Alternator
| Number of Phase | Single |
| Rated Power | 6~8KW |
| Frequency | 50/60Hz |
| Power Factor | 1.0 |
| Temp. Rise | 125K |
| Insulation Class | H |
| Ambient Temp. | 40°C |
| IP Rating | IP23 |
| Excitation System | Self-Excited |
| Bearing | Single |
| Coating | Vacuum Impregnation |
| Voltage Regulator | A.V.R |
| Coupling | Flexible Disc |
Operation Mast
| Max. Height of Mast | 7 Metres |
| Lifting System | Vertical Type, Manual |
| Lifting Method | Self-Lock Winch |
| Mast Stages | 6 |
| Rotation System | 358° Manually |
| Mast Material | Galvanized Steel Tube |
| Winch Type | 1 x 1500 LBS |
Metal Halide Floodlights
| Total Power of Lamps | 4 x 1000W |
| Lamps Type | Metal Halide Floodlights |
| Light Capacity | 4 x 75,000 Lumens |
| Design Lifetime | ≥5,000 Hours |
| Working Temp. | -25°C~50°C |
| Light Coverage | 5~7 Acres |
| Protection Grade | IP65 |
Control Panel
| ○ Digital controller | ○ Emergency stop button |
| ○ Main circuit breaker and individual circuit breakers for lights | ○ Hour meter |
| ○ Manual/Auto start control panel | ○ Fuel level meter |
| ○ Controller power switch | ○ Alarm buzzer |
Trailer and Sound Attenuated Enclosure
○ Fully weatherproof sound-attenuated enclosure with internal exhaust silencer
○ Highly corrosion-resistant construction
○ Heavy-duty single-axle trailer with 13-inch tyres
○ Fuel tank for extended outdoor operation
Container Loading Capacity
| 20GP CONTAINER | Max. 6 Sets |
| 40HQ CONTAINER | Max. 12 Sets |
Applications
The GLT4000-7VMR diesel generator mobile light tower is designed for reliable temporary lighting and auxiliary power in demanding outdoor environments. Typical applications include:
○ Construction sites
○ Mining operations
○ Road and highway projects
○ Railway and infrastructure projects
○ Oil and gas sites
○ Outdoor events and temporary lighting
○ Emergency and disaster-response lighting
Why Choose GENLITEC POWER
GENLITEC POWER provides diesel generator sets and mobile lighting towers with flexible configurations, engineering support and international after-sales service for different power generation and lighting requirements.
○ Professional manufacturer and exporter
○ Wide range of generator sets and mobile lighting towers
○ Multiple engine, alternator and controller options
○ Engineering support and customized configurations
○ International project and after-sales support
Warranty
12 months or 1000 working hours, whichever comes first. For details, please refer to GENLITEC POWER® Warranty Policy.
