50Hz 80kW 100kVA Diesel Generator with Deutz BF4M1013EC G1 Engine
Introduction
The GENLITEC POWER GPD100D5 / GPD100S5 diesel generator set is designed to provide dependable power for commercial, industrial, and standby applications. Powered by a DEUTZ BF4M1013EC G1 diesel engine, the generator set is rated at 80kW/100kVA prime power and 88kW/110kVA standby power at 50Hz and 1500RPM.

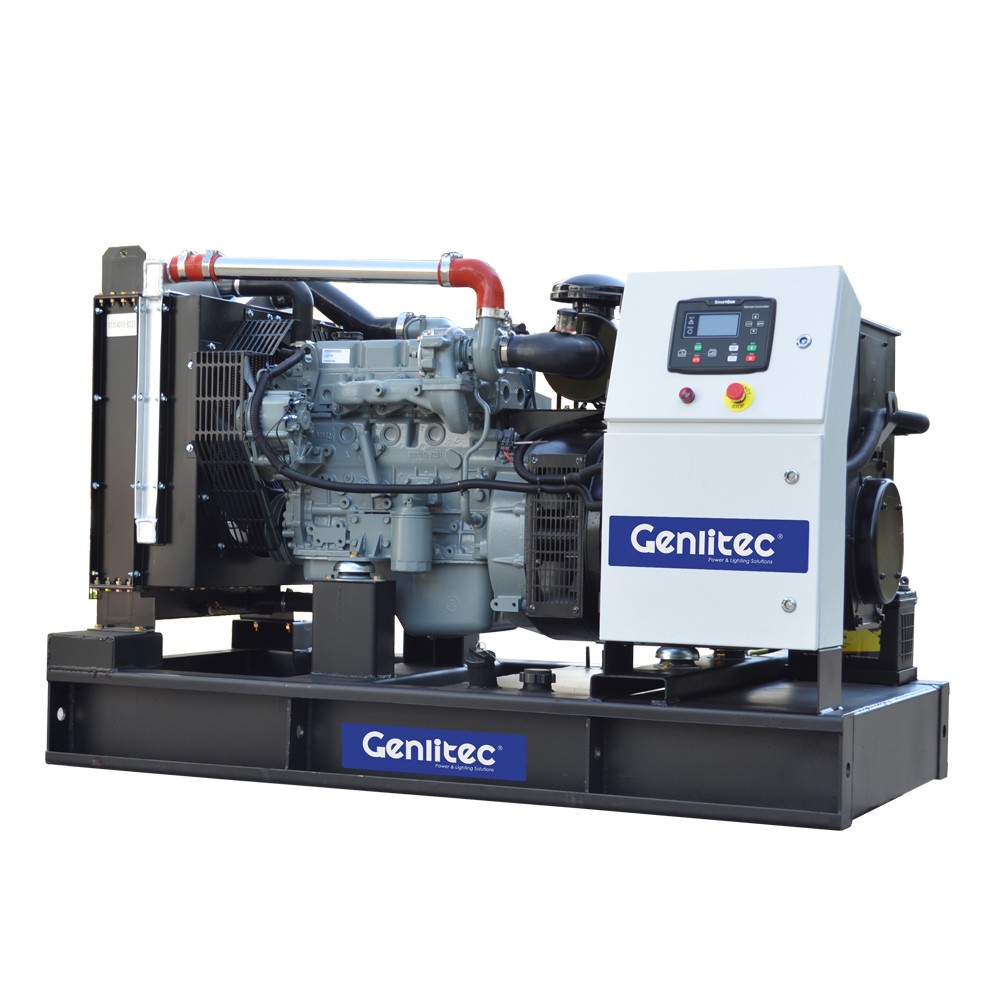

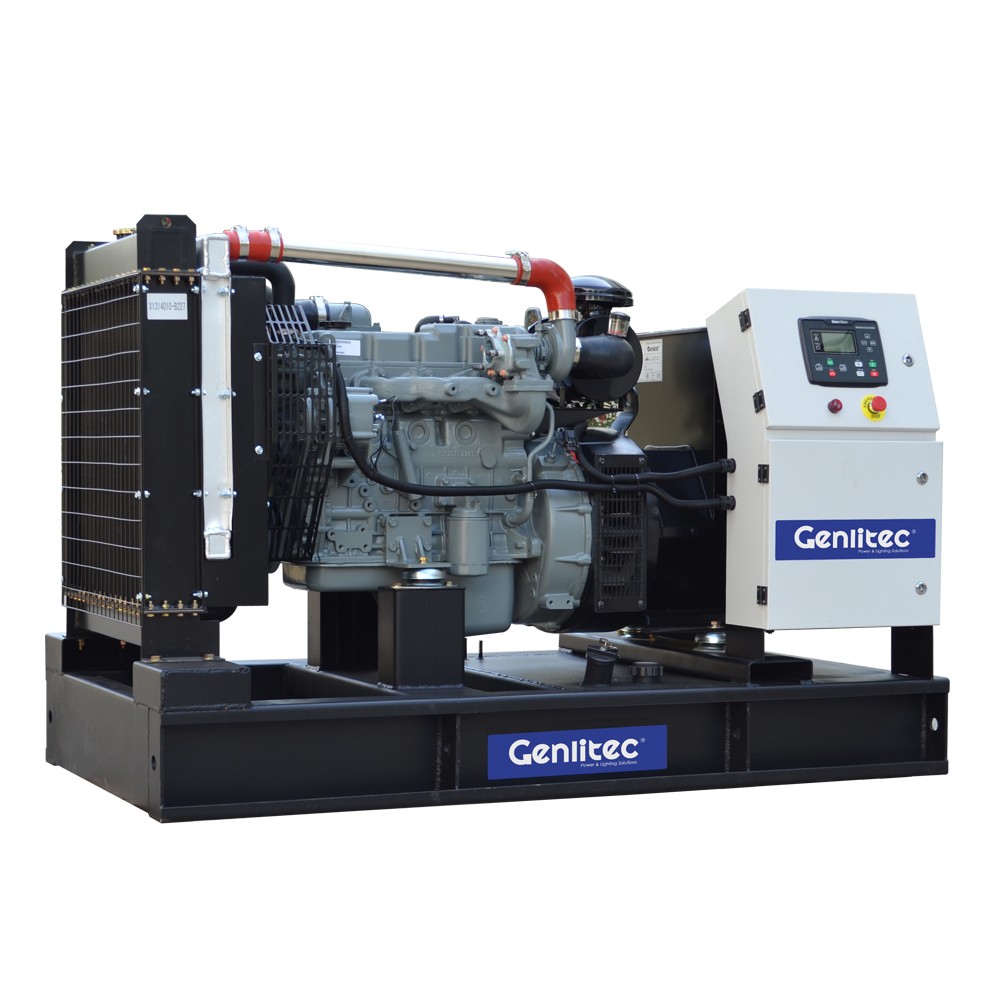

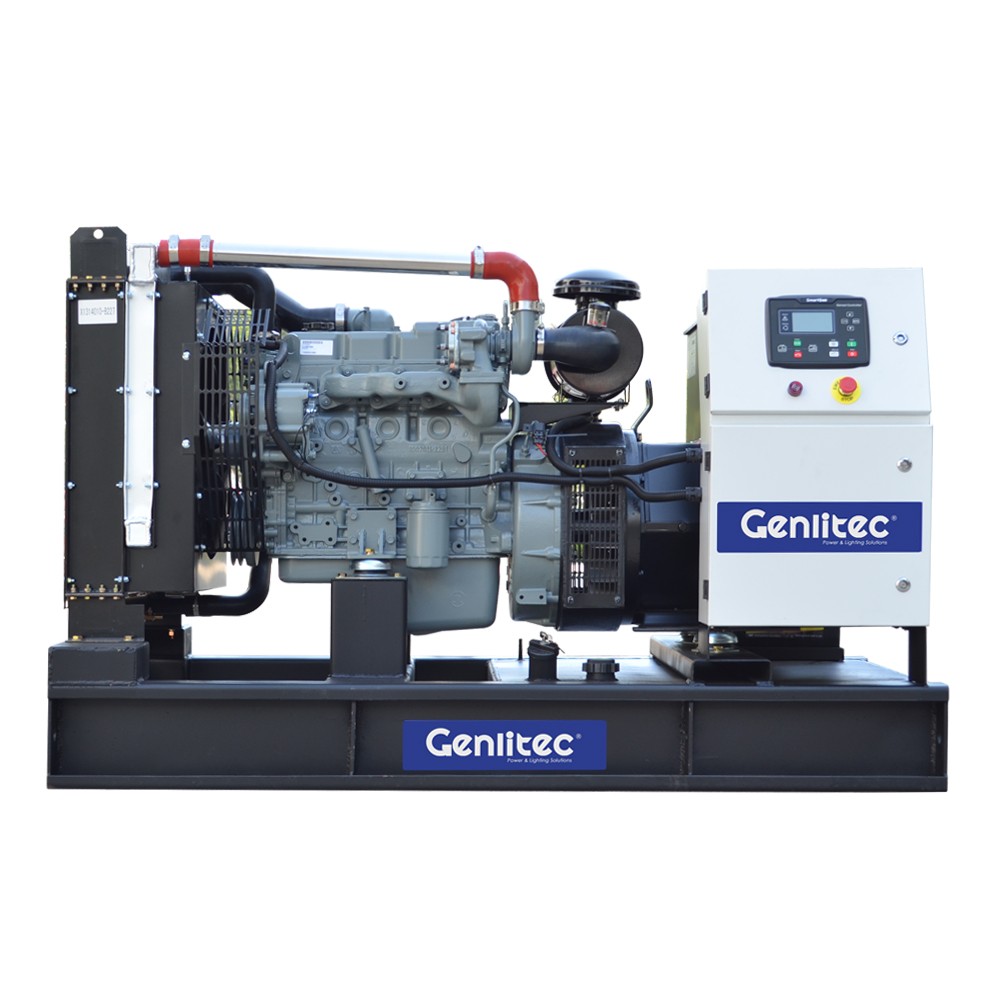

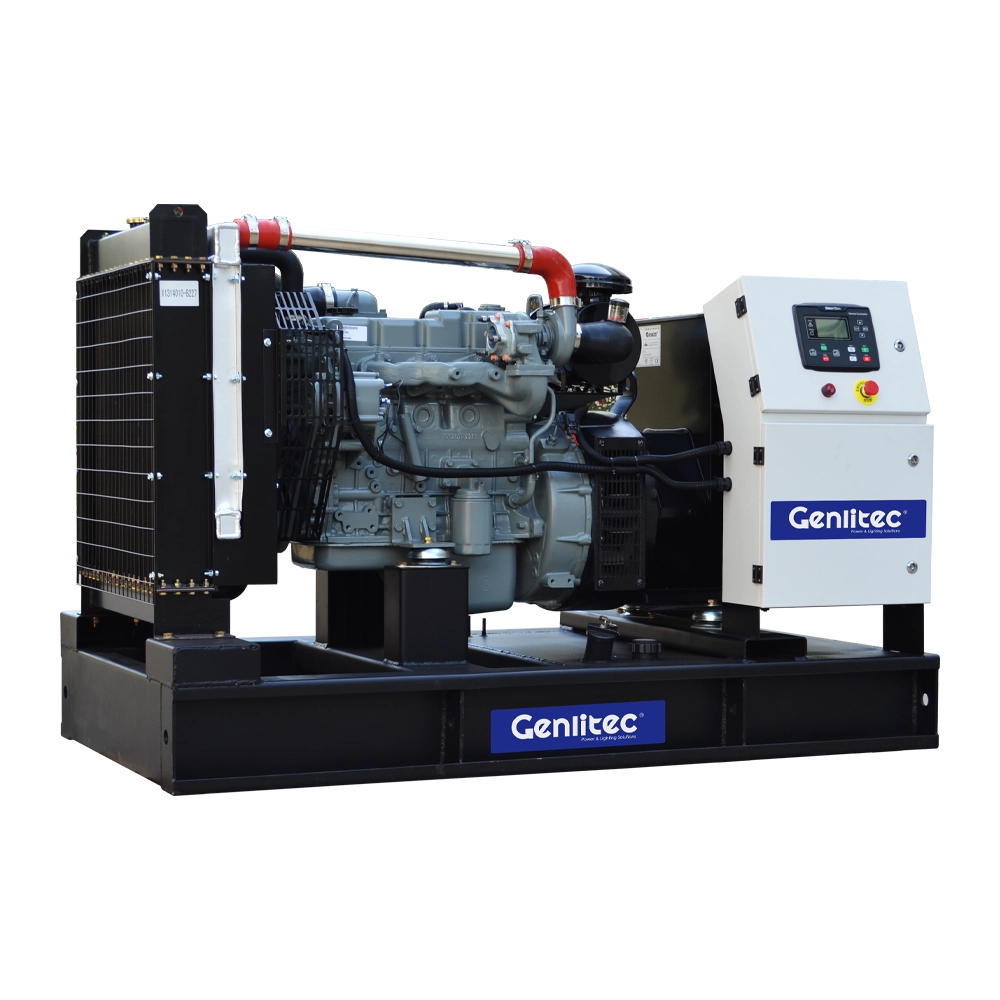

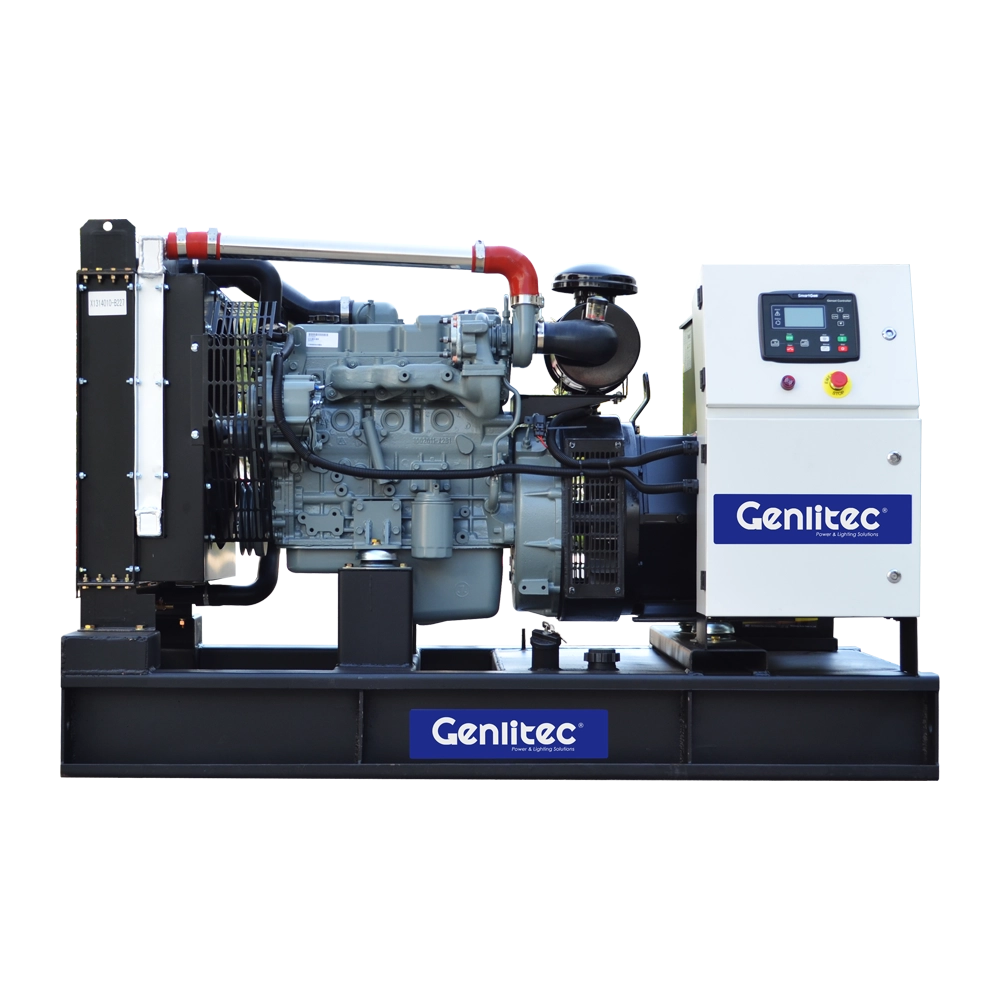

With a 150L fuel tank, three-phase output, and multiple voltage configurations available, this generator set can be configured for a variety of power requirements. The GPD100D5 is the open type model, while the GPD100S5 features a sound-attenuated enclosure for outdoor and noise-sensitive applications.
Generator Set
| Open Type Model | GPD100D5 |
| Silent Type Model | GPD100S5 |
| Frequency | 50Hz |
| Phase & Wires | 3 Phase, 4 Wires |
| Power Factor | 0.8 |
| Prime Power | 80kW/100kVA |
| Standby Power | 88kW/110kVA |
| Rated Voltage | 220/380V; 230/400V; 240/415V (available configurations) |
| Rated Speed | 1500 RPM |
| Fuel Tank Capacity | 150L |
Diesel Engine
| Engine Model | DEUTZ BF4M1013EC G1 |
| Power Level | G1 |
| Power Standard | LTP (Limited Time Power) |
| Cylinder Number | 4 |
| Cylinder Arrangement | In-line |
| Engine Type | 4-Stroke Diesel |
| Aspiration System | Turbocharged, Charge Air Cooled (CAC) |
| Cooling Method | Water Cooled |
| Fuel Injection System | Single Injection Pumps |
| Bore x Stroke | 108 x 130 mm |
| Compression Ratio | 19:1 |
| Rated Speed | 1500 RPM |
| Displacement | 4.76L |
| Gross Output (LTP / Standby) | 102kW |
| Gross Output (PRP / Prime) | 97kW |
| Gross Continuous Output | 92kW |
| Fan Power Consumption | 5.9kW |
| Engine Dry Weight (Without Cooling System) | 526kg |
| Engine Weight (With Cooling System) | 560kg |
| Oil Capacity | 11L |
| Coolant Capacity (Engine) | 7.4L |
| Coolant Capacity (Including Cooling Unit) | 19.7L |
| Electrical System | 24V DC |
| Starter Motor Power | 6kW |
| Alternator Output | 35A |
Fuel Consumption
| 25% Load | 6.7L/h |
| 50% Load | 12.2L/h |
| 75% Load | 18.0L/h |
| 100% Load | 24.2L/h |
Fuel consumption figures are based on the DEUTZ BF4M1013EC G1 engine datasheet at 1500RPM. Actual generator set fuel consumption may vary with operating conditions, load profile, ambient conditions and configuration.
Alternator
| Number of Phase | 3 |
| Rated Power | 80kW/100kVA |
| Frequency | 50Hz |
| Power Factor | 0.8 |
| Poles | 4 |
| Temperature Rise | 125K |
| Terminals | 6/12 |
| Insulation Class | H Class |
| Ambient Temperature | 40°C |
| IP Rating | IP23 |
| Excitation System | Self-Excited |
| Bearing | Single Bearing |
| Coating | Vacuum Impregnation |
| Voltage Regulator | AVR |
| Coupling | Flexible Disc |
Control Panel
| ○ Emergency stop button | ○ Main circuit breaker |
| ○ Float battery charger | ○ Manual/Auto start control panel |
| ○ Fuel level meter | ○ Controller power switch |
| ○ Alarm buzzer | ○ Remote monitoring interface |

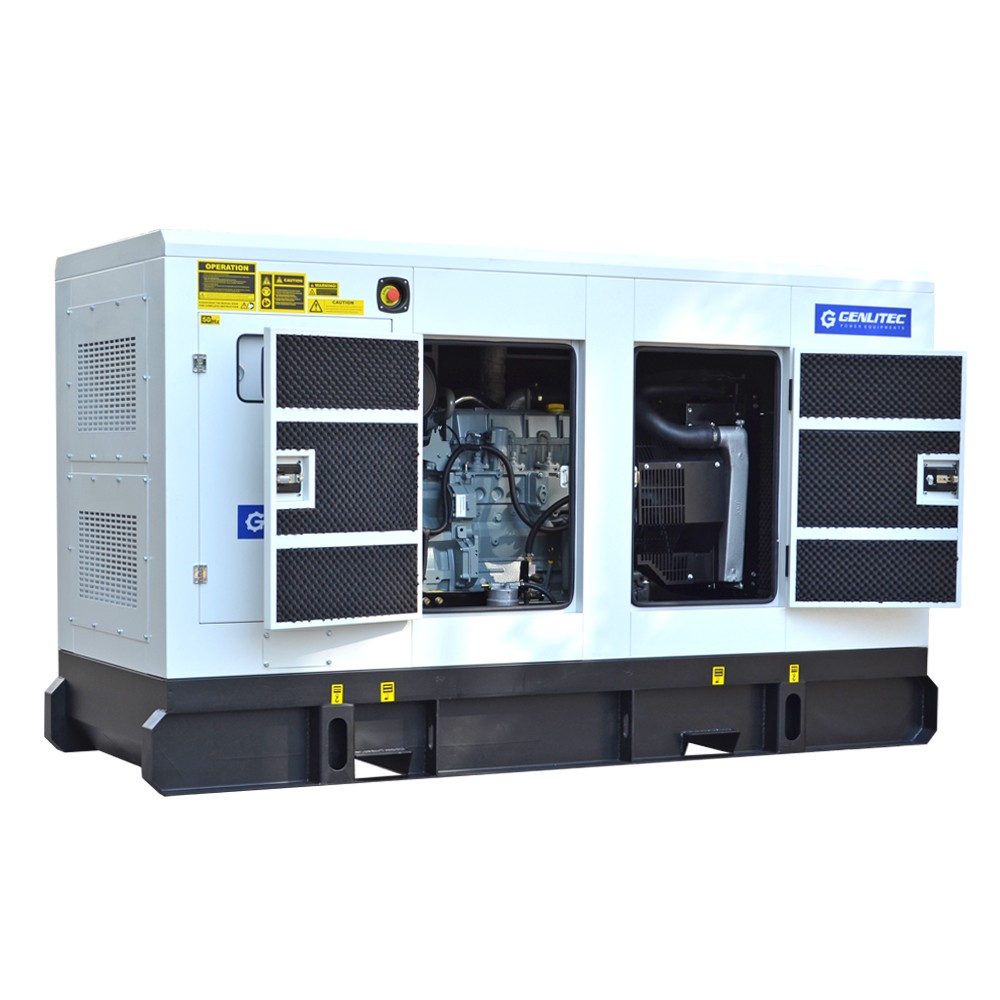

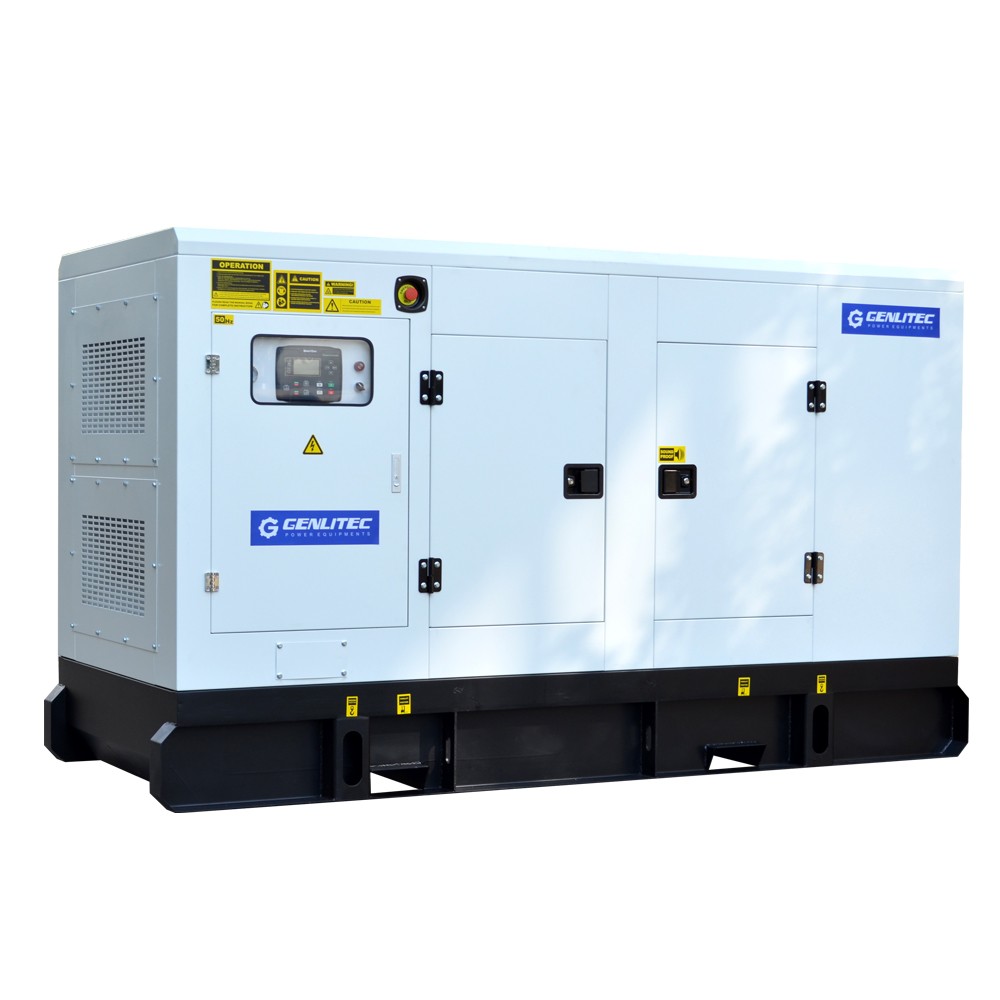

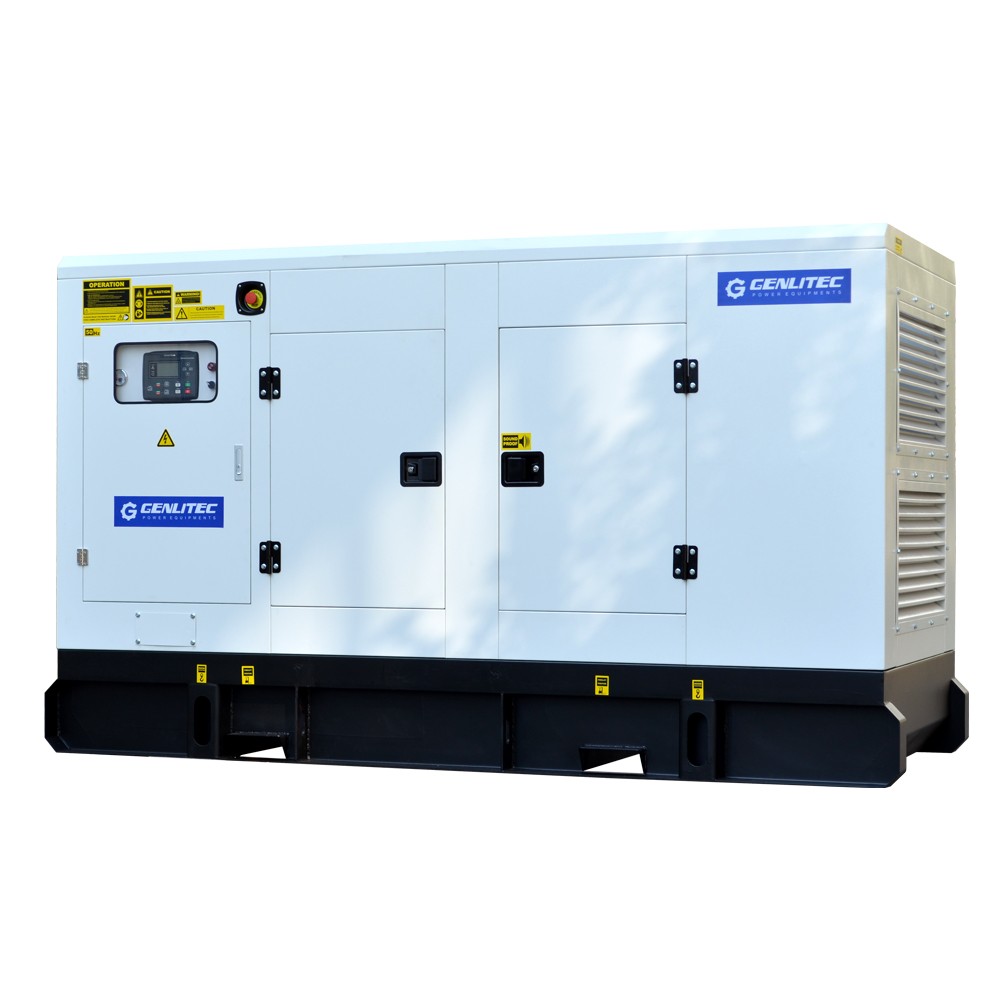

SOUND ATTENUATED ENCLOSURE

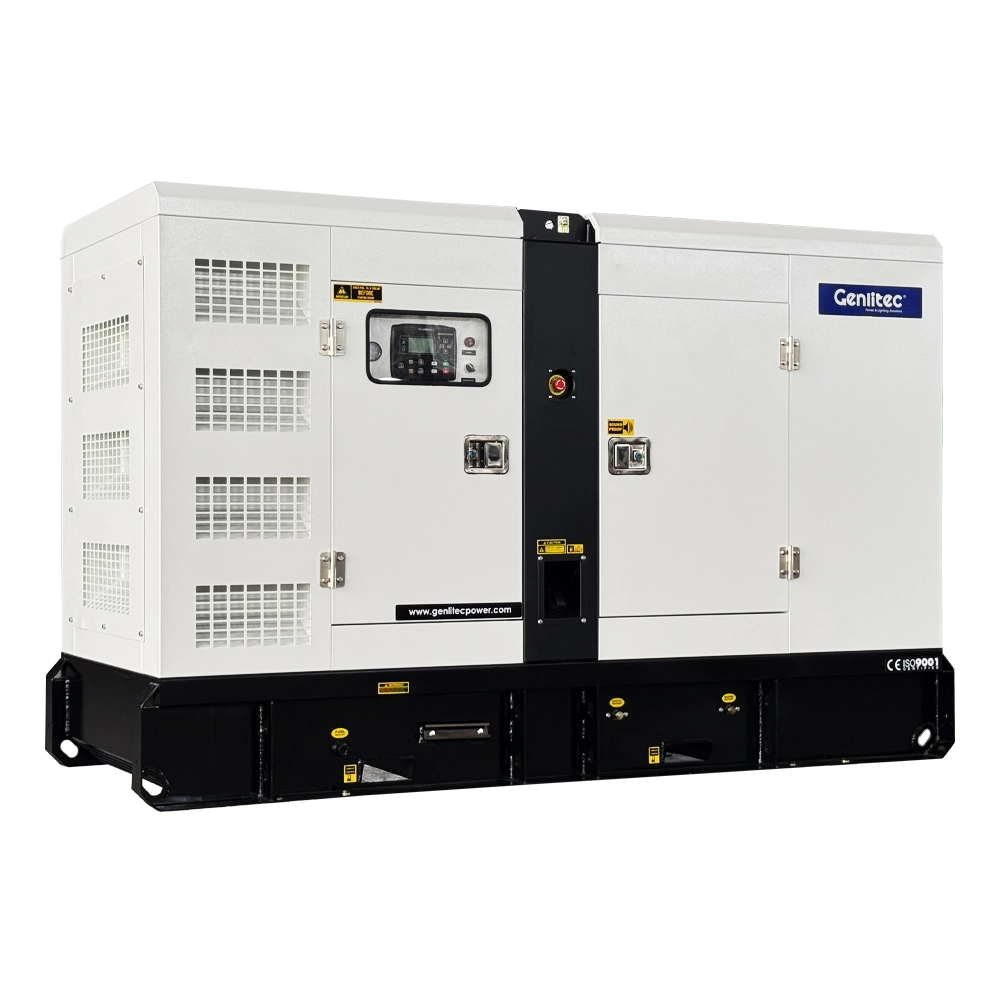

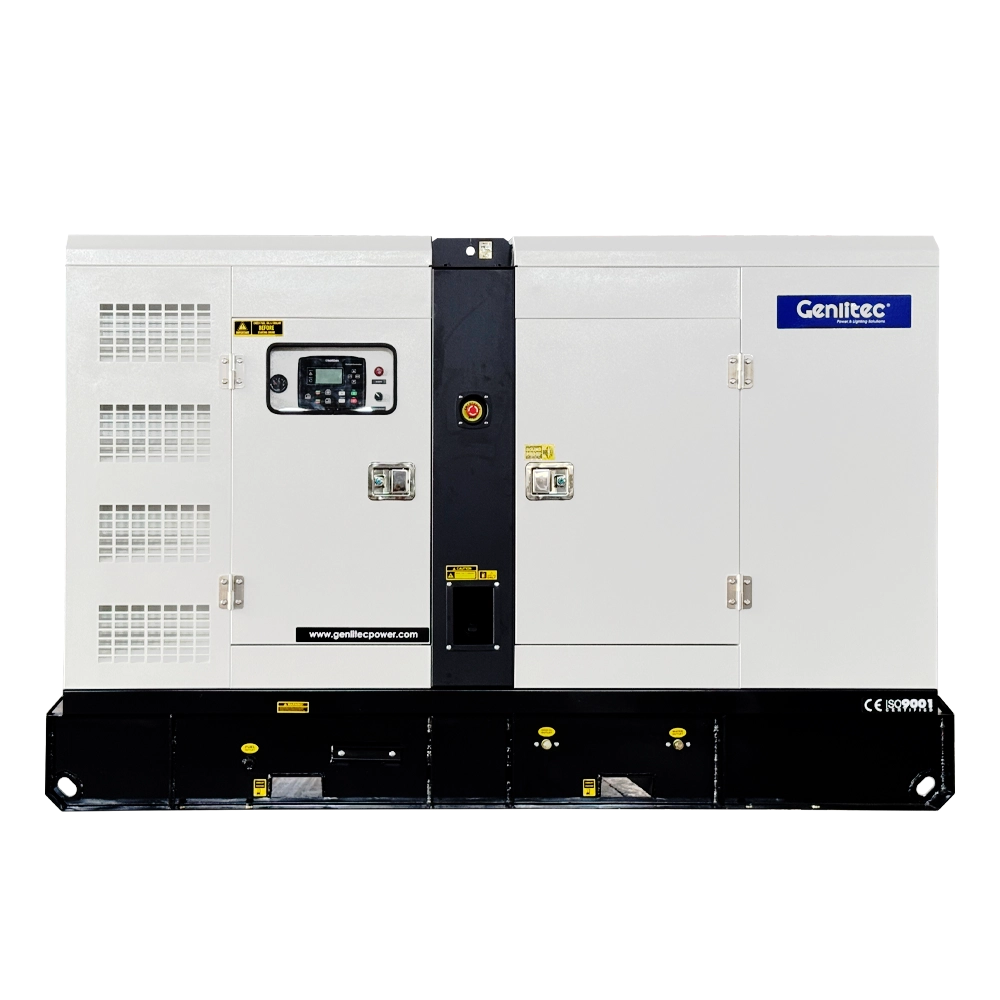

The GPD100S5 silent type generator set is equipped with a sound-attenuated enclosure designed to reduce operating noise and provide protection against outdoor weather conditions.
○ Sound-attenuated enclosure for reduced noise levels
○ Weatherproof design for outdoor installation
○ Internal exhaust silencer for effective noise reduction
○ Corrosion-resistant construction for long-term outdoor use
○ Service access doors for convenient maintenance
○ Suitable for commercial, industrial and standby power applications
Options
○ ATS for automatic start and stop when utility power fails or returns
○ Remote Monitoring System
○ Water-Jacket Heater
○ Larger-capacity fuel tank for extended runtime
○ Power sockets, including CEE or AUS standards
○ Customized voltage and control configurations
Applications
The GENLITEC POWER 80kW/100kVA diesel generator set is suitable for prime, standby and backup power applications, including:
○ Commercial and office buildings
○ Industrial facilities and workshops
○ Construction and job sites
○ Agricultural and rural facilities
○ Telecommunications and remote sites
○ Emergency and standby power systems
Why Choose GENLITEC POWER
GENLITEC POWER diesel generator sets combine dependable engine technology with practical configurations for a wide range of power requirements.
○ DEUTZ diesel engine for dependable power generation
○ Prime and standby power configurations for different operating requirements
○ Multiple voltage configurations available
○ Open and silent type configurations available
○ Suitable for commercial, industrial and backup power applications
○ Factory-direct supply with customized generator set solutions
For more information, please visit the GENLITEC POWER® Why Choose GENLITEC POWER page.
Warranty
GENLITEC POWER provides a standard warranty of 12 months or 1000 working hours, whichever comes first. For details, please refer to the GENLITEC POWER® Warranty Policy.
