Short Description:

GENLITEC POWER® GSC200D5 (open type), GSC200S5 (silent type) diesel generator set powered by original SDEC Shangchai diesel engine SC8D280D2, with prime power 160KW/200KVA and standby power 176KW/220KVA....


  • Model: GSC200D5 | GSC200S5
  • Engine: SDEC SHANGCHAI SC8D280D2
  • Prime Power: 160KW/200KVA
  • Standby Power: 176KW/220KVA
  • Voltage: 220/380V | 230/400V | 240/415V

Product Details

Product Tags


GENLITEC POWER® 160KW/200KVA SDEC DIESEL GENERATOR SET FEATURES

○ Brand new original SDEC brand water cooled diesel engine

GENLITEC POWER® single bearing 100% copper brushless alternator

○ Rating 220/380V, 3-Phase 4-Wires, 50Hz, 1500RPM, 0.8PF, IP23, H insulation class

○ 50℃ radiator with engine driven fan mounted on the based frame

○ Set mounted control panel equipped with DEEPSEA, COMAP, DEIF or SMARTGEN digital controller

○ Original ABB, DELIXI or CHINT brand MCCB type main circuit breaker

○ Diesel engine and alternator mounted on a based frame with anti-vibration mountings

○ 24V DC electric start system with free-maintenance lead-acid battery and float battery charger

○ Industrial silencers with blexible connects and elbow

○ Complete engine alarm system


● GENERATOR SET

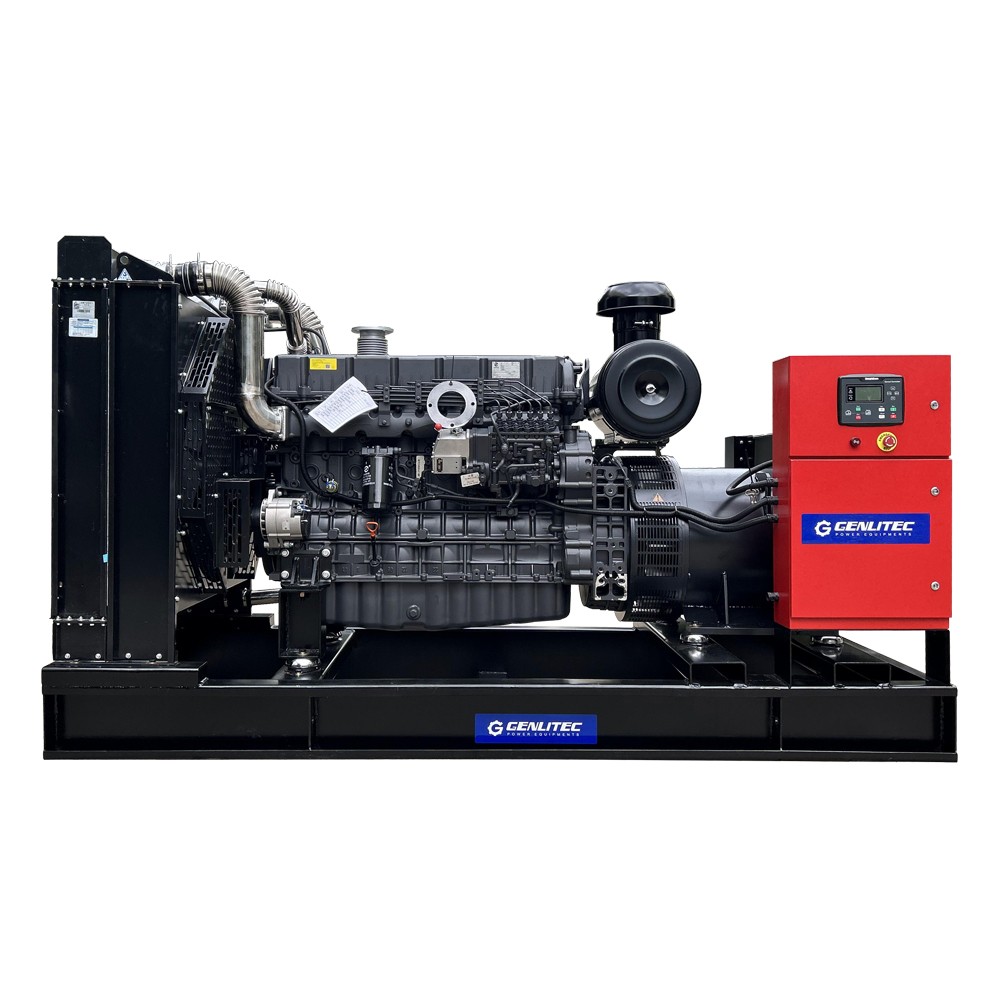

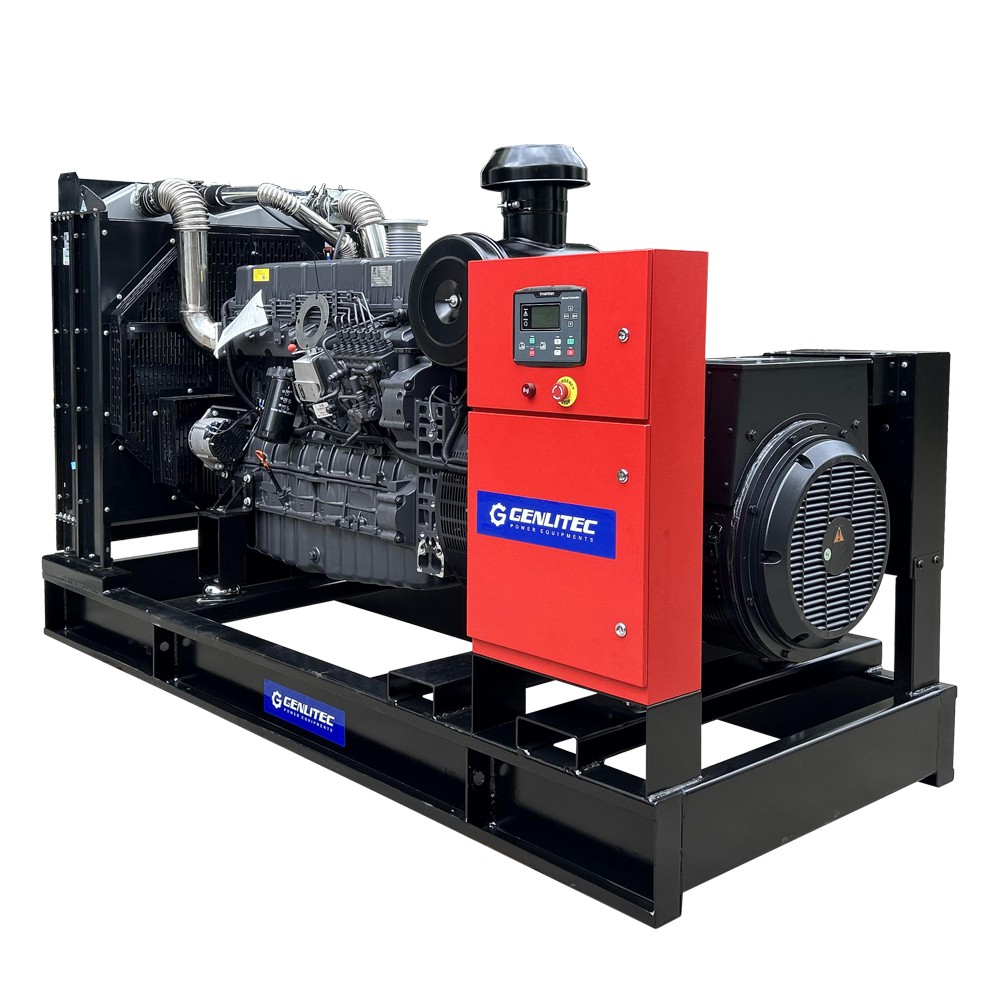

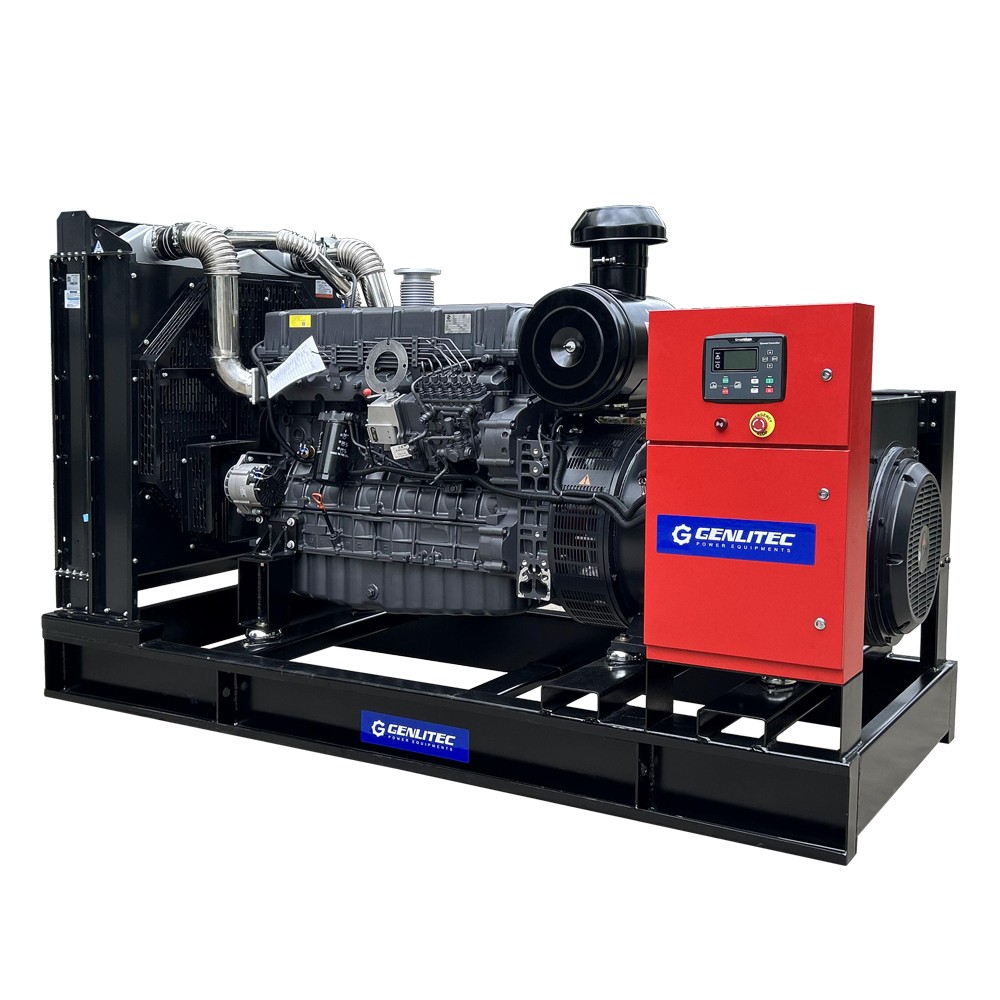

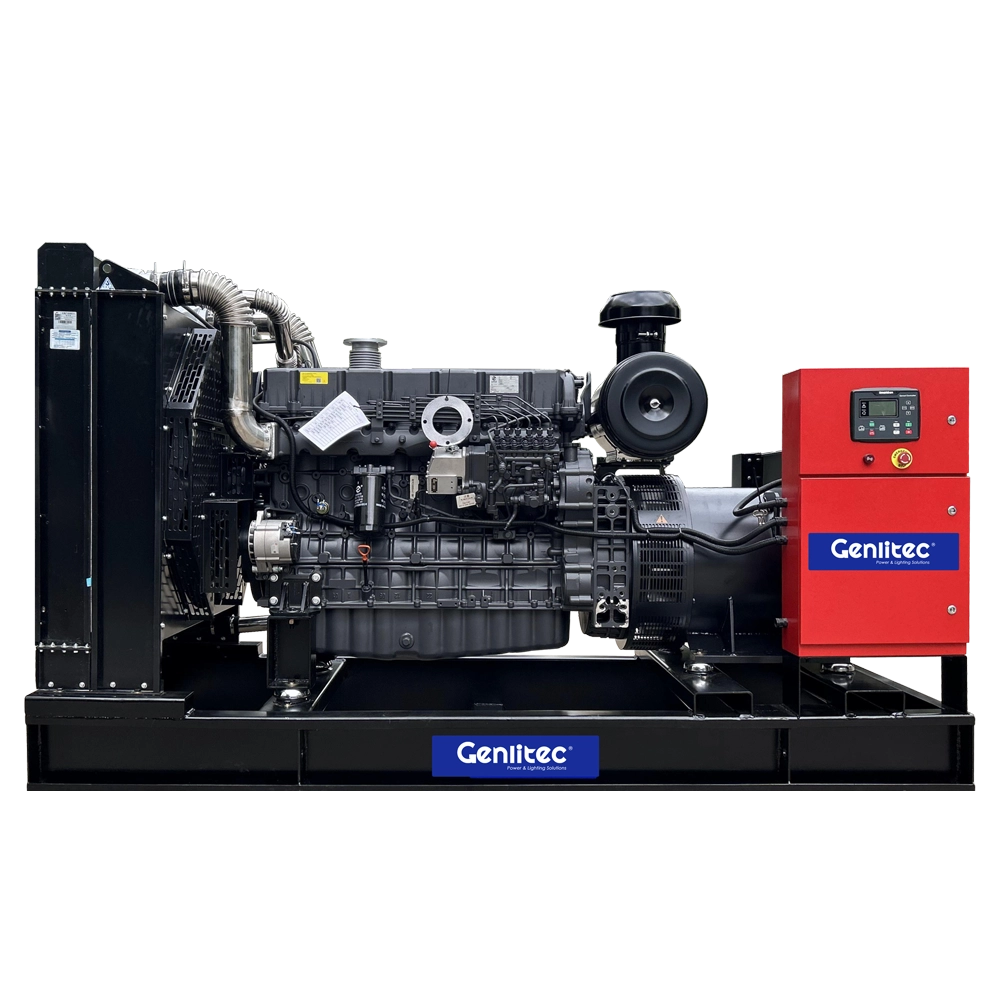

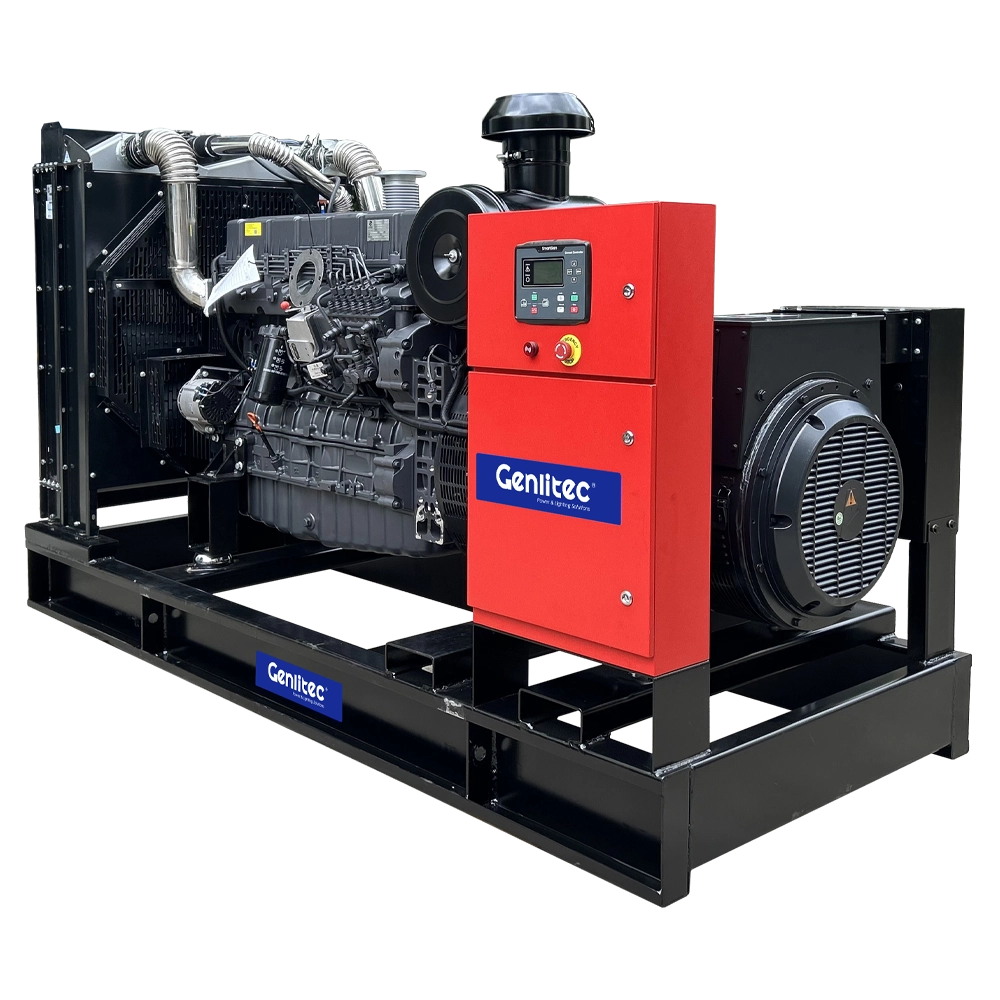

Open Type Model GSC200D5

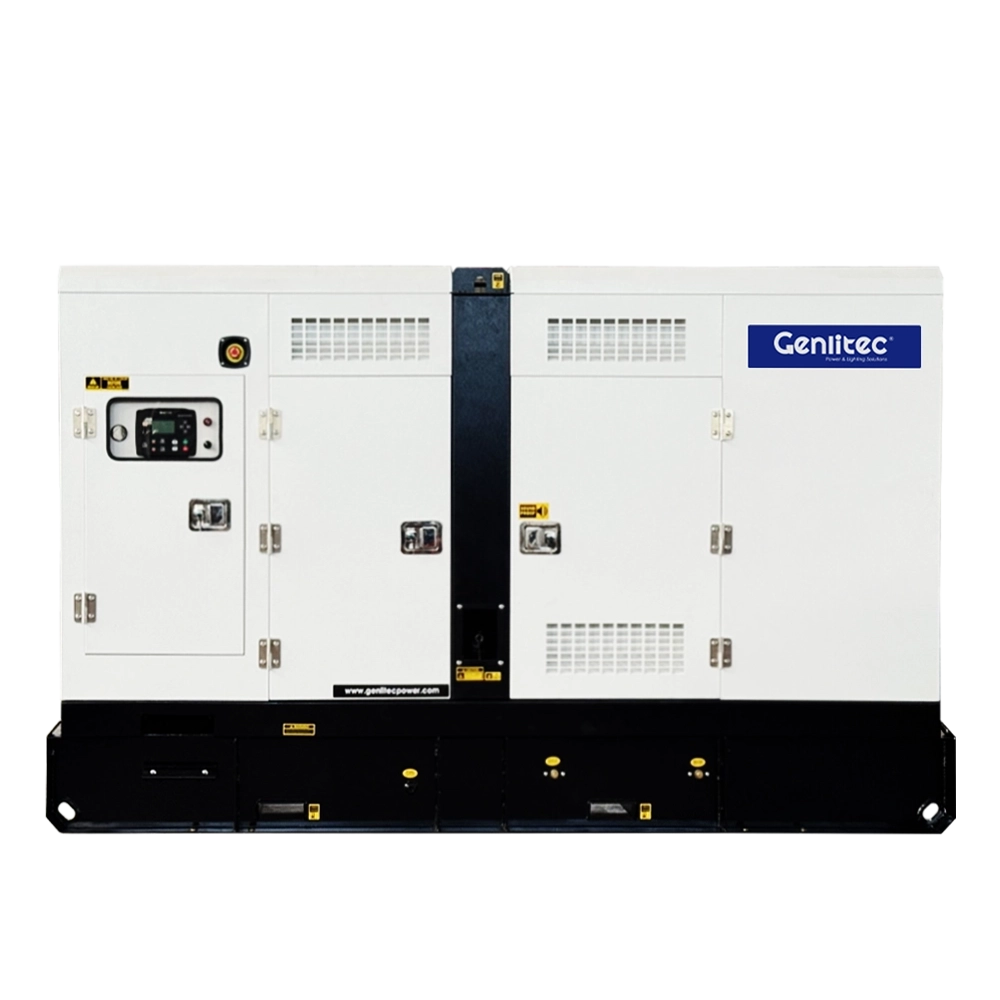

Silent Type Model GSC200S5
Prime Power 160KW/200KVA
Standby Power 176KW/220KVA
Phase & Wire 3 Phase, 4 Wires
Power Factor 0.8
Frequency 50Hz
Voltage 220/380V; 230/400V; 240/415V

● DIESEL ENGINE

Model SDEC SC8D280D2
Cylinder Number 6
Aspiration System Turbocharged, Air to Air Intercooled
Cooling Method Water Cooled
Governor Type Electronic
Bore x Stroke 114 x 135 mm
Compression Ratio 18:1
Rated Speed 1500 RPM
Displacement 8.27L
Rated Power 185KW
Standby Power 204KW
Fuel System "P" Type
Oil Capacity 19L
Coolant Capacity 12L (Engine Only)
Starting System DC 24C

● FUEL CONSUMPTION

100% Prime Power 44.9L/H
75% Prime Power 33.5L/H
50% Prime Power 22.5L/H
25% Prime Power 12.4L/H

ALTERNATOR

Number of Phase 3
Rated Power 160KW/200KVA
Frequency 50Hz
Power Factor 0.8
Poles 4
Temp. Rise 125K
Terminals 12
Insulation Class H Class
Ambient Temp. 40℃
IP Rating IP23
Excitation System Self-Excited
Bearing Single Bearing
Coating Vacuum Impregnation
Voltage Regulator A.V.R
Coupling Flexible Disc

CONTROL PANEL

Emergency stop button

Main circuit breaker

Float baterry charger

Manual/Autostart control panel

Fuel level meter

Controller power switch

Alarm buzzer

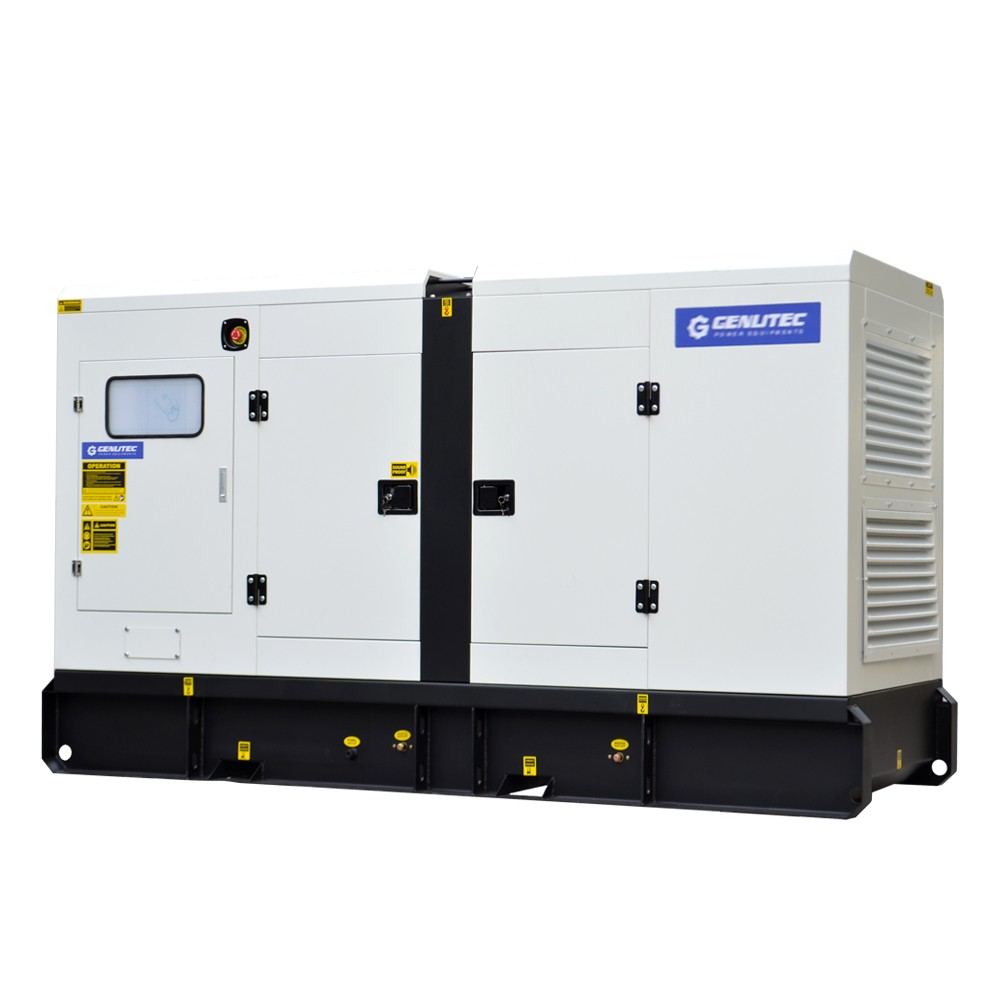

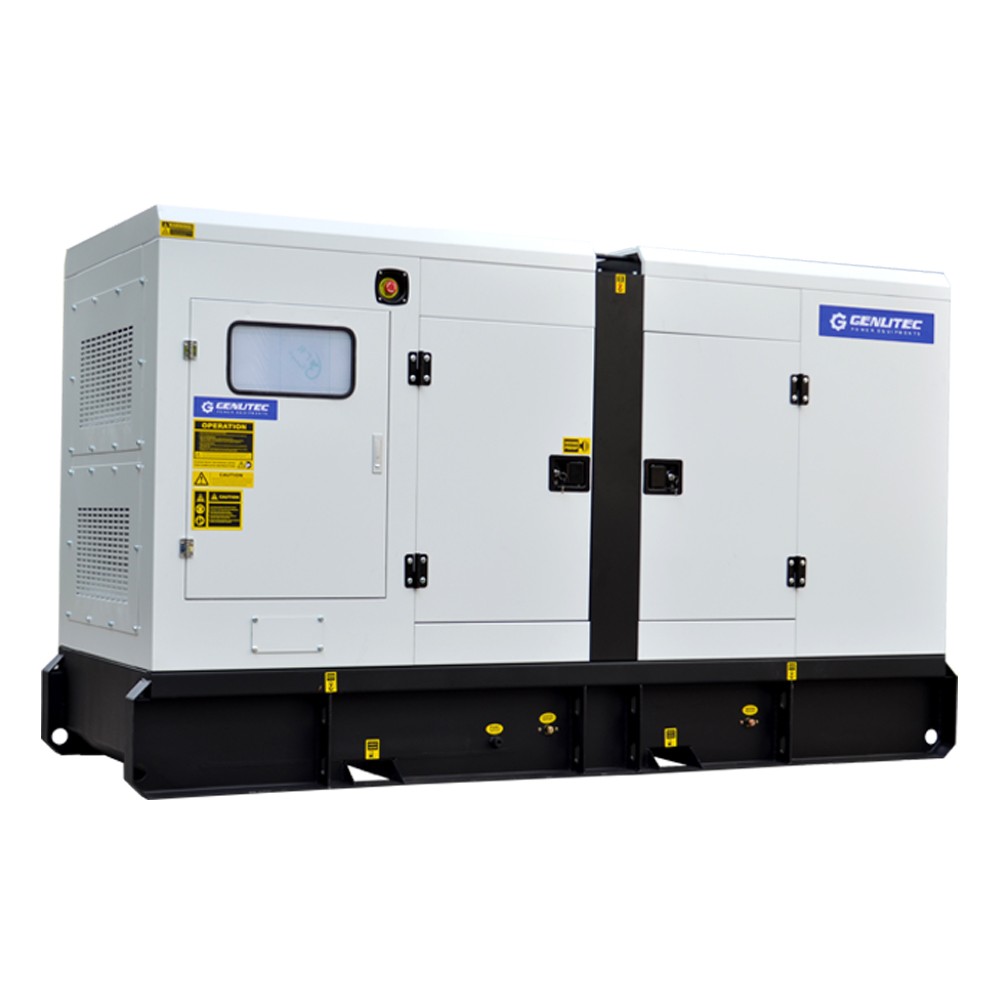

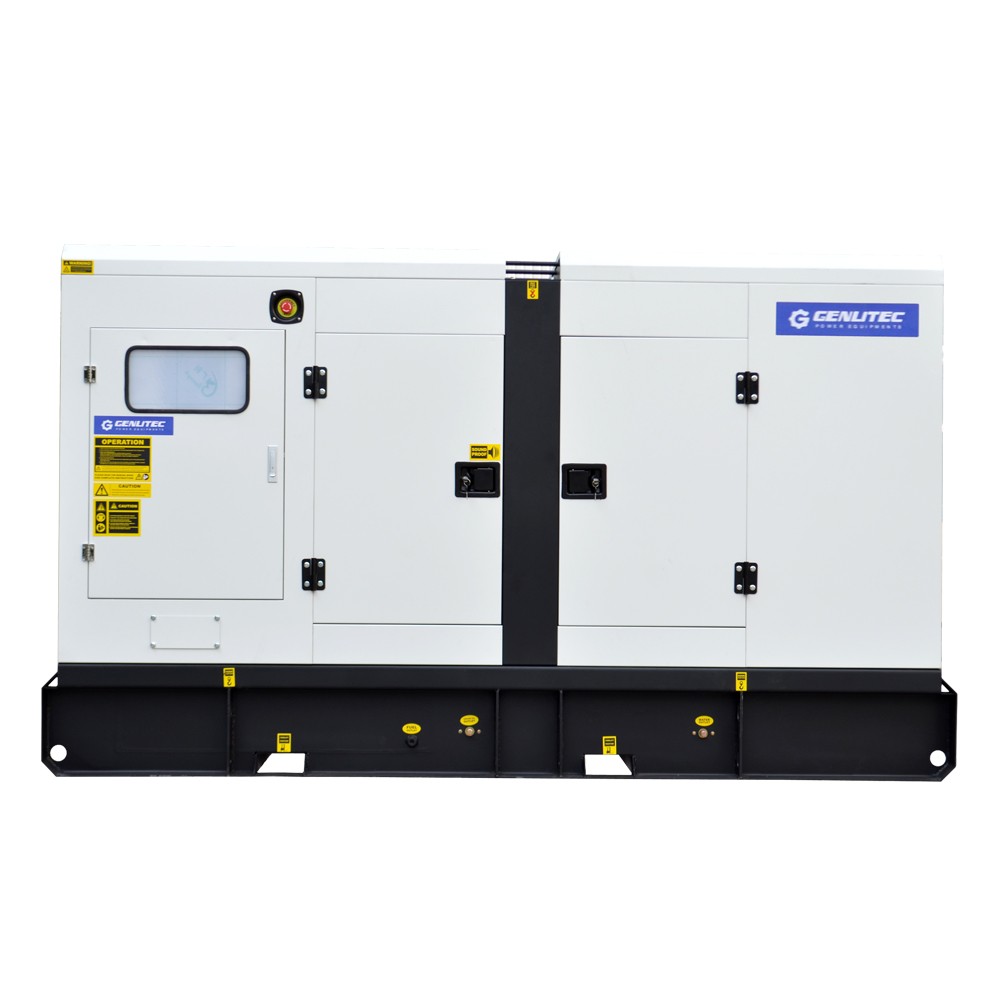

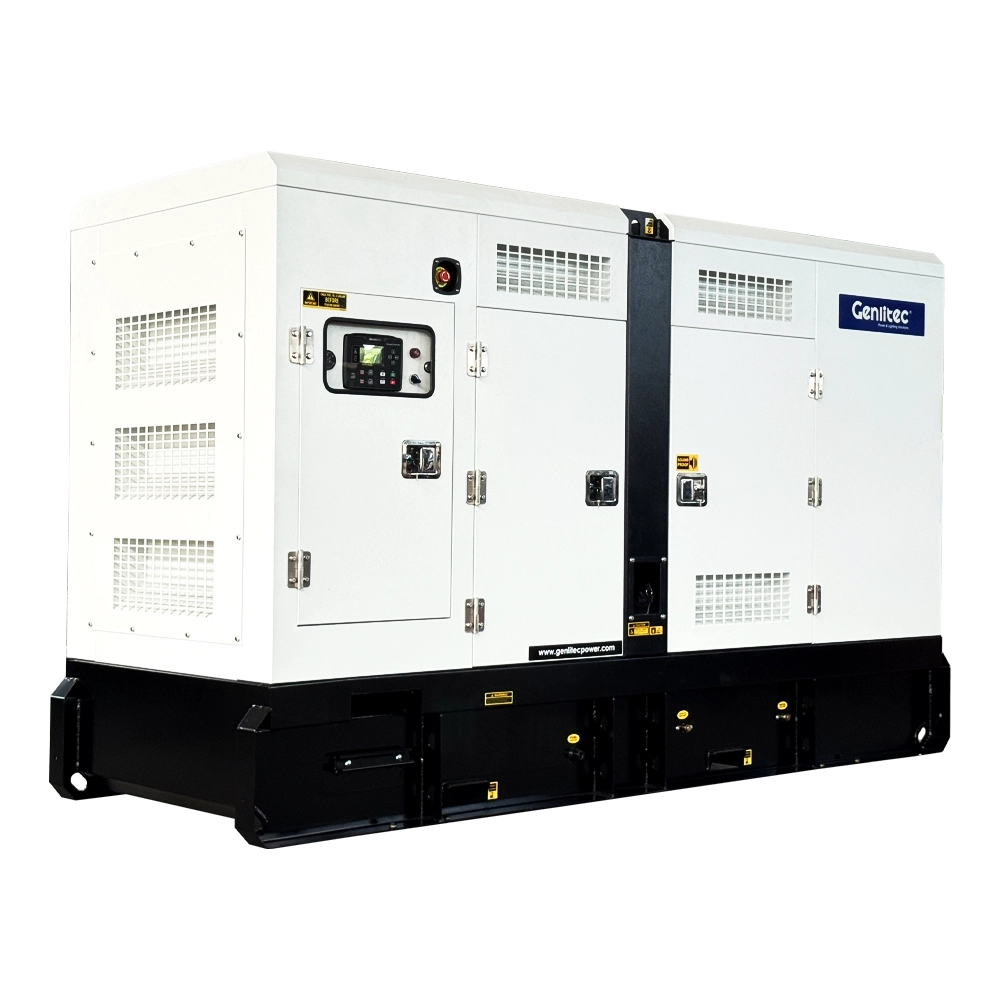

SOUND ATTENUATED ENCLOSURE

Fully Weatherproof Sound Attenuated Enclosure With Internal Exhaust Silencer

Highly Corrosion Resistant Construction


WARRANTY

12 months or 1000 working hours, whichever comes first


OPTIONS

ATS (for automatic start & stop when electricity power off & on)

Single axle trailer

12 hours fuel tank

24 hours fuel tank

Power Sockets (CEE or AUS standard)
