50Hz 16kW 20kVA Diesel Generator with Perkins 404A-22G1 Engine
Introduction
The GENLITEC POWER GPP20D5 / GPP20S5 diesel generator set is a compact and reliable power solution designed for prime, standby and backup power applications.
Powered by a Perkins 404A-22G1 diesel engine, the generator set delivers 16KW/20KVA prime power and 17.6KW/22KVA standby power at 50Hz, with multiple voltage configurations available for different applications.
Generator Set

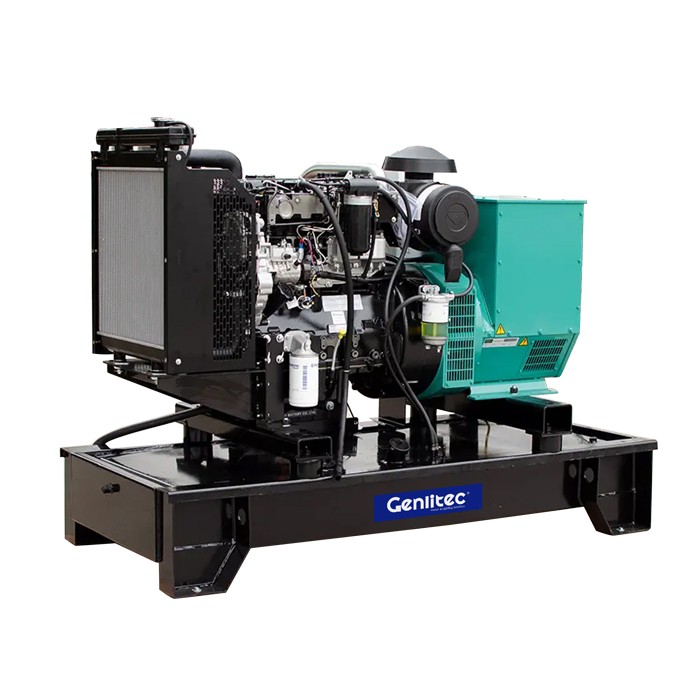

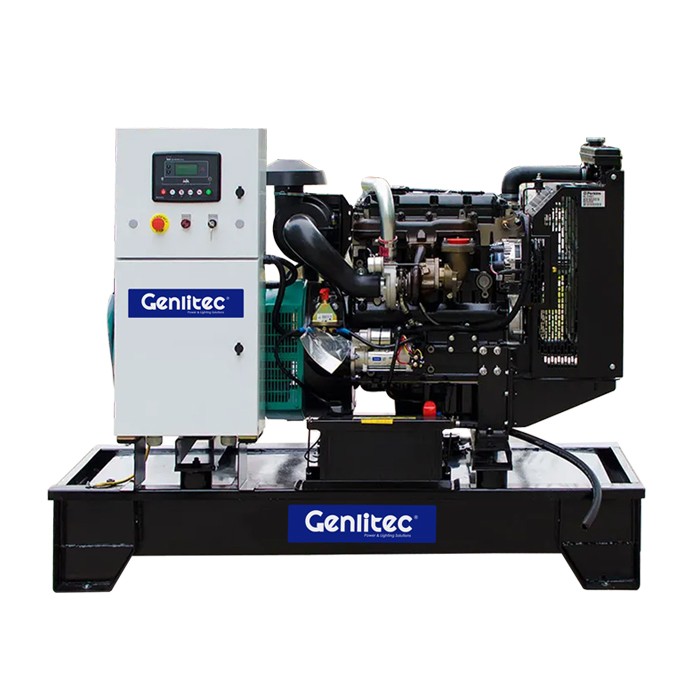

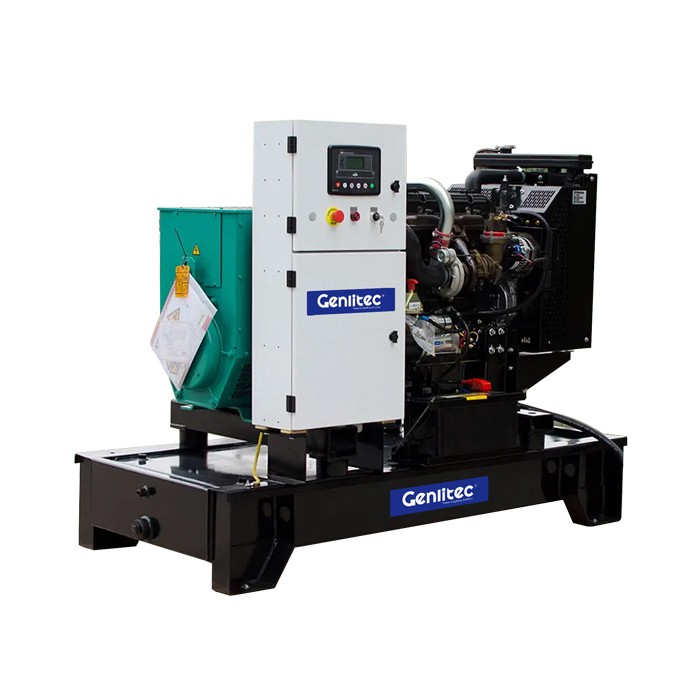

| Open Type Model | GPP20D5 |

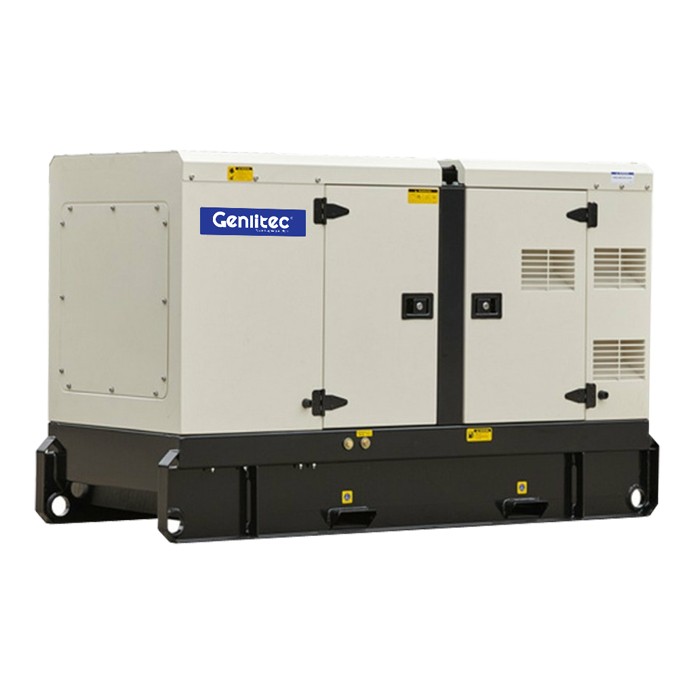

| Silent Type Model | GPP20S5 |
| Frequency | 50Hz |
| Phase & Wires | 3 Phase, 4 Wires |
| Power Factor | 0.8 |
| Prime Power | 16KW/20KVA |
| Standby Power | 17.6KW/22KVA |
| Rated Voltage | 220/380V; 230/400V; 240/415V |
| Rated Speed | 1500 RPM |
| Fuel Tank Capacity | 50L |
Diesel Engine
| Engine Model | Perkins 404A-22G1 |
| Number of Cylinders | 4 |
| Cylinder Arrangement | Vertical In-line |
| Cycle | 4 Stroke |
| Aspiration | Naturally Aspirated |
| Combustion System | Indirect Injection |
| Governor | Mechanical |
| Cooling System | Water Cooled |
| Bore × Stroke | 84 × 100 mm |
| Displacement | 2.216L |
| Compression Ratio | 23.3:1 |
| Rated Speed | 1500 RPM |
| Starting System | DC 12V |
| Lubrication Capacity | 10.6L |
| Coolant Capacity | 7L |
Fuel Consumption
| 100% Prime Load | 5.3 L/h |
| 75% Prime Load | 4.0 L/h |
| 50% Prime Load | 2.9 L/h |
| 25% Prime Load | - |
| Standby Power | 6.1 L/h |
Alternator
| Rated Power | 16KW/20KVA |
| Number of Phase | 3 |
| Frequency | 50Hz |
| Power Factor | 0.8 |
| Poles | 4 |
| Temperature Rise | 125K |
| Terminals | 6/12 |
| Insulation Class | H Class |
| Ambient Temperature | 40℃ |
| IP Rating | IP23 |
| Excitation System | Self-Excited |
| Bearing | Single Bearing |
| Coating | Vacuum Impregnation |
| Voltage Regulator | A.V.R |
| Coupling | Flexible Disc |
Control Panel
| ○ Emergency stop button | ○ Main circuit breaker |
| ○ Float battery charger | ○ Manual/Auto start control panel |
| ○ Fuel level meter | ○ Controller power switch |
| ○ Alarm buzzer |

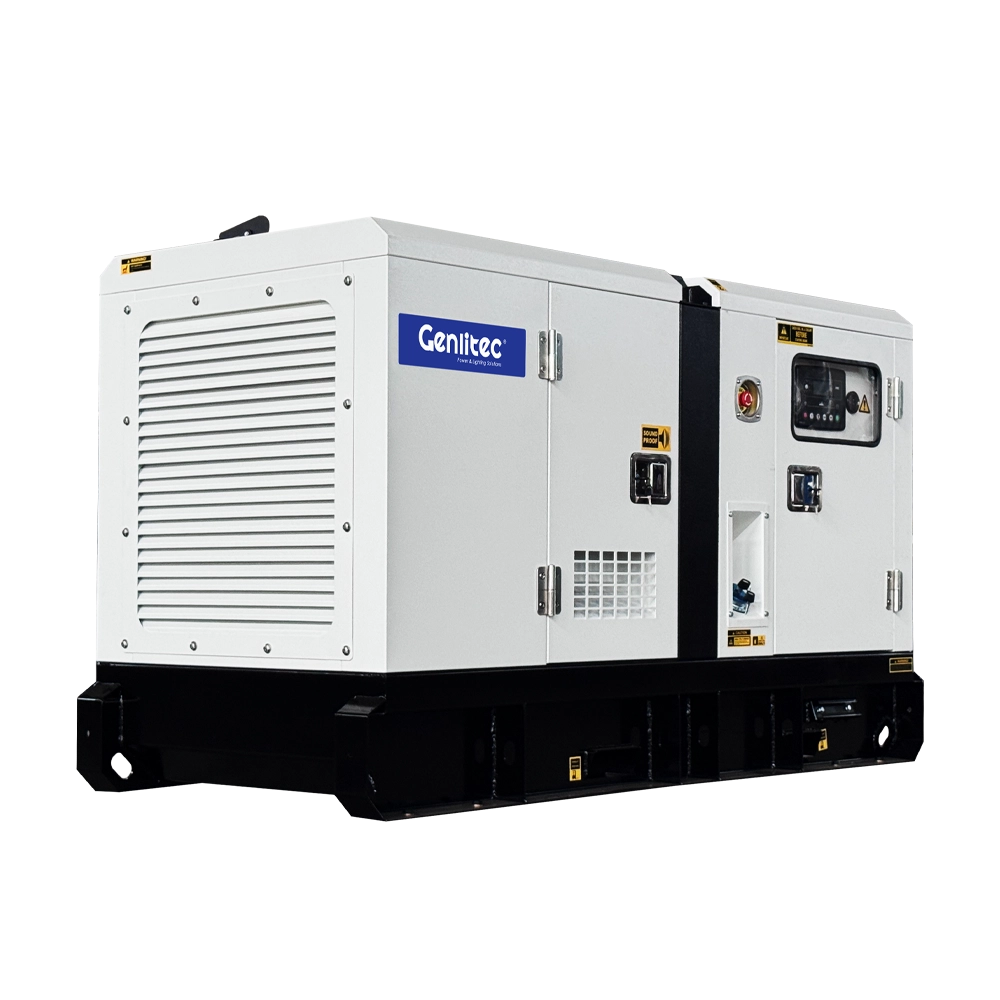

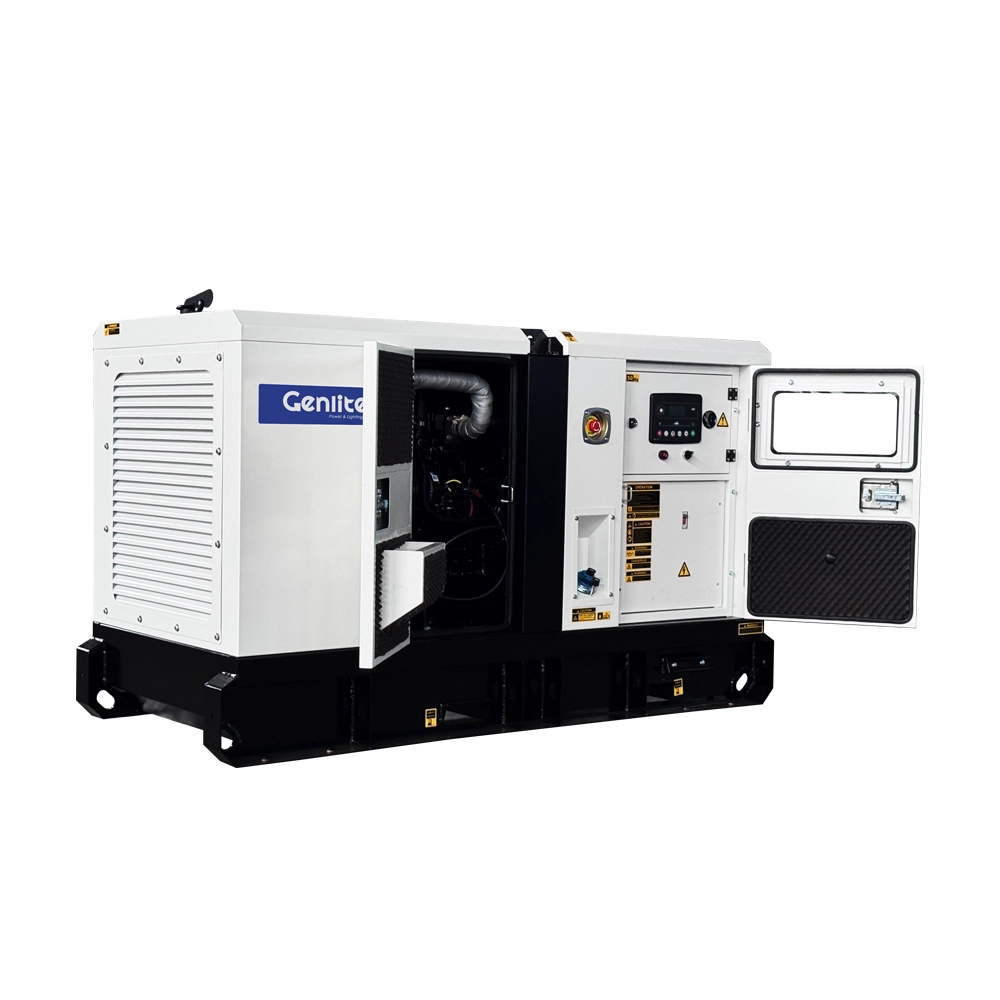

Sound Attenuated Enclosure
○ Weatherproof sound-attenuated enclosure with internal exhaust silencer
○ Corrosion-resistant construction for outdoor installation
○ Available for GPP20S5 silent type generator set
Options
○ ATS for automatic start and stop when utility power fails or returns
○ Single axle trailer
○ 24-hour fuel tank
○ 48-hour fuel tank
○ Power sockets, including CEE or AUS standards
Applications
The GENLITEC POWER 16KW/20KVA diesel generator set is suitable for a wide range of prime, standby and backup power applications, including:
○ Commercial and office buildings
○ Industrial facilities
○ Construction and job sites
○ Agricultural and rural facilities
○ Telecommunication and remote sites
○ Emergency and standby power systems
Why Choose GENLITEC POWER
GENLITEC POWER diesel generator sets are designed to provide dependable power, practical configuration and reliable performance for a wide range of applications.
○ Perkins diesel engine for reliable and efficient power generation
○ Prime and standby power configurations for different operating requirements
○ Multiple voltage configurations available
○ Open and silent type configurations available
○ Suitable for commercial, industrial and backup power applications
○ Factory-direct supply with customized generator set solutions
For more information, please visit the GENLITEC POWER® Why Choose GENLITEC POWER page.
Warranty
GENLITEC POWER provides a standard warranty of 12 months or 1000 working hours, whichever comes first. For details, please refer to the GENLITEC POWER® Warranty Policy.
