50Hz 24kW 30kVA Diesel Generator with Perkins 1103A-33G Engine
Introduction

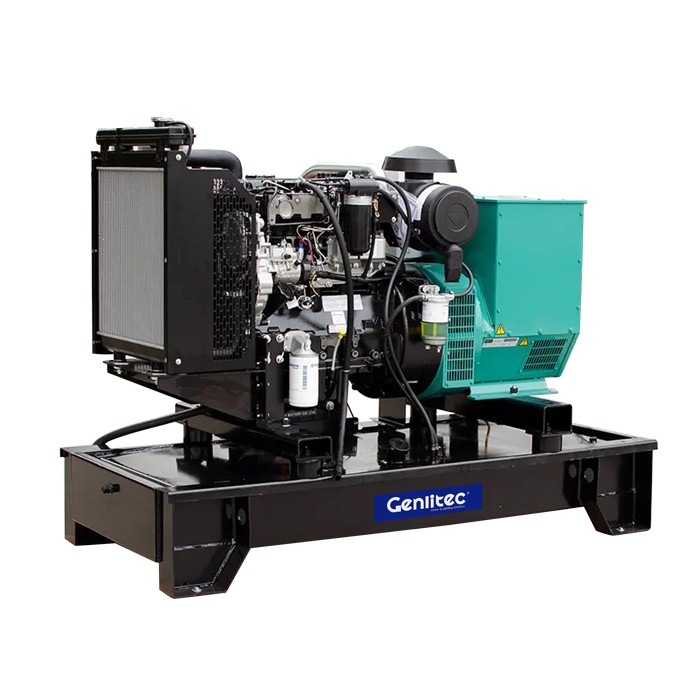

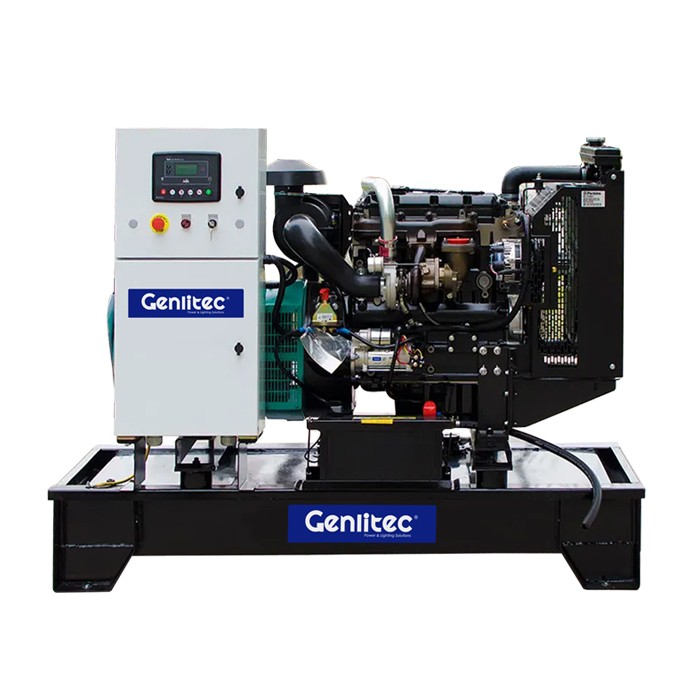

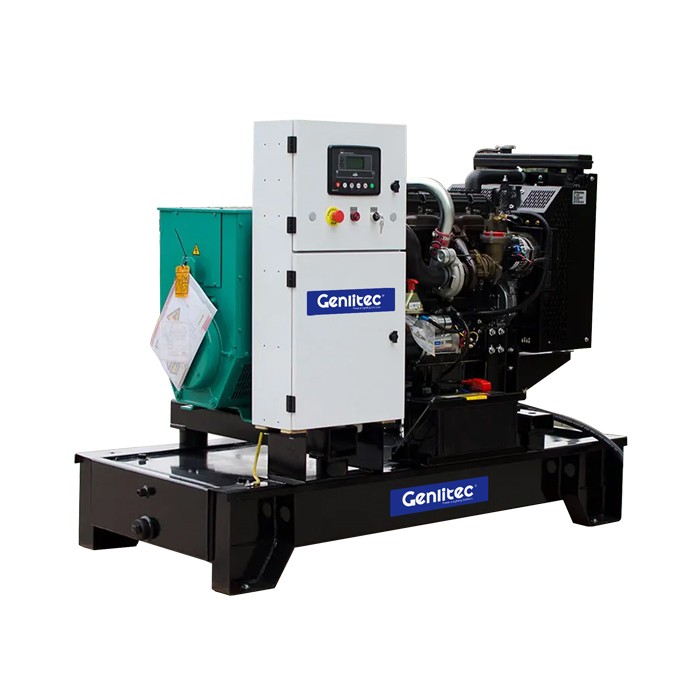

The GENLITEC POWER GPP30D5 / GPP30S5 diesel generator set is a reliable power solution designed for prime, standby and backup power applications.
Powered by a Perkins 1103A-33G diesel engine, the generator set delivers 24KW/30KVA prime power and 26KW/33KVA standby power at 50Hz and 1500 RPM, with multiple voltage configurations available for different applications.
Generator Set
| Open Type Model | GPP30D5 |
| Silent Type Model | GPP30S5 |
| Frequency | 50Hz |
| Phase & Wires | 3 Phase, 4 Wires |
| Power Factor | 0.8 |
| Prime Power | 24KW/30KVA |
| Standby Power | 26KW/33KVA |
| Rated Voltage | 220/380V; 230/400V; 240/415V |
| Rated Speed | 1500 RPM |
| Fuel Tank Capacity | 50L |
Diesel Engine
| Engine Model | Perkins 1103A-33G |
| Cylinder Number | 3 |
| Cylinder Arrangement | Vertical In-line |
| Aspiration System | Naturally Aspirated |
| Cooling Method | Water Cooled |
| Governor Type | Mechanical |
| Bore x Stroke | 105 x 127 mm |
| Compression Ratio | 19.25:1 |
| Rated Speed | 1500 RPM |
| Displacement | 3.3L |
| Prime Power | 28.2KW/1500 RPM |
| Standby Power | 31KW/1500 RPM |
| Fuel System | Direct Injection |
| Oil Capacity | 8.3L |
| Coolant Capacity | 10.2L |
| Electric Starting System | DC 12V |
Fuel Consumption
| 100% Prime Load | 7.2L/H |
| 75% Prime Load | 5.61L/H |
| 50% Prime Load | 4.06L/H |
| 25% Prime Load | - |
Alternator
| Number of Phase | 3 |
| Rated Power | 24KW/30KVA |
| Frequency | 50Hz |
| Power Factor | 0.8 |
| Poles | 4 |
| Temperature Rise | 125K |
| Terminals | 6/12 |
| Insulation Class | H Class |
| Ambient Temperature | 40℃ |
| IP Rating | IP23 |
| Excitation System | Self-Excited |
| Bearing | Single Bearing |
| Coating | Vacuum Impregnation |
| Voltage Regulator | A.V.R |
| Coupling | Flexible Disc |
Control Panel
| ○ Emergency stop button | ○ Main circuit breaker |
| ○ Float battery charger | ○ Manual/Auto start control panel |
| ○ Fuel level meter | ○ Controller power switch |
| ○ Alarm buzzer |

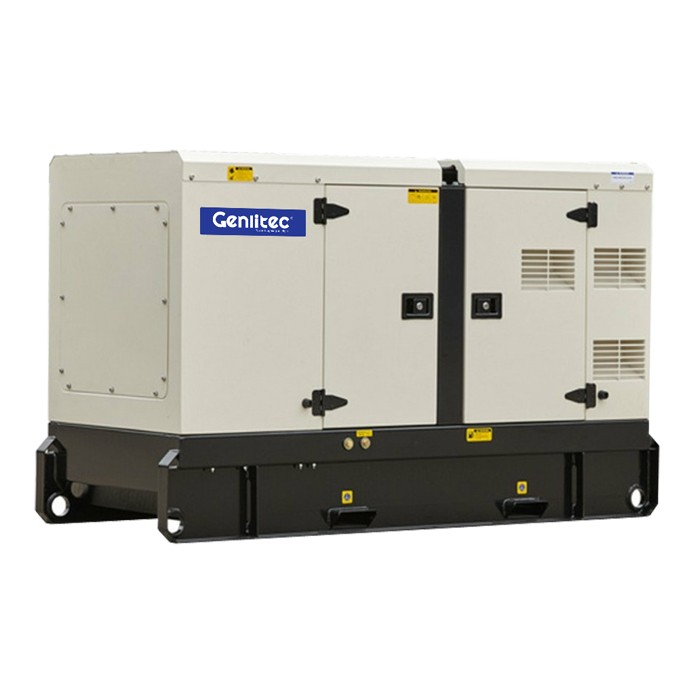

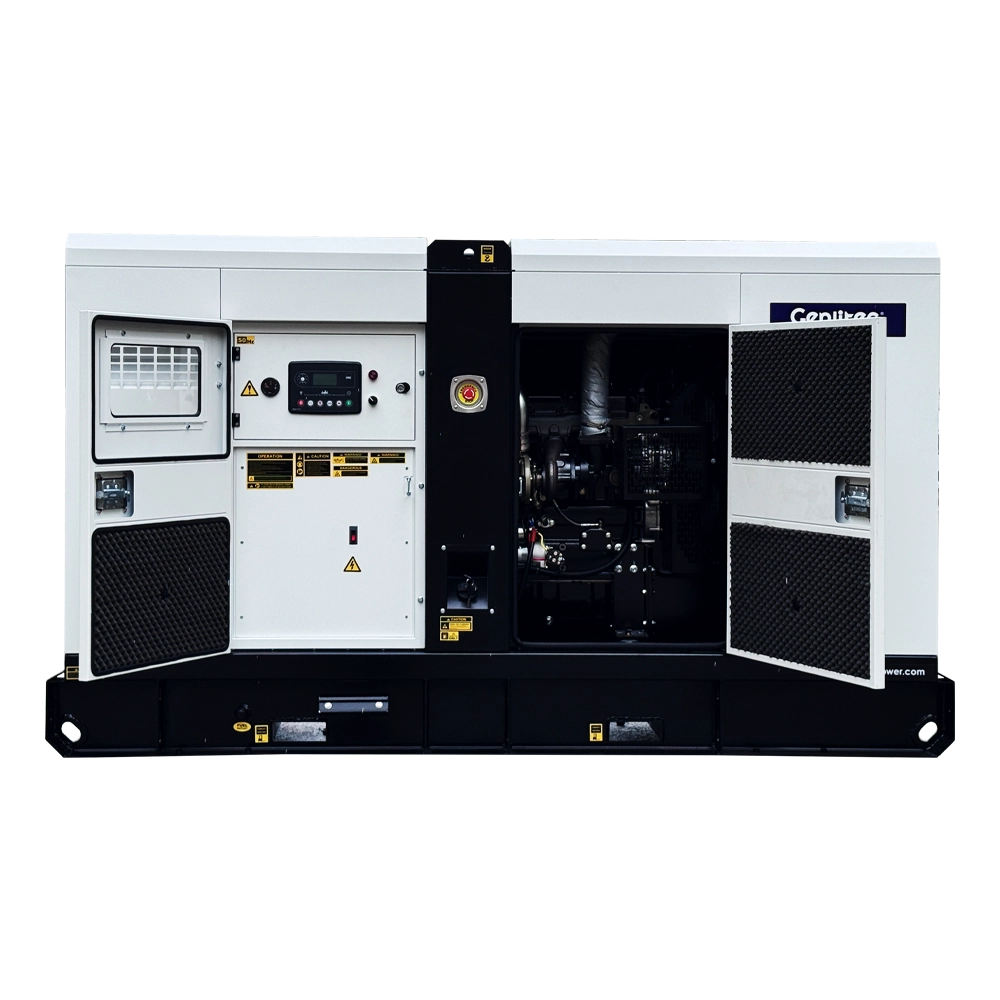

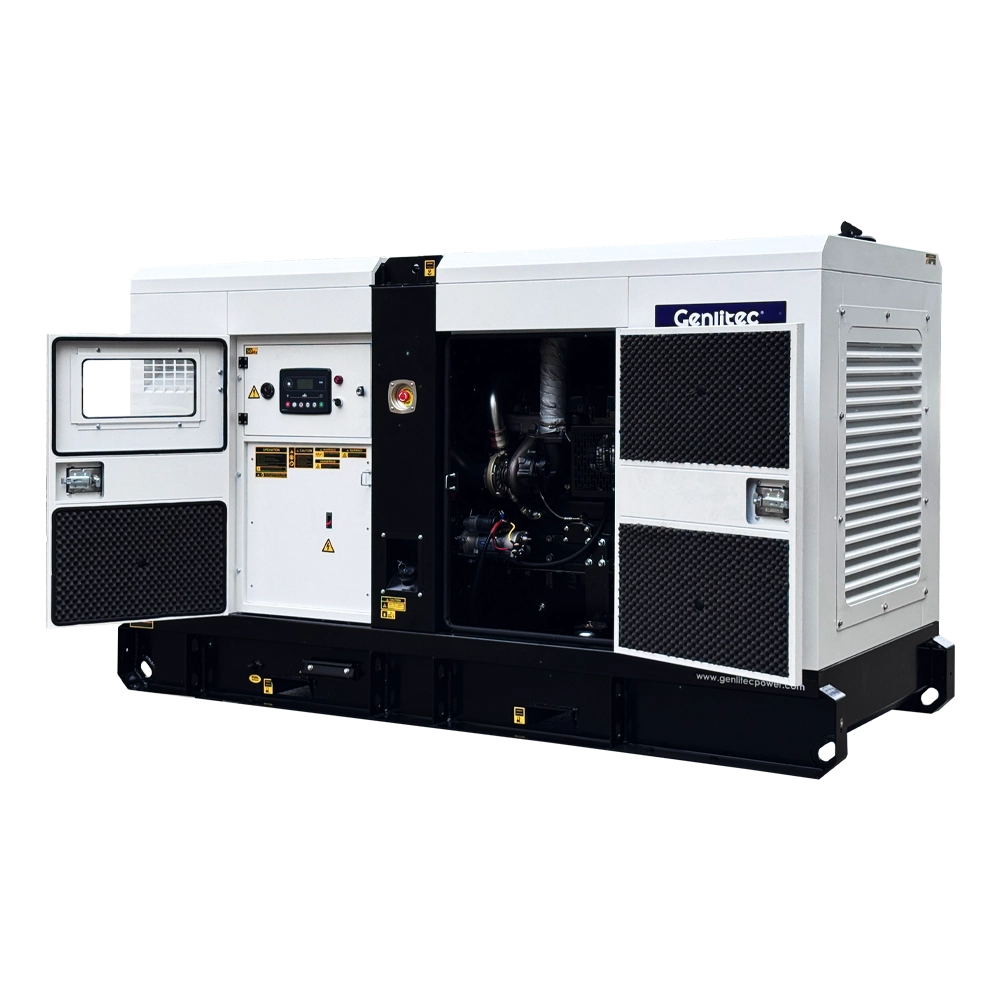

Sound Attenuated Enclosure
○ Weatherproof sound-attenuated enclosure with internal exhaust silencer
○ Corrosion-resistant construction for outdoor installation
○ Available for GPP30S5 silent type generator set
Options
○ ATS for automatic start and stop when utility power fails or returns
○ Single axle trailer
○ 24-hour fuel tank
○ 48-hour fuel tank
○ Power sockets, including CEE or AUS standards
Applications
The GENLITEC POWER 24KW/30KVA diesel generator set is suitable for a wide range of prime, standby and backup power applications, including:
○ Commercial and office buildings
○ Industrial facilities
○ Construction and job sites
○ Agricultural and rural facilities
○ Telecommunication and remote sites
○ Emergency and standby power systems
Why Choose GENLITEC POWER
GENLITEC POWER GPP30D5 / GPP30S5 diesel generator sets combine a Perkins 1103A-33G engine with a practical generator set configuration for dependable prime and standby power.
○ Perkins 1103A-33G diesel engine for reliable power generation
○ 24KW/30KVA prime power and 26KW/33KVA standby power
○ Multiple voltage configurations available
○ Open and silent type configurations available
○ Suitable for commercial, industrial and backup power applications
○ Factory-direct supply with customized generator set solutions
For more information, please visit the GENLITEC POWER® Why Choose GENLITEC POWER page.
Warranty
GENLITEC POWER provides a standard warranty of 12 months or 1000 working hours, whichever comes first. For details, please refer to the GENLITEC POWER® Warranty Policy.
