313KVA Weichai Diesel Generator-50Hz
● GENLITEC POWER® 250KW/313KVA WEICHAI DIESEL GENERATOR SET FEATURES
○ Brand new original WEICHAI WP10D320E200 water cooled diesel engine
○ STAMFORD, LEROY SOMER or GENLITEC POWER® single bearing 100% copper brushless alternator
○ Rating 230/400V, 3-Phase, 50Hz, 1500RPM, 0.8PF, IP23, H insulation class
○ 50℃ radiator with engine driven fan mounted on the based frame
○ Set mounted control panel equipped with DEEPSEA, COMAP, DEIF or SMARTGEN digital controller
○ Original ABB, DELIXI or CHINT brand MCCB type main circuit breaker
○ Diesel engine and alternator mounted on a based frame with anti-vibration mountings
○ 24V DC electric start system with free-maintenance lead-acid battery and float battery charger
○ Industrial silencers with blexible connects and elbow
○ Complete engine alarm system
● GENERATOR SET

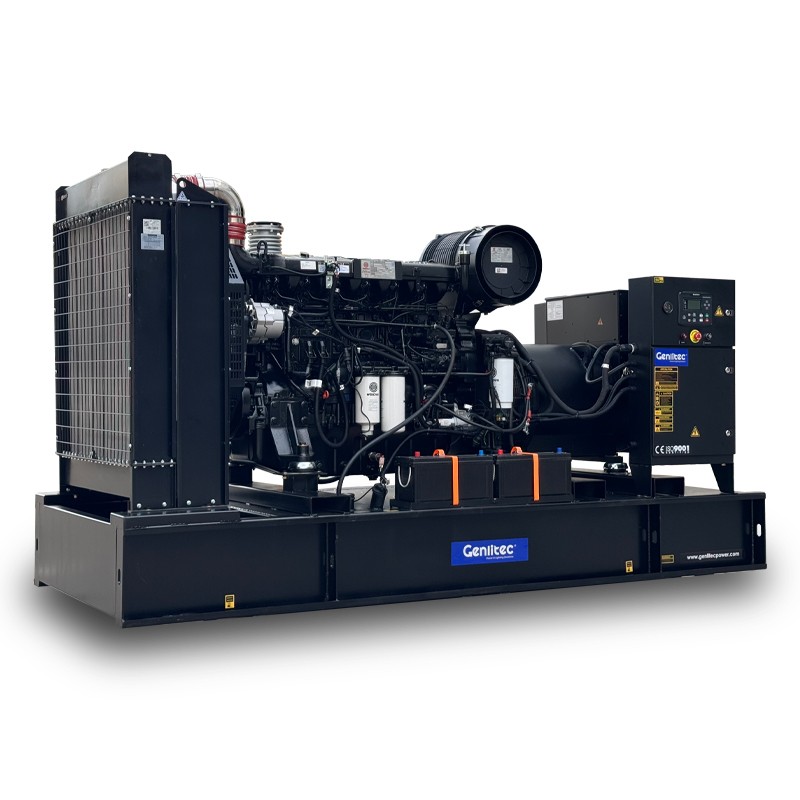

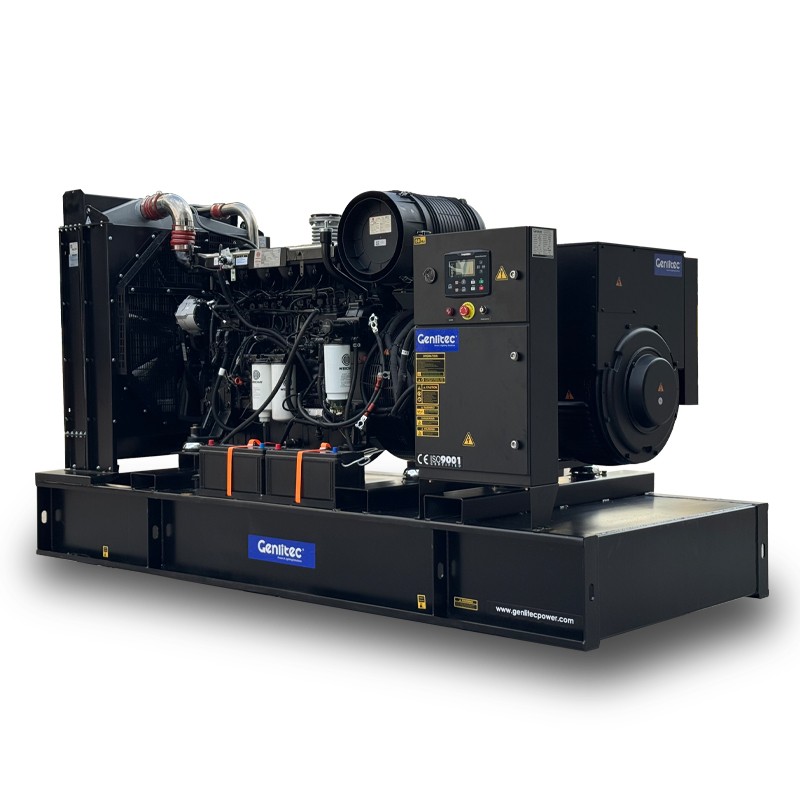

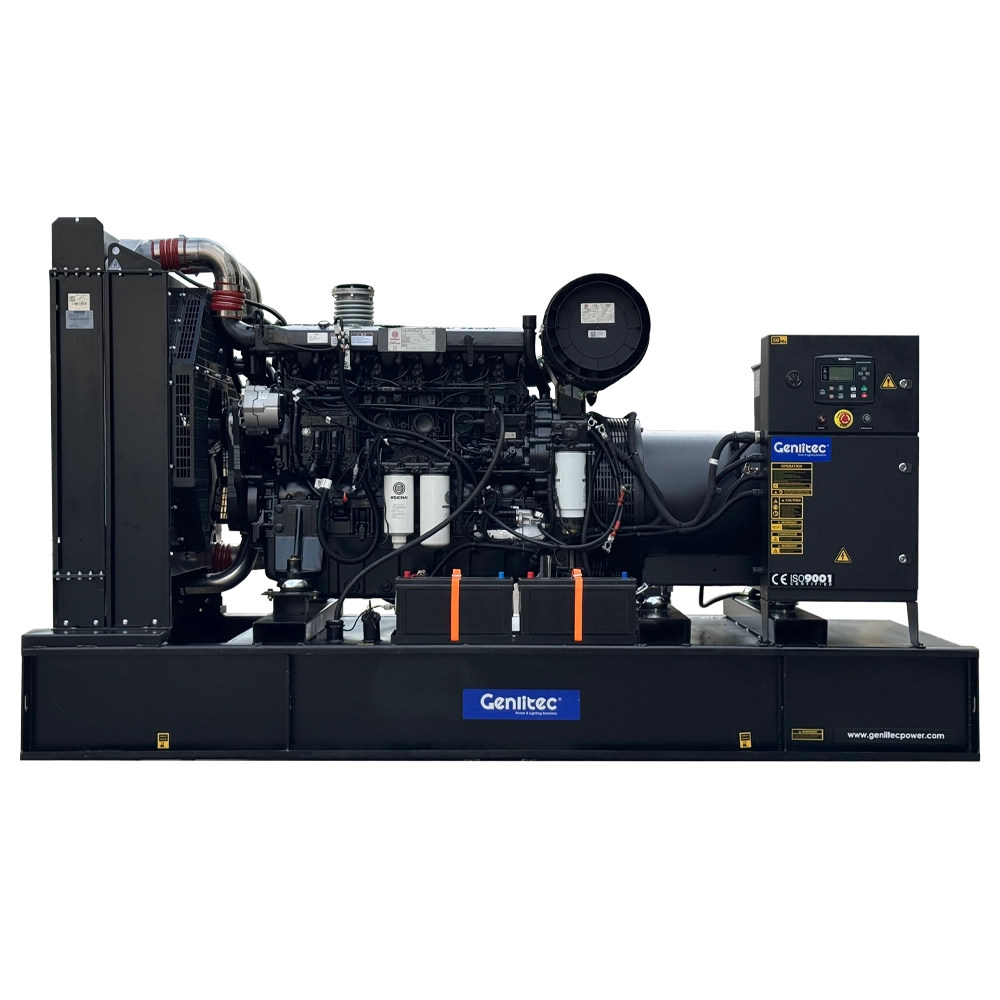

Open Type Model
GPW313D5

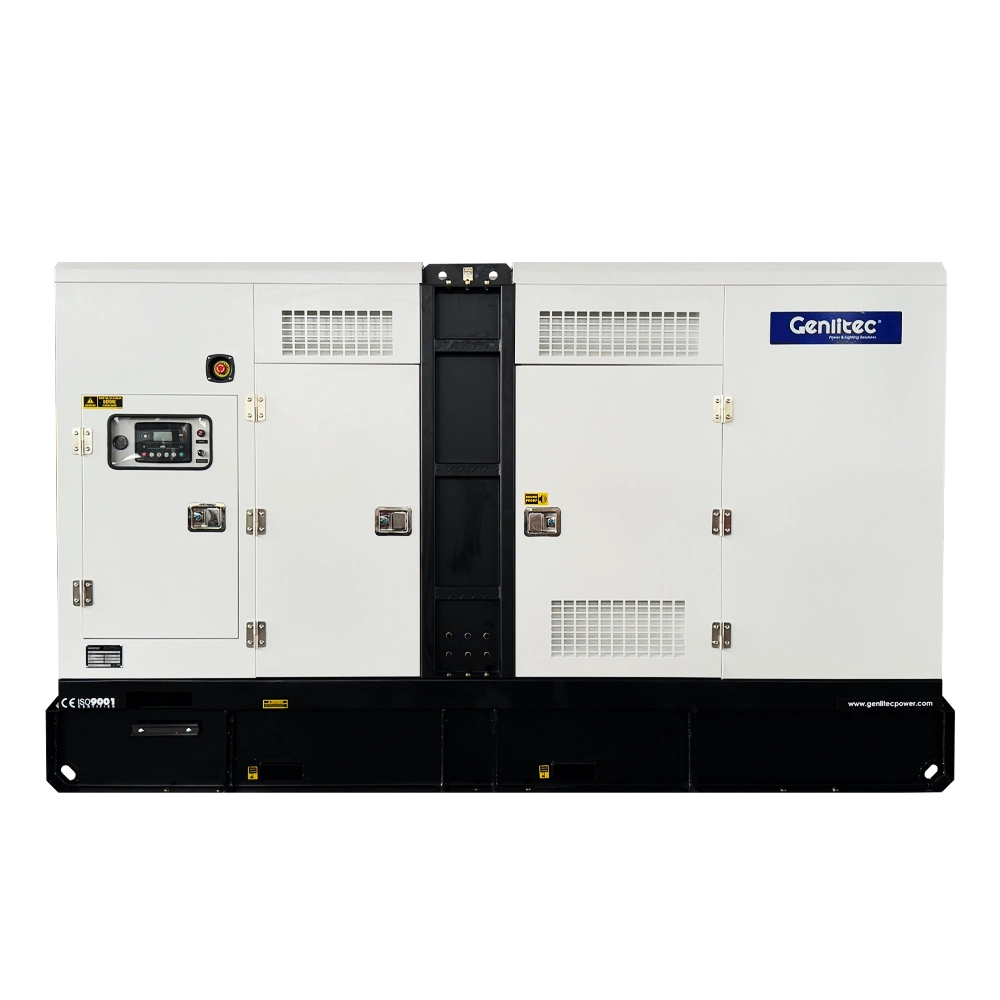

Silent Type Model
GPW313S5
Frequency
50Hz
Phase & Wires
3 Phase, 4 Wires
Power Factor
0.8
Prime Power
250KW/313KVA
Standby Power
275KW/344KVA
Rated Voltage
380~415V
Fuel Tank Capacity
540L
● DIESEL ENGINE
Engine Model
Weichai WP10D320E200
Cylinder Number
6
Aspiration System
Turbocharged & Aftercooled
Cooling System
Water Cooled
Governor Type
Electronic
Bore x Stroke
126 x 130 mm
Compression Ratio
17:1
Rated Speed
1500RPM
Displacement
9.726L
Rated Power
291KW
Standby Power
320KW
Coolant Capacity
22L (Engine Only)
Oil Capacity
30L
Fuel System
Mechanical pump
Electric Starting System
DC 24V
● FUEL CONSUMPTION
100% Prime Load
71L/H
75% Prime Load
51.7L/H
50% Prime Load
34.9L/H
25% Prime Load
17.5L/H
● ALTERNATOR
Number of Phase
3
Rated Power
250KW/313KVA
Frequency
50Hz
Power Factor
0.8
Poles
4
Temp. Rise
125K
Terminals
6/12
Insulation Class
H
Ambient Temp.
40℃
IP Rating
IP23
Excitation System
Self-Excited
Bearing
Single Bearing
Coating
Vacuum Impregnation
Voltage
A.V.R
Coupling
Flexible Disc
● CONTROL PANEL
○ Emergency stop button
○ Main circuit breaker
○ Float baterry charger
○ Manual/Autostart control panel
○ Fuel level meter
○ Controller power switch
○ Alarm buzzer

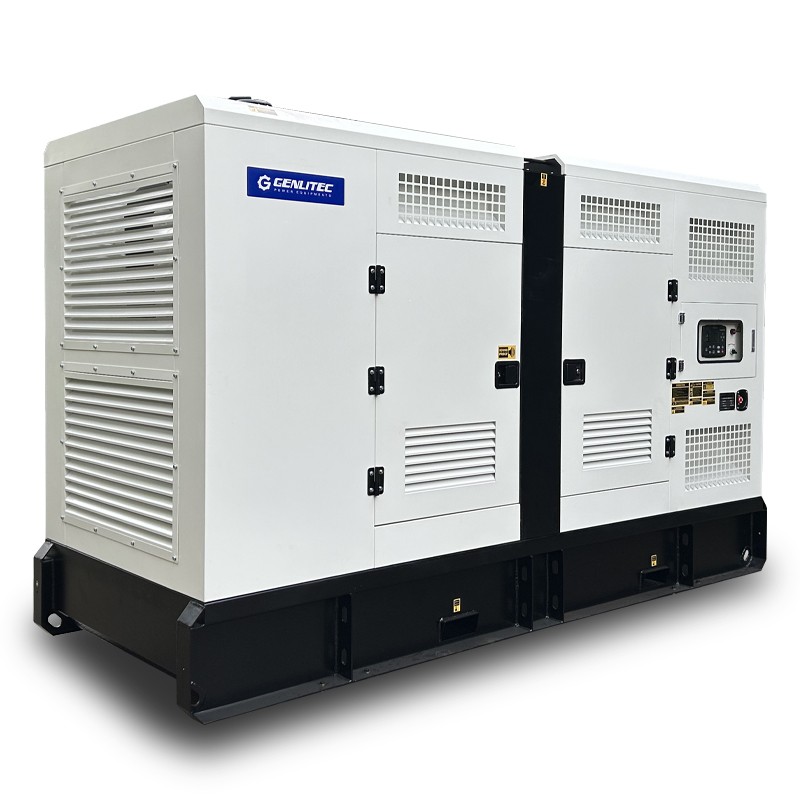

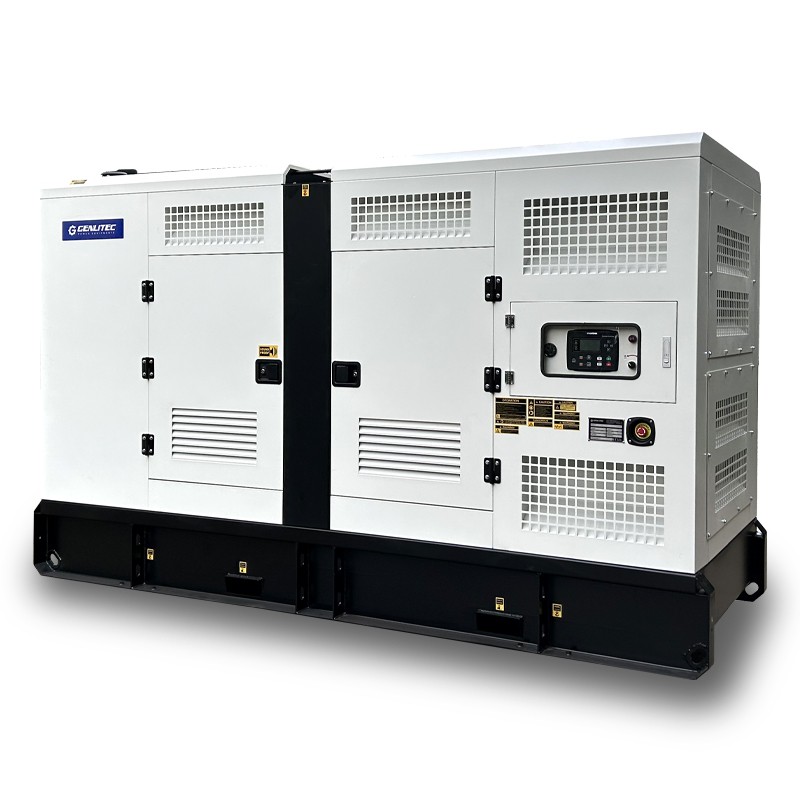

● GENLITEC POWER® A-TYPE SOUND ATTENUATED ENCLOSURE
○ Fully Weatherproof Sound Attenuated Enclosure With Internal Exhaust Silencer
○ Highly Corrosion Resistant Construction
● WARRANTY
○ 12 months or 1000 working hours, whichever comes first
● OPTIONS
○ ATS (for automatic start & stop when electricity power off & on)
○ Synchronization Panel
○ Heavy-Duty trailer
○ 12 hours fuel tank
○ 24 hours fuel tank
○ Power Sockets (CEE or AUS standard)
○ Heaters
○ Remote & Monitoring System
○ PMG/AREP
