50Hz 1000kW 1250kVA Diesel Generator with Cummins KTA50-G3 Engine
Short Description
GENLITEC POWER® GPC1250D5/GPC1250S5 Cummins diesel generator with KTA50-G3 engine, 1000kW/1250kVA prime and 1100kW/1375kVA standby power.
- ModelGPC1250D5 | GPC1250S5
- Frequency50Hz
- Prime Power1000KW/1250KVA
- Standby Power1100KW/1375KVA
- EngineCummins KTA50-G3
- AlternatorStamford/Leroy Somer/Genlitec Power
- Fuel Consumption (100% Load)261L/H
- MOQ1 Set
Product Details
Product Tags
Introduction
The GENLITEC POWER® GPC1250D5 and GPC1250S5 are 1250kVA Cummins diesel generator sets designed for reliable prime and standby power applications. With 1000kW/1250kVA prime power and 1100kW/1375kVA standby power at 50Hz, the GPC1250 series provides a high-capacity power solution for industrial, commercial, infrastructure, mining, construction and other demanding applications.
The GPC1250 series is powered by the CUMMINS KTA50-G3, a 16-cylinder, 50-liter-class diesel engine featuring a turbocharged water/air cooling system, water-cooled design, EFC electronic governor and Cummins fuel system. Operating at 1500 RPM and 50Hz, the engine provides 1097kW rated power and 1227kW standby power, providing sufficient engine capacity for the generator set's 1000kW prime output.

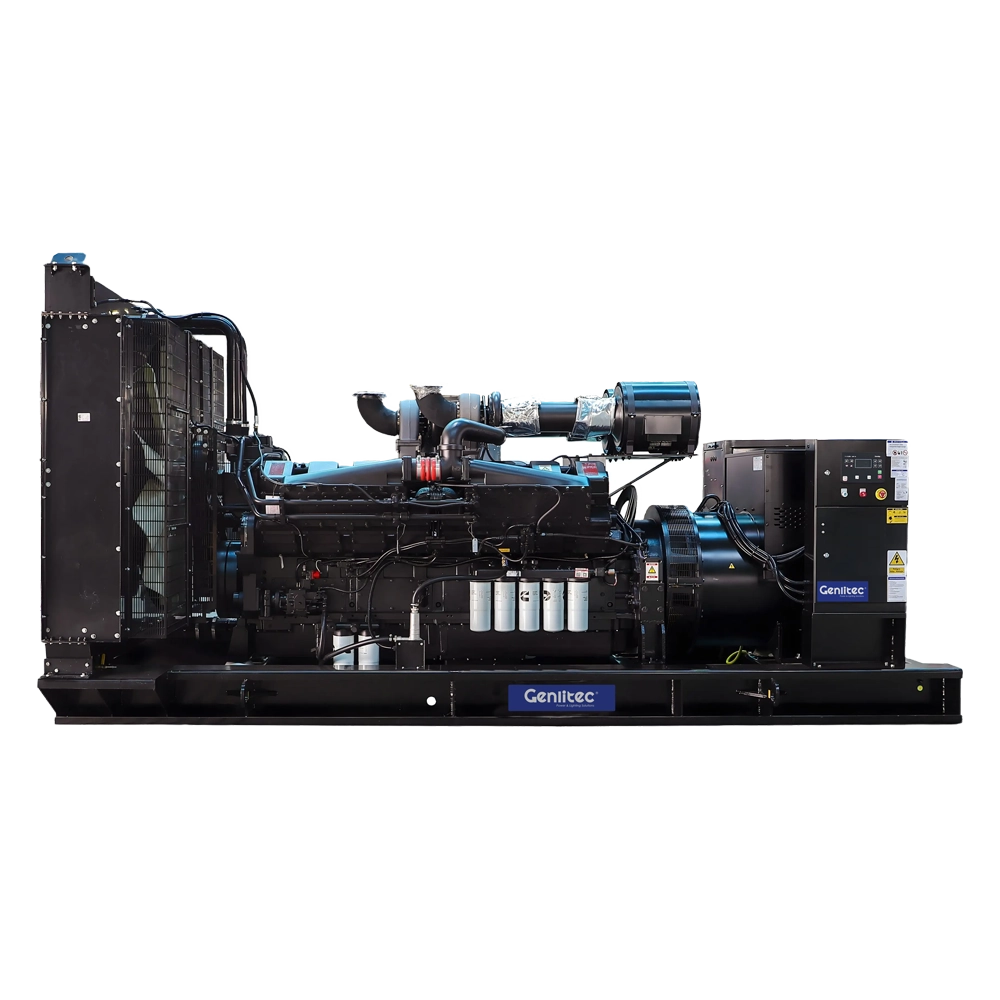

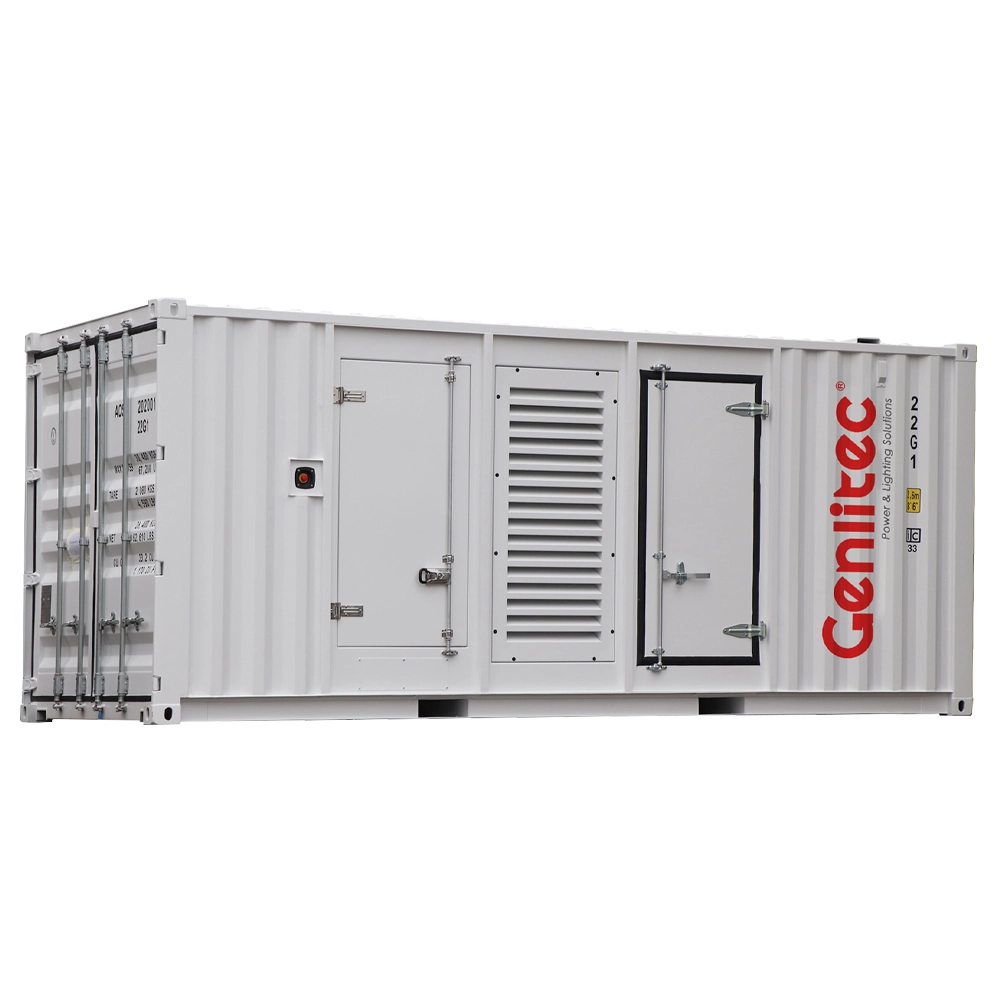

The GPC1250D5 is the open type configuration, suitable for generator rooms and installations where ventilation and convenient maintenance access are available. The GPC1250S5 is the silent type configuration, designed with a weatherproof sound-attenuated enclosure for outdoor and noise-sensitive applications. A 1000L fuel tank is provided for extended operating periods, while ATS, synchronization, remote monitoring and other options can be configured according to project requirements.
Generator Set
| Open Type Model | GPC1250D5 |
| Silent Type Model | GPC1250S5 |
| Prime Power | 1000KW/1250KVA |
| Standby Power | 1100KW/1375KVA |
| Phase & Wire | 3 Phase, 4 Wires |
| Power Factor | 0.8 |
| Frequency | 50Hz |
| Rated Voltage | 220/380V, 230/400V, 240/415V |
| Fuel Tank Capacity | 1000L |
Diesel Engine
| Engine Model | CUMMINS KTA50-G3 |
| Cylinder Number | 16-V |
| Aspiration System | Turbocharged, Water/Air Cooling |
| Cooling Method | Water Cooled |
| Governor Type | EFC Electronic |
| Bore x Stroke | 159 x 159 mm |
| Compression Ratio | 13.9:1 |
| Rated Speed | 1500RPM |
| Rated Power | 1097KW |
| Standby Power | 1227KW |
| Coolant Capacity | 160.9L (Engine Only) |
| Oil Capacity | 176.8L |
| Electric Starting System | DC 24V |
Fuel Consumption
| 100% Prime Load | 261L/H |
| 75% Prime Load | 199L/H |
| 50% Prime Load | 139L/H |
| 25% Prime Load | 76L/H |
Alternator
The GPC1250 generator set is equipped with a three-phase alternator rated at 1000kW/1250kVA. The alternator is designed for 50Hz operation with a 0.8 power factor, four poles, H-class insulation and IP23 protection, providing stable electrical performance for high-capacity power applications.
| Number of Phase | 3 |
| Rated Power | 1000KW/1250KVA |
| Frequency | 50Hz |
| Power Factor | 0.8 |
| Poles | 4 |
| Temp. Rise | 125K |
| Terminals | 12 |
| Insulation Class | H |
| Ambient Temp. | 40℃ |
| IP Rating | IP23 |
| Excitation System | Self-Excited |
| Bearing | Single Bearing |
| Coating | Vacuum Impregnation |
| Voltage Regulator | A.V.R |
| Coupling | Flexible Disc |
Control Panel
| ○ Emergency stop button | ○ Main circuit breaker |
| ○ Float battery charger | ○ Manual/Auto start control panel |
| ○ Fuel level meter | ○ Controller power switch |
| ○ Alarm buzzer |
Sound Attenuated Enclosure
○ Weatherproof sound-attenuated enclosure designed for outdoor installation and noise-sensitive applications
○ Corrosion-resistant construction provides protection during outdoor operation
○ Available for GPC1250S5 silent type diesel generator set
Options
○ ATS for automatic start and stop when utility power fails or returns
○ 40' ISO Containerized canopy
○ Water-jacket heater
○ Other heaters
○ AREM & PMG
○ Synchronization System
○ Remote & Monitoring System
Applications
The GENLITEC POWER 1000kW/1250kVA Cummins diesel generator set is suitable for prime and standby power applications where stable and dependable power is required, including:
○ Industrial plants and manufacturing facilities
○ Commercial buildings and large facilities
○ Construction sites and infrastructure projects
○ Mining and heavy-duty applications
○ Telecommunications and remote facilities
○ Data centers and critical power facilities
○ Emergency and standby power applications
Why Choose GENLITEC POWER
GENLITEC POWER is a professional manufacturer and exporter of diesel generator sets and mobile lighting towers, providing reliable power equipment and customized power solutions to customers worldwide.
○ Established in 2016 with more than 10 years of experience in power equipment manufacturing and export
○ 66,000 m² manufacturing park with more than 7,000 m² assembly workshop
○ Annual production capacity of more than 2,500 generator sets
○ Products supplied to customers in more than 50 countries and regions worldwide
○ Professional engineering team providing customized power solutions for different applications and project requirements
○ Extensive experience with leading engine brands including Cummins, Perkins, Caterpillar, Yanmar, Kubota, Isuzu, Deutz, SDEC, Weichai and Yuchai
○ Alternator solutions from Stamford, Leroy Somer and GENLITEC to meet different performance and application requirements
○ Strict quality control and testing procedures throughout production and assembly
○ Complete power solutions including diesel generator sets, mobile lighting towers, ATS, synchronization and paralleling systems
○ Professional manufacturing, engineering and international export experience
For more information, please visit the GENLITEC POWER® Why Choose GENLITEC POWER page.
Warranty
GENLITEC POWER provides a standard warranty of 12 months or 1000 working hours, whichever comes first. For details, please refer to the GENLITEC POWER® Warranty Policy.
