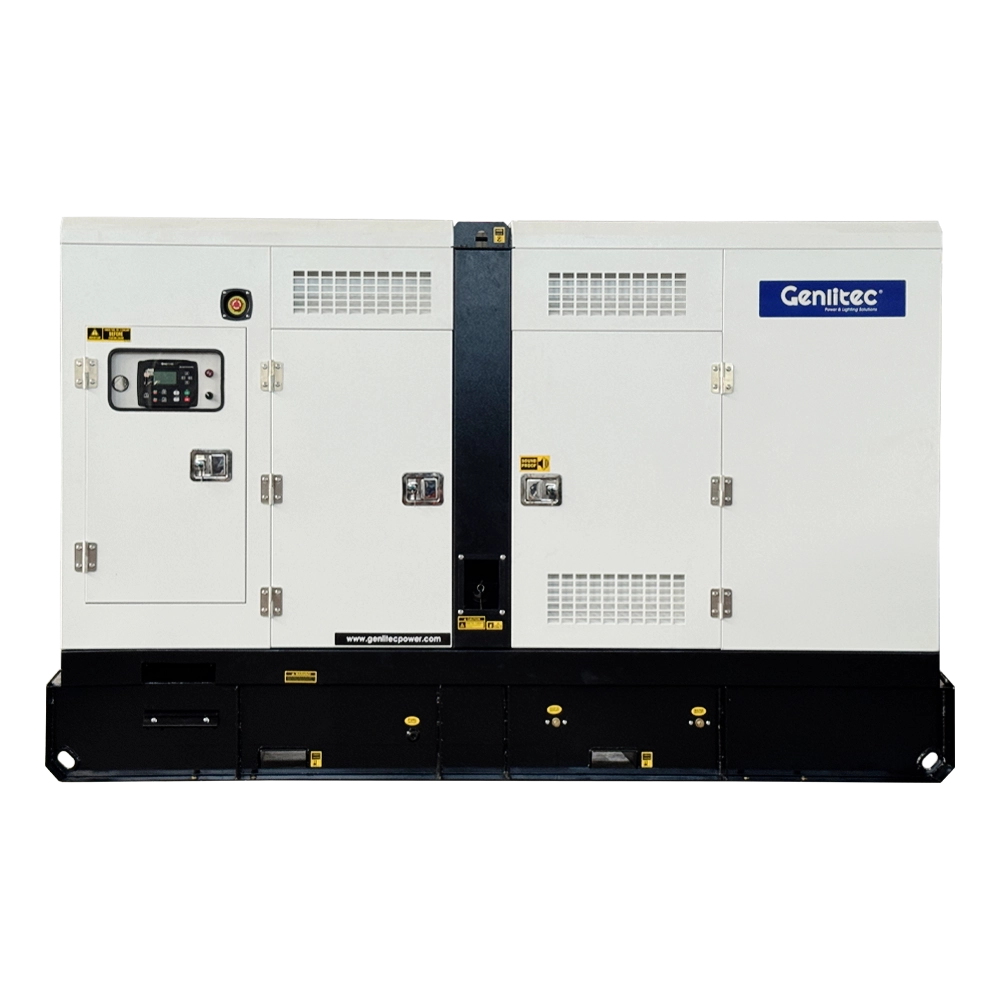

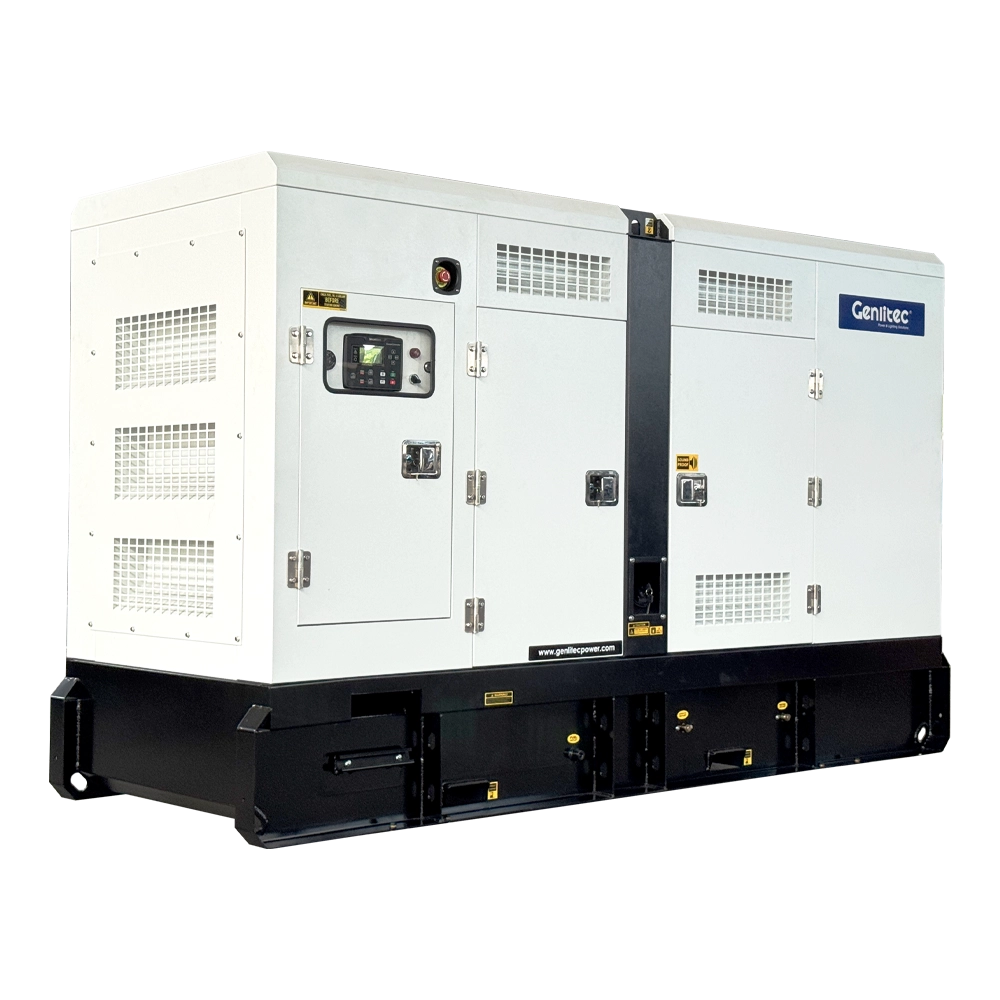

50Hz 100kW 125kVA Diesel Generator with Cummins 6BTAA5.9-G2 Engine
Short Description
GENLITEC POWER GPC125D5/GPC125S5 100kW/125kVA diesel generator with Cummins 6BTAA5.9-G2 engine, available in open and silent types.
- ModelGPC125D5 | GPC125S5
- Frequency50Hz
- Prime Power100KW/125KVA
- Standby Power110KW/138KVA
- EngineCummins 6BTAA5.9-G2
- AlternatorStamford/Leroy Somer/Genlitec Power
- MOQ1 Set
Product Details
Product Tags
Introduction
The GENLITEC POWER® GPC125D5 open type and GPC125S5 silent type diesel generator sets provide 100kW/125kVA prime power and 110kW/138kVA standby power. Powered by a Cummins 6BTAA5.9-G2 six-cylinder water-cooled diesel engine and coupled with a brushless copper alternator, these generator sets are designed to provide stable and reliable power for commercial, industrial, construction and backup applications.
Designed for 50Hz operation at 1500RPM, the generator sets provide three-phase, four-wire power with flexible voltage configurations of 220/380V, 230/400V and 240/415V. The package features a 24V DC electric starting system, electronic engine governor, anti-vibration mountings and a digital control system for reliable operation and convenient monitoring.
Generator Set
| Open Type Model | GPC125D5 |
| Silent Type Model | GPC125S5 |
| Prime Power | 100kW/125kVA |
| Standby Power | 110kW/138kVA |
| Phase & Wire | 3 Phase, 4 Wire |
| Power Factor | 0.8 |
| Frequency | 50Hz |
| Voltage | 220/380V, 230/400V, 240/415V |
| Rated Speed | 1500RPM |
| Fuel Tank Capacity | 200L |
Diesel Engine
| Engine Model | CUMMINS 6BTAA5.9-G2 |
| Cylinder Number | 6 |
| Aspiration System | Turbocharged, Charge After-Cooled |
| Cooling Method | Water Cooled |
| Governor Type | Electronic |
| Bore x Stroke | 102 x 120 mm |
| Compression Ratio | 17.3:1 |
| Rated Speed | 1500 RPM |
| Displacement | 5.9L |
| Rated Power | 120kW |
| Standby Power | 130kVA |
| Fuel System | AD Type Pump |
| Oil Capacity | 16.4L |
| Coolant Capacity | 10L (Engine Only) |
| Electric Starting System | DC 24V |
Fuel Consumption
| 100% Prime Load | 30L/H |
| 75% Prime Load | 23L/H |
| 50% Prime Load | 16L/H |
| 25% Prime Load | 9L/H |
Alternator
| Number of Phase | 3 |
| Rated Power | 100kW/125kVA |
| Frequency | 50Hz |
| Power Factor | 0.8 |
| Poles | 4 |
| Temperature Rise | 125K |
| Terminals | 12 |
| Insulation Type | H Class |
| Ambient Temperature | 40℃ |
| IP Rating | IP23 |
| Excitation System | Self-Excited |
| Bearing | Single Bearing |
| Coating | Vacuum Impregnation |
| Voltage Regulator | A.V.R |
| Coupling | Flexible Disc |
Control Panel
| ○ Emergency stop button | ○ Main circuit breaker |
| ○ Float battery charger | ○ Manual/Auto start control panel |
| ○ Fuel level meter | ○ Controller power switch |
| ○ Alarm buzzer |
Sound Attenuated Enclosure
○ Fully weatherproof sound-attenuated enclosure with internal exhaust silencer
○ Highly corrosion-resistant construction
○ Available for GPC125S5 silent type generator set
Options
○ ATS for automatic start and stop when utility power fails or returns
○ Single axle trailer
○ 12-hour fuel tank
○ 24-hour fuel tank
○ Water-jacket heater
○ Space heater
○ AREM & PMG
○ Remote & Monitoring System
○ Power sockets, including CEE or AUS standards
Applications
The GENLITEC POWER 100kW/125kVA diesel generator set is suitable for a wide range of prime, standby and backup power applications, including:
○ Commercial and office buildings
○ Industrial facilities
○ Construction and job sites
○ Agricultural and rural facilities
○ Telecommunication and remote sites
○ Emergency and backup power systems
Why Choose GENLITEC POWER
GENLITEC POWER is a professional manufacturer and exporter of diesel generator sets and mobile lighting towers, providing reliable power generation solutions for construction, mining, telecommunications, infrastructure, industrial, commercial and other demanding applications. With flexible product configurations and international project experience, GENLITEC POWER works with established engine, alternator and controller brands to meet different power requirements, application conditions and customer specifications.
○ Diesel generator sets and mobile lighting towers from one supplier
○ Multiple engine, alternator and controller brand options
○ Flexible configurations for commercial, industrial and project applications
○ Professional manufacturing and quality control
○ International export and project experience
○ Technical support and after-sales service
For more information, please visit the GENLITEC POWER® Why Choose GENLITEC POWER page.
Warranty
GENLITEC POWER provides a standard warranty of 12 months or 1000 working hours, whichever comes first. For details, please refer to the GENLITEC POWER® Warranty Policy.
