50Hz 1100kW 1375kVA Diesel Generator with Cummins KTA50-G8 Engine
Short Description
GENLITEC POWER GPC1375D5/GPC1375S5 Cummins diesel generator with KTA50-G8 engine, 1100kW/1375kVA prime and 1200kW/1500kVA standby power.
- ModelGPC1375D5 | GPC1375S5
- Frequency50Hz
- Prime Power1100KW/1375KVA
- Standby Power1200KW/1500KVA
- EngineCummins KTA50-G8
- AlternatorStamford/Leroy Somer/Genlitec Power
- Fuel Consumption (100% Load)289L/H
- MOQ1 Set
Product Details
Product Tags
Introduction
The GENLITEC POWER® GPC1375D5 and GPC1375S5 are 1375kVA Cummins diesel generator sets designed for high-capacity prime and standby power applications. With 1100kW/1375kVA prime power and 1210kW/1512.5kVA standby power at 50Hz, the GPC1375 series provides a reliable power solution for industrial plants, commercial facilities, infrastructure projects, mining operations, data centers and other demanding applications.
The GPC1375 series is powered by the CUMMINS KTA50-G8 diesel engine, a 16-cylinder, 50.3-liter V-type engine designed for high-output generator applications. The engine features a turbocharged and low-temperature aftercooled air system, Cummins PT direct-injection fuel system, 159 x 159 mm bore and stroke, 1500 RPM rated speed and 24V starting system. Cummins official data lists 1200kW gross prime power and 1429kW gross standby power for the KTA50-G8 at 1500 RPM and 50Hz, providing sufficient engine capacity for the GPC1375 generator set.

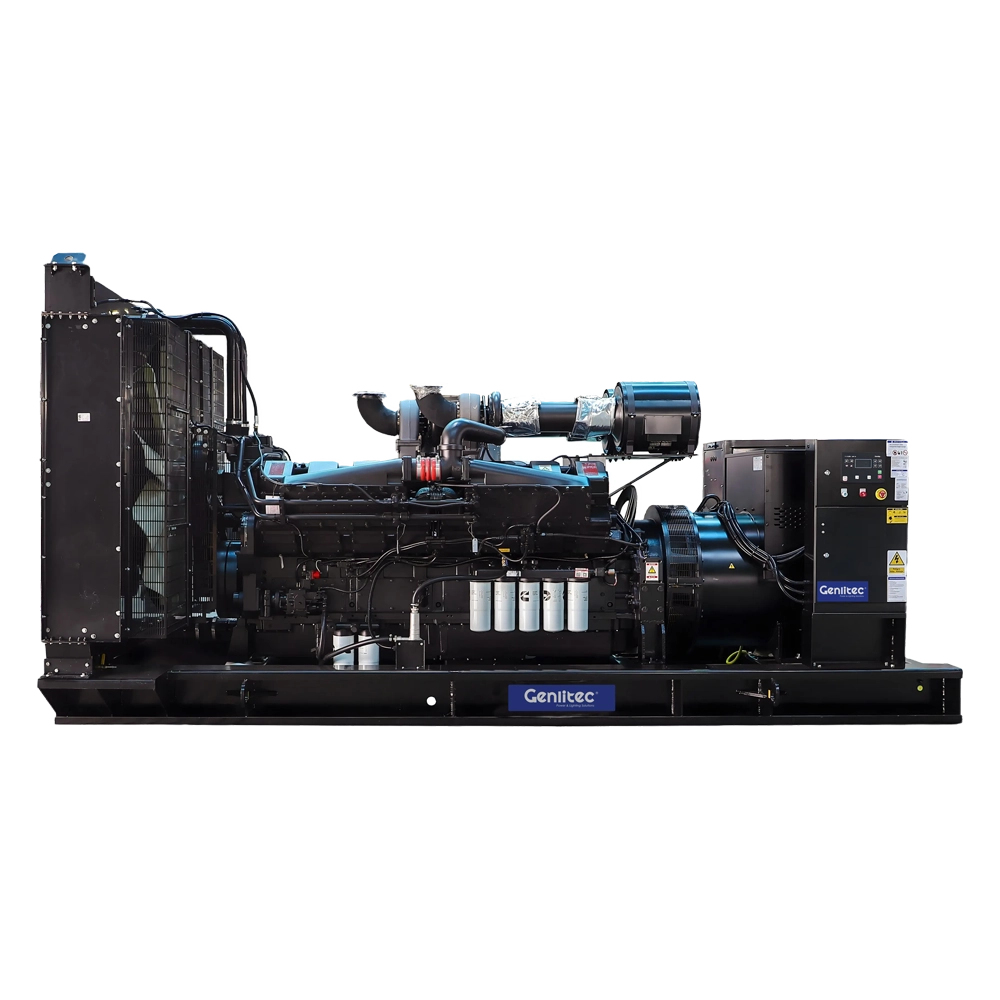

The GPC1375D5 is the open type configuration, suitable for generator rooms and installations where ventilation and convenient maintenance access are available. The GPC1375S5 is the silent type configuration, designed with a weatherproof sound-attenuated enclosure for outdoor and noise-sensitive applications. A 1000L fuel tank is provided as the standard configuration, while ATS, synchronization, remote monitoring and other options can be configured according to project requirements.
Generator Set
| Open Type Model | GPC1375D5 |
| Silent Type Model | GPC1375S5 |
| Prime Power | 1100KW/1375KVA |
| Standby Power | 1210KW/1512.5KVA |
| Phase & Wire | 3 Phase, 4 Wires |
| Power Factor | 0.8 |
| Frequency | 50Hz |
| Rated Voltage | 220/380V, 230/400V, 240/415V |
| Fuel Tank Capacity | 1000L |
Diesel Engine
| Engine Model | CUMMINS KTA50-G8 |
| Cylinder Number | 16-V |
| Aspiration System | Turbocharged, Low-Temperature Aftercooled |
| Cooling System Design | 2 Pump / 2 Loop |
| Governor Type | Electronic |
| Bore x Stroke | 159 x 159 mm |
| Compression Ratio | 14.9:1 |
| Rated Speed | 1500RPM |
| Gross Prime Power | 1200KW |
| Gross Standby Power | 1429KW |
| Displacement | 50.3L |
| Coolant Capacity | 140L (Engine only) |
| Oil Capacity | 204L |
| Fuel System | Cummins PT Direct Injection |
| Electric Starting System | DC 24V |
Fuel Consumption
The following fuel consumption figures are based on Cummins official KTA50-G8 engine data at 1500 RPM and 50Hz under prime power operating conditions.
| 100% Prime Load | 289L/H |
| 75% Prime Load | 222L/H |
| 50% Prime Load | 155L/H |
| 25% Prime Load | 82L/H |
Alternator
The GPC1375 generator set is equipped with a three-phase alternator rated at 1100kW/1375kVA. The alternator is designed for 50Hz operation with a 0.8 power factor, four poles, H-class insulation and IP23 protection, providing stable electrical performance for high-capacity prime and standby power applications.
| Number of Phase | 3 |
| Rated Power | 1120KW/1400KVA |
| Frequency | 50Hz |
| Power Factor | 0.8 |
| Poles | 4 |
| Temp. Rise | 125K |
| Terminals | 12 |
| Insulation Class | H |
| Ambient Temp. | 40℃ |
| IP Rating | IP23 |
| Excitation System | Self-Excited |
| Bearing | Single Bearing |
| Coating | Vacuum Impregnation |
| Voltage Regulator | A.V.R |
| Coupling | Flexible Disc |
Control Panel
| ○ Emergency stop button | ○ Main circuit breaker |
| ○ Float battery charger | ○ Manual/Auto start control panel |
| ○ Fuel level meter | ○ Controller power switch |
| ○ Alarm buzzer |
Sound Attenuated Enclosure
○ Weatherproof sound-attenuated enclosure designed for outdoor installation and noise-sensitive applications
○ Corrosion-resistant construction provides protection during outdoor operation
○ Available for GPC1375S5 silent type diesel generator set
Options
○ ATS for automatic start and stop when utility power fails or returns

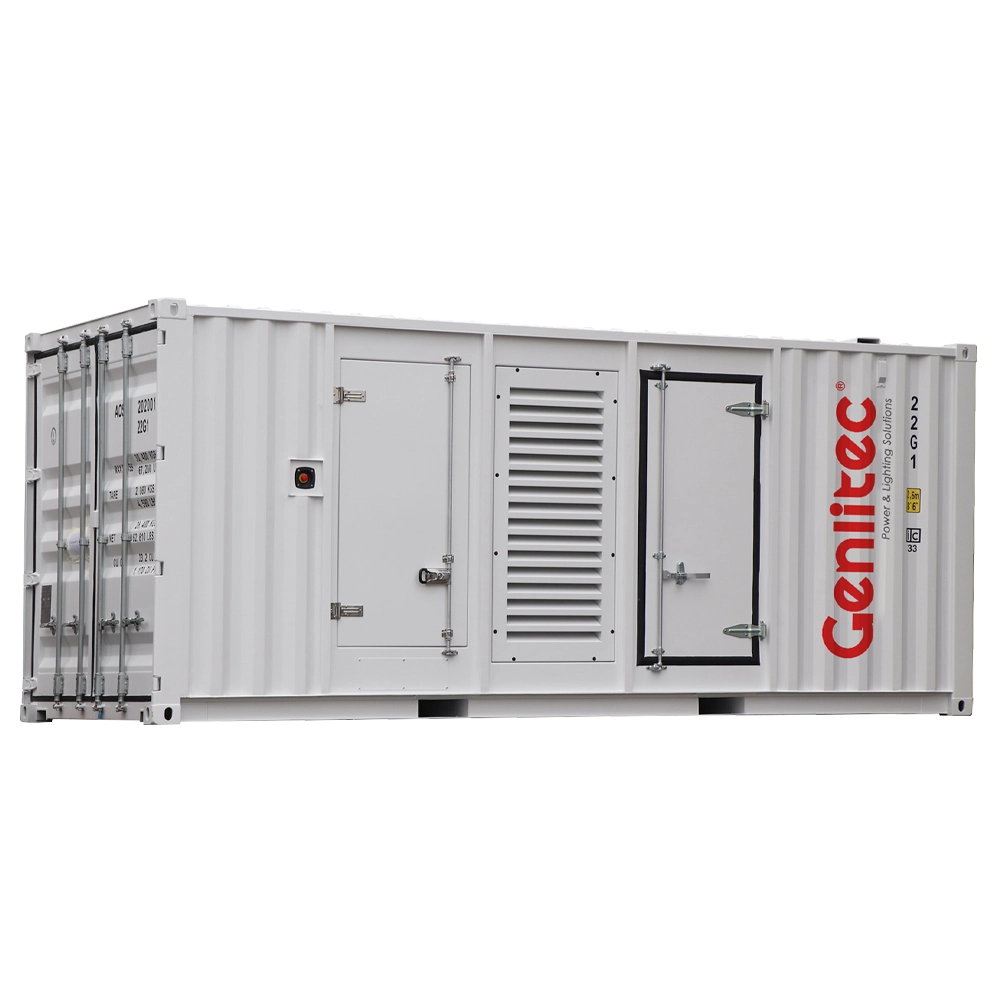

○ 40' ISO Containerized canopy
○ Water-jacket heater
○ Other heaters
○ AREM & PMG
○ Synchronization System
○ Remote & Monitoring System
Applications
The GENLITEC POWER 1100kW/1375kVA Cummins diesel generator set is designed for high-capacity prime and standby power applications where reliable and stable power is required, including:
○ Industrial plants and manufacturing facilities
○ Commercial buildings and large facilities
○ Construction sites and infrastructure projects
○ Mining and heavy-duty applications
○ Telecommunications and remote facilities
○ Data centers and critical power facilities
○ Emergency and standby power applications
Why Choose GENLITEC POWER
GENLITEC POWER is a professional manufacturer and exporter of diesel generator sets and mobile lighting towers, providing reliable power equipment and customized power solutions to customers worldwide.
○ Established in 2016 with more than 10 years of experience in power equipment manufacturing and export
○ 66,000 m² manufacturing park with more than 7,000 m² assembly workshop
○ Annual production capacity of more than 2,500 generator sets
○ Products supplied to customers in more than 50 countries and regions worldwide
○ Professional engineering team providing customized power solutions for different applications and project requirements
○ Extensive experience with leading engine brands including Cummins, Perkins, Caterpillar, Yanmar, Kubota, Isuzu, Deutz, SDEC, Weichai and Yuchai
○ Alternator solutions from Stamford, Leroy Somer and GENLITEC to meet different performance and application requirements
○ Strict quality control and testing procedures throughout production and assembly
○ Complete power solutions including diesel generator sets, mobile lighting towers, ATS, synchronization and paralleling systems
○ Professional manufacturing, engineering and international export experience
For more information, please visit the GENLITEC POWER® Why Choose GENLITEC POWER page.
Warranty
GENLITEC POWER provides a standard warranty of 12 months or 1000 working hours, whichever comes first. For details, please refer to the GENLITEC POWER® Warranty Policy.
