50Hz 1200kW 1500kVA Diesel Generator with Cummins KTA50-GS8 Engine
Short Description
GENLITEC POWER GPC1500D5/GPC1500S5 1500kVA Cummins diesel generator with KTA50-GS8, 1200kW prime and 1320kW standby power.
- ModelGPC1500D5 | GPC1500S5
- Frequency50Hz
- Prime Power1200KW/1500KVA
- Standby Power1320KW/1650KVA
- EngineCummins KTA50-GS8
- AlternatorStamford/Leroy Somer/Genlitec Power
- Fuel Consumption (100% Load)309L/H
- MOQ1 Set
Product Details
Product Tags

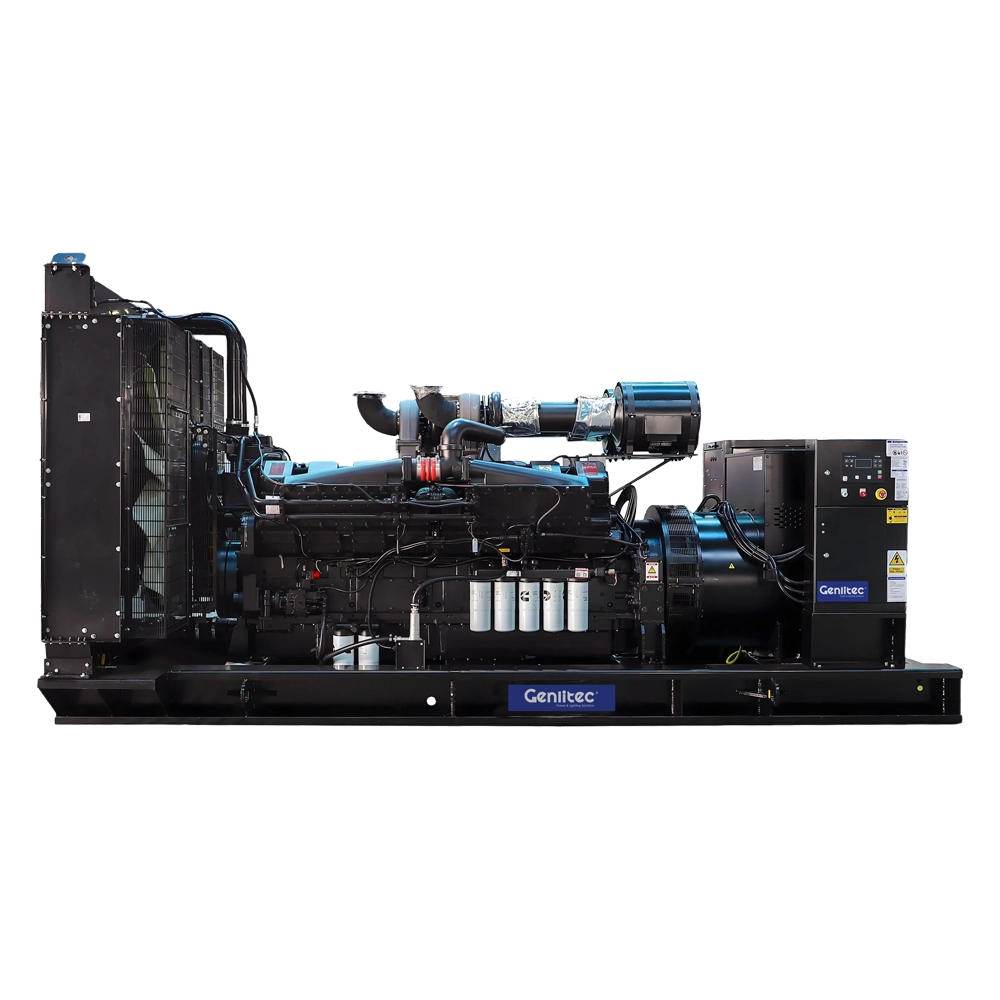

GPC1500D5 / GPC1500S5 1500kVA Diesel Generator Set
GENLITEC POWER GPC1500D5 and GPC1500S5 are 1200kW/1500kVA diesel generator sets designed for high-capacity prime and standby power applications. Powered by the CUMMINS KTA50-GS8 16-cylinder diesel engine, the generator set operates at 1500RPM and features a turbocharged water/air cooling system, water-cooled design, electronic EFC governor and CUMMINS PT fuel injection system. With a 1000L fuel tank, 24V electric starting system and 3-phase, 4-wire output, the GPC1500D5 open type and GPC1500S5 silent type provide reliable and stable power for industrial, commercial, construction, mining, data center and emergency power applications.
Generator Set
| Open Type Model | GPC1500D5 |
| Silent Type Model | GPC1500S5 |
| Prime Power | 1200KW/1500KVA |
| Standby Power | 1320KW/1650KVA |
| Phase & Wire | 3 Phase, 4 Wires |
| Power Factor | 0.8 |
| Frequency | 50Hz |
| Rated Voltage | 220/380V, 230/400V, 240/415V |
| Fuel Tank Capacity | 1000L |
Diesel Engine
| Engine Model | CUMMINS KTA50-GS8 |
| Cylinder Number | 16-V |
| Aspiration System | Turbocharged, Water/Air Cooling |
| Cooling Method | Water Cooled |
| Governor Type | EFC Electronic |
| Bore x Stroke | 159 x 159 mm |
| Compression Ratio | 13.9:1 |
| Rated Speed | 1500RPM |
| Displacement | 50L |
| Rated Power | 1287KW |
| Standby Power | 1429KW |
| Coolant Capacity | 140L |
| Oil Capacity | 204L |
| Fuel System | CUMMINS PT Pump |
| Electric Starting System | DC 24V |
Fuel Consumption
| 100% Prime Load | 309L/H |
| 75% Prime Load | 238L/H |
| 50% Prime Load | 167L/H |
| 25% Prime Load | 88L/H |
Alternator
| Number of Phase | 3 |
| Rated Power | 1240KW/1550KVA |
| Frequency | 50Hz |
| Power Factor | 0.8 |
| Poles | 4 |
| Temp. Rise | 125K |
| Terminals | 12 |
| Insulation Class | H |
| Ambient Temp. | 40℃ |
| IP Rating | IP23 |
| Excitation System | Self-Excited |
| Bearing | Single Bearing |
| Coating | Vacuum Impregnation |
| Voltage Regulator | A.V.R |
| Coupling | Flexible Disc |
Control Panel
| ○ Emergency stop button | ○ Main circuit breaker |
| ○ Float battery charger | ○ Manual/Auto start control panel |
| ○ Fuel level meter | ○ Controller power switch |
| ○ Alarm buzzer |

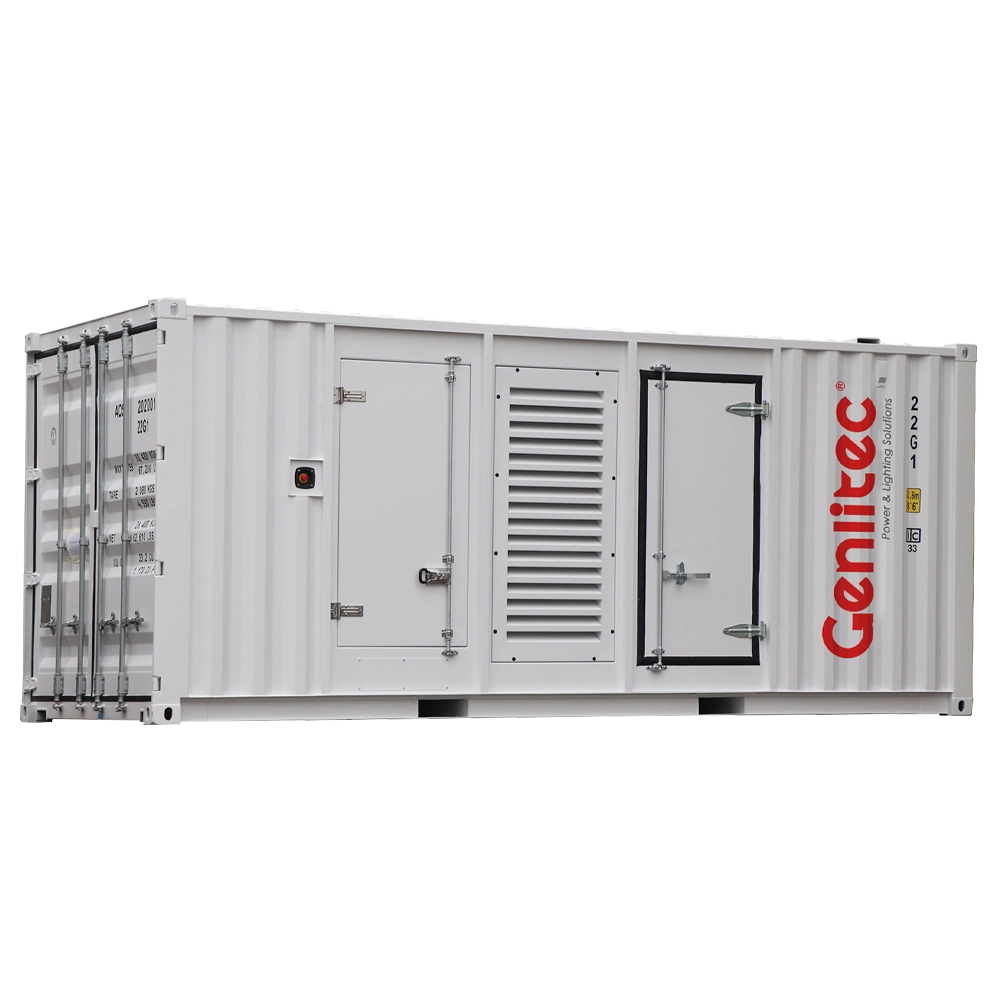

Sound Attenuated Enclosure
The GPC1500S5 silent type generator set is equipped with a sound attenuated enclosure designed to reduce operating noise and protect the generator set in outdoor applications.
The enclosure is manufactured with a robust structure and suitable ventilation design to provide protection while maintaining effective engine and alternator cooling.
The GPC1500D5 open type is suitable for installation in dedicated generator rooms where the surrounding environment provides the required acoustic and weather protection.
Options
○ Automatic Transfer Switch (ATS)
○ 40' ISO containerized canopy
○ Water-jacket heater
○ Other engine and battery heaters
○ AREM & PMG
○ Synchronization and paralleling system
○ Remote monitoring system
Applications
The GPC1500D5 / GPC1500S5 is suitable for prime and standby power applications where high-capacity, stable and dependable power is required, including:
○ Industrial facilities and manufacturing plants
○ Commercial buildings and large facilities
○ Construction projects and infrastructure
○ Mining and remote power projects
○ Data centers and critical power systems
○ Telecommunications facilities
○ Emergency and standby power systems
○ Industrial and commercial backup power applications
Why Choose GENLITEC POWER
GENLITEC POWER is a professional manufacturer and exporter of diesel generator sets and mobile lighting towers, providing reliable power equipment and customized power solutions to customers worldwide.
○ Established in 2016 with more than 10 years of experience in power equipment manufacturing and international export.
○ 66,000 m² manufacturing park with more than 7,000 m² assembly workshop.
○ Annual production capacity of more than 2,500 generator sets.
○ Products supplied to more than 50 countries and regions worldwide.
○ Professional engineering team providing customized generator set configurations and power solutions.
○ Engine solutions including Cummins, Perkins, Caterpillar, Yanmar, Kubota, Isuzu, Deutz, SDEC, Weichai and Yuchai.
○ Alternator solutions from Stamford, Leroy Somer and GENLITEC.
○ Strict quality control and testing procedures to ensure reliable generator set performance.
○ Complete power solutions including diesel generator sets, mobile lighting towers, ATS, synchronization and paralleling systems.
○ Professional manufacturing, engineering and international export experience for demanding power projects.
Warranty
GENLITEC POWER provides a standard warranty of 12 months or 1000 working hours, whichever comes first, covering manufacturing defects under normal operating and maintenance conditions.
