50Hz 108kW 135kVA Diesel Generator with Perkins 1106A-70TG1 Engine
Introduction
The GENLITEC POWER GPP135D5 / GPP135S5 is a 135 kVA diesel generator set designed for reliable prime, standby and backup power applications. With a rated output of 108KW/135KVA prime power and 120KW/150KVA standby power, this 50Hz diesel generator operates at 1500 RPM and provides dependable three-phase power for commercial, industrial, construction, agricultural, telecommunications and other demanding applications.
Powered by a Perkins 1106A-70TG1 turbocharged diesel engine, the GPP135D5 / GPP135S5 combines a 7.01L six-cylinder engine with mechanical governing, practical power output and efficient fuel consumption. The generator set is available in both open type and silent type versions, with rated voltage options of 220/380V, 230/400V and 240/415V. A 200L standard fuel tank is provided, while optional 12-hour, 24-hour and 48-hour fuel tanks, ATS, trailer, remote monitoring system and power sockets are available for different project requirements. This 108KW/135KVA Perkins diesel generator is suitable for prime power, emergency standby power and backup power applications where reliable and economical electricity supply is required.
Generator Set
| Open Type Model | GPP135D5 |
| Silent Type Model | GPP135S5 |
| Frequency | 50Hz |
| Phase & Wires | 3 Phase, 4 Wires |
| Power Factor | 0.8 |
| Prime Power | 108KW/135KVA |
| Standby Power | 120KW/150KVA |
| Rated Voltage | 220/380V; 230/400V; 240/415V |
| Rated Speed | 1500 RPM |
| Fuel Tank Capacity | 200L |
Diesel Engine
| Engine Model | Perkins 1106A-70TG1 |
| Cylinder Number | 6 |
| Cylinder Arrangement | Vertical In-line |
| Cycle | 4 Stroke |
| Aspiration System | Turbocharged |
| Cooling Method | Water Cooled |
| Governor Type | Mechanical |
| Bore x Stroke | 105 x 135 mm |
| Compression Ratio | 18.2:1 |
| Rated Speed | 1500 RPM |
| Displacement | 7.01L |
| Rated Power | 123.7KW |
| Standby Power | 136.9KW |
| Combustion System | Direct Injection |
| Oil Capacity | 18L |
| Coolant Capacity | 21L |
| Electric Starting System | DC 12V |
Fuel Consumption
| 100% Prime Load | 30.2L/H |
| 75% Prime Load | 22.7L/H |
| 50% Prime Load | 15.9L/H |
| 25% Prime Load | 9.0L/H |
Alternator
| Number of Phase | 3 |
| Rated Power | 112KW/140KVA |
| Frequency | 50Hz |
| Power Factor | 0.8 |
| Poles | 4 |
| Temperature Rise | 125K |
| Terminals | 12 |
| Insulation Class | H Class |
| Ambient Temperature | 40℃ |
| IP Rating | IP23 |
| Excitation System | Self-Excited |
| Bearing | Single Bearing |
| Coating | Vacuum Impregnation |
| Voltage Regulator | A.V.R |
| Coupling | Flexible Disc |
Control Panel
| ○ Emergency stop button | ○ Main circuit breaker |
| ○ Float battery charger | ○ Manual/Auto start control panel |
| ○ Fuel level meter | ○ Controller power switch |
| ○ Alarm buzzer |

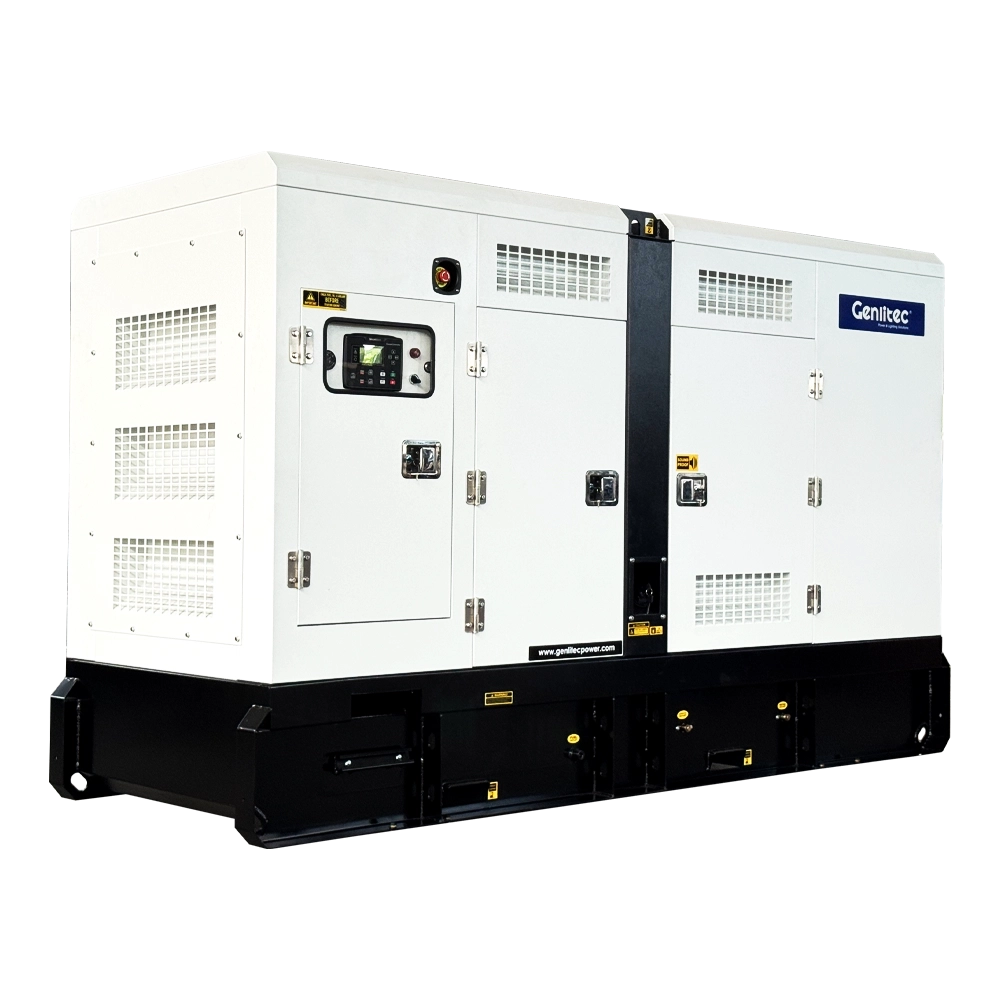

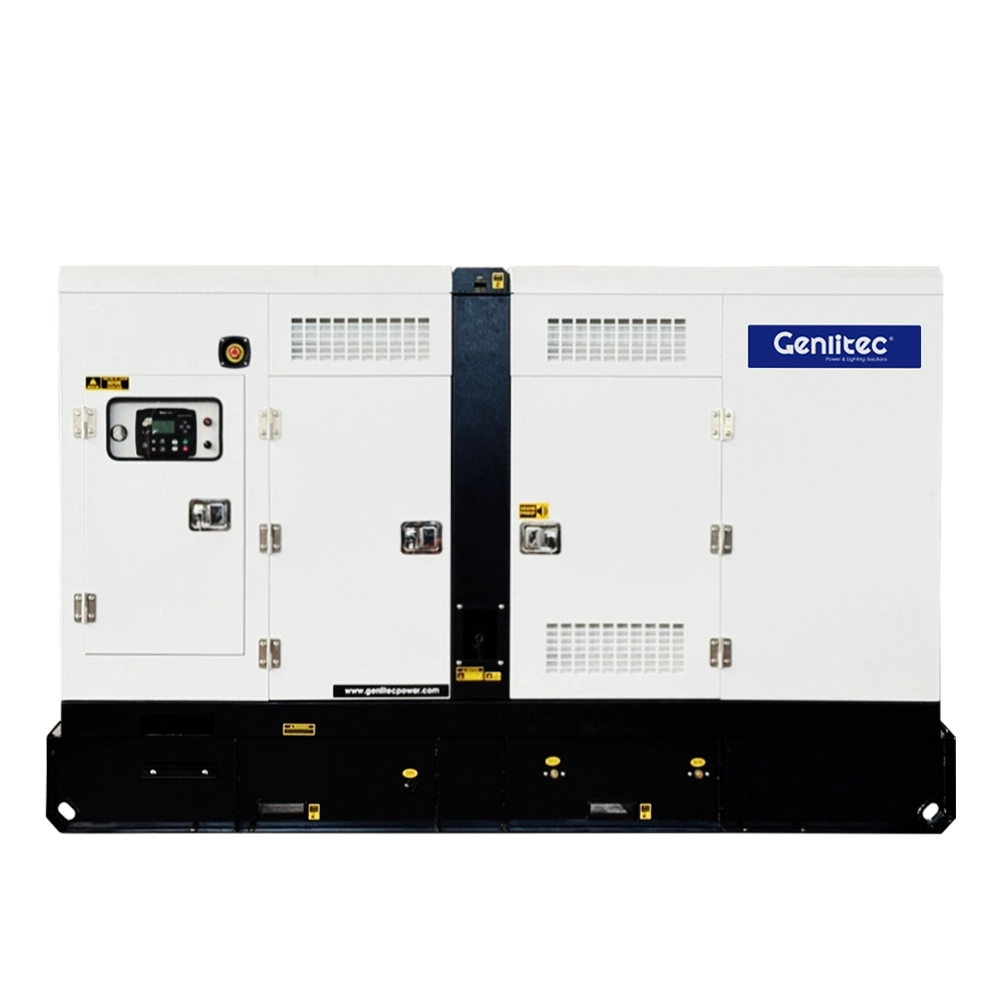

Sound Attenuated Enclosure
○ Weatherproof sound-attenuated enclosure with internal exhaust silencer
○ Corrosion-resistant construction for outdoor installation
○ Available for GPP135S5 silent type generator set
Options
○ ATS for automatic start and stop when utility power fails or returns
○ Single axle trailer
○ 12-hour fuel tank
○ 24-hour fuel tank
○ 48-hour fuel tank
○ Remote monitoring system
○ Power sockets, including CEE or AUS standards
Applications
The GENLITEC POWER 108KW/135KVA diesel generator set is suitable for a wide range of prime, standby and backup power applications, including:
○ Commercial and office buildings
○ Industrial facilities
○ Construction and job sites
○ Agricultural and rural facilities
○ Telecommunication and remote sites
○ Emergency and standby power systems
Why Choose GENLITEC POWER
GENLITEC POWER GPP135D5 / GPP135S5 diesel generator sets combine a Perkins 1106A-70TG1 engine with a practical generator set configuration for dependable prime and standby power.
○ Perkins 1106A-70TG1 diesel engine for reliable power generation
○ 108KW/135KVA prime power and 120KW/150KVA standby power
○ Multiple voltage configurations available
○ Open and silent type configurations available
○ Mechanical governor for reliable engine speed control
○ Suitable for commercial, industrial and backup power applications
○ Factory-direct supply with customized generator set solutions
For more information, please visit the GENLITEC POWER® Why Choose GENLITEC POWER page.
Warranty
GENLITEC POWER provides a standard warranty of 12 months or 1000 working hours, whichever comes first. For details, please refer to the GENLITEC POWER® Warranty Policy.
