50Hz 24kW 30kVA Cummins 4B3.9-G2 Diesel Generator
Short Description
50Hz 24kW/30kVA Cummins 4B3.9-G2 diesel generator for efficient and dependable power in commercial, industrial, construction and backup applications.
- ModelGPC30D5 | GPC30S5
- Frequency50Hz
- EngineCummins 4B3.9-G12
- Prime Power24KW/30KVA
- Standby Power26KW/33KVA
- Fuel Consumption (100% Load)7.4L/H
- MOQ1 Set
Product Details
Product Tags
Video
Introduction
The GENLITEC POWER® GPC30D5 open type and GPC30S5 silent type diesel generator sets provide 24kW/30kVA prime power and 26kW/33kVA standby power. Powered by a Cummins 4B3.9-G12 four-cylinder water-cooled diesel engine and coupled with a brushless copper alternator, they are designed to deliver stable and reliable power for commercial, industrial, construction and backup applications.
Designed for 50Hz operation at 1500RPM, the generator sets provide three-phase, four-wire power with flexible voltage configurations of 220/380V, 230/400V and 240/415V. The package includes a 24V DC electric starting system, engine-driven cooling system, anti-vibration mountings and a digital control system for dependable operation and convenient monitoring.

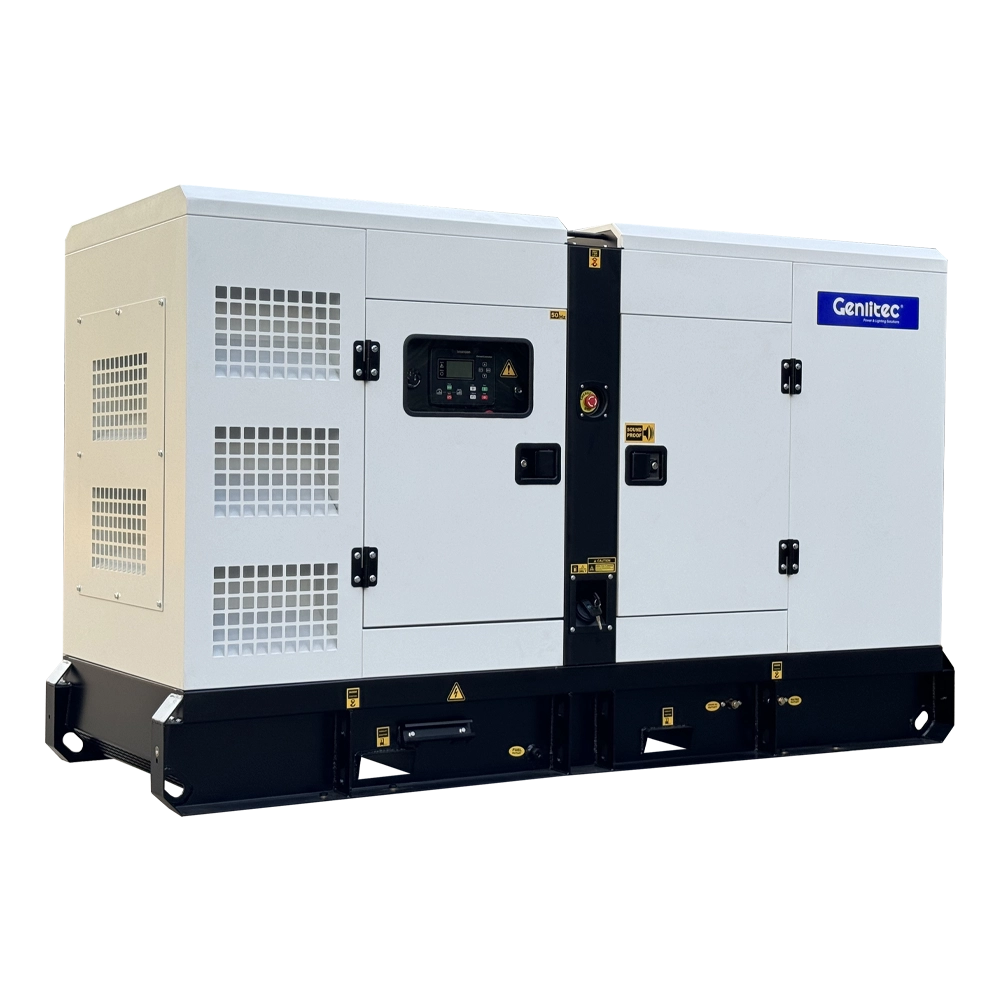

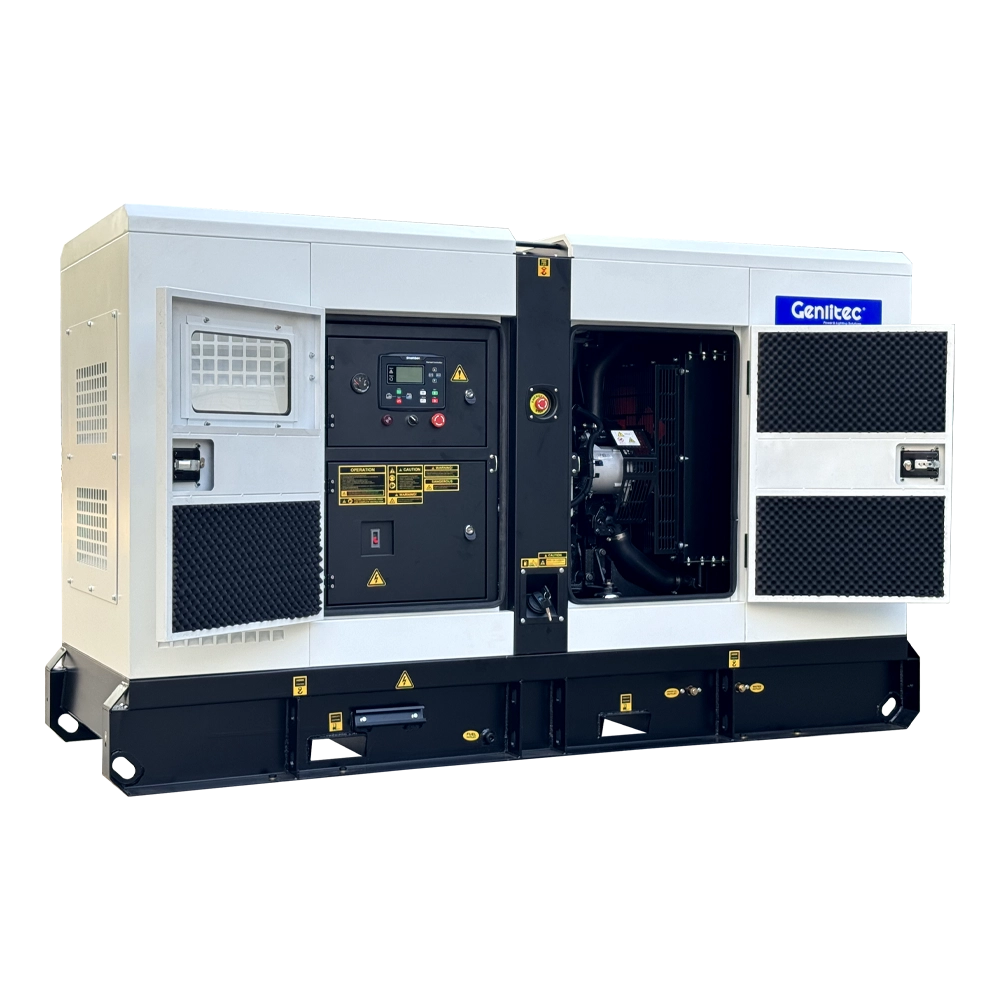

The GPC30D5 open type is suitable for installations where ventilation and service access are priorities, while the GPC30S5 silent type features a weatherproof sound-attenuated enclosure with an internal exhaust silencer, making it suitable for applications where reduced operating noise and environmental protection are required.
Generator Set
| Open Type Model | GPC30D5 |
| Silent Type Model | GPC30S5 |
| Prime Power | 24kW/30kVA |
| Standby Power | 26kW/33kVA |
| Phase & Wire | 3 Phase, 4 Wires |
| Power Factor | 0.8 |
| Frequency | 50Hz |
| Rated Voltage | 220/380V, 230/400V, 240/415V |
| Rated Speed | 1500RPM |
| Fuel Tank Capacity | 45L |
Diesel Engine
| Engine Model | Cummins 4B3.9-G12 |
| Engine Type | 4-Cylinder, 4-Stroke Diesel Engine |
| Aspiration System | Naturally Aspirated |
| Cooling Method | Water Cooled |
| Governor Type | Electronic |
| Bore x Stroke | 102 x 120 mm |
| Compression Ratio | 18:1 |
| Rated Speed | 1500RPM |
| Displacement | 3.9L |
| Rated Power | 27kW |
| Standby Power | 30kW |
| Fuel System | Direct Injection |
| Oil Capacity | 10.9L |
| Coolant Capacity | 7.2L |
| Electric Starting System | DC 24V |
Fuel Consumption
| 100% Prime Load | 7.4L/H |
| 75% Prime Load | 6.1L/H |
| 50% Prime Load | 4.5L/H |
| 25% Prime Load | 2.4L/H |
Alternator
| Alternator Type | Brushless, Self-Excited |
| Number of Phase | 3 |
| Rated Power | 24kW/30kVA |
| Frequency | 50Hz |
| Power Factor | 0.8 |
| Poles | 4 |
| Temperature Rise | 125K |
| Terminals | 12 |
| Insulation Class | H |
| Ambient Temperature | 40°C |
| IP Rating | IP23 |
| Excitation System | Self-Excited |
| Bearing | Single Bearing |
| Coating | Vacuum Impregnation |
| Voltage Regulator | AVR |
| Coupling | Flexible Disc |
Control Panel
| ○ Emergency stop button | ○ Main circuit breaker |
| ○ Float battery charger | ○ Manual/Auto start control panel |
| ○ Fuel level meter | ○ Controller power switch |
| ○ Alarm buzzer |
Sound Attenuated Enclosure
○ Weatherproof sound-attenuated enclosure with internal exhaust silencer
○ Corrosion-resistant construction for outdoor installation
Options
○ ATS for automatic start and stop when utility power fails or returns
○ Single axle trailer
○ 12-hour fuel tank
○ 24-hour fuel tank
○ Power sockets, including CEE or AUS standards
Applications
The GENLITEC POWER 24kW/30kVA diesel generator set is suitable for a variety of prime and standby power requirements, including:
○ Commercial and office buildings
○ Small industrial facilities
○ Construction and job sites
○ Agricultural and rural facilities
○ Telecommunication and remote sites
○ Emergency and standby power systems
Why Choose GENLITEC POWER
GENLITEC POWER is a professional manufacturer and exporter of diesel generator sets and mobile lighting towers, providing reliable power generation solutions for customers in different industries and markets. Since 2016, the company has focused on generator manufacturing, international sales, project support and customized power solutions.
○ More than 10 years of experience in power generation equipment
○ Annual production capacity of more than 2,500 generator sets
○ Generator sets and mobile lighting towers from one professional supplier
○ Multiple engine, alternator and controller brand options
○ Customized configurations for commercial, industrial, construction, mining and infrastructure applications
○ International export experience serving customers in more than 50 countries
○ Technical support, project assistance and after-sales service
For more information, please visit the GENLITEC POWER® Why Choose GENLITEC POWER page.
Warranty
GENLITEC POWER provides a standard warranty of 12 months or 1000 working hours, whichever comes first. For details, please refer to the GENLITEC POWER® Warranty Policy.
