50Hz 300kW 375kVA Diesel Generator with Cummins NTA855-G7 Engine
Short Description
GENLITEC POWER GPC375D5-II/GPC375S5-II diesel generators with original Cummins NTA855-G7, 300kW/375kVA prime and 330kW/413kVA standby power.
- ModelGPC375D5-II | GPC375S5-II
- Frequency50Hz
- Prime Power300KW/375KVA
- Standby Power330KW/413KVA
- EngineCummins NTA855-G7
- AlternatorStamford/Leroy Somer/Genlitec Power
- Fuel Consumption (100% Load)85.4L/H
- MOQ1 Set
Product Details
Product Tags
Introduction
The GENLITEC POWER® GPC375D5-II open type and GPC375S5-II silent type diesel generator sets deliver 300kW/375kVA prime power and 330kW/413kVA standby power. Powered by a Cummins NTA855-G7 six-cylinder diesel engine and matched with a brushless copper alternator, this generator set is designed for demanding commercial, industrial, construction, mining, infrastructure and backup power applications where dependable continuous power and robust engine performance are essential.
The Cummins NTA855-G7 engine features a 14L displacement, turbocharged and charge-air-cooled intake system, electronic governor and direct fuel delivery through a Cummins PT pump. With 343kW rated engine power and 377kW standby engine power, the engine provides substantial power reserve for a 300kW/375kVA generator set, helping maintain stable performance under demanding and variable loads.
Operating at 50Hz and 1500RPM, the generator set provides three-phase, four-wire output with flexible voltage configurations of 220/380V, 230/400V and 240/415V. The 570L fuel tank, DC 24V electric starting system, electronic governor, water-cooled engine and heavy-duty alternator configuration are designed to support reliable operation in demanding working environments.

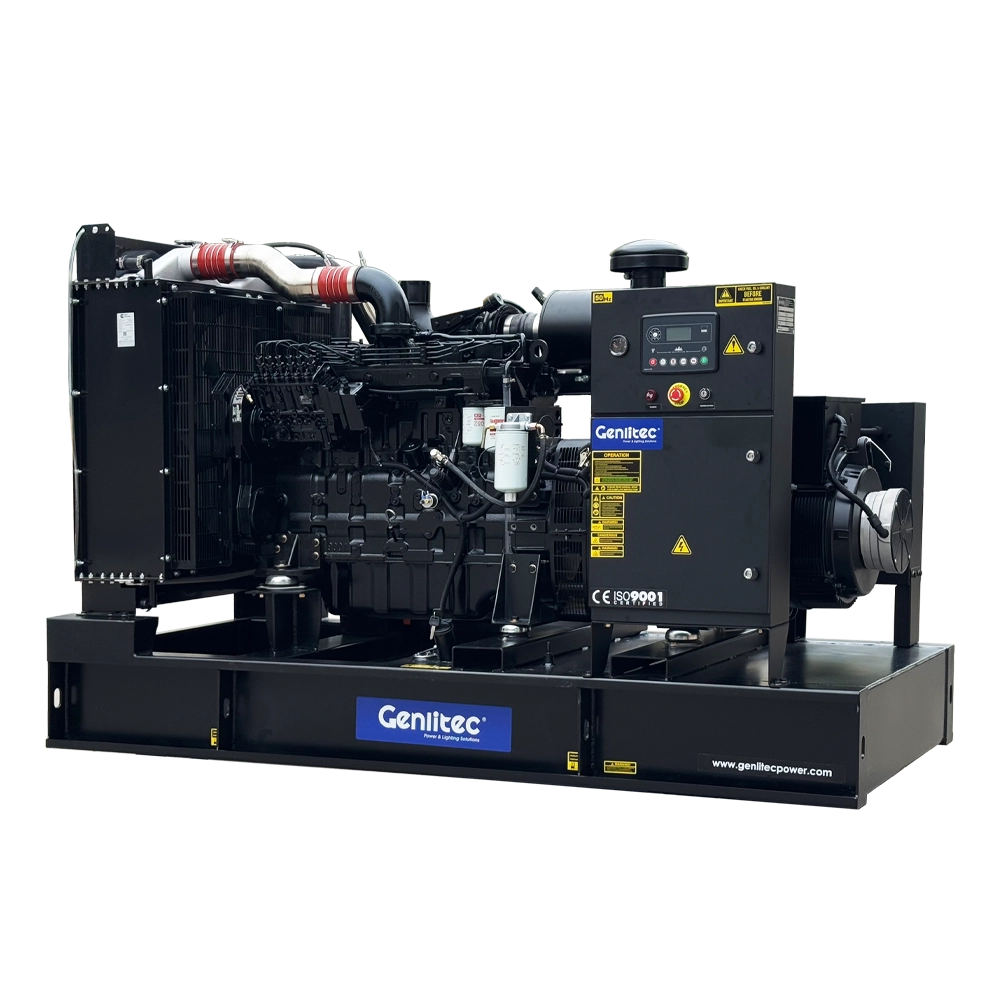

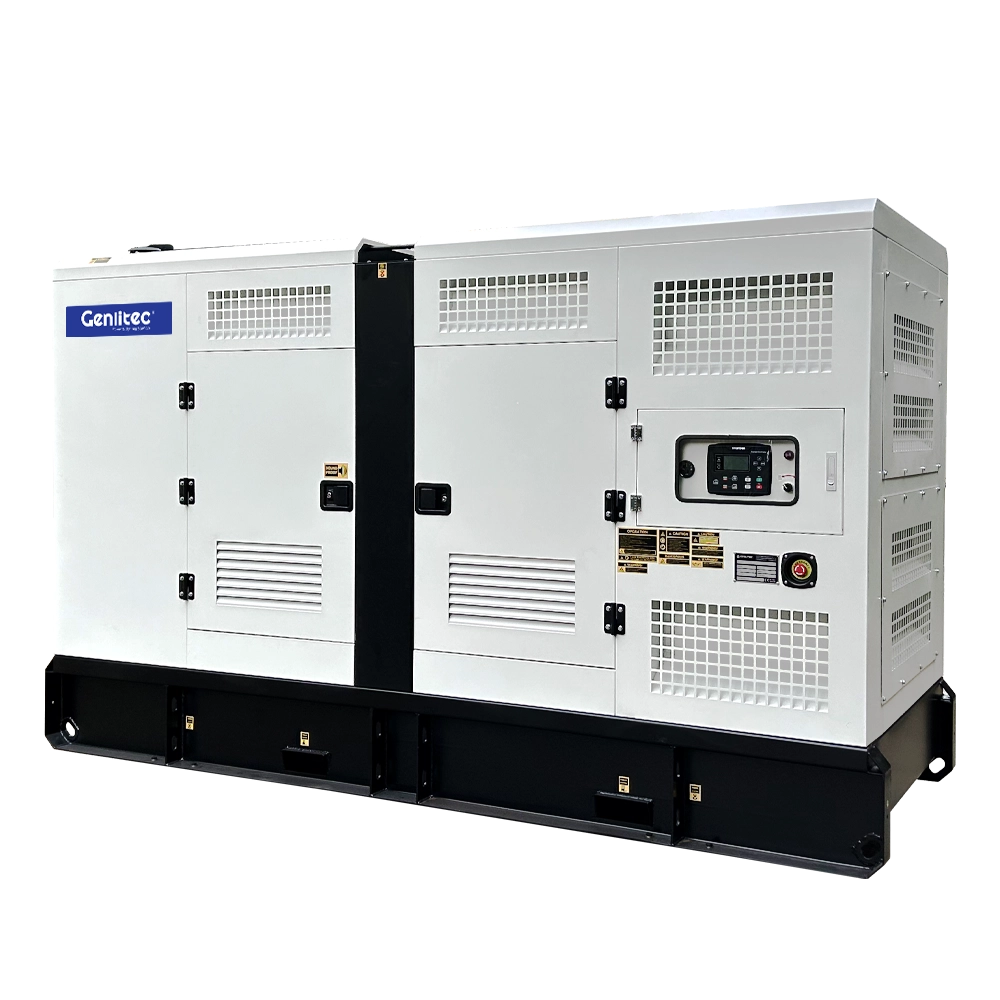

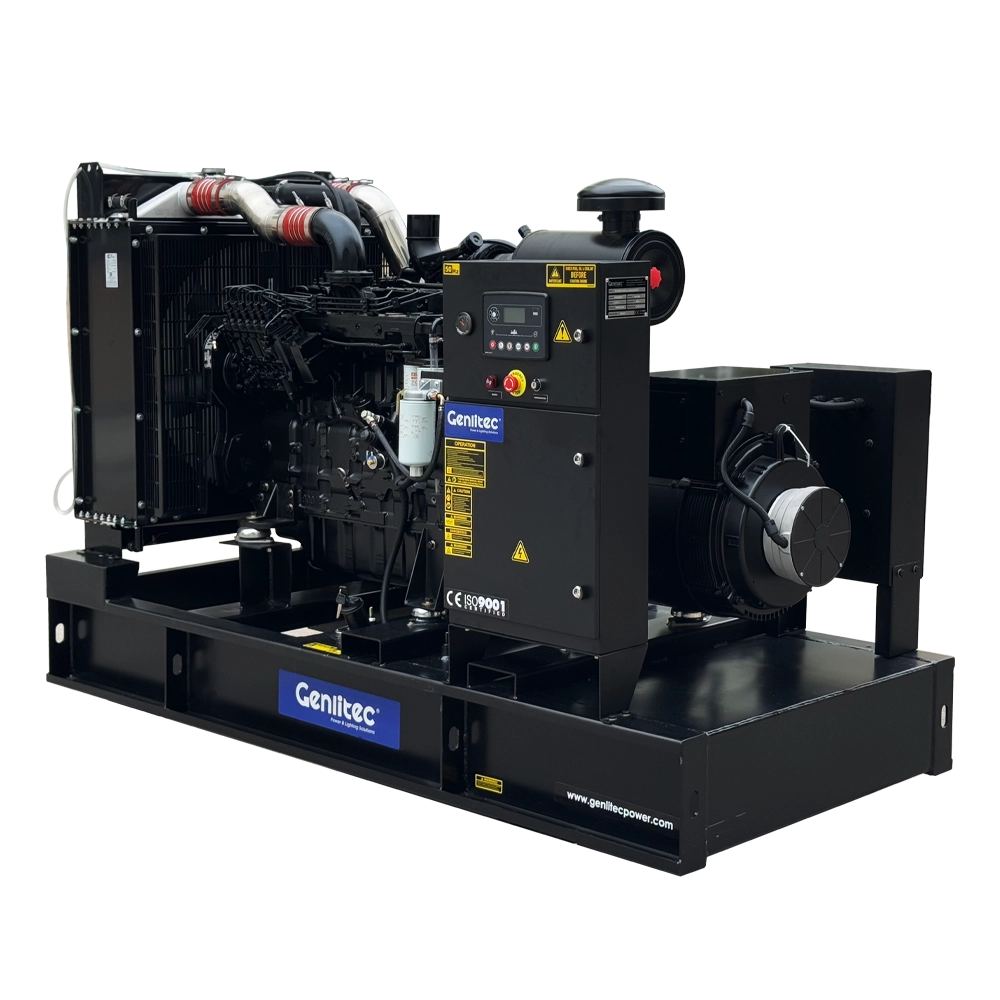

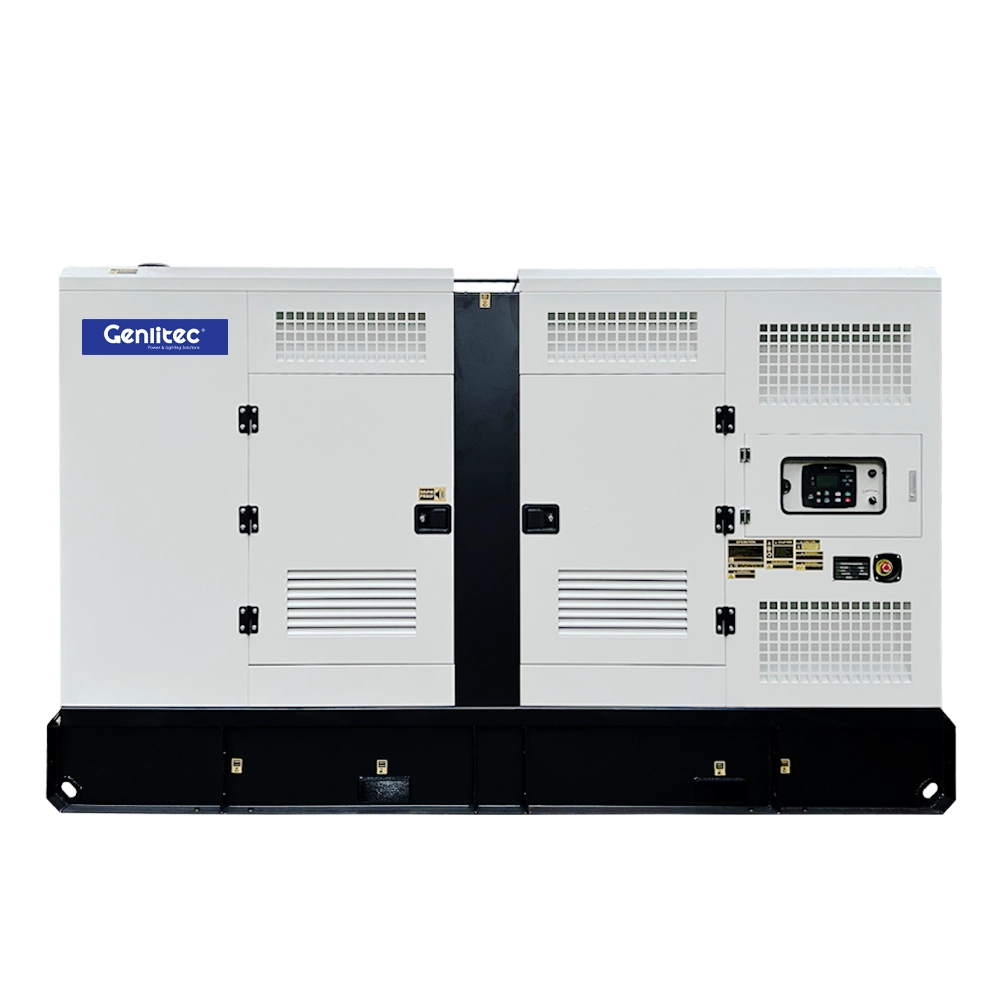

The GPC375D5-II open type is suitable for generator rooms, industrial facilities and applications where ventilation and convenient maintenance are priorities. The GPC375S5-II silent type is designed with a sound-attenuated enclosure for outdoor and noise-sensitive installations, providing additional protection against weather and reducing operating noise.
Generator Set
| Open Type Model | GPC375D5-II |
| Silent Type Model | GPC375S5-II |
| Prime Power | 300kW/375kVA |
| Standby Power | 330kW/413kVA |
| Phase & Wire | 3 Phase, 4 Wires |
| Power Factor | 0.8 |
| Frequency | 50Hz |
| Voltage | 220/380V, 230/400V, 240/415V |
| Fuel Tank Capacity | 570L |
Diesel Engine
| Engine Model | CUMMINS NTA855-G7 |
| Cylinder Number | 6 |
| Aspiration System | Turbocharged, Air-Air Cooled |
| Cooling Method | Water Cooled |
| Governor Type | Electronic |
| Bore x Stroke | 140 x 154 mm |
| Compression Ratio | 14:1 |
| Rated Speed | 1500 RPM |
| Displacement | 14L |
| Rated Power | 344KW |
| Standby Power | 377KW |
| Fuel Pump | Cummins PT Pump |
| Oil Capacity | 38.6L |
| Coolant Capacity | 60.6L |
| Electric Starting System | DC 24V |
Fuel Consumption
| 100% Prime Load | 85.4L/H |
| 75% Prime Load | 64.7L/H |
| 50% Prime Load | 44.6L/H |
| 25% Prime Load | 24.6L/H |
Alternator
| Number of Phase | 3 |
| Rated Power | 300KW/375KVA |
| Frequency | 50Hz |
| Power Factor | 0.8 |
| Poles | 4 |
| Temperature Rise | 125K |
| Terminals | 6 (12 leads for option) |
| Insulation Type | H Class |
| Ambient Temperature | 40℃ |
| IP Rating | IP23 |
| Excitation System | Self-Excited |
| Bearing | Single Bearing |
| Coating | Vacuum Impregnation |
| Voltage Regulator | A.V.R |
| Coupling | Flexible Disc |
Control Panel
| ○ Emergency stop button | ○ Main circuit breaker |
| ○ Float battery charger | ○ Manual/Auto start control panel |
| ○ Fuel level meter | ○ Controller power switch |
| ○ Alarm buzzer |
Sound Attenuated Enclosure
○ Weatherproof sound-attenuated enclosure with internal exhaust silencer
○ Corrosion-resistant construction for outdoor installation
○ Available for GPC375S5-II silent type generator set
Options
○ ATS for automatic start and stop when utility power fails or returns
○ Double-axle trailer
○ 12-hour fuel tank
○ 24-hour fuel tank
○ Water-jacket heater
○ Other heaters
○ AREM & PMG
○ Synchronization System
○ Remote & Monitoring System
Applications
The GENLITEC POWER 300kW/375kVA diesel generator set is designed for demanding prime, standby and backup power applications, including:
○ Commercial buildings and office complexes
○ Industrial facilities and manufacturing plants
○ Construction sites and infrastructure projects
○ Mining and heavy-duty applications
○ Telecommunication and remote facilities
○ Data centers and critical power systems
○ Emergency and standby power applications
Why Choose GENLITEC POWER
The GPC375D5-II and GPC375S5-II combine a proven Cummins NTA855-G7 diesel engine, heavy-duty generator construction and carefully matched alternator technology to provide a reliable 300kW/375kVA power solution. The engine offers 340kW rated power and 380kW standby power, providing a substantial power reserve above the generator's rated output and making the set suitable for demanding load conditions.
○ Genuine Cummins NTA855-G7 14L diesel engine configuration
○ 300kW/375kVA prime power with 330kW/413kVA standby power
○ High engine power reserve for demanding and variable loads
○ Turbocharged and air-air-cooled engine for efficient power delivery
○ Electronic governor for stable engine speed and frequency control
○ Heavy-duty brushless alternator with H Class insulation and AVR
○ 570L fuel tank for extended operating periods
○ Open and silent configurations for different installation environments
○ Flexible voltage configurations for different international markets
○ Professional manufacturing, configuration and technical support from GENLITEC POWER
For more information, please visit the GENLITEC POWER® Why Choose GENLITEC POWER page.
Warranty
GENLITEC POWER provides a standard warranty of 12 months or 1000 working hours, whichever comes first. For details, please refer to the GENLITEC POWER® Warranty Policy.
