50Hz 350kW 438kVA Diesel Generator with Cummins 6ZTAA13-G4 Engine
Short Description
GENLITEC POWER® GPC438D5/GPC438S5 diesel generator set with original CUMMINS 6ZTAA13-G4, 350KW/438KVA prime and 380KW/475KVA standby power.
- ModelGPC438D5 | GPC438S5
- Frequencyf50Hz
- Prime Power350KW/438KVA
- Standby Power380KW/475KVA
- EngineCummins 6ZTAA13-G4
- AlternatorStamford/Leroy Somer/Genlitec Power
- Fuel Consumption (100% Load)91.4L/H
- MOQ1 Set
Product Details
Product Tags
Video
Introduction

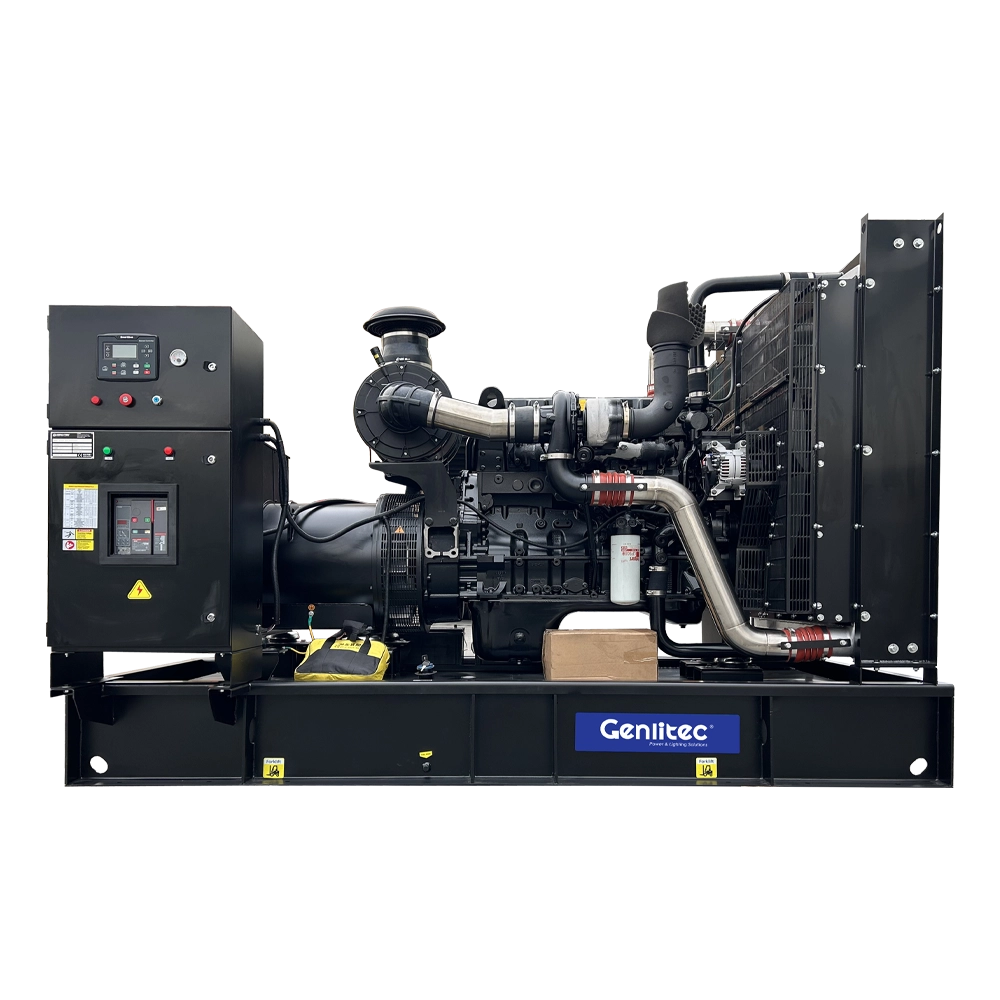

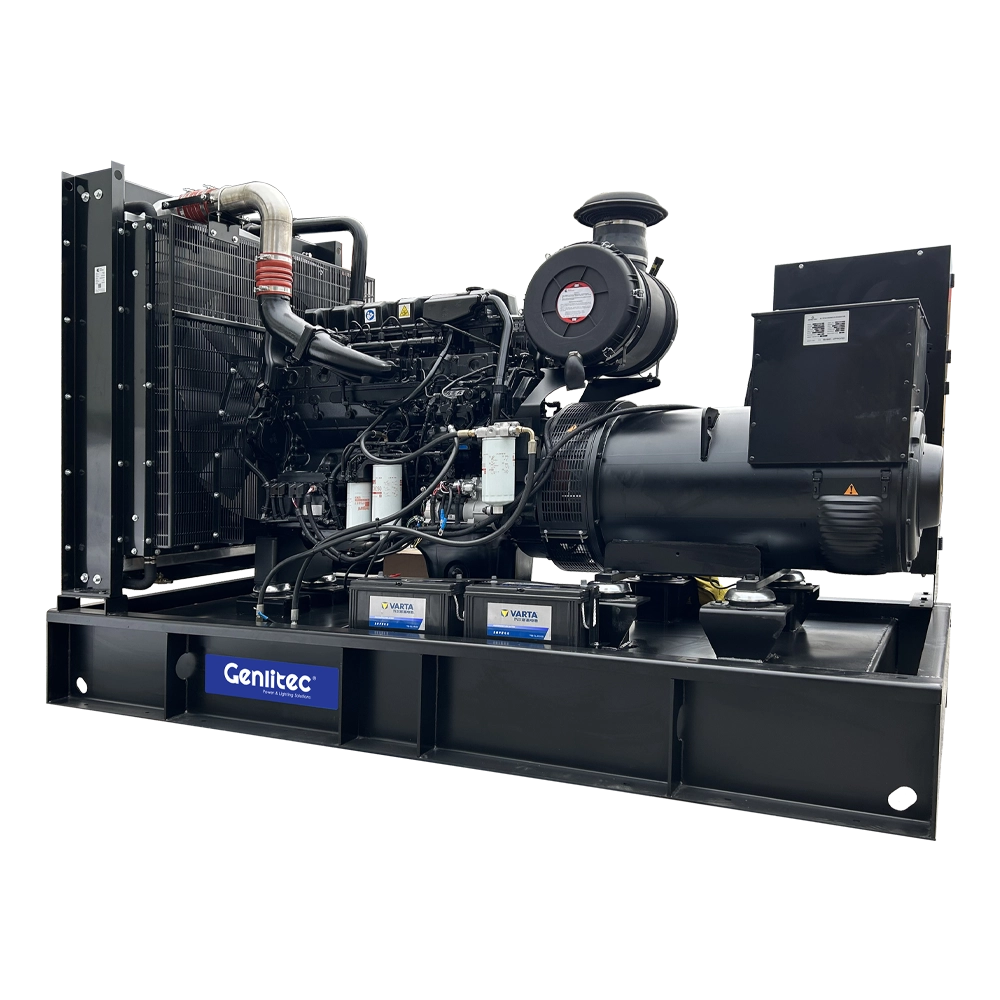

The GENLITEC POWER® GPC438D5 open type and GPC438S5 silent type diesel generator sets provide 350kW/438kVA prime power and 380kW/475kVA standby power. Powered by a Cummins 6ZTAA13-G4 six-cylinder diesel engine and matched with a brushless three-phase alternator, the GPC438 series is designed for reliable power generation in industrial, commercial, construction, mining, infrastructure and standby power applications.
The Cummins 6ZTAA13-G4 engine features a 13L displacement, turbocharged and charge-air-cooled induction system, electronic governor and 1500 RPM rated speed. Its six-cylinder configuration, BYC PD fuel system and 24V DC electric starting system provide stable engine performance and reliable response under varying electrical loads.
With a large-capacity fuel tank, flexible voltage configurations of 220/380V, 230/400V and 240/415V, and a 350kW/438kVA alternator rated for 40℃ ambient temperature, the GPC438 series provides a practical solution for demanding prime and standby power requirements. The GPC438D5 open type is suitable for generator rooms and installations requiring convenient service access, while the GPC438S5 silent type is designed for outdoor and noise-sensitive applications.
Generator Set
| Open Type Model | GPC438D5 |
| Silent Type Model | GPC438S5 |
| Prime Power | 350KW/438KVA |
| Standby Power | 380KW/475KVA |
| Phase & Wire | 3 Phase, 4 Wires |
| Power Factor | 0.8 |
| Frequency | 50Hz |
| Voltage | 220/380V, 230/400V, 240/415V |
| Fuel Tank Capacity | 660L |
Diesel Engine
| Engine Model | CUMMINS 6ZTAA13-G4 |
| Cylinder Number | 6 |
| Aspiration System | Turbocharged, Charge Air Cooled |
| Cooling Method | Water Cooled |
| Governor Type | GAC Electronic |
| Bore x Stroke | 130 x 163 mm |
| Compression Ratio | 17:1 |
| Rated Speed | 1500 RPM |
| Displacement | 13L |
| Rated Power | 400KW |
| Standby Power | 415KW |
| Continuous Power | 350KW |
| Fuel System | BYC PD Pump |
| Oil Capacity | 45.42L |
| Coolant Capacity | 23.1L (Engine Only) |
| Electric Starting System | DC 24V |
Fuel Consumption
| 100% Prime Load | 91.4L/H |
| 75% Prime Load | 66.8L/H |
| 50% Prime Load | 44.3L/H |
| 25% Prime Load | 24.2L/H |
Alternator
| Number of Phase | 3 |
| Rated Power | 350KW/438KVA |
| Frequency | 50Hz |
| Power Factor | 0.8 |
| Poles | 4 |
| Temperature Rise | 125K |
| Terminals | 12 |
| Insulation Class | H Class |
| Ambient Temperature | 40℃ |
| IP Rating | IP23 |
| Excitation System | Self-Excited |
| Bearing | Single Bearing |
| Coating | Vacuum Impregnation |
| Voltage Regulator | A.V.R |
| Coupling | Flexible Disc |
Control Panel
| ○ Emergency stop button | ○ Main circuit breaker |
| ○ Float battery charger | ○ Manual/Auto start control panel |
| ○ Fuel level meter | ○ Controller power switch |
| ○ Alarm buzzer |

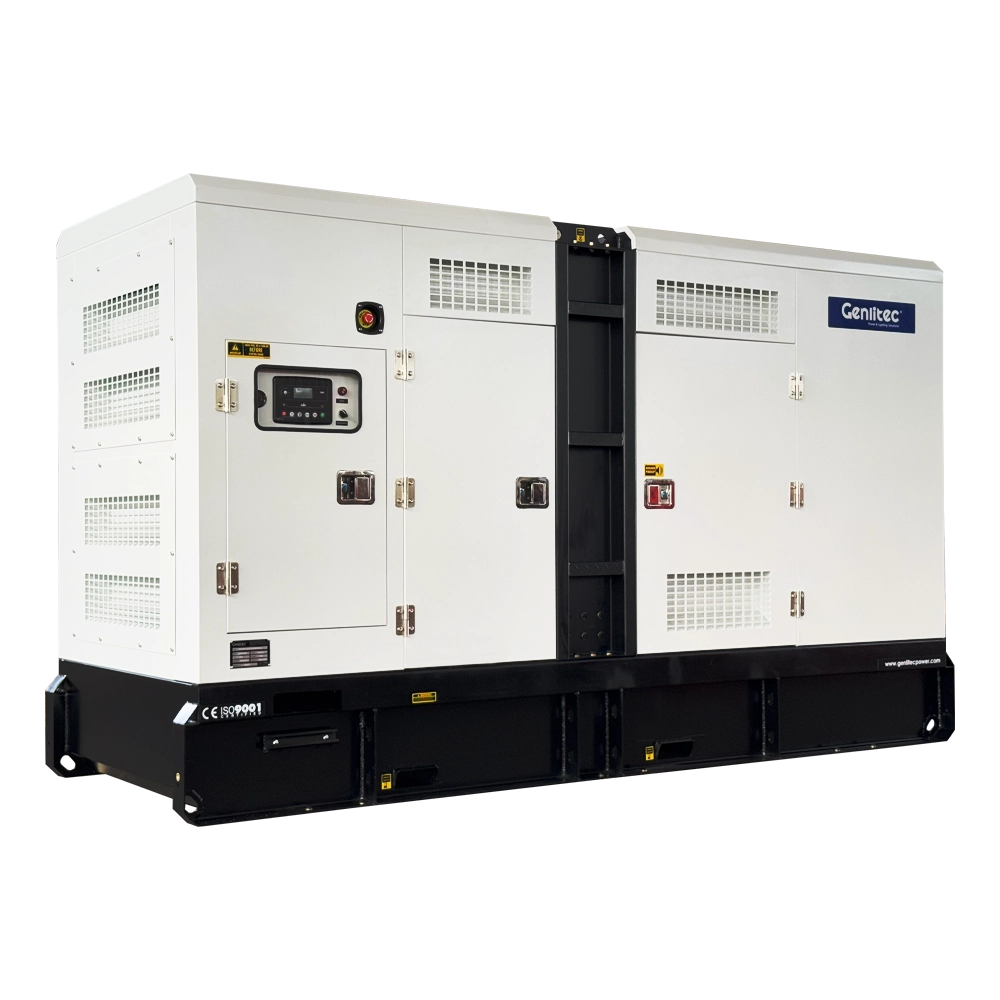

Sound Attenuated Enclosure
○ Weatherproof sound-attenuated enclosure with internal exhaust silencer
○ Corrosion-resistant construction for outdoor installation
○ Available for GPC438S5 silent type generator set
Options
○ ATS for automatic start and stop when utility power fails or returns
○ 12-hour fuel tank
○ 24-hour fuel tank
○ Water-jacket heater
○ Other heaters
○ AREM & PMG
○ Synchronization System
○ Remote & Monitoring System
Applications
The GENLITEC POWER 350kW/438kVA diesel generator set is suitable for demanding prime, standby and backup power applications, including:
○ Commercial buildings and office complexes
○ Industrial facilities and manufacturing plants
○ Construction sites and infrastructure projects
○ Mining and heavy-duty applications
○ Telecommunication and remote facilities
○ Data centers and critical power systems
○ Emergency and standby power applications
Why Choose GENLITEC POWER
GENLITEC POWER combines established engine technology, carefully selected generator components and professional assembly to deliver dependable power generation equipment for demanding applications. The GPC438 series is configured around the Cummins 6ZTAA13-G4 engine, a six-cylinder 13L diesel engine designed to provide stable power output, strong load response and reliable operation for demanding generator applications.
○ Cummins 6ZTAA13-G4 six-cylinder diesel engine
○ 350kW/438kVA prime power for demanding applications
○ 13L engine with turbocharged charge-air cooling
○ Electronic governor for stable engine speed and frequency control
○ Large-capacity fuel tank for extended operating periods
○ High-quality alternator with H Class insulation and IP23 protection
○ Open and silent type configurations for different installation environments
○ ATS, synchronization and remote monitoring options available
○ Professional manufacturing, testing and international export experience
For more information, please visit the GENLITEC POWER® Why Choose GENLITEC POWER page.
Warranty
GENLITEC POWER provides a standard warranty of 12 months or 1000 working hours, whichever comes first. For details, please refer to the GENLITEC POWER® Warranty Policy.
