50Hz 420kW 525kVA Diesel Generator with Cummins KTAA19-G5 Engine
Short Description
GENLITEC POWER GPC525D5/GPC525S5 diesel gensets with Cummins KTAA19-G5, 420kW/525kVA prime and 460kW/575kVA standby power.
- ModelGPC525D5 | GPC525S5-
- Frequency50Hz
- Prime Power420KW/525KVA
- Standby Power460KW/575KVA
- EngineCummins KTAA19-G5
- AlternatorStamford/Leroy Somer/Genlitec Power
- Fuel Consumption (100% Load)96KG/H
- MOQ1 Set
Product Details
Product Tags
Introduction
The GENLITEC POWER® GPC525D5 and GPC525S5 are 525kVA Cummins diesel generator sets designed to provide reliable three-phase power for industrial, commercial, construction, mining, infrastructure and standby power applications. The generator sets are rated at 420kW/525kVA for prime power and 460kW/575kVA for standby power at 50Hz and 1500 RPM.
Powered by the Cummins KTAA19-G5 six-cylinder, 19-liter diesel engine, the GPC525 series combines proven heavy-duty engine technology with a 420kW/525kVA generator output. The KTAA19-G5 features a turbocharged and air-to-air aftercooled air intake system, Cummins PT fuel system, four-stroke in-line six-cylinder configuration and water-cooled design. At 50Hz and 1500 RPM, the engine provides up to 470kW prime power and 555kW standby power.

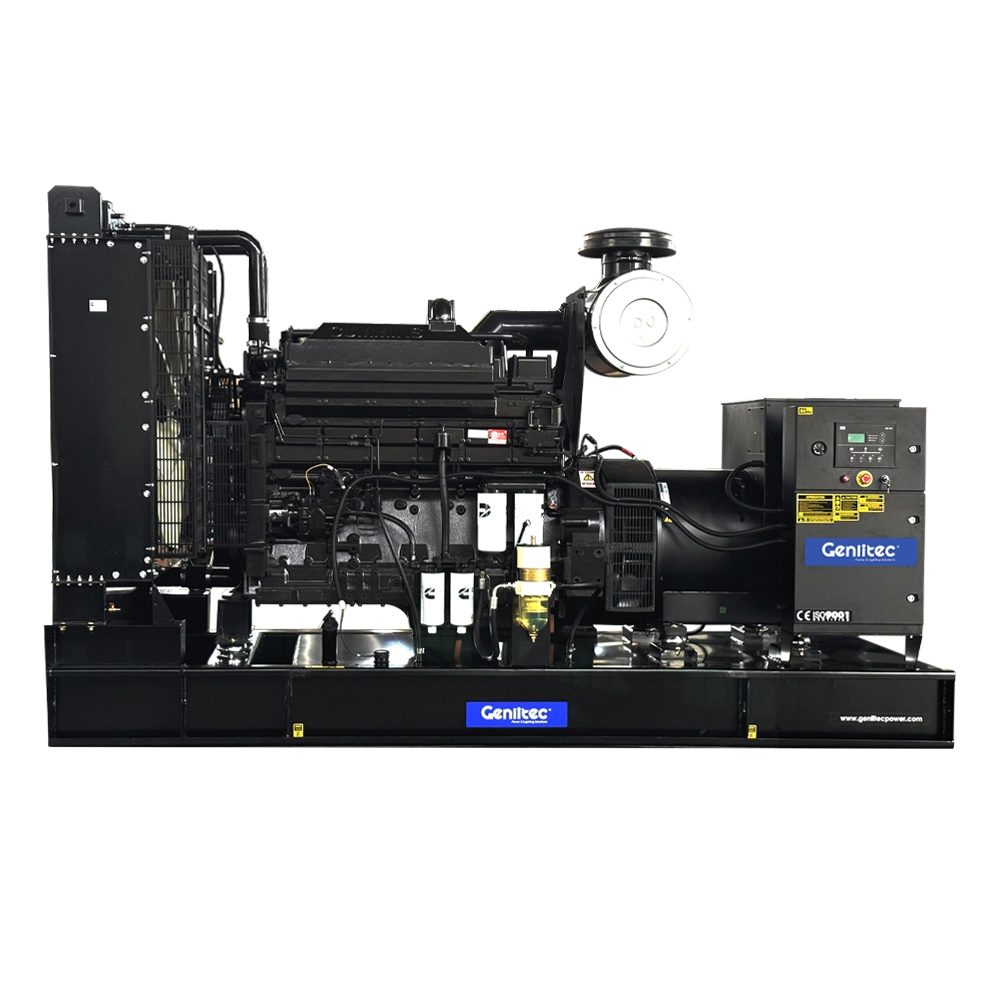

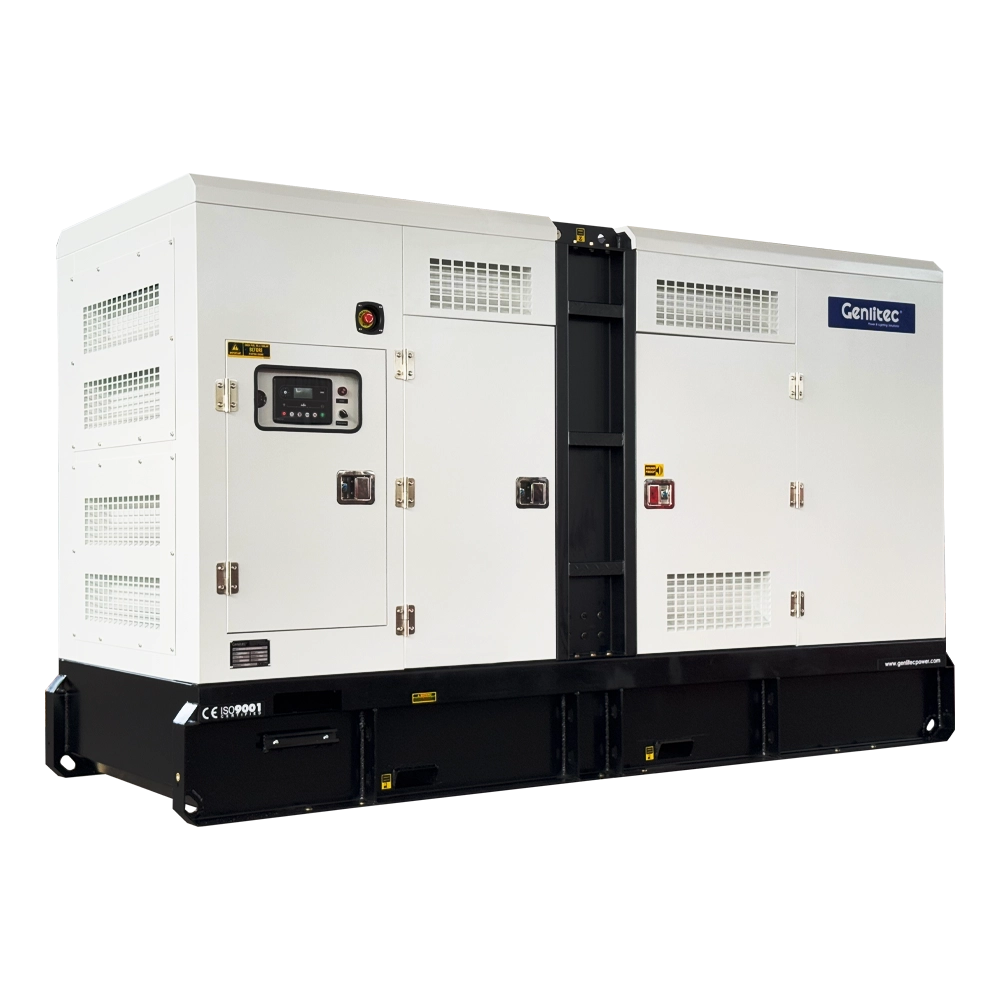

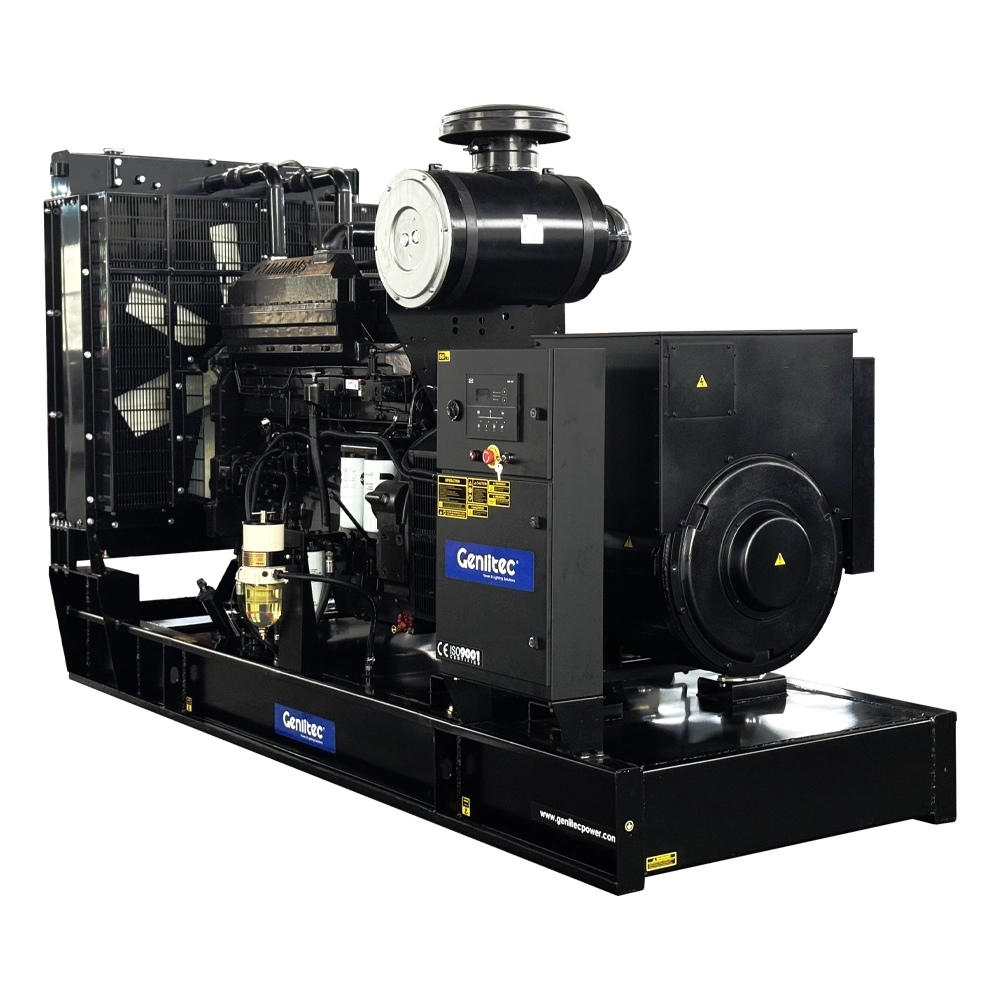

The GPC525 generator set is available in both open and silent configurations. The GPC525D5 open type is suitable for generator rooms and installations where easy maintenance and ventilation are required, while the GPC525S5 silent type features a weatherproof sound-attenuated enclosure for outdoor and noise-sensitive applications. An 800L fuel tank is provided for extended operating periods, while ATS, synchronization, remote monitoring and other options are available for different project requirements.
Generator Set
| Open Type Model | GPC525D5 |
| Silent Type Model | GPC525S5 |
| Prime Power | 420KW/525KVA |
| Standby Power | 460KW/575KVA |
| Phase & Wire | 3 Phase, 4 Wires |
| Power Factor | 0.8 |
| Frequency | 50Hz |
| Voltage | 220/380V, 230/400V, 240/415V |
| Fuel Tank Capacity | 800L |
Diesel Engine
| Engine Model | CUMMINS KTAA19-G5 |
| Engine Type | 4 Stroke, In-line, 6 Cylinder |
| Cylinder Number | 6 |
| Aspiration System | Turbocharged, Air-to-Air Aftercooled |
| Cooling Method | Water Cooled |
| Fuel System | Cummins PT |
| Bore x Stroke | 159 x 159 mm |
| Compression Ratio | 13.9:1 |
| Displacement | 19L (1150 in³) |
| Rated Speed | 1500 RPM |
| Prime Power | 470KW (630 BHP) @ 1500 RPM |
| Standby Power | 555KW (744 BHP) @ 1500 RPM |
| Lubricating Oil Capacity | 50L |
| Cooling System Capacity | Approx. 112L |
| Electric Starting System | DC 24V |
Fuel Consumption (KG/H)
| 100% Prime Load | 96 KG/H |
| 75% Prime Load | 73 KG/H |
| 50% Prime Load | 48 KG/H |
| 25% Prime Load | 28 KG/H |
Alternator
| Number of Phase | 3 |
| Rated Power | 450KW/563KVA |
| Frequency | 50Hz |
| Power Factor | 0.8 |
| Poles | 4 |
| Temperature Rise | 125K |
| Terminals | 6 (12 leads for option) |
| Insulation Class | H Class |
| Ambient Temperature | 40℃ |
| IP Rating | IP23 |
| Excitation System | Self-Excited |
| Bearing | Single Bearing |
| Coating | Vacuum Impregnation |
| Voltage Regulator | A.V.R |
| Coupling | Flexible Disc |
Control Panel
| ○ Emergency stop button | ○ Main circuit breaker |
| ○ Float battery charger | ○ Manual/Auto start control panel |
| ○ Fuel level meter | ○ Controller power switch |
| ○ Alarm buzzer |
Sound Attenuated Enclosure
○ Weatherproof sound-attenuated enclosure with internal exhaust silencer
○ Corrosion-resistant construction for outdoor installation
○ Available for GPC525S5 silent type generator set
Options
○ ATS for automatic start and stop when utility power fails or returns
○ 12-hour fuel tank
○ 24-hour fuel tank
○ Water-jacket heater
○ Other heaters
○ AREM & PMG
○ Synchronization System
○ Remote & Monitoring System
Applications
The GENLITEC POWER 420kW/525kVA Cummins KTAA19-G5 diesel generator set is suitable for prime and standby power applications where stable and dependable power is required, including:
○ Commercial buildings and office complexes
○ Industrial facilities and manufacturing plants
○ Construction sites and infrastructure projects
○ Mining and heavy-duty applications
○ Telecommunication and remote facilities
○ Data centers and critical power systems
○ Emergency and standby power applications
Why Choose GENLITEC POWER
GENLITEC POWER combines established engine technology, carefully selected generator components and professional assembly to provide reliable diesel generator sets for demanding power applications. The GPC525 series uses the Cummins KTAA19-G5 engine and is configured to deliver 420kW/525kVA prime power with adequate engine reserve capacity.
○ Genuine Cummins KTAA19-G5 diesel engine configuration
○ 420kW/525kVA prime power and 460kW/575kVA standby power
○ 19L six-cylinder turbocharged and air-to-air aftercooled diesel engine
○ Cummins PT fuel system and proven heavy-duty engine design
○ 470kW prime and 555kW standby engine output at 50Hz and 1500 RPM
○ 800L fuel tank for extended operating periods
○ High-quality alternator with H Class insulation and IP23 protection
○ Open and silent configurations for different installation requirements
○ ATS, synchronization and remote monitoring options available
○ Professional manufacturing, testing and international export experience
For more information, please visit the GENLITEC POWER® Why Choose GENLITEC POWER page.
Warranty
GENLITEC POWER provides a standard warranty of 12 months or 1000 working hours, whichever comes first. For details, please refer to the GENLITEC POWER® Warranty Policy.
