50Hz 520kW 650kVA Diesel Generator with Cummins QSK19-G4 Engine
Short Description
GENLITEC GPC650D5/GPC650S5, prime power 520kW/650kVA diesel generator sets, 50Hz, for reliable industrial, commercial and backup power applications.
- ModelGPC650D5 | GPC650S5
- Frequency50Hz
- Prime Power520KW/650KVA
- Standby Power570KW/712KVA
- EngineCummins QSK19-G4
- AlternatorStamford/Leroy Somer/Genlitec Power
- Fuel Consumption (100% Load)145L/H
- MOQ1 Set
Product Details
Product Tags
Introduction
The GENLITEC POWER® GPC650D5 and GPC650S5 are 650kVA Cummins diesel generator sets designed to provide reliable three-phase power for industrial, commercial, construction, mining, infrastructure and standby power applications. The generator sets are rated at 520kW/650kVA for prime power and 570kW/712kVA for standby power at 50Hz and 1500 RPM.
Powered by the Cummins QSK19-G4 six-cylinder, 19-liter diesel engine, the GPC650 series combines heavy-duty engine technology with a 520kW/650kVA generator output. The QSK19-G4 features a turbocharged and charge air cooled air intake system, electronic governor, water-cooled design and Cummins direct injection MCRS fuel system. With a rated engine power of 574kW at 1500 RPM, the engine provides sufficient power reserve for demanding generator applications.

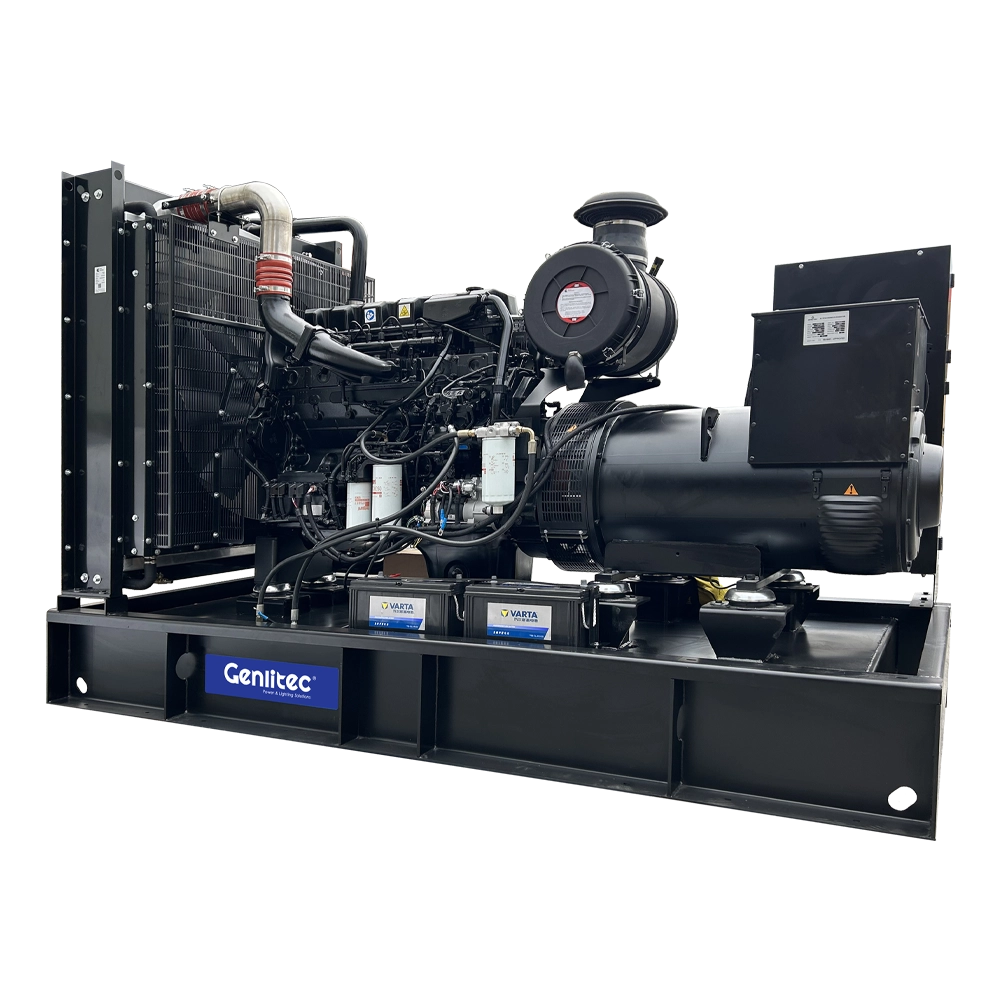

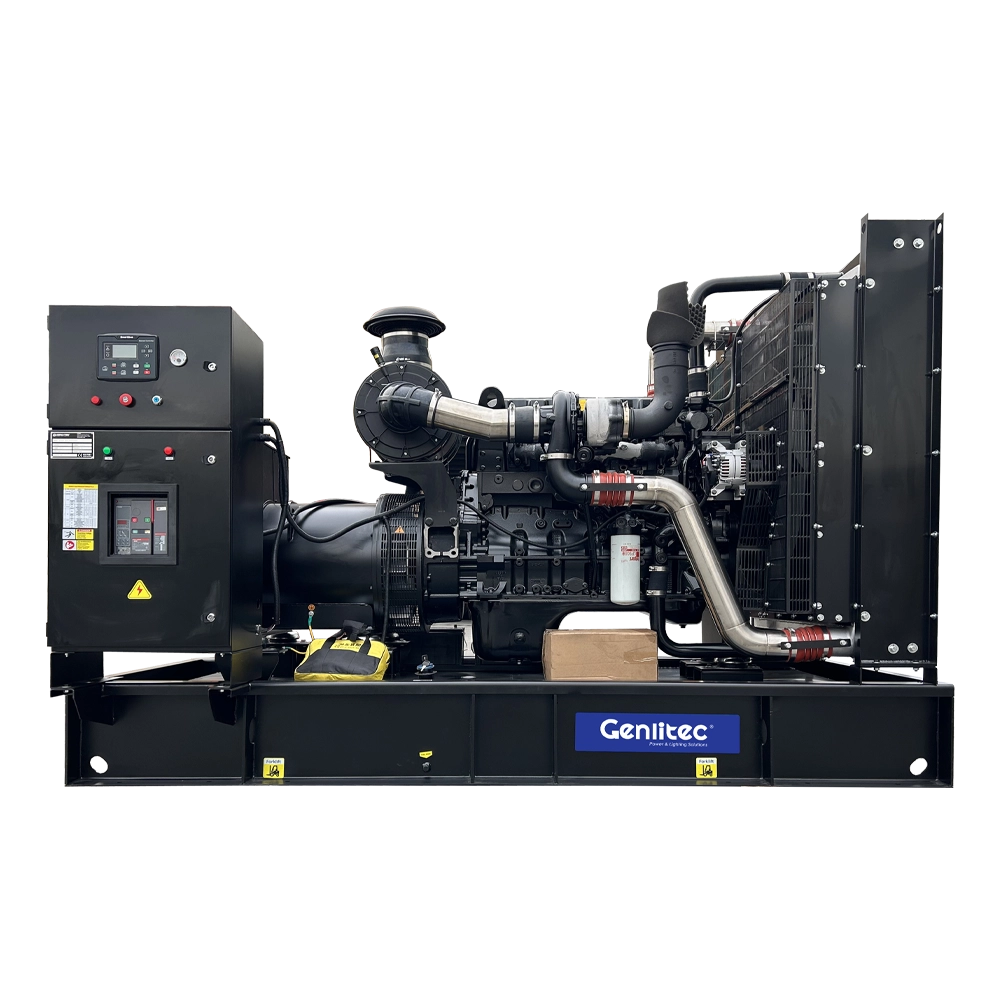

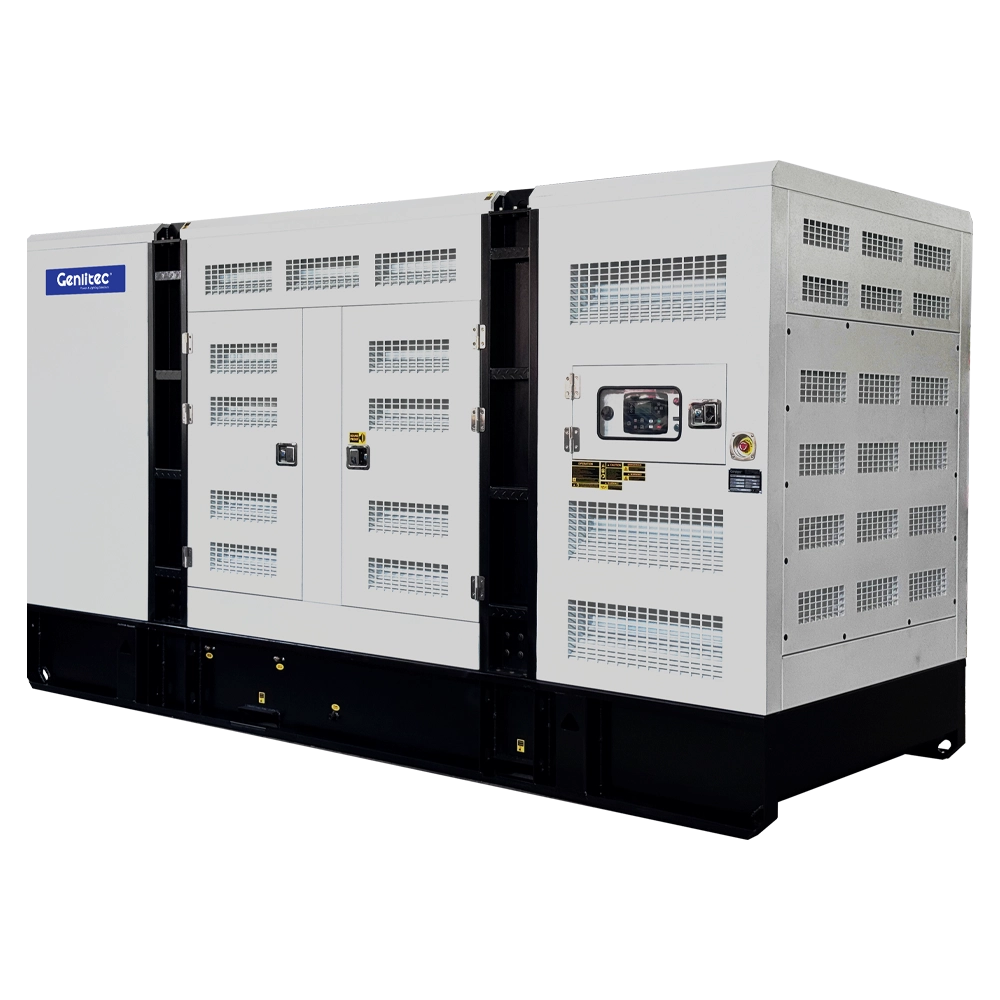

The GPC650 generator set is available in both open and silent configurations. The GPC650D5 open type is suitable for generator rooms and installations where easy maintenance and ventilation are required, while the GPC650S5 silent type features a weatherproof sound-attenuated enclosure for outdoor and noise-sensitive applications. A 1000L fuel tank is provided for extended operating periods, while ATS, synchronization, remote monitoring and other options are available for different project requirements.
Generator Set
| Open Type Model | GPC650D5 |
| Silent Type Model | GPC650S5 |
| Prime Power | 520KW/650KVA |
| Standby Power | 570KW/712KVA |
| Phase & Wires | 3 Phase, 4 Wires |
| Power Factor | 0.8 |
| Frequency | 50Hz |
| Rated Voltage | 220/380V, 230/400V, 240/415V |
| Fuel Tank Capacity | 1000L |
Diesel Engine
| Engine Model | QSK19-G4 |
| Cylinder Number | 6 |
| Aspiration System | Turbo Charged, Charge Air Cooled |
| Cooling Method | Water Cooled |
| Governor Type | Electronic |
| Bore x Stroke | 159 x 159 mm |
| Compression Ratio | 15:1 |
| Rated Speed | 1500 RPM |
| Displacement | 19L |
| Rated Power | 574KW |
| Standby Power | 634KW |
| Coolant Capacity | 41.6L (Engine Only) |
| Oil Capacity | 84L |
| Fuel System | CUMMINS Direct Injection MCRS |
| Electric Starting System | DC 24V |
Fuel Consumption (L/H)
| 100% Prime Load | 145L/H |
| 75% Prime Load | 111L/H |
| 50% Prime Load | 79L/H |
| 25% Prime Load | 41L/H |
Alternator
| Number of Phase | 3 |
| Rated Power | 520KW/650KVA |
| Frequency | 50Hz |
| Power Factor | 0.8 |
| Poles | 4 |
| Temp. Rise | 125K |
| Terminals | 12 |
| Insulation Class | H |
| Ambient Temp. | 40℃ |
| IP Rating | IP23 |
| Excitation System | Self-Excited |
| Bearing | Single Bearing |
| Coating | Vacuum Impregnation |
| Voltage Regulator | A.V.R |
| Coupling | Flexible Disc |
Control Panel
| ○ Emergency stop button | ○ Main circuit breaker |
| ○ Float battery charger | ○ Manual/Auto start control panel |
| ○ Fuel level meter | ○ Controller power switch |
| ○ Alarm buzzer |
Sound Attenuated Enclosure
○ Weatherproof sound-attenuated enclosure with internal exhaust silencer
○ Corrosion-resistant construction for outdoor installation
○ Available for GPC650S5 silent type generator set
Options
○ ATS for automatic start and stop when utility power fails or returns
○ 12-hour fuel tank
○ 24-hour fuel tank
○ Water-jacket heater
○ Other heaters
○ AREM & PMG
○ Synchronization System
○ Remote & Monitoring System
Applications
The GENLITEC POWER 520kW/650kVA Cummins QSK19-G4 diesel generator set is suitable for prime and standby power applications where stable and dependable power is required, including:
○ Commercial buildings and office complexes
○ Industrial facilities and manufacturing plants
○ Construction sites and infrastructure projects
○ Mining and heavy-duty applications
○ Telecommunication and remote facilities
○ Data centers and critical power systems
○ Emergency and standby power applications
Why Choose GENLITEC POWER
GENLITEC POWER combines established engine technology, carefully selected generator components and professional assembly to provide reliable diesel generator sets for demanding power applications. The GPC650 series uses the Cummins QSK19-G4 engine and is configured to deliver 520kW/650kVA prime power with sufficient engine reserve capacity.
○ Genuine Cummins QSK19-G4 diesel engine configuration
○ 520kW/650kVA prime power and 570kW/712kVA standby power
○ 19L six-cylinder turbocharged and charge air cooled diesel engine
○ Cummins direct injection MCRS fuel system and electronic governor
○ 574kW rated engine power and 634kW standby engine power
○ 1000L fuel tank for extended operating periods
○ High-quality alternator with H Class insulation and IP23 protection
○ Open and silent configurations for different installation requirements
○ ATS, synchronization and remote monitoring options available
○ Professional manufacturing, testing and international export experience
For more information, please visit the GENLITEC POWER® Why Choose GENLITEC POWER page.
Warranty
GENLITEC POWER provides a standard warranty of 12 months or 1000 working hours, whichever comes first. For details, please refer to the GENLITEC POWER® Warranty Policy.
