50Hz 430kW 538kVA Diesel Generator with Deutz BF8M1015CP-LA G4 Engine
Introduction

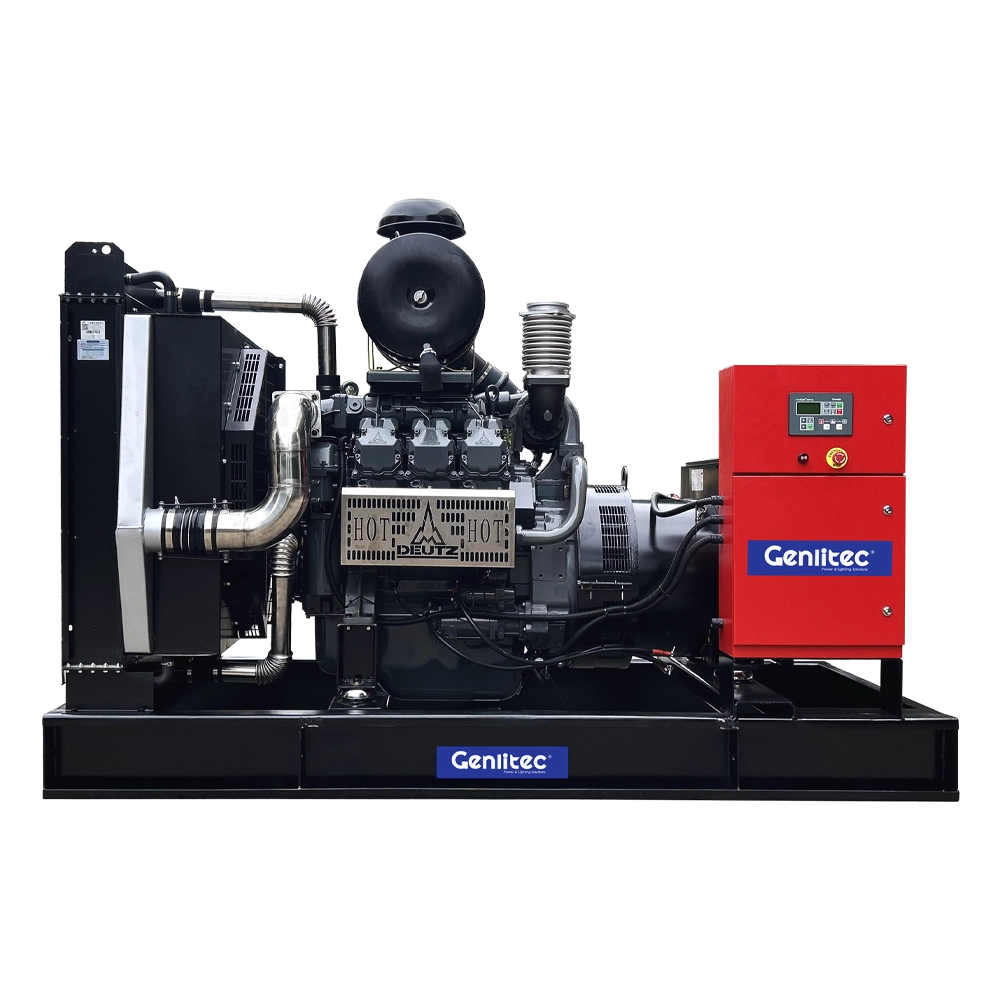

The GENLITEC POWER GPD538D5 / GPD538S5 is a 538kVA DEUTZ diesel generator set designed to provide reliable prime, standby and backup power for industrial, commercial and infrastructure applications. Powered by the DEUTZ BF8M1015CP-LA G4 diesel engine, this 50Hz generator operates at 1500RPM and delivers 430kW/538kVA prime power and 470kW/588kVA standby power. Equipped with an 810L fuel tank and available in three-phase, four-wire voltage configurations of 220/380V, 230/400V and 240/415V, the GPD538 series offers flexible power solutions for different electrical requirements. The GPD538D5 open-type diesel generator provides convenient access for maintenance, while the GPD538S5 silent diesel generator features a sound-attenuated enclosure for noise-sensitive environments and outdoor installations. These DEUTZ-powered generator sets are suitable for factories, commercial buildings, construction sites, agricultural facilities, telecommunications infrastructure and emergency backup power systems.
Generator Set
| Open Type Model | GPD538D5 |
| Silent Type Model | GPD538S5 |
| Engine Brand | DEUTZ |
| Frequency | 50Hz |
| Phase & Wires | 3 Phase, 4 Wires |
| Power Factor | 0.8 |
| Prime Power | 430kW/538kVA |
| Standby Power | 470kW/588kVA |
| Rated Voltage | 220/380V; 230/400V; 240/415V |
| Rated Speed | 1500 RPM |
| Fuel Tank Capacity | 810L |
Diesel Engine
| Engine Brand | DEUTZ |
| Engine Model | BF8M1015CP-LA G4 |
| Cylinder Number | 8 |
| Cylinder Arrangement | V-Type, 90° |
| Engine Type | 4-Stroke Diesel |
| Aspiration System | Turbocharged with Charge Air Cooling |
| Cooling Method | Water Cooled |
| Governor Type | Electronic Governor |
| Fuel Injection System | Direct Injection |
| Bore x Stroke | 132 x 145 mm |
| Compression Ratio | 16.5:1 |
| Rated Speed | 1500 RPM |
| Displacement | 15.874L |
| Prime Power (Engine) | 480kW @ 1500 RPM |
| Standby Power (Engine) | 530kW @ 1500 RPM |
| Oil Capacity | 48L |
| Coolant Capacity | 21L (Engine only) |
| Electric Starting System | DC 24V |
Fuel Consumption
| 100% Prime Load | 114.3L/H |
| 75% Prime Load | 85.7L/H |
| 50% Prime Load | 57.1L/H |
| 25% Prime Load | N/A |
Alternator
| Number of Phase | 3 |
| Rated Power | 450kW/562.5kVA |
| Frequency | 50Hz |
| Power Factor | 0.8 |
| Poles | 4 |
| Temperature Rise | 125K |
| Terminals | 6/12 |
| Insulation Class | H Class |
| Ambient Temperature | 40℃ |
| IP Rating | IP23 |
| Excitation System | Self-Excited |
| Bearing | Single Bearing |
| Coating | Vacuum Impregnation |
| Voltage Regulator | AVR |
| Coupling | Flexible Disc |
Control Panel
| ○ Emergency stop button | ○ Main circuit breaker |
| ○ Float battery charger | ○ Manual/Auto start control panel |
| ○ Fuel level meter | ○ Controller power switch |
| ○ Alarm buzzer | ○ Remote monitoring interface |
SOUND ATTENUATED ENCLOSURE
The GPD538S5 silent type generator set is equipped with a sound-attenuated enclosure designed to reduce operating noise and provide weather protection for outdoor applications.
○ Sound-attenuated enclosure for reduced noise levels
○ Weatherproof design for outdoor installation
○ Internal exhaust silencer for effective noise reduction
○ Corrosion-resistant construction for long-term outdoor use
○ Service access doors for convenient maintenance
○ Suitable for commercial, industrial and standby power applications
Options
○ ATS for automatic start and stop when utility power fails or returns
○ Remote Monitoring System
○ Water-Jacket Heater
○ Synchronization system
Applications
The GENLITEC POWER 430kW/538kVA DEUTZ diesel generator set is suitable for a wide range of prime, standby and backup power applications, including:
○ Commercial and office buildings
○ Industrial facilities
○ Construction and job sites
○ Agricultural and rural facilities
○ Telecommunication and remote sites
○ Emergency and standby power systems
Why Choose GENLITEC POWER
GENLITEC POWER diesel generator sets are designed to provide dependable power, practical configuration and reliable performance for a wide range of applications.
○ DEUTZ diesel engine for reliable power generation
○ Prime and standby power configurations for different operating requirements
○ Multiple voltage configurations available
○ Open and silent type configurations available
○ Suitable for commercial, industrial and backup power applications
○ Factory-direct supply with customized generator set solutions
For more information, please visit the GENLITEC POWER® Why Choose GENLITEC POWER page.
Warranty
GENLITEC POWER provides a standard warranty of 12 months or 1000 working hours, whichever comes first. For details, please refer to the GENLITEC POWER® Warranty Policy.
