GENLITEC POWER GPC725D5 / GPC725S5 725kVA Cummins Diesel Generator

The GENLITEC POWER® GPC725D5 and GPC725S5 are 725kVA Cummins diesel generator sets designed to provide reliable three-phase power for industrial, commercial, construction, mining, infrastructure and standby power applications. The generator sets are rated at 580kW/725kVA for prime power and 640kW/800kVA for standby power at 50Hz and 1500 RPM.

Powered by the Cummins KTA38-GA V-12 diesel engine, the GPC725 series combines proven heavy-duty engine technology with a 580kW/725kVA generator output. The KTA38-GA features a turbocharged air intake system, Cummins PT pump fuel system, electronic governor and water-cooled design, providing reliable power performance for demanding generator applications.

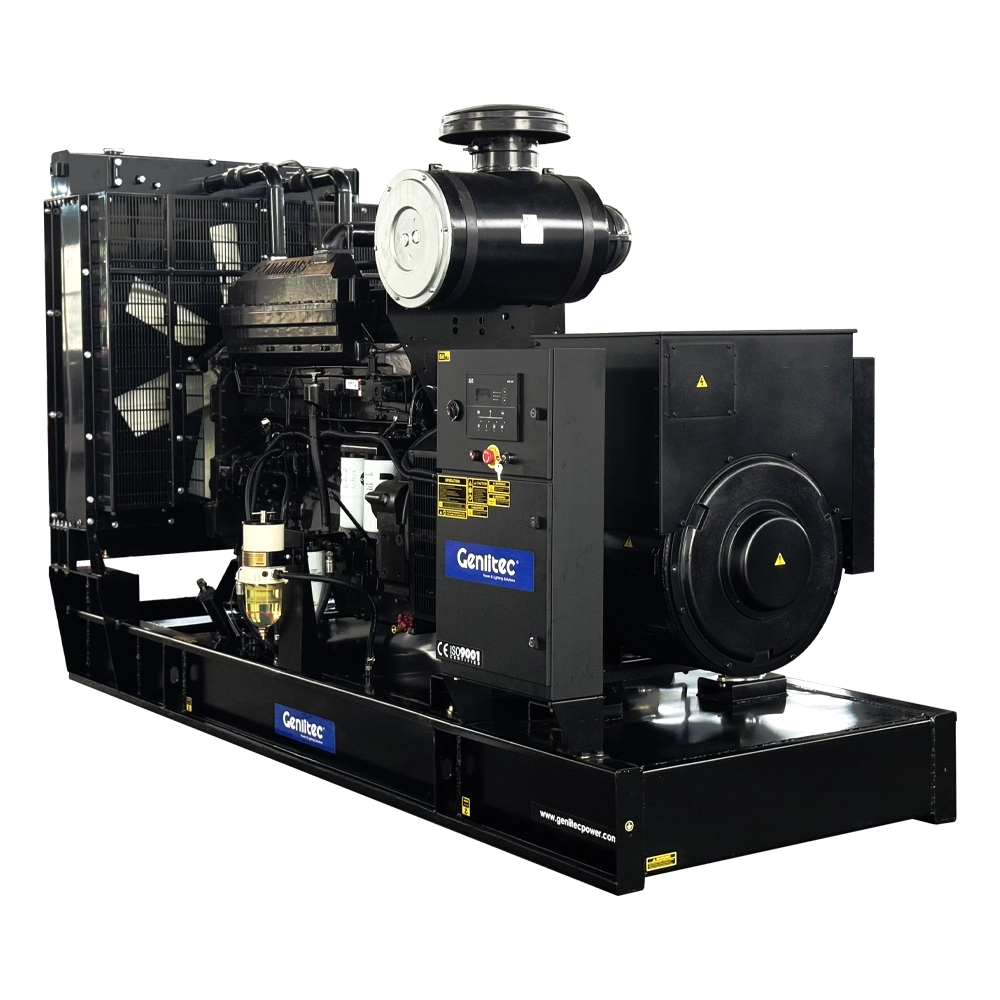

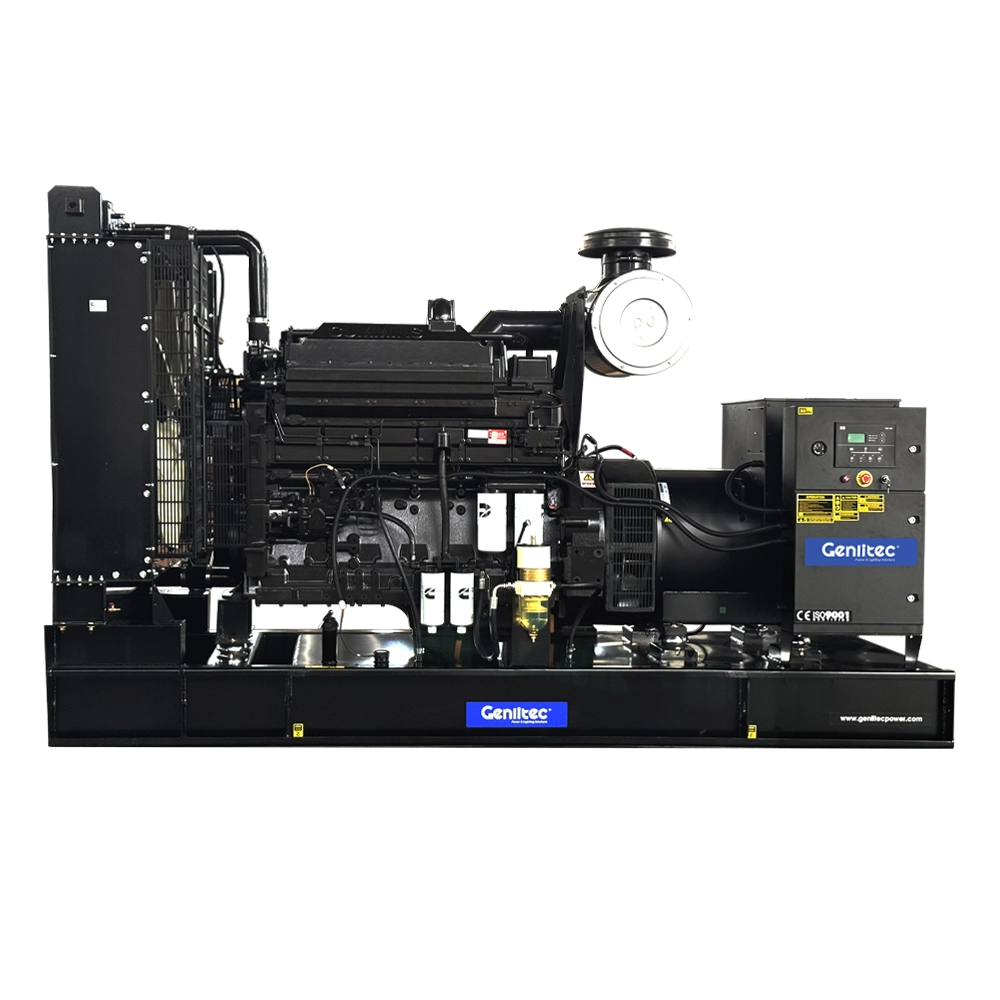

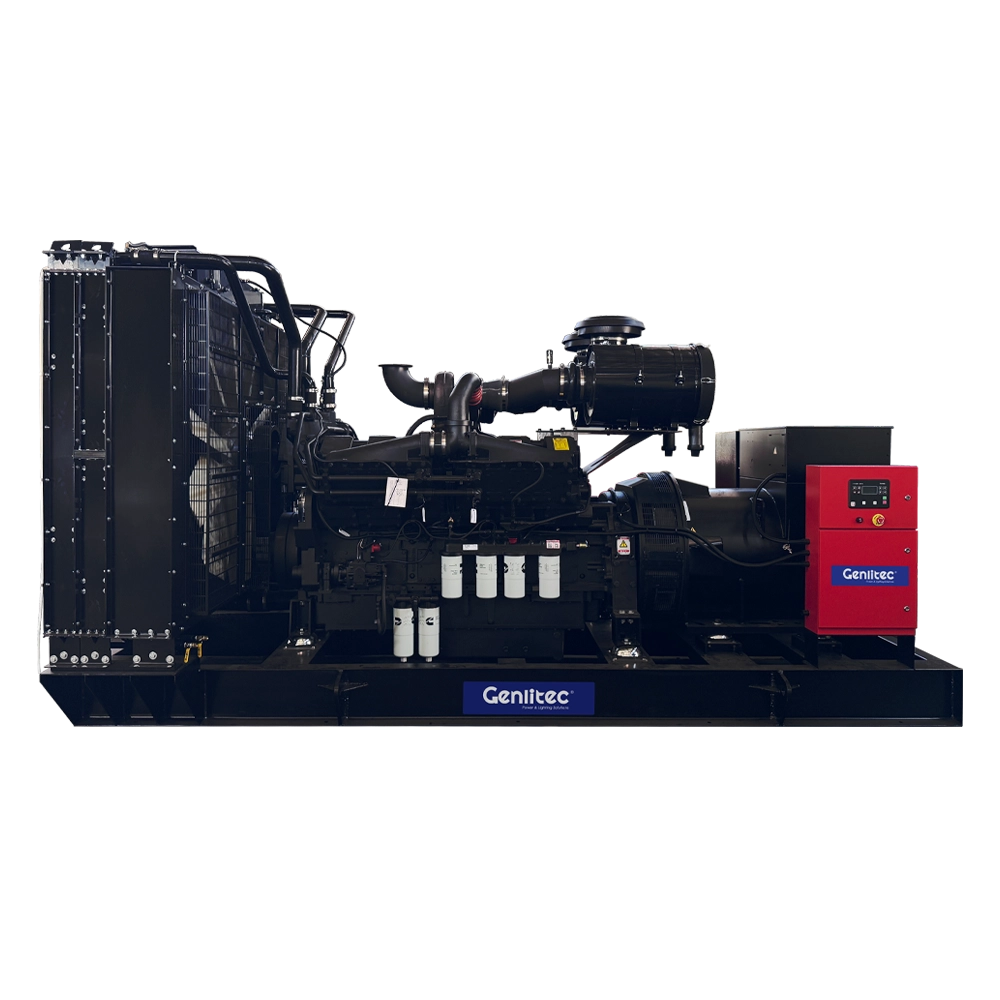

The GPC725 generator set is available in both open and silent configurations. The GPC725D5 open type is suitable for generator rooms and installations where easy maintenance and ventilation are required, while the GPC725S5 silent type features a weatherproof sound-attenuated enclosure for outdoor and noise-sensitive applications. An 1100L fuel tank is provided for extended operating periods, while ATS, synchronization, remote monitoring and other options are available for different project requirements.

Generator Set

Open Type Model	GPC725D5
Silent Type Model	GPC725S5
Prime Power	580KW/725KVA
Standby Power	640KW/800KVA
Phase & Wires	3 Phase, 4 Wires
Power Factor	0.8
Frequency	50Hz
Rated Voltage	220/380V, 230/400V, 240/415V
Fuel Tank Capacity	1100L

Diesel Engine

Model	CUMMINS KTA38-GA
Cylinder Number	V-12
Aspiration System	Turbocharged
Cooling Method	Water Cooled
Governor Type	Electronic
Bore x Stroke	159 x 159 mm
Compression Ratio	14.5:1
Rated Speed	1500 RPM
Displacement	38L
Rated Power	647KW
Standby Power	711KW
Coolant Capacity	106L (Engine Only)
Oil Capacity	135.1L
Fuel System	CUMMINS PT pump
Electric Starting System	DC 24V

Fuel Consumption (L/H)

100% Prime Load	170L/H
75% Prime Load	127.5L/H
50% Prime Load	85L/H
25% Prime Load	/

Alternator

Number of Phase	3
Rated Power	600KW/750KVA
Frequency	50Hz
Power Factor	0.8
Poles	4
Temp. Rise	125K
Terminals	6 (12 leads as option)
Insulation Class	H Class
Ambient Temp.	40℃
IP Rating	IP23
Excitation System	Self-Excited
Bearing	Single Bearing
Coating	Vacuum Impregnation
Voltage Regulator	A.V.R
Coupling	Flexible Disc

Control Panel

○ SmartGen digital generator controller

○ Automatic start and stop control

○ Voltage, frequency, current and power monitoring

○ Engine speed, coolant temperature and oil pressure monitoring

○ Protection functions for abnormal operating conditions

Sound Attenuated Enclosure

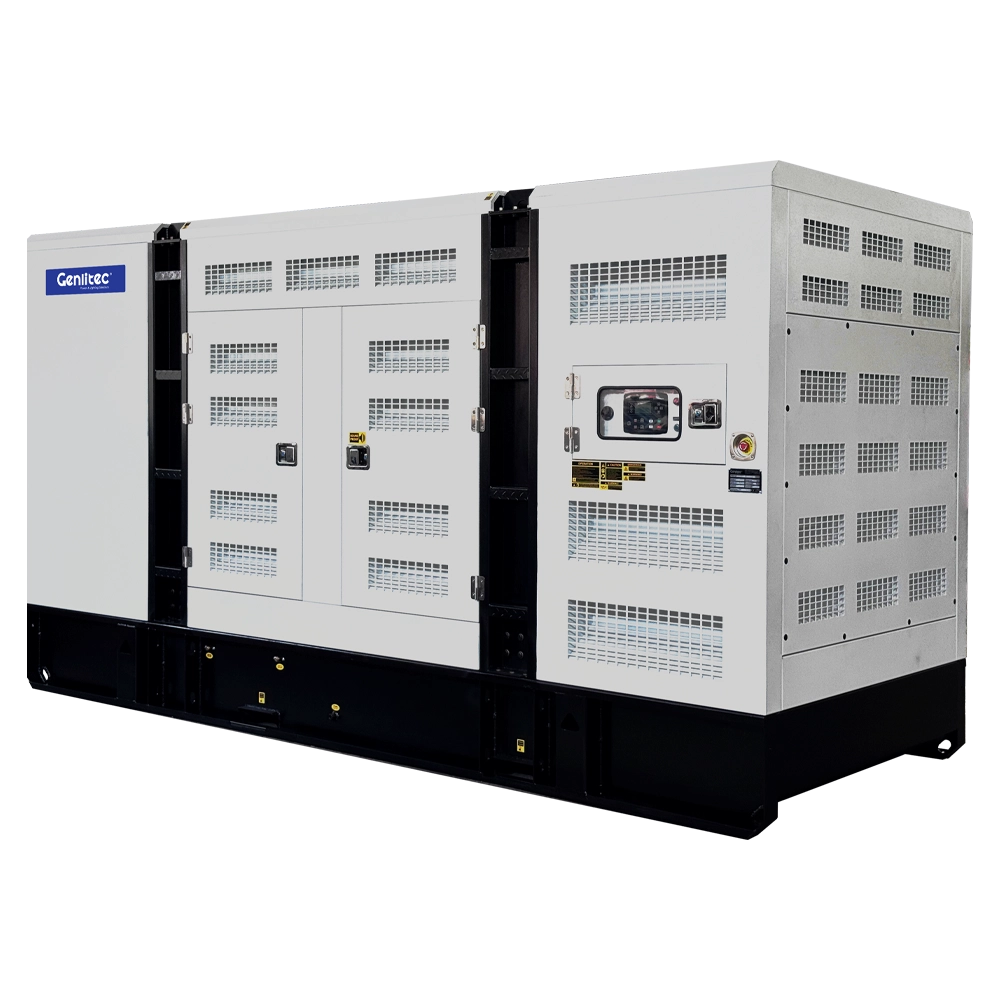

○ GPC725S5 silent type generator set with weatherproof enclosure

○ Sound-attenuated design for noise-sensitive environments

○ Heavy-duty steel construction for outdoor applications

○ Easy-access doors for operation and maintenance

○ Suitable for construction sites, commercial facilities and standby power applications

Optional Equipment

○ Automatic Transfer Switch (ATS)

○ Synchronization and paralleling system

○ Remote monitoring system

○ Automatic mains failure (AMF) system

○ Battery charger and heater

○ Customized fuel tank and other project-specific configurations

Applications

The GENLITEC POWER 580kW/725kVA Cummins KTA38-GA diesel generator set is designed for reliable prime and standby power in demanding environments.

○ Industrial and manufacturing facilities

○ Commercial buildings and shopping centers

○ Construction and infrastructure projects

○ Mining and heavy-duty applications

○ Data centers and critical facilities

○ Telecommunications and remote sites

○ Emergency and standby power systems

Why Choose GENLITEC POWER GPC725D5 / GPC725S5?

The GPC725 series combines the Cummins KTA38-GA V-12 diesel engine with a high-performance alternator to provide dependable 580kW/725kVA prime power and 640kW/800kVA standby power for demanding applications.

○ Genuine Cummins KTA38-GA V-12 diesel engine

○ 580kW/725kVA prime power and 640kW/800kVA standby power

○ 38L turbocharged water-cooled diesel engine

○ Cummins PT pump fuel system and electronic governor

○ 647kW rated engine power and 711kW standby engine power

○ 1100L fuel tank for extended operating periods

○ 600kW/750kVA alternator with H Class insulation and IP23 protection

○ Available in open type GPC725D5 and silent type GPC725S5 configurations

○ Optional ATS, synchronization, paralleling and remote monitoring systems

○ Professional generator set manufacturing and international project experience

Warranty

GENLITEC POWER provides a standard warranty of 1 year or 1000 operating hours, whichever comes first, covering manufacturing defects under normal operating conditions.

Frequently Asked Questions

Q: What is the prime power of the GPC725D5 and GPC725S5?

A: The GPC725D5 open type and GPC725S5 silent type generator sets provide 580kW/725kVA prime power at 50Hz.

Q: What is the standby power of the GPC725 generator set?

A: The GPC725 generator set provides 640kW/800kVA standby power for emergency and backup power applications.

Q: Which engine is used in the GPC725D5 and GPC725S5?

A: The GPC725 series is powered by the Cummins KTA38-GA V-12 diesel engine with a 38-liter displacement, turbocharged air intake system and electronic governor.

Q: What is the fuel tank capacity of the GPC725 generator set?

A: The standard GPC725 generator set is equipped with an 1100L fuel tank for extended operating periods.

Q: What is the fuel consumption of the GPC725 at prime load?

A: The fuel consumption is approximately 170L/H at 100% prime load, 127.5L/H at 75% prime load and 85L/H at 50% prime load.

Q: What alternator is used with the GPC725 generator set?

A: The GPC725 is equipped with a 600kW/750kVA alternator, 50Hz, 3-phase, 4-pole, H Class insulation and IP23 protection.

Q: Is the GPC725 available in a silent type?

A: Yes. The GPC725S5 is the silent type version with a weatherproof sound-attenuated enclosure for outdoor and noise-sensitive applications.

Q: What voltage options are available for the GPC725?

A: The standard rated voltage options include 220/380V, 230/400V and 240/415V, with 3-phase, 4-wire configuration.

Q: Can the GPC725 be used for synchronization and paralleling?

A: Yes. Synchronization and paralleling systems can be provided as optional equipment for projects requiring multiple generator sets or load-sharing operation.

Q: What is the warranty for the GPC725 generator set?

A: GENLITEC POWER provides a standard warranty of 1 year or 1000 operating hours, whichever comes first.
