50Hz 728kW 910kVA Diesel Generator with Cummins KTA38-G2A Engine
Short Description
GENLITEC POWER GPC910D5/GPC910S5 910kVA Cummins diesel generator with KTA38-G2A engine, 728kW prime and 800kW standby power.
- ModelGPC910D5 | GPC910S5
- Frequency50Hz
- Prime Power728KW/910KVA
- Standby Power800KW/1000KVA
- EngineCummins KTA38-G2A
- AlternatorStamford/Leroy Somer/Genlitec Power
- Fuel Consumption (100% Load)165kg/H
- MOQ1 Set
Product Details
Product Tags
Introduction
The GENLITEC POWER® GPC910D5 and GPC910S5 are 910kVA Cummins diesel generator sets designed to provide reliable three-phase power for industrial, commercial, construction, mining, infrastructure and standby power applications. The generator sets are rated at 728kW/910kVA for prime power and 800kW/1000kVA for standby power at 50Hz, with 1500 RPM operation.
Powered by the Cummins KTA38-G2A 12-cylinder, 38-liter diesel engine, the GPC910 series combines high engine capacity with a 728kW/910kVA alternator output. The Cummins KTA38-G2A features a turbocharged and aftercooled aspiration system, Cummins PT pump fuel system, EFC electronic governor and a 14.5:1 compression ratio. At 50Hz and 1500 RPM, the engine provides 813kW rated power and 896kW standby power, providing suitable engine capacity for the rated generator set output.

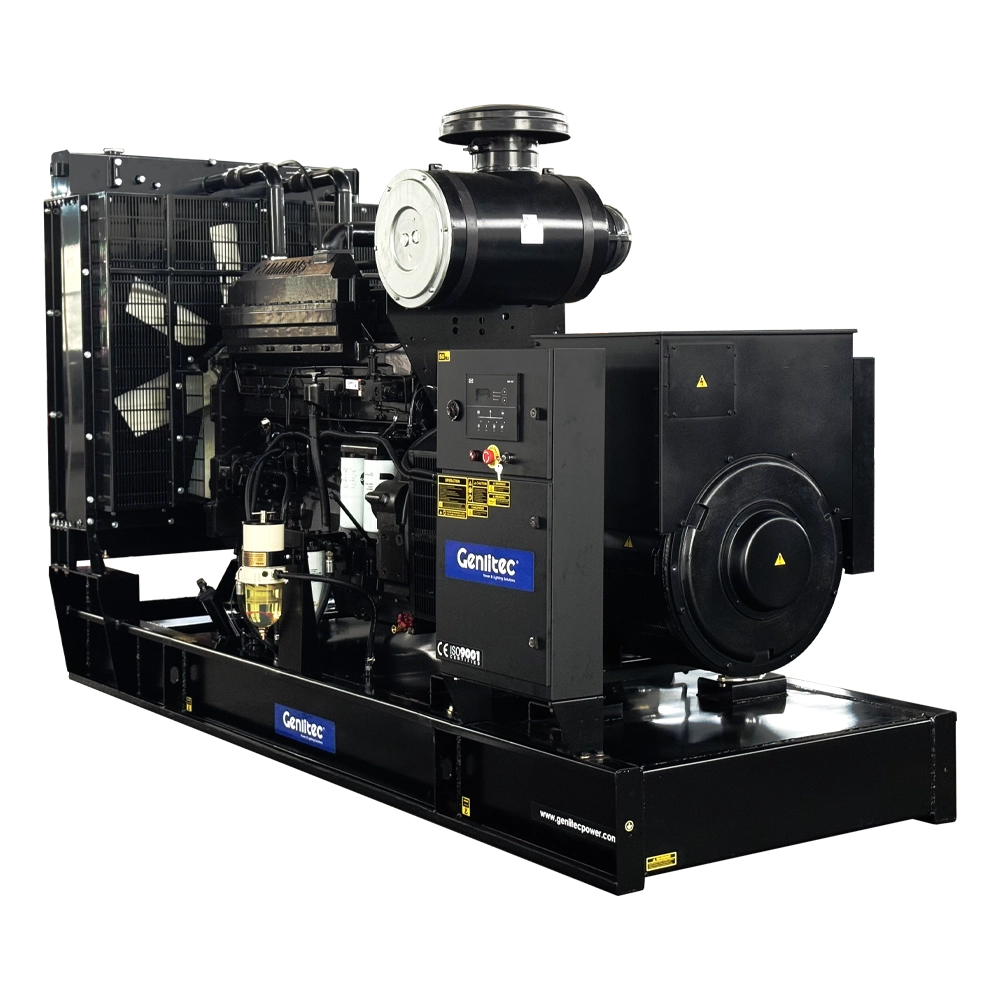

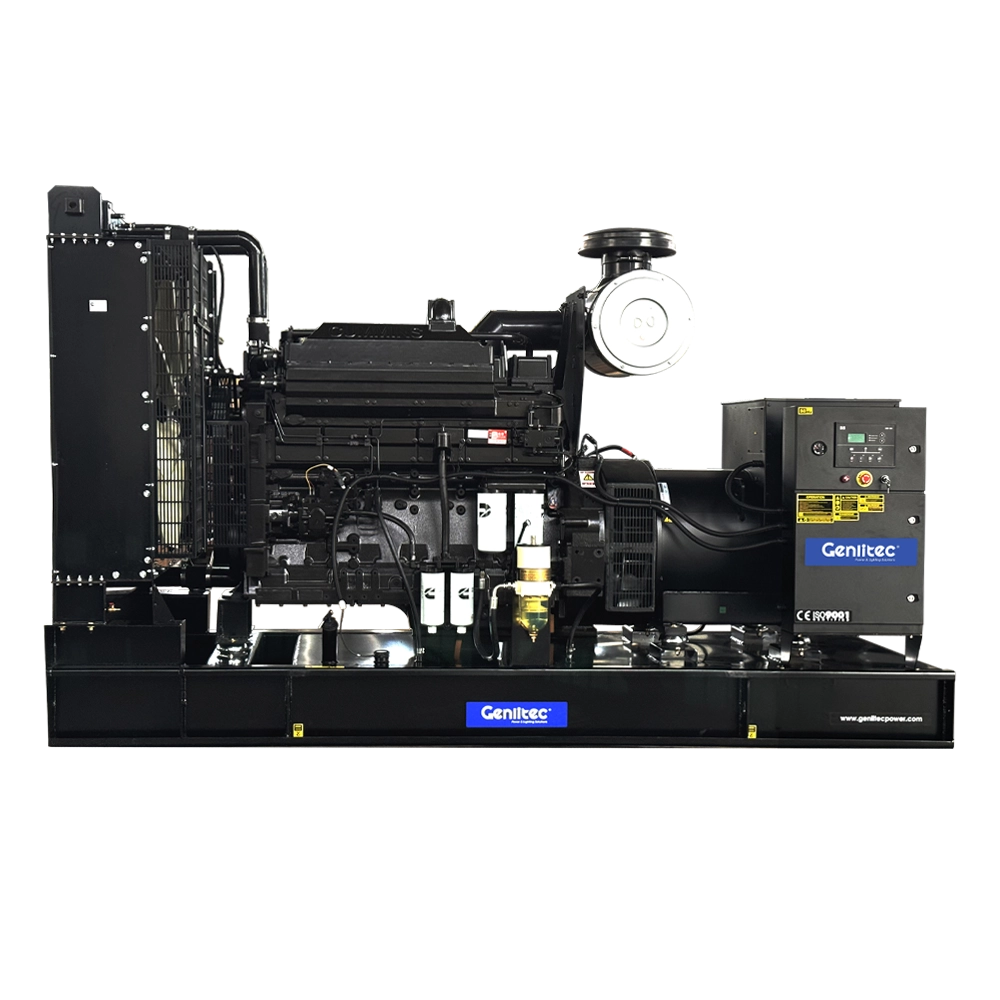

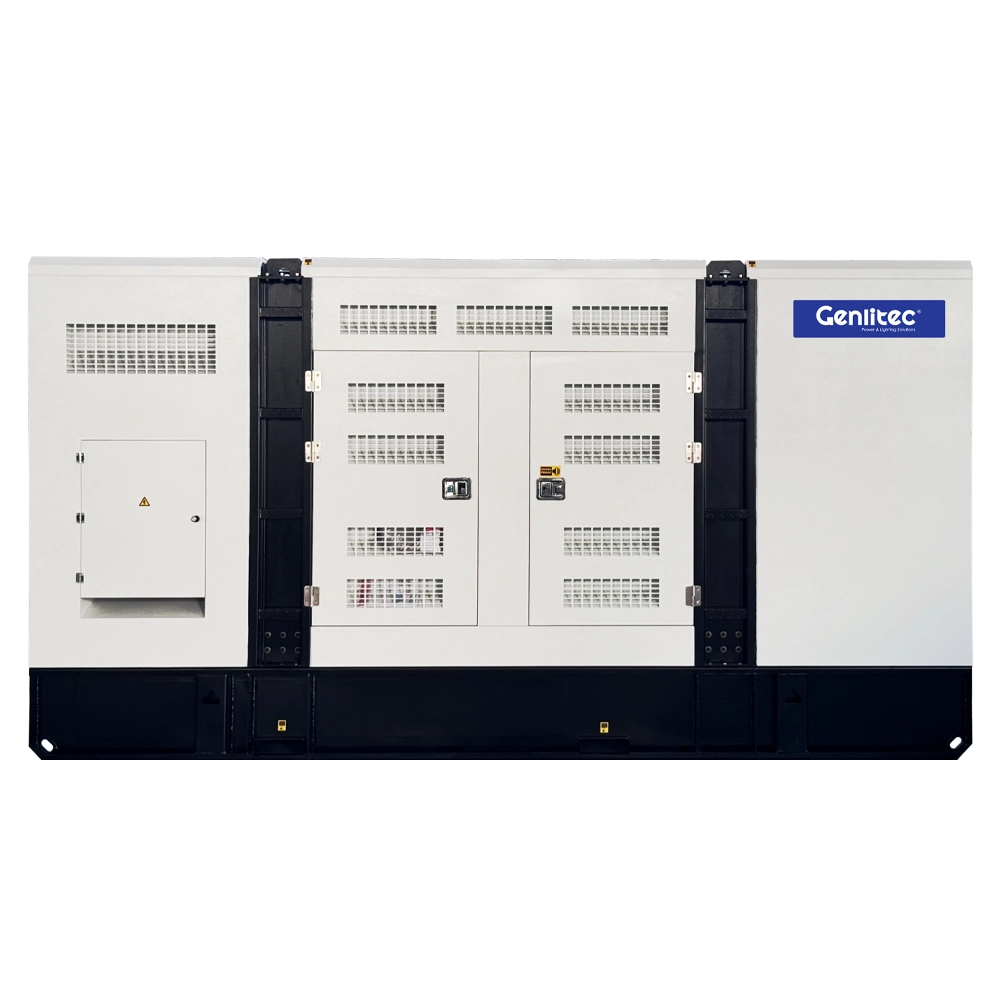

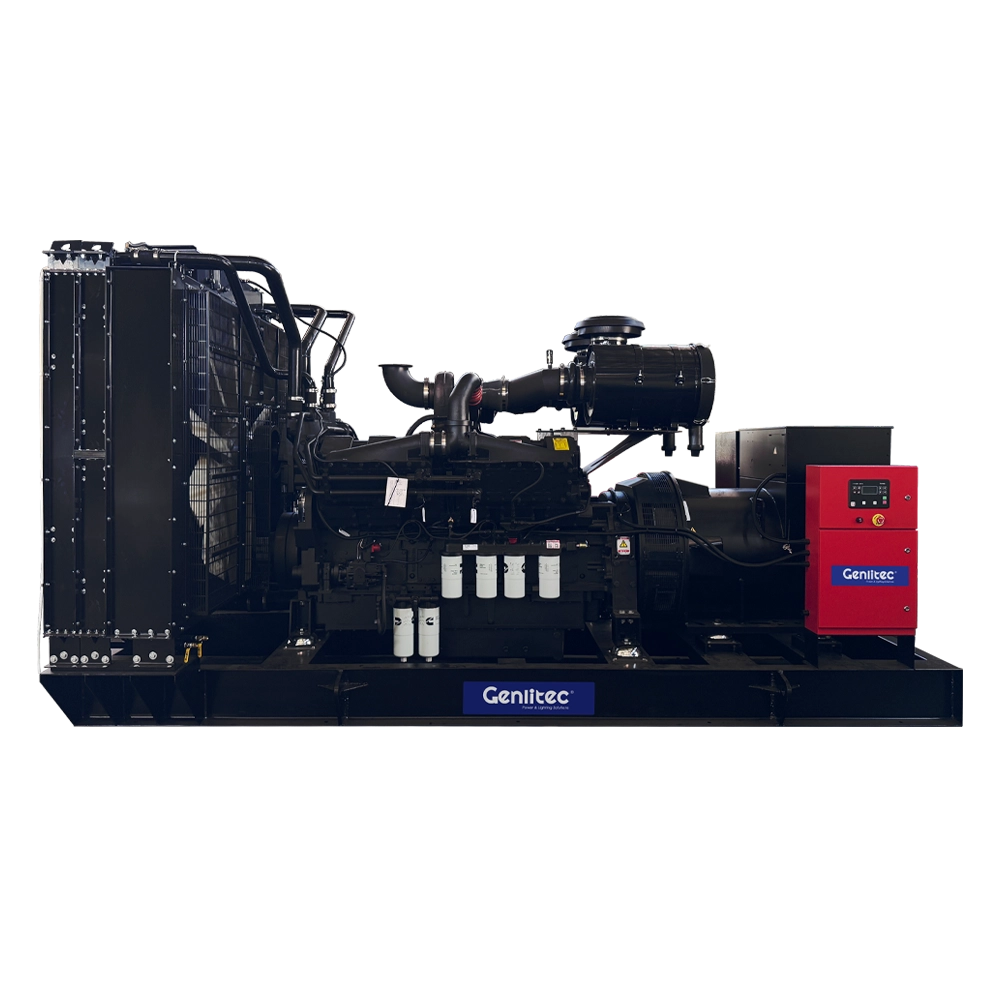

The GPC910 generator set is available in both open and silent configurations. The GPC910D5 open type is suitable for generator rooms and installations where easy maintenance and ventilation are required, while the GPC910S5 silent type features a weatherproof sound-attenuated enclosure for outdoor and noise-sensitive applications. A 1000L fuel tank is provided for extended operating periods, while ATS, synchronization, remote monitoring and other options are available for different project requirements.
Generator Set
| Open Type Model | GPC910D5 |
| Silent Type Model | GPC910S5 |
| Prime Power | 728KW/910KVA |
| Standby Power | 800KW/1000KVA |
| Phase & Wire | 3 Phase, 4 Wire |
| Power Factor | 0.8 |
| Frequency | 50Hz |
| Rated Voltage | 220/380V, 230/400V, 240/415V |
| Fuel Tank Capacity | 1000L |
Diesel Engine
| Engine Model | CUMMINS KTA38-G2A |
| Cylinder Number | 12-V |
| Aspiration System | Turbocharged, Aftercooled |
| Cooling Method | Water Cooled |
| Governor Type | EFC Electronic |
| Bore x Stroke | 159 x 159 mm |
| Compression Ratio | 14.5:1 |
| Rated Speed | 1500 RPM |
| Displacement | 38L |
| Rated Power | 813KW |
| Standby Power | 896KW |
| Coolant Capacity | 124L (Engine Only) |
| Oil Capacity | 151.4L |
| Fuel System | CUMMINS PT Pump |
| Electric Starting System | DC 24V |
Fuel Consumption
| 100% Prime Load | 165kg/H |
| 75% Prime Load | 128kg/H |
| 50% Prime Load | 90kg/H |
| 25% Prime Load | 49kg/H |
Alternator
| Number of Phase | 3 |
| Rated Power | 728KW/910KVA |
| Frequency | 50Hz |
| Power Factor | 0.8 |
| Poles | 4 |
| Temp. Rise | 125K |
| Terminals | 12 |
| Insulation Class | H |
| Ambient Temp. | 40℃ |
| IP Rating | IP23 |
| Excitation System | Self-Excited |
| Bearing | Single Bearing |
| Coating | Vacuum Impregnation |
| Voltage Regulator | A.V.R |
| Coupling | Flexible Disc |
Control Panel
| ○ Emergency stop button | ○ Main circuit breaker |
| ○ Float battery charger | ○ Manual/Auto start control panel |
| ○ Fuel level meter | ○ Controller power switch |
| ○ Alarm buzzer |
Sound Attenuated Enclosure
○ Weatherproof sound-attenuated enclosure with internal exhaust silencer
○ Corrosion-resistant construction for outdoor installation
○ Available for GPC910S5 silent type generator set
Options
○ ATS for automatic start and stop when utility power fails or returns
○ 20' Containerized canopy
○ Water-jacket heater
○ Other heaters
○ AREM & PMG
○ Synchronization System
○ Remote & Monitoring System
Applications
The GENLITEC POWER 728kW/910kVA Cummins KTA38-G2A diesel generator set is suitable for prime and standby power applications where stable and dependable power is required, including:
○ Commercial buildings and office complexes
○ Industrial facilities and manufacturing plants
○ Construction sites and infrastructure projects
○ Mining and heavy-duty applications
○ Telecommunication and remote facilities
○ Data centers and critical power systems
○ Emergency and standby power applications
Why Choose GENLITEC POWER
GENLITEC POWER combines established engine technology, carefully selected generator components and professional assembly to provide reliable diesel generator sets for demanding power applications. The GPC910 series uses the Cummins KTA38-G2A engine and is configured to deliver 728kW/910kVA prime power with suitable engine reserve capacity.
○ Genuine Cummins KTA38-G2A diesel engine configuration
○ 728kW/910kVA prime power and 800kW/1000kVA standby power
○ 38L 12-cylinder turbocharged and aftercooled diesel engine
○ Cummins PT fuel pump and EFC electronic governor
○ 813kW rated and 896kW standby engine output at 50Hz
○ 1000L fuel tank for extended operating periods
○ 728kW/910kVA alternator with H Class insulation and IP23 protection
○ Available in open type GPC910D5 and silent type GPC910S5 configurations
○ Optional ATS, synchronization, paralleling and remote monitoring systems
○ Professional manufacturing, testing and international export experience
For more information, please visit the GENLITEC POWER® Why Choose GENLITEC POWER page.
Warranty
GENLITEC POWER provides a standard warranty of 12 months or 1000 working hours, whichever comes first. For details, please refer to the GENLITEC POWER® Warranty Policy.
