50Hz 90kW 113kVA Diesel Generator with Cummins 6BTA5.9-G2 Engine
Short Description
50Hz 90kW/113kVA diesel generator with Cummins 6BTA5.9-G2 engine, delivering reliable and efficient power for industrial and standby applications.
- ModelGPC113D5 | GPC113S5
- Frequency50Hz
- Prime Power90KW/113KVA
- Standby Power100KW/125KVA
- EngineCummins 6BTA5.9-G2
- AlternatorStamford/Leroy Somer/Genlitec Power
- MOQ1 Set
Product Details
Product Tags
Introduction
The GENLITEC POWER® GPC113D5 open type and GPC113S5 silent type diesel generator sets provide 90kW/113kVA prime power and 100kW/125kVA standby power. Powered by a Cummins 6BTA5.9-G2 six-cylinder water-cooled diesel engine and coupled with a brushless copper alternator, they are designed to provide stable and dependable power for commercial, industrial, construction, telecommunications and backup applications.
Designed for 50Hz operation at 1500RPM, the generator sets provide three-phase, four-wire power with flexible voltage configurations of 220/380V, 230/400V and 240/415V. The package features a DC 24V electric starting system, water-cooled engine, electronic governor, anti-vibration mountings and a digital control system for reliable operation and convenient monitoring.

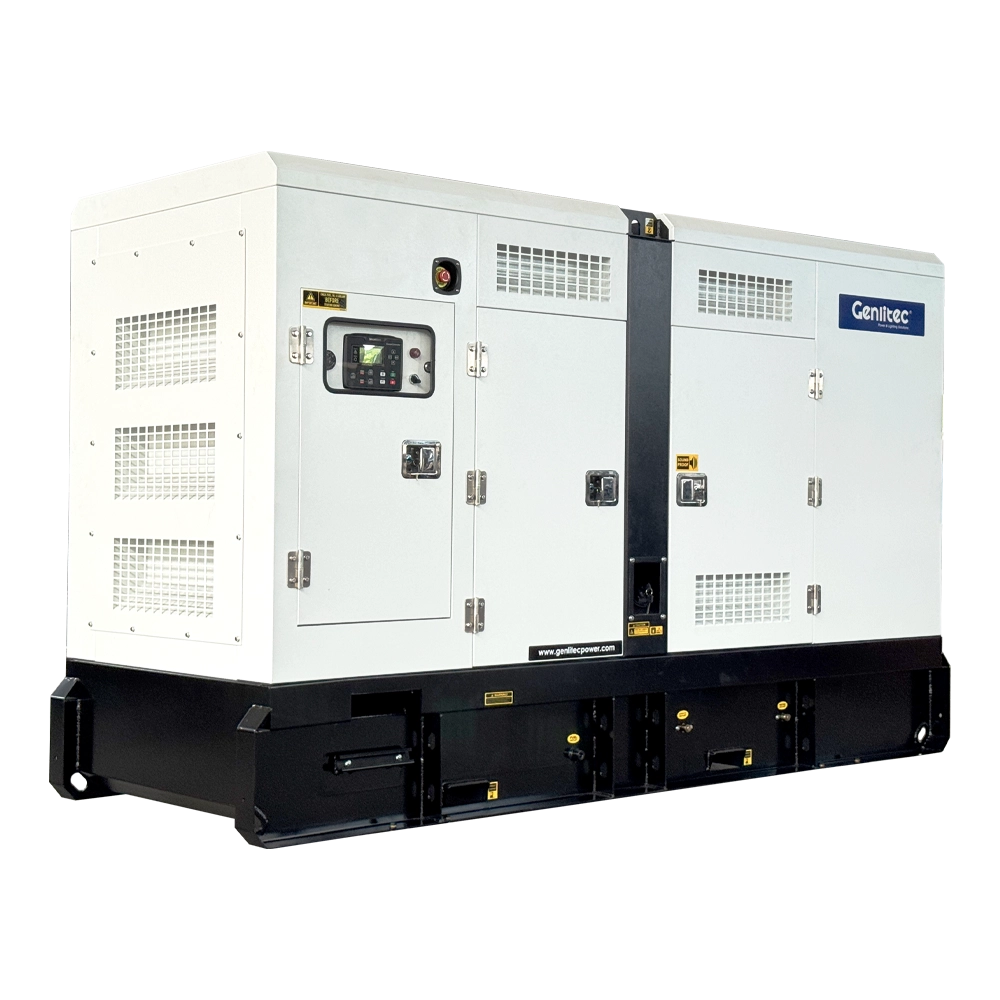

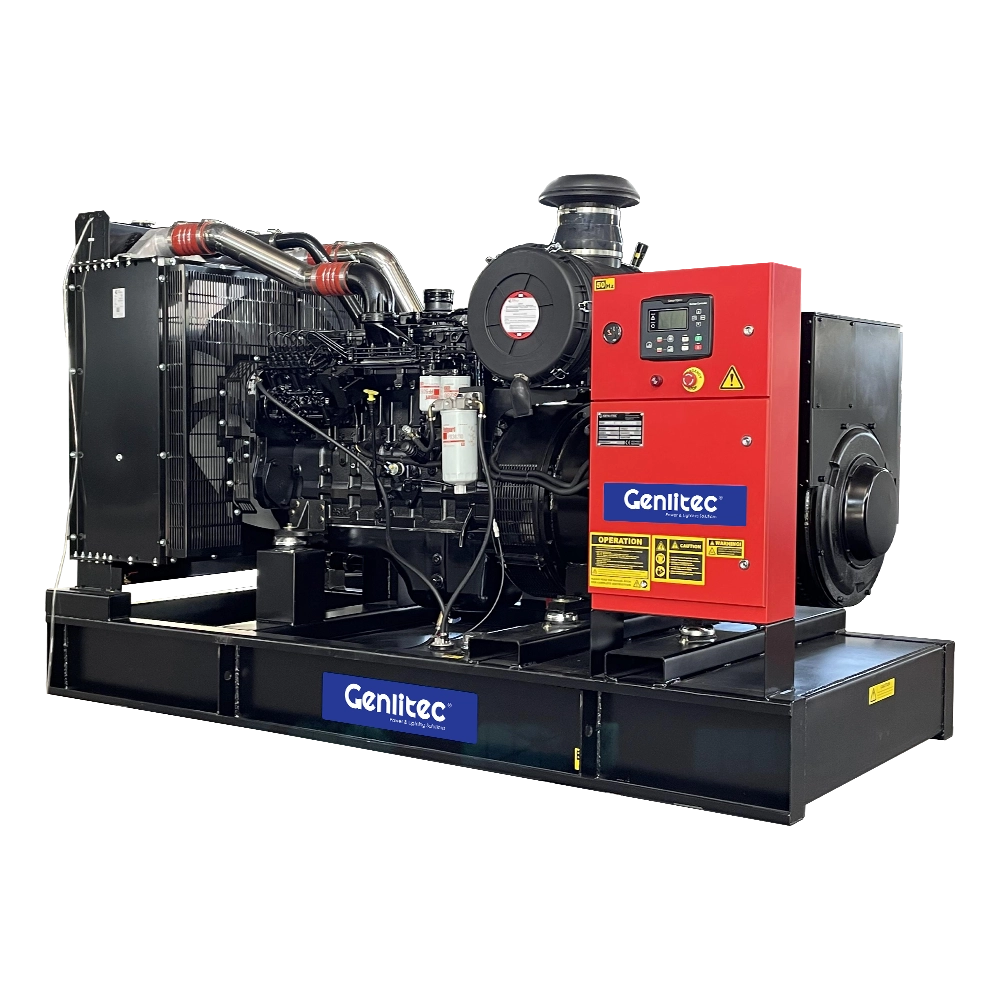

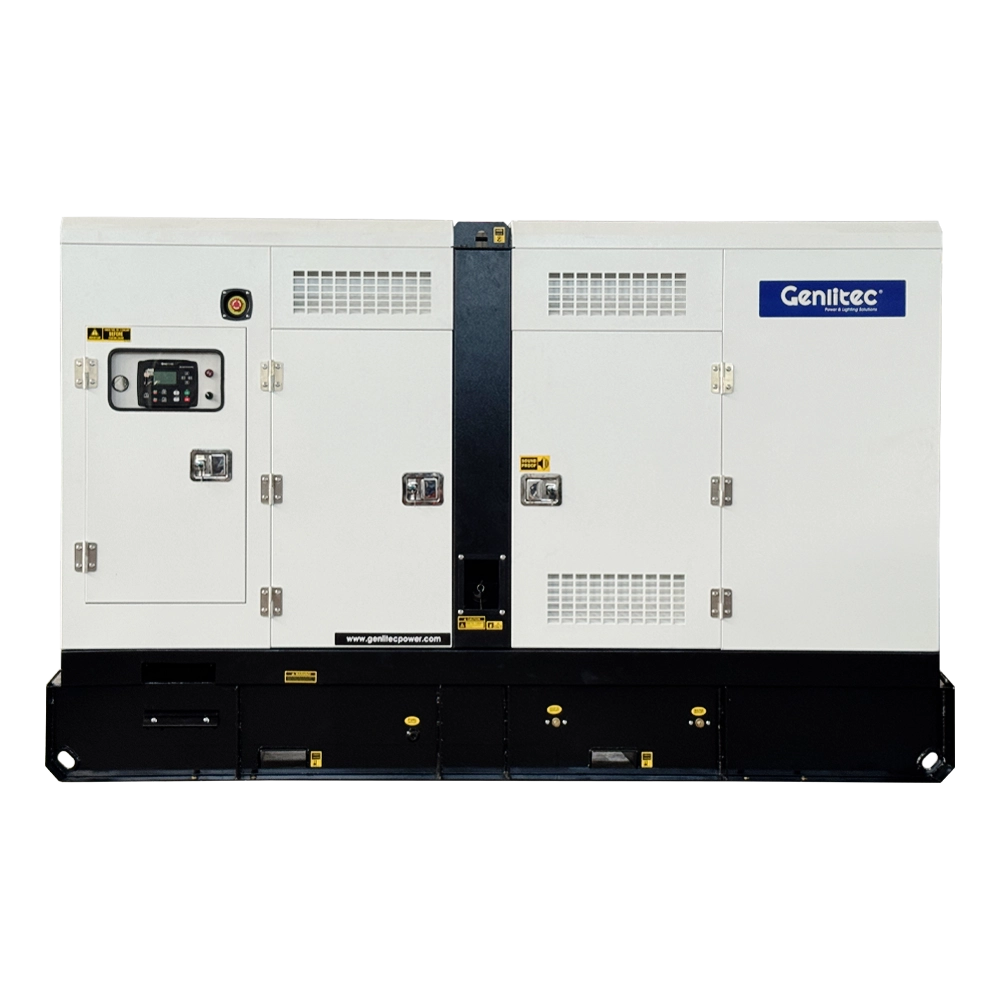

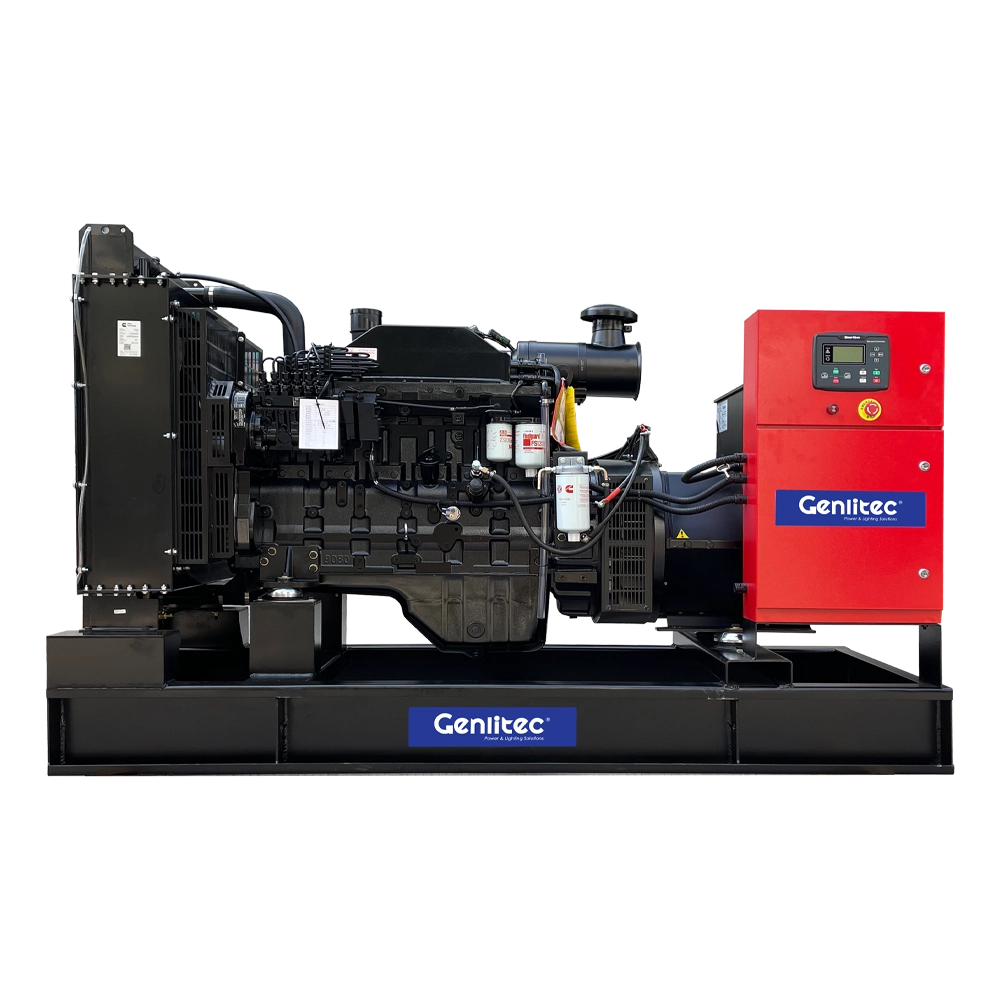

The GPC113D5 open type is suitable for installations where ventilation, service access and convenient maintenance are priorities. The GPC113S5 silent type can be equipped with a weatherproof sound-attenuated enclosure with an internal exhaust silencer for applications requiring reduced operating noise and additional outdoor protection.
Generator Set
| Open Type Model | GPC113D5 |
| Silent Type Model | GPC113S5 |
| Prime Power | 90kW/113kVA |
| Standby Power | 100kW/125kVA |
| Phase & Wire | 3 Phase, 4 Wires |
| Power Factor | 0.8 |
| Frequency | 50Hz |
| Rated Voltage | 220/380V, 230/400V, 240/415V |
| Rated Speed | 1500RPM |
| Fuel Tank Capacity | 200L |
Diesel Engine
| Engine Model | Cummins 6BTA5.9-G2 |
| Cylinder Number | 6 |
| Aspiration System | Turbocharged, After Cooled |
| Cooling Method | Water Cooled |
| Governor Type | Electronic |
| Bore x Stroke | 105 x 120 mm |
| Compression Ratio | 17.3:1 |
| Rated Speed | 1500RPM |
| Displacement | 5.9L |
| Rated Power | 106kW |
| Standby Power | 116kW |
| Fuel System | AD Type Fuel Pump |
| Oil Capacity | 16.3L |
| Coolant Capacity | 29L |
| Electric Starting System | DC 24V |
Fuel Consumption
| 100% Prime Load | 27L/H |
| 75% Prime Load | 20L/H |
| 50% Prime Load | 14L/H |
| 25% Prime Load | 8L/H |
Alternator
| Number of Phase | 3 |
| Rated Power | 90kW/113kVA |
| Frequency | 50Hz |
| Power Factor | 0.8 |
| Poles | 4 |
| Temperature Rise | 125K |
| Terminals | 12 |
| Insulation Type | H Class |
| Ambient Temperature | 40°C |
| IP Rating | IP23 |
| Excitation System | Self-Excited |
| Bearing | Single Bearing |
| Coating | Vacuum Impregnation |
| Voltage Regulator | AVR |
| Coupling | Flexible Disc |
Control Panel
| ○ Emergency stop button | ○ Main circuit breaker |
| ○ Float battery charger | ○ Manual/Auto start control panel |
| ○ Fuel level meter | ○ Controller power switch |
| ○ Alarm buzzer |
Sound Attenuated Enclosure
○ Fully weatherproof sound-attenuated enclosure with internal exhaust silencer
○ Corrosion-resistant construction for outdoor installation
○ Available for GPC113S5 silent type generator set
Options
○ ATS for automatic start and stop when utility power fails or returns
○ Single axle trailer
○ 12-hour fuel tank
○ 24-hour fuel tank
○ Water-jacket heater
○ Space heater
○ AREM & PMG
○ Remote & Monitoring System
○ Power sockets, including CEE or AUS standards
Applications
The GENLITEC POWER 90kW/113kVA diesel generator set is suitable for a wide range of prime, standby and backup power applications, including:
○ Commercial and office buildings
○ Industrial facilities
○ Construction and job sites
○ Agricultural and rural facilities
○ Telecommunication and remote sites
○ Emergency and standby power systems
Why Choose GENLITEC POWER
GENLITEC POWER is a professional manufacturer and exporter of diesel generator sets and mobile lighting towers, providing reliable power generation solutions for customers and projects in different markets worldwide. With experience in generator manufacturing, international export and customized power solutions, GENLITEC POWER focuses on practical product configurations, consistent quality and dependable service throughout the product lifecycle.
○ Professional manufacturer and exporter of diesel generator sets and mobile lighting towers
○ 10+ years of experience in power generation equipment
○ 2,500+ generator sets annual production capacity
○ Products and project experience covering 50+ countries
○ Multiple engine, alternator and controller brand options
○ Customized generator configurations for different applications and project requirements
○ Professional manufacturing, assembly and quality control
○ International technical support and after-sales service
For more information, please visit the GENLITEC POWER® Why Choose GENLITEC POWER page.
Warranty
GENLITEC POWER provides a standard warranty of 12 months or 1000 working hours, whichever comes first. For details, please refer to the GENLITEC POWER® Warranty Policy.
