Short Description:

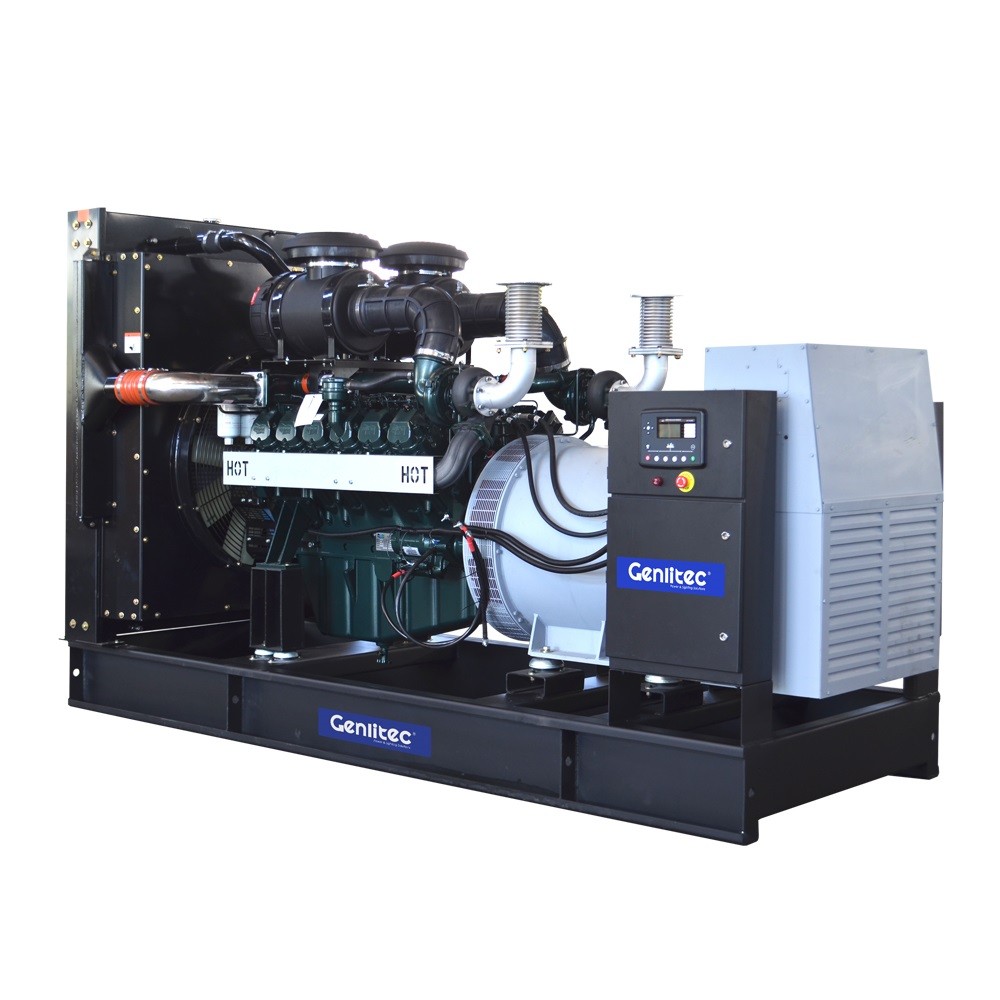

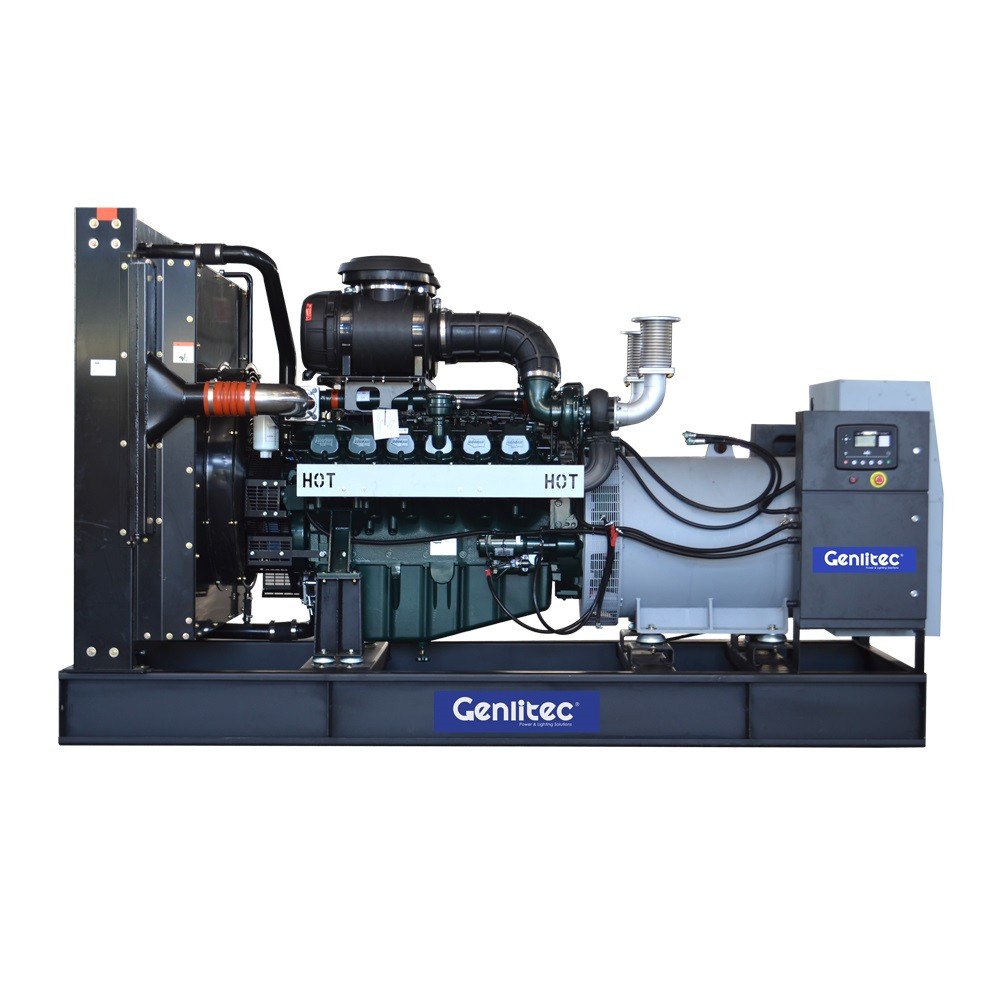

GENLITEC POWER® GDS563D6 (open type), GDS563S6 (silent type) powered by original DOOSAN diesel engine DP158LD, with prime power 450KW/563KVA and standby power 500KW/625KVA....


  • Model: GDS563D6 | GDS563S6
  • Engine: DOOSAN DP158LD
  • Prime Power: 450KW/563KVA
  • Standby Power: 500KW/625KVA
  • Voltage: 110/190V | 120/208V | 127/220V | 254/440V

Product Details

Product Tags

450KW/563KVA DOOSAN DIESEL GENERATOR SET SPECIFICATIONS

  • Standby Power: 500KW/625KVA
  • Prime Power: 450KW/563KVA
  • Frequency: 60Hz
  • Speed: 1800 RPM
  • Voltage: 120/208V (110/190V, 127/220V, 254/440V or 277/480V available according to different countries)
  • Fuel Tank Capacity: 8~10 hours continuous running


ENGINE

  • Powered by: DOOSAN
  • Engine Model: DOOSAN DP158LD


ALTERNATOR

  • Alternator Model: GENLITEC S354G450 (STAMFORD & LEROY SOMER alternators for options)
  • High Efficiency
  • IP23 Protection


CONTROL PANEL

  • Emergency stop button
  • Main circuit breaker
  • Float baterry charger
  • Manual/Autostart control panel
  • Fuel level meter
  • Controller power switch
  • Alarm buzzer


SOUND ATTENUATED ENCLOSURE

  • Fully Weatherproof Sound Attenuated Enclosure With Internal Exhaust Silencer
  • Highly Corrosion Resistant Construction


WARRANTY

  • 12 months or 1000 working hours, whichever comes first


OPTIONS

  • ATS (for automatic start & stop when electricity power off & on)
  • Trailer Type
  • 12 hours fuel tank
  • 24 hours fuel tank
  • Power Sockets (CEE or AUS standard)
  • Remote & Monitoring System
