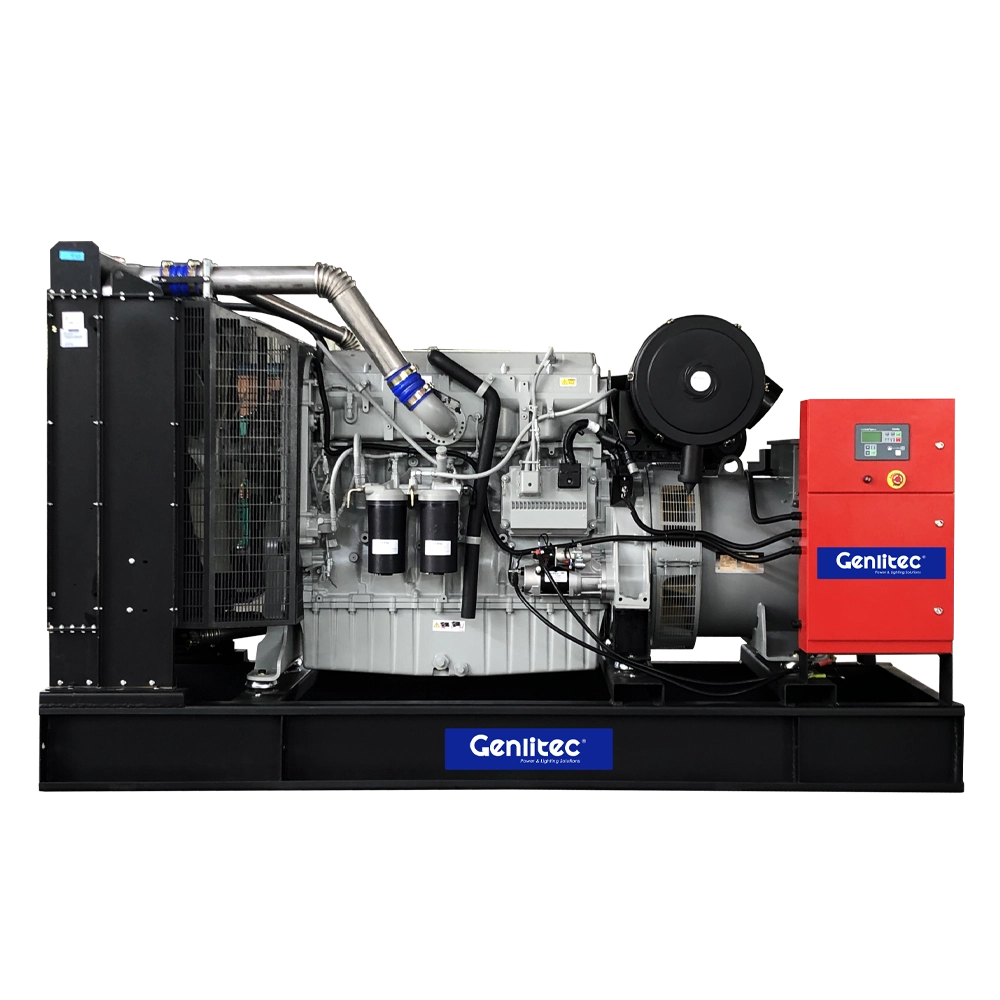

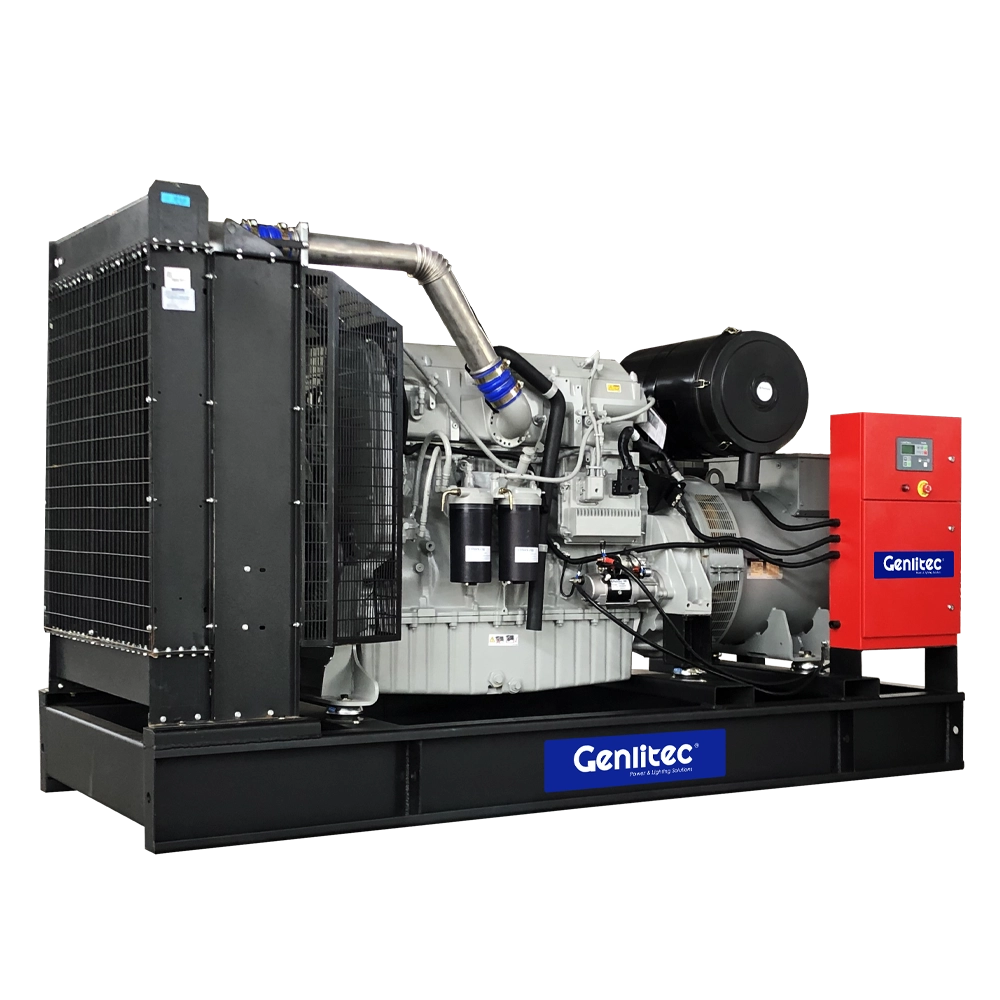

50Hz 480kW 600kVA Diesel Generator with Perkins 2806C-E18TAG1A Engine
Introduction
The GENLITEC POWER GPP600D5 / GPP600S5 is a 600 kVA diesel generator set designed for reliable prime, standby and backup power applications. With a rated output of 480KW/600KVA prime power and 528KW/660KVA standby power, this 50Hz diesel generator operates at 1500 RPM and provides dependable three-phase power for commercial, industrial, construction, agricultural, telecommunications and other demanding applications.
Powered by a Perkins 2806C-E18TAG1A turbocharged and air-to-air charge cooled diesel engine, the GPP600D5 / GPP600S5 combines an 18.1L six-cylinder engine with full-authority electronic engine control, high power density and efficient fuel consumption. The generator set is available in both open type and silent type versions, with rated voltage options of 220/380V, 230/400V and 240/415V. A 900L standard fuel tank is provided, while optional 12-hour, 24-hour and 48-hour fuel tanks, ATS, trailer, remote monitoring system and power sockets are available for different project requirements. This 480KW/600KVA Perkins diesel generator is suitable for prime power, emergency standby power and backup power applications where reliable and efficient electricity supply is required.
Generator Set
| Open Type Model | GPP600D5 |
| Silent Type Model | GPP600S5 |
| Frequency | 50Hz |
| Phase & Wires | 3 Phase, 4 Wires |
| Power Factor | 0.8 |
| Prime Power | 480KW/600KVA |
| Standby Power | 528KW/660KVA |
| Rated Voltage | 220/380V; 230/400V; 240/415V |
| Rated Speed | 1500 RPM |
| Fuel Tank Capacity | 900L |
Diesel Engine
| Engine Model | Perkins 2806C-E18TAG1A |
| Cylinder Number | 6 |
| Cylinder Arrangement | Vertical In-line |
| Cycle | 4 Stroke |
| Aspiration System | Turbocharged and Air-to-Air Charge Cooled |
| Cooling Method | Liquid Cooled |
| Governor Type | Full Authority Electronic |
| Bore x Stroke | 145 x 183 mm |
| Compression Ratio | 14.5:1 |
| Rated Speed | 1500 RPM |
| Displacement | 18.1L |
| Gross Engine Power - Prime | 532KW |
| Gross Engine Power - Standby | 584KW |
| Net Engine Power - Prime | 514KW |
| Net Engine Power - Standby | 565KW |
| Combustion System | Direct Injection |
| Coolant Capacity | Approximately 61L |
| Oil Capacity | Approximately 62L |
| Electric Starting System | DC 24V |
Fuel Consumption
| 110% Prime Load | 134L/H |
| 100% Prime Load | 129L/H |
| 75% Prime Load | 96L/H |
| 50% Prime Load | 63L/H |
Alternator
| Number of Phase | 3 |
| Rated Power | 480KW/600KVA |
| Frequency | 50Hz |
| Power Factor | 0.8 |
| Poles | 4 |
| Temperature Rise | 125K |
| Terminals | 6/12 |
| Insulation Class | H |
| Ambient Temperature | 40℃ |
| IP Rating | IP23 |
| Excitation System | Self-Excited |
| Bearing | Single Bearing |
| Coating | Vacuum Impregnation |
| Voltage Regulator | A.V.R |
| Coupling | Flexible Disc |
Control Panel
| ○ Emergency stop button | ○ Main circuit breaker |
| ○ Float battery charger | ○ Manual/Auto start control panel |
| ○ Fuel level meter | ○ Controller power switch |
| ○ Alarm buzzer |
Sound Attenuated Enclosure
○ Weatherproof sound-attenuated enclosure with internal exhaust silencer
○ Corrosion-resistant construction for outdoor installation
○ Available for GPP600S5 silent type generator set
Options
○ ATS for automatic start and stop when utility power fails or returns
○ Synchronization System
○ Remote monitoring system
○ Water-Jacket Heater
○ Other Heaters
Applications
The GENLITEC POWER 480KW/600KVA diesel generator set is suitable for a wide range of prime, standby and backup power applications, including:
○ Commercial and office buildings
○ Industrial facilities
○ Construction and job sites
○ Agricultural and rural facilities
○ Telecommunication and remote sites
○ Emergency and standby power systems
Why Choose GENLITEC POWER
GENLITEC POWER GPP600D5 / GPP600S5 diesel generator sets combine a Perkins 2806C-E18TAG1A engine with a high-power generator set configuration for dependable prime and standby power.
○ Perkins 2806C-E18TAG1A diesel engine for reliable high-power generation
○ 480KW/600KVA prime power and 528KW/660KVA standby power
○ Multiple voltage configurations available
○ Open and silent type configurations available
○ Full-authority electronic engine control for precise engine speed and performance management
○ Suitable for commercial, industrial and backup power applications
○ Factory-direct supply with customized generator set solutions
For more information, please visit the GENLITEC POWER® Why Choose GENLITEC POWER page.
Warranty
GENLITEC POWER provides a standard warranty of 12 months or 1000 working hours, whichever comes first. For details, please refer to the GENLITEC POWER® Warranty Policy.
