50Hz 48kW 60kVA Diesel Generator with Deutz BF4M2012 Engine
Introduction
The GENLITEC POWER GPD60D5 / GPD60S5 diesel generator set is a reliable power solution designed for prime, standby and backup power applications. Powered by a DEUTZ BF4M2012 diesel engine, this generator set is suitable for commercial buildings, industrial facilities, construction sites, telecommunications and other applications requiring dependable power.

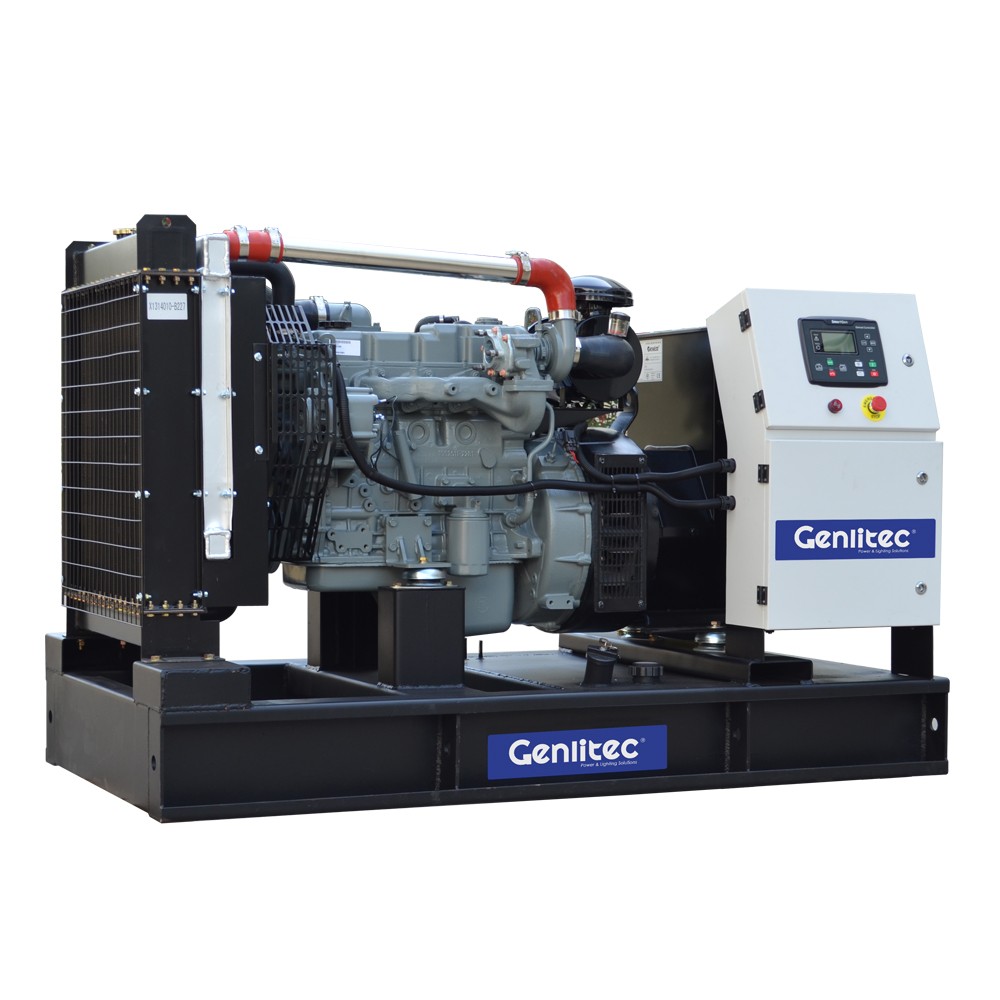

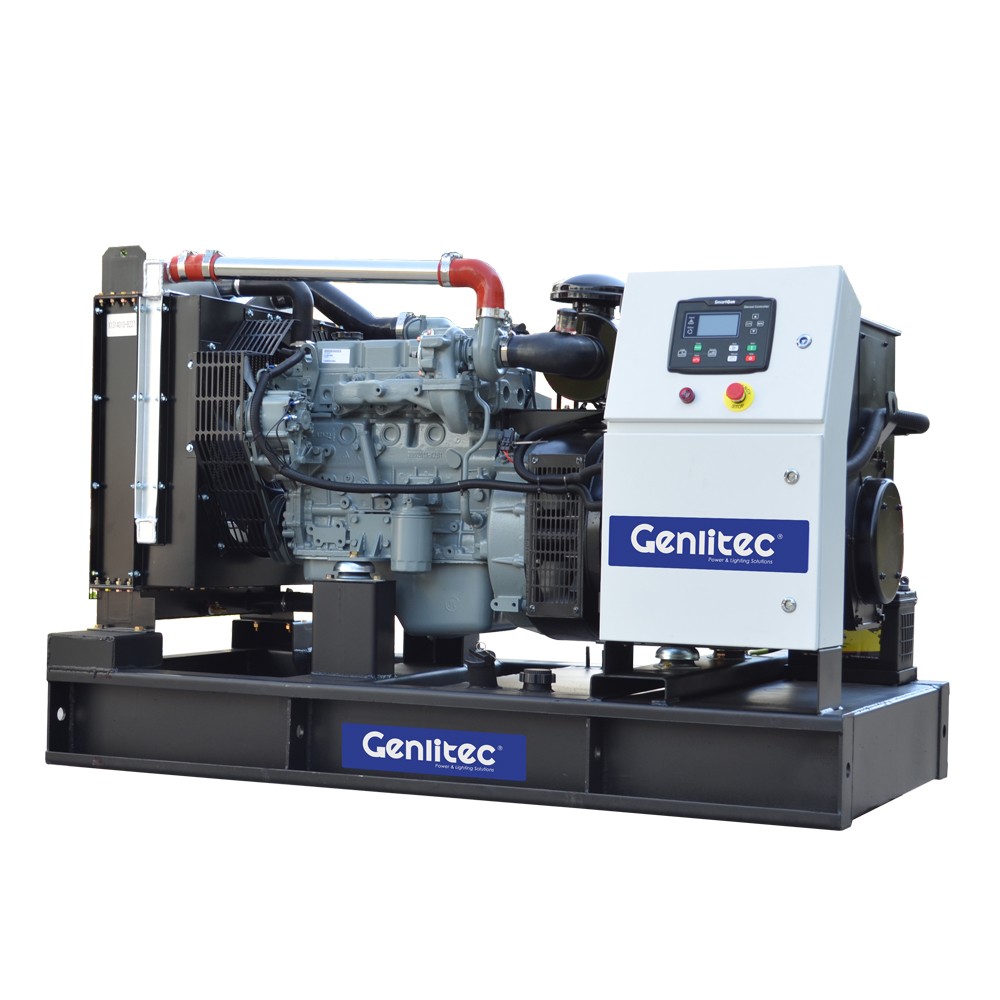

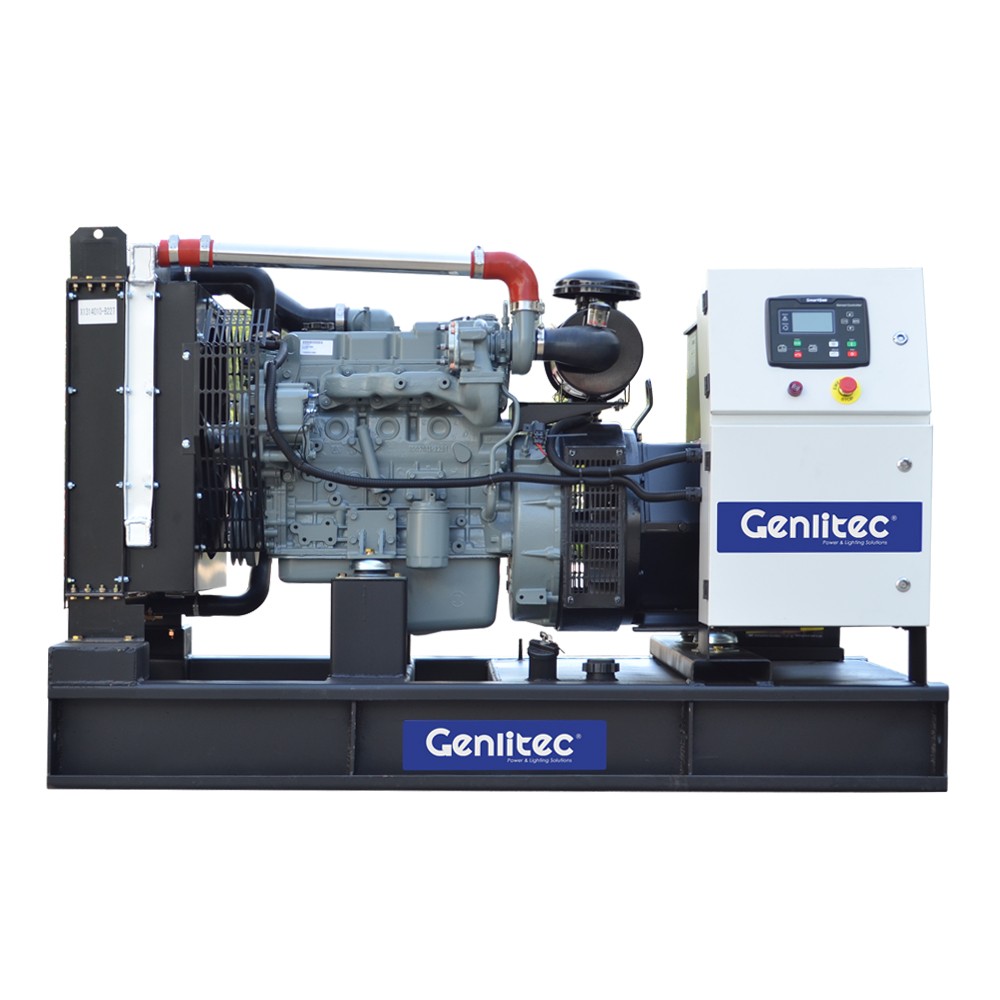

The generator set is specified with 48kW/60kVA prime power and 53kW/66kVA standby power at 50Hz and 1500RPM. Available voltage configurations include 220/380V, 230/400V and 240/415V. The open type GPD60D5 is suitable for installations with a dedicated generator room, while the silent type GPD60S5 features a sound-attenuated enclosure for outdoor and noise-sensitive applications.
Generator Set
| Open Type Model | GPD60D5 |
| Silent Type Model | GPD60S5 |
| Frequency | 50Hz |
| Phase & Wires | 3 Phase, 4 Wires |
| Power Factor | 0.8 |
| Prime Power | 48kW/60kVA |
| Standby Power | 53kW/66kVA |
| Rated Voltage | 220/380V; 230/400V; 240/415V |
| Rated Speed | 1500 RPM |
| Fuel Tank Capacity | 100L |
Diesel Engine
| Engine Model | DEUTZ BF4M2012 |
| Cylinder Number | 4 |
| Cylinder Arrangement | In-line |
| Engine Type | 4-Stroke Diesel |
| Aspiration System | Turbocharged |
| Cooling Method | Water Cooled |
| Governor Type | According to the final engine configuration |
| Bore x Stroke | 101 x 126 mm |
| Displacement | 4.04L |
| Rated Speed | 1500 RPM |
| Prime Power (Engine Reference) | 54kW at 1500 RPM |
| Standby Power (Engine Reference) | 60kW at 1500 RPM |
| Fuel System | Diesel Injection Pump |
| Coolant Capacity | Approximately 6L for engine only; cooling system capacity depends on the radiator configuration |
| Electric Starting System | DC 24V |
Fuel Consumption
| 100% Prime Load | 13.7L/H |
| 75% Prime Load | 10.2L/H |
| 50% Prime Load | 7.0L/H |
| 25% Prime Load | 4.0L/H |
Note: Fuel consumption figures are reference values for the DEUTZ BF4M2012 engine at 1500 RPM. Actual consumption may vary according to generator configuration, load, ambient conditions and maintenance status.
Alternator
| Number of Phase | 3 |
| Rated Power | 48kW/60kVA |
| Frequency | 50Hz |
| Power Factor | 0.8 |
| Poles | 4 |
| Temperature Rise | 125K |
| Terminals | 6/12 |
| Insulation Class | H Class |
| Ambient Temperature | 40℃ |
| IP Rating | IP23 |
| Excitation System | Self-Excited |
| Bearing | Single Bearing |
| Coating | Vacuum Impregnation |
| Voltage Regulator | AVR |
| Coupling | Flexible Disc |
Control Panel
| ○ Emergency stop button | ○ Main circuit breaker |
| ○ Float battery charger | ○ Manual/Auto start control panel |
| ○ Fuel level meter | ○ Controller power switch |
| ○ Alarm buzzer | ○ Remote monitoring interface |
SOUND ATTENUATED ENCLOSURE

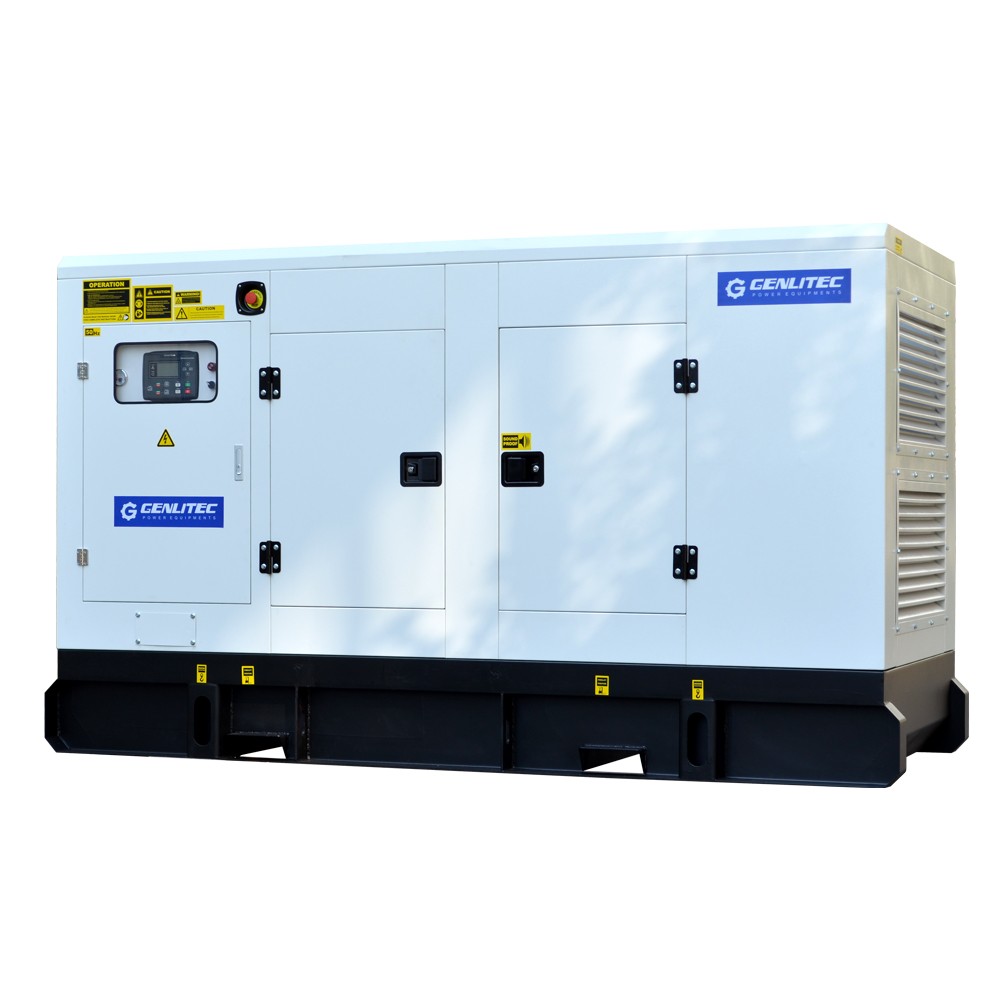

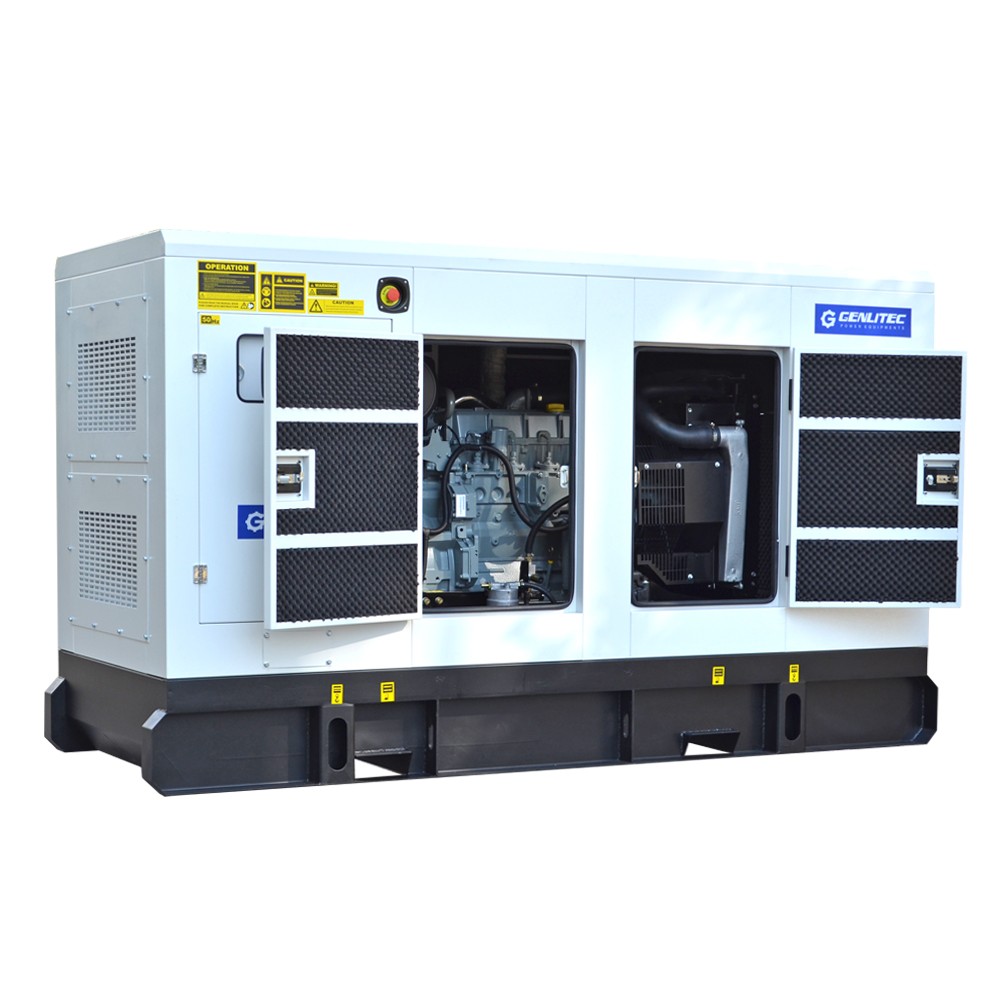

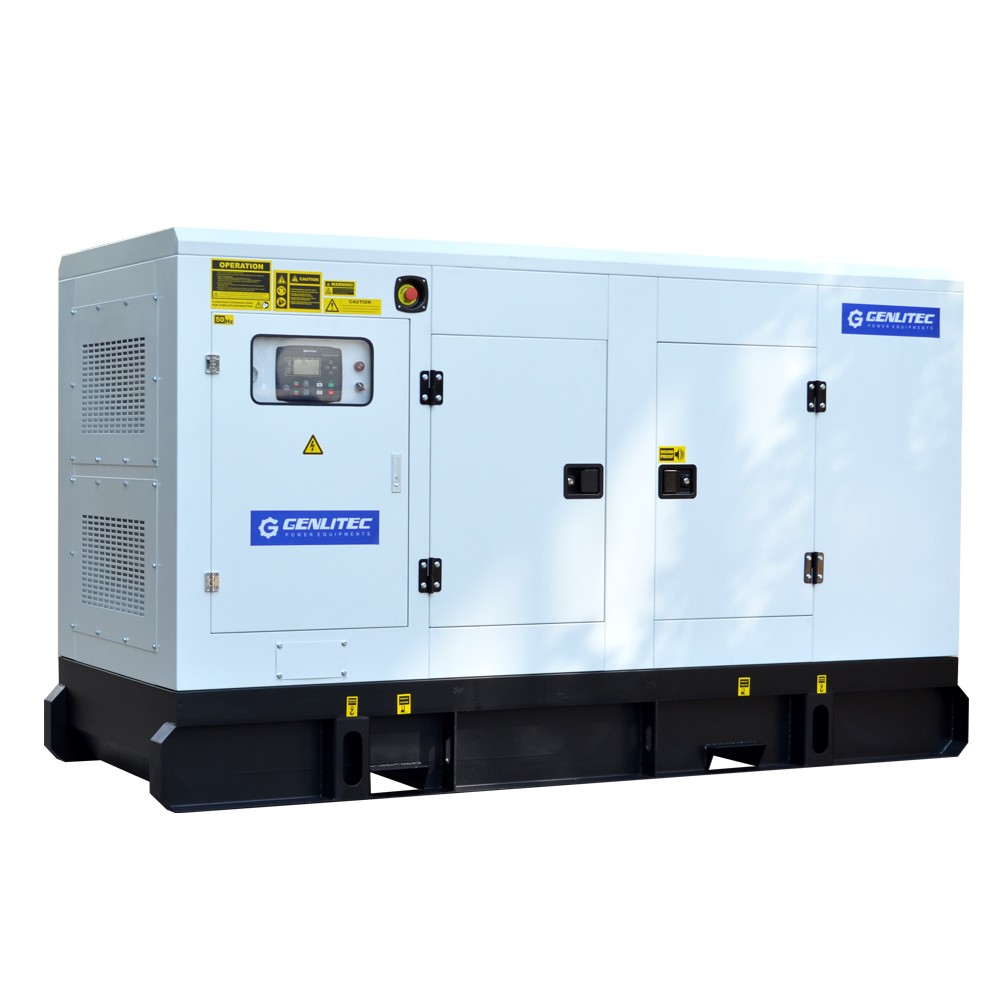

The GPD60S5 silent type generator set is equipped with a sound-attenuated enclosure designed to reduce operating noise and provide protection against outdoor environmental conditions.
○ Sound-attenuated enclosure for reduced noise levels
○ Weatherproof design for outdoor installation
○ Internal exhaust silencer for effective noise reduction
○ Corrosion-resistant construction for long-term outdoor use
○ Service access doors for convenient maintenance
○ Suitable for commercial, industrial and standby power applications
Options
○ ATS for automatic start and stop when utility power fails or returns
○ Remote Monitoring System
○ Water-Jacket Heater
○ Extended-capacity fuel tank
○ Power sockets, including CEE or AUS standards
Applications
The GENLITEC POWER 48kW/60kVA diesel generator set is suitable for a wide range of prime, standby and backup power applications, including:
○ Commercial and office buildings
○ Industrial facilities and workshops
○ Construction and job sites
○ Agricultural and rural facilities
○ Telecommunication and remote sites
○ Emergency and standby power systems
Why Choose GENLITEC POWER
GENLITEC POWER diesel generator sets combine dependable engine technology, practical configurations and flexible options to meet a wide range of power requirements.
○ DEUTZ diesel engine for reliable power generation
○ Prime and standby power configurations for different operating requirements
○ Multiple voltage configurations available
○ Open and silent type configurations available
○ Suitable for commercial, industrial and backup power applications
○ Factory-direct supply with customized generator set solutions
For more information, please visit the GENLITEC POWER® Why Choose GENLITEC POWER page.
Warranty
GENLITEC POWER provides a standard warranty of 12 months or 1000 working hours, whichever comes first. For details, please refer to the GENLITEC POWER® Warranty Policy.
