60Hz 1100kW 1375kVA Diesel Generator with Cummins KTA50-G3 Engine
Short Description
GENLITEC POWER GPC1375D6/GPC1375S6 Cummins diesel generator with KTA50-G3 engine, 1100kW/1375kVA prime and 1200kW/1500kVA standby power.
- ModelGPC1375S6
- Prime Power (PRP)1100kW/1375kVA
- Standby Power (ESP)1200KW/1500KVA
- EngineKTA50-G3
- Fuel Consumption (100% Load)291L/H
Product Details
Product Tags
Introduction

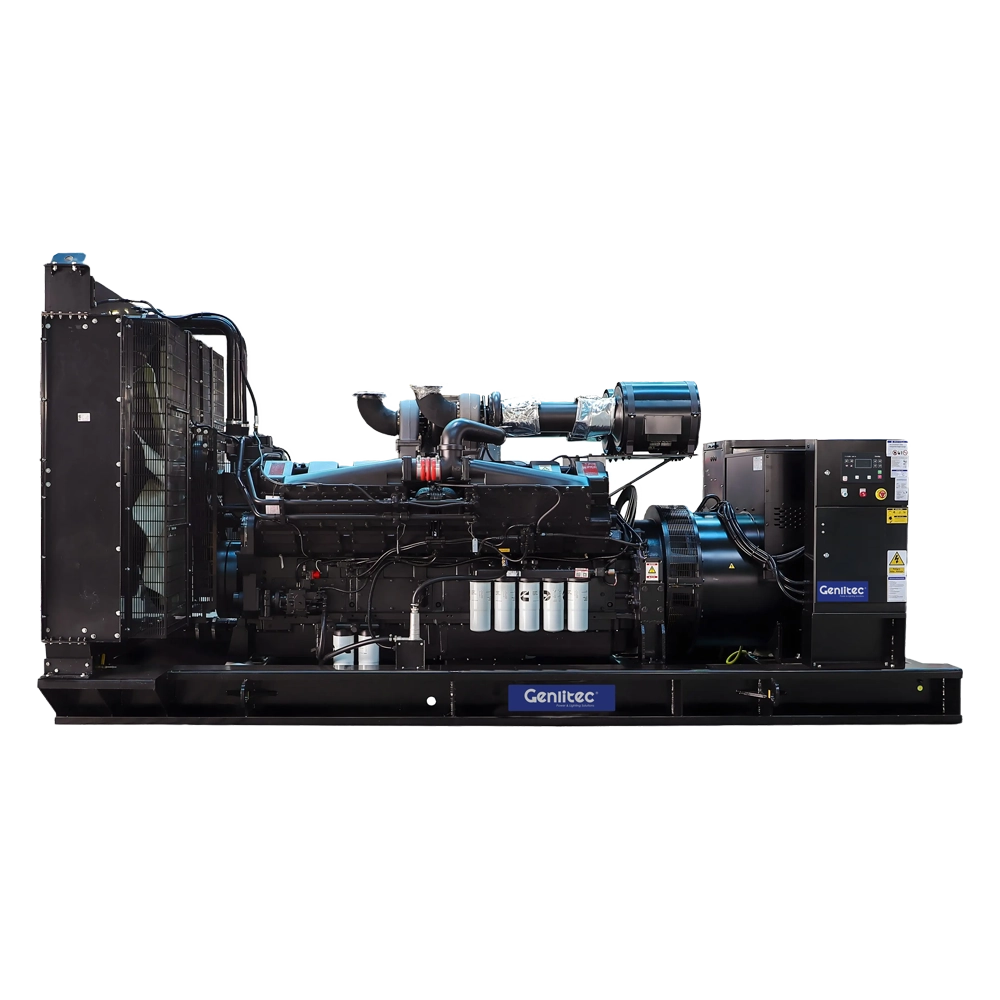

The GENLITEC POWER® GPC1375D6 open type and GPC1375S6 silent type diesel generator sets deliver 1100kW/1375kVA prime power and 1200kW/1500kVA standby power. Powered by a reliable CUMMINS KTA50-G3 16-cylinder, 50.3L, turbocharged and low-temperature aftercooled diesel engine and matched with a brushless copper alternator, these generator sets provide stable and dependable power for commercial, industrial, construction, mining and standby applications.
Designed for 60Hz operation at 1800RPM, the generator sets provide three-phase, four-wire output with voltage options including 120/208V, 127/220V, 220/380V and 254/440V. The GPC1375S6 silent type features a weatherproof sound-attenuated 40HQ containerized enclosure with internal exhaust silencer, while the GPC1375D6 open type provides convenient access for installation, inspection and maintenance. Optional ATS, synchronization system, remote monitoring, heaters, PMG & AREP and a 40GP containerized enclosure are available according to application requirements.
Generator Set
| Open Type Model | GPC1375D6 |
| Silent Type Model | GPC1375S6 |
| Prime Power | 1100kW/1375kVA |
| Standby Power | 1200kW/1500kVA |
| Phase & Wire | 3 Phase, 4 Wires |
| Power Factor | 0.8 |
| Frequency | 60Hz |
| Rated Voltage | 120/208V, 127/220V, 220/380V, 254/440V |
| Rated Speed | 1800RPM |
| Fuel Tank Capacity | 2000L |
Diesel Engine
| Engine Model | CUMMINS KTA50-G3 |
| Cylinder Number | 16 |
| Cylinder Arrangement | 16 Cylinders in V Configuration |
| Engine Type | 4-Cycle, 60-Degree Vee Diesel |
| Aspiration System | Turbocharged and Low-Temperature Aftercooled |
| Cooling Method | 1 Pump / 2 Loop Cooling System |
| Fuel System | Cummins PT™ Direct Injection |
| Bore x Stroke | 159 x 159 mm |
| Compression Ratio | 13.9:1 |
| Rated Speed | 1800RPM |
| Displacement | 50.3L |
| Prime Power | 1220kW @ 1800RPM |
| Standby Power | 1380kW @ 1800RPM |
| Oil Capacity | 177L |
| Coolant Capacity | 152L |
| Electric Starting System | DC 24V |
Fuel Consumption
| 100% Standby Load | 330L/H |
| 100% Prime Load | 291L/H |
| 75% Prime Load | 222L/H |
| 50% Prime Load | 157L/H |
| 25% Prime Load | 89L/H |
Alternator
| Number of Phase | 3 |
| Rated Power | 1109kW/1386kVA |
| Frequency | 60Hz |
| Power Factor | 0.8 |
| Poles | 4 |
| Temperature Rise | 125K |
| Terminals | 12 |
| Insulation Class | H |
| Ambient Temperature | 40°C |
| IP Rating | IP23 |
| Excitation System | Self-Excited |
| Bearing | Single Bearing |
| Coating | Vacuum Impregnation |
| Voltage Regulator | AVR |
| Coupling | Flexible Disc |
Control Panel
| ○ Emergency stop button | ○ Main circuit breaker |
| ○ Float battery charger | ○ Manual/Auto start control panel |
| ○ Fuel level meter | ○ Controller power switch |
| ○ Alarm buzzer |
Sound Attenuated Enclosure

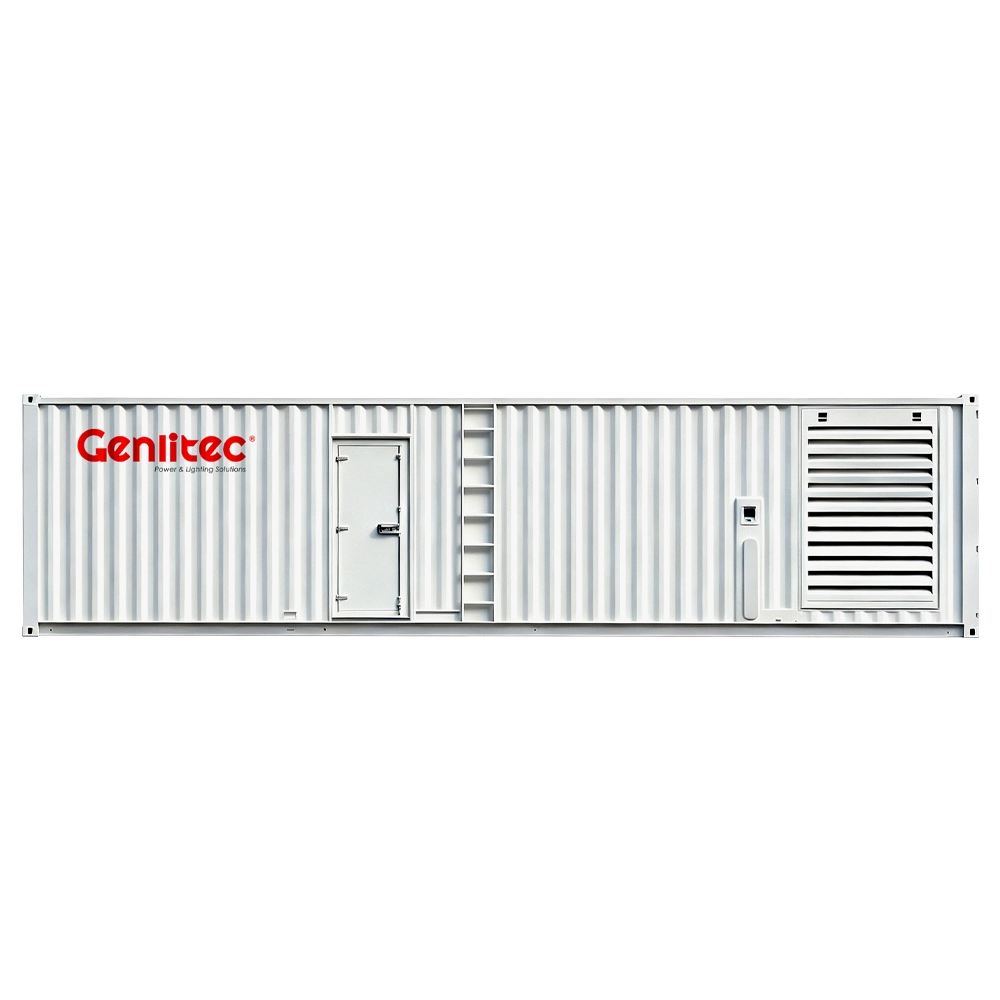

○ Fully weatherproof sound-attenuated 40HQ containerized enclosure with internal exhaust silencer
○ Highly corrosion-resistant construction
○ Standard enclosure for GPC1375S6 silent type generator set
Options
○ ATS panel for automatic start and stop when utility power fails or returns
○ Synchronization system
○ Remote Monitoring System
○ Water-jacket heater
○ Space heater
○ PMG & AREP
Applications
The GENLITEC POWER 1100kW/1375kVA prime and 1200kW/1500kVA standby diesel generator set is suitable for a wide range of prime, standby, backup and critical power applications, including:
○ Commercial buildings
○ Industrial facilities
○ Construction sites
○ Agricultural facilities
○ Telecommunication facilities
○ Emergency and backup power applications
Why Choose GENLITEC POWER
GENLITEC POWER provides diesel generator sets and mobile lighting towers for construction, mining, telecommunications, infrastructure, industrial, commercial and other demanding applications. We offer flexible configurations, international engine and alternator brands, customized power solutions, technical support and after-sales service.
○ Diesel generator sets and mobile lighting towers from one supplier
○ Multiple engine, alternator and controller brand options
○ Customized power solutions for different applications
○ Professional manufacturing and quality control
○ International export and project experience
○ Technical support and after-sales service
For more information, please visit the GENLITEC POWER® Why Choose GENLITEC POWER page.
Warranty
GENLITEC POWER provides a standard warranty of 12 months or 1000 working hours, whichever comes first. For details, please refer to the GENLITEC POWER® Warranty Policy.
