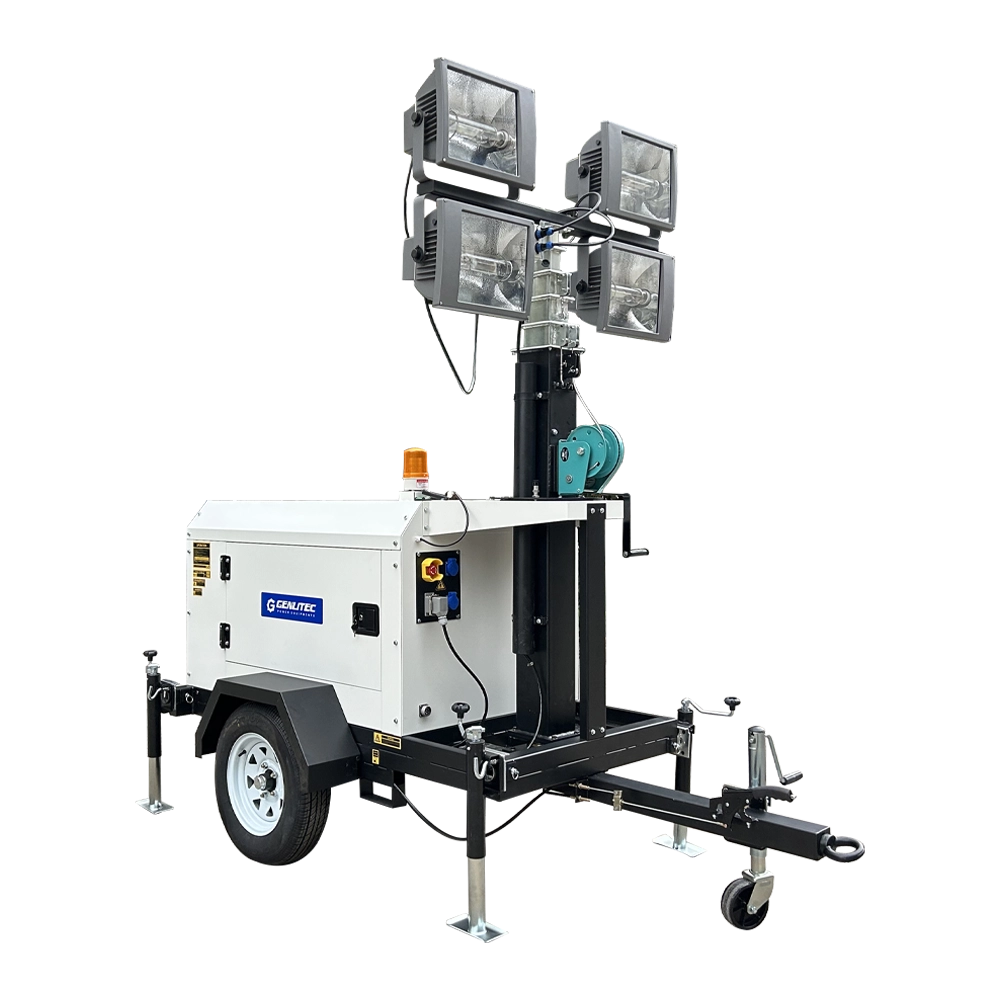

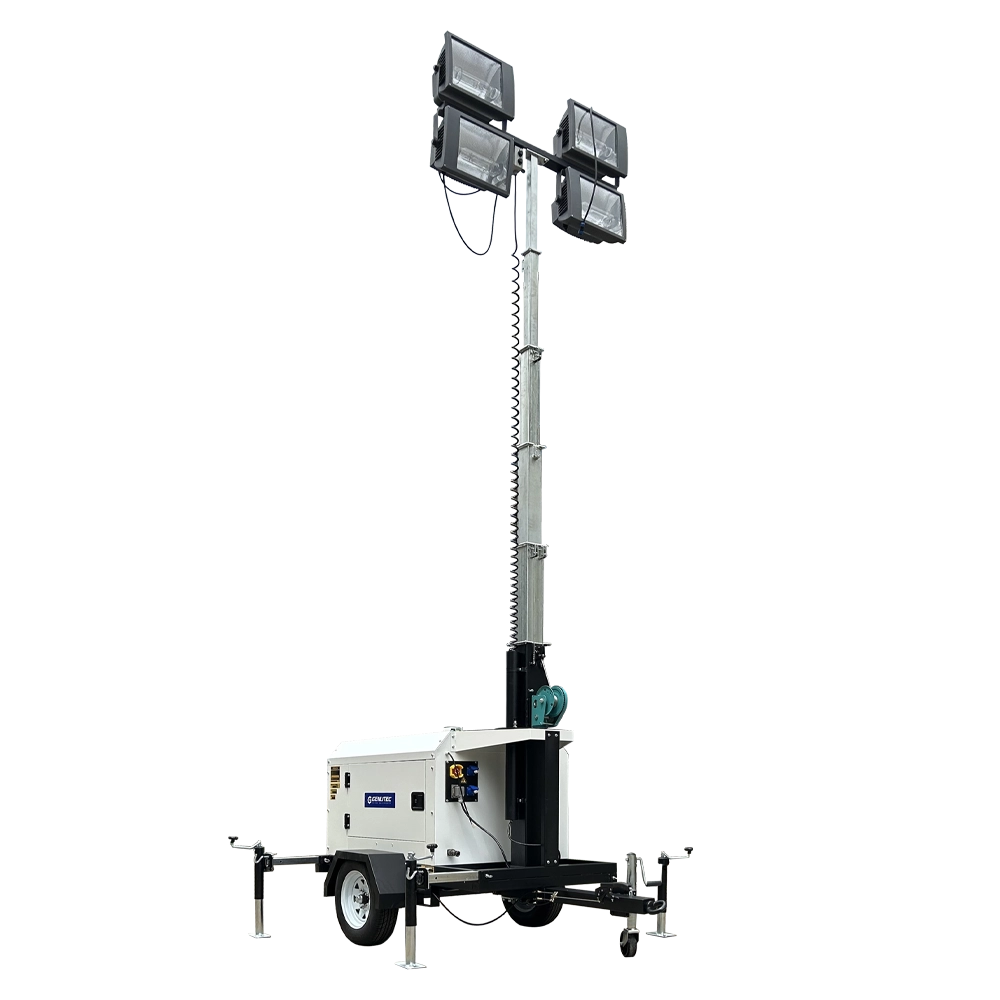

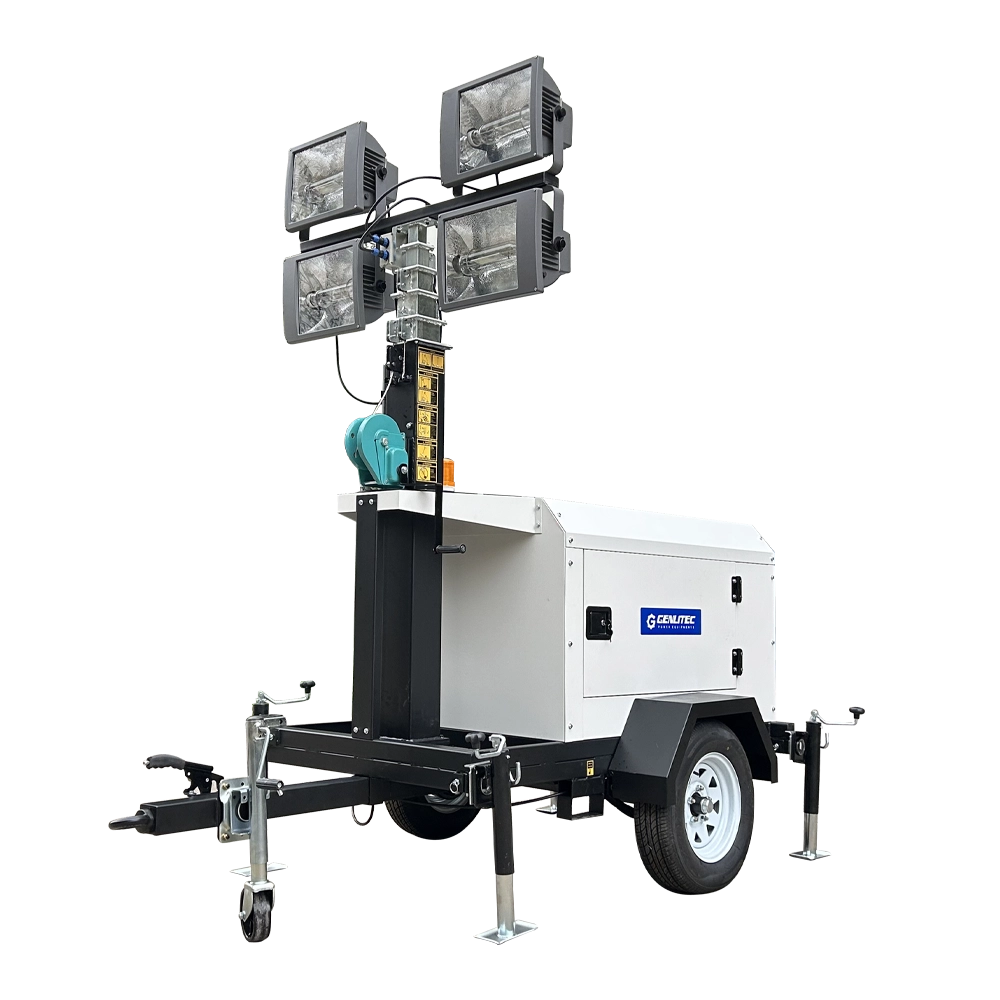

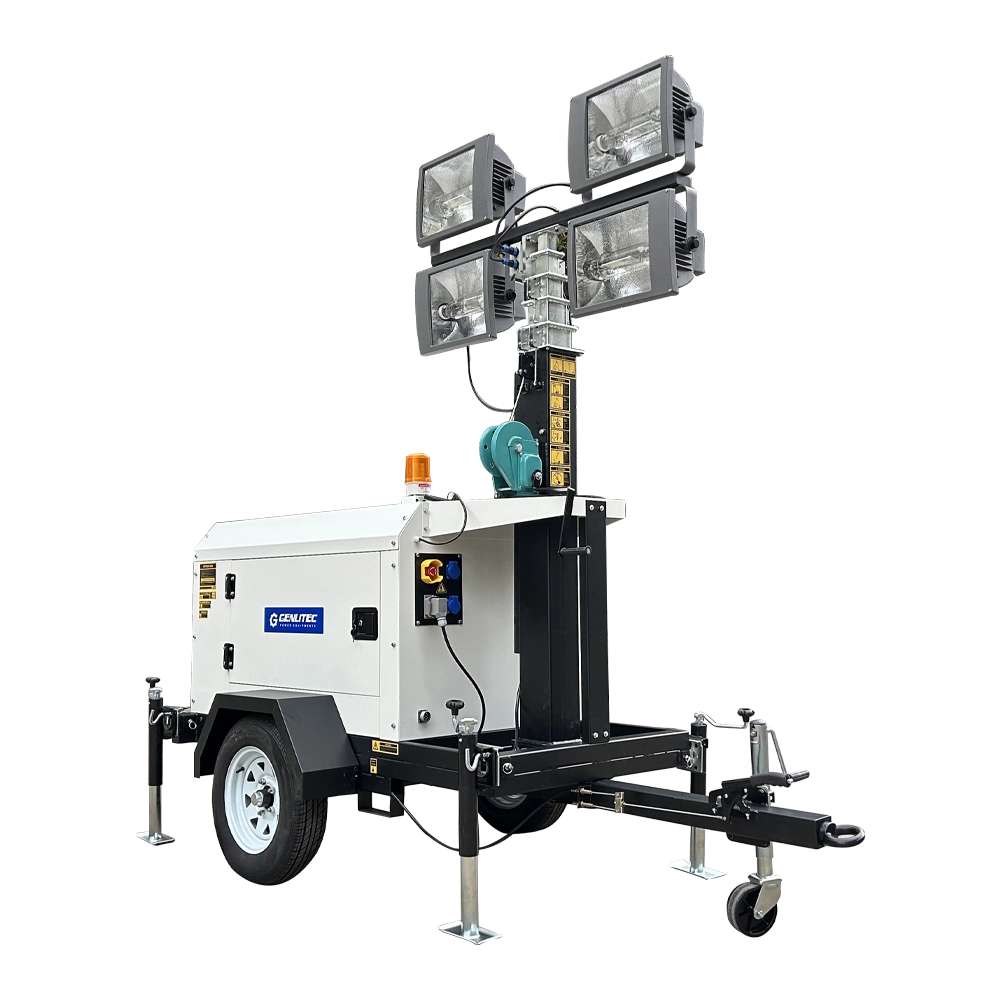

7M Vertical Manual 4x1000W MH PERKINS Light Tower

7M Vertical Manual 4x1000W MH PERKINS Light Tower
  • 7M Vertical Manual 4x1000W MH PERKINS Light Tower
  • 7M Vertical Manual 4x1000W MH PERKINS Light Tower
  • 7M Vertical Manual 4x1000W MH PERKINS Light Tower

Short Description:

The GENLITEC POWER® GLT4000-7VMP is a heavy-duty light tower designed to maximize uptime. These towers are fit for applications ranging from construction sites, sporting events, mining sites and oil field applications....


  • Lifting System: 9 Metres Manual
  • Power of Lamps: 4x1000W Metal Halide
  • Total Light Capacity: 440,000 Lumens
  • Engine: PERKINS 403D-11G
  • Generator Power: 7.2KW

Product Details

Product Tags

Product Video

GENLITEC POWER® 7M VERTICAL MANUAL LIFTING 4X1000W MH PERKINS GENERATOR LIGHT TOWER

○ Brand new original PERKINS 403D-11G water cooled diesel engine

Original STAMFORD or GENLITEC POWER® single bearing 100% copper brushless alternator

○ 7 metres vertical type manual lifting mast and 358° mast rotation system

○ Equipped with powerful 4x1000W metal halide floodlights, total 440,000 lumens

○ Rating Single Phase, 50Hz, 1500RPM, 1.0 PF, IP23, H insulation class

○ 50℃ radiator with engine driven fan mounted on the based frame

○ Control panel equipped with SMARTGEN HGM1790N digital controller, DELIXI brand main circuit breaker, each light with individual circuit breaker

○ Diesel engine and alternator mounted on a based frame with anti-vibration mountings

○ Heavy-duty fabricated steel based frame with 100L fuel tank

○ 12V DC electric start system with free-maintenance lead-acid battery

○ Heavy-duty single axle trailer Type with 13 inch tyres, soundproof and rain-proof design ensure outdoor use

○ Complete engine alarm system

○ CE, ISO 9001:2015 approved


● LIGHT TOWER

Model GLT4000-7VMP
Lifting System 7 Metres, Vertical Type Manual Lifting
Mast Rotation System 358° Manual
Total Power of Lights 4 x 1000W Metal Halide Lamps
Frequency 50Hz
Voltage 220~240V
Phase Single
Rated Power 7.2KW/50Hz
Trailer Structure Single Axle, 13inch Tyres

● DIESEL ENGINE

Engine Model PERKINS 403D-11G
Cylinder Number 3
Aspiration System Natural
Cooling Method Water Cooled
Combustion System Indirect Injection
Bore x Stroke 77 x 81 mm
Compression Ratio 23:1
Engine Speed 1500RPM
Displacement 1.131L
Rated Power 8.6KW/1500RPM
Coolant Capacity 5.2L
Oil Capacity 4.9L
Governor Type Mechanical
Electric Starting System DC 12V


ALTERNATOR

Number of Phase Single
Rated Power 6~8KW
Frequency 50/60Hz
Power Factor 1.0
Temp. Rise 125K
Insulation Class H
Ambient Temp. 40℃
IP Rating IP23
Excitation System Self-Excited
Bearing Single
Coating Vacuum Impregnation
Voltage Regulator A.V.R
Coupling Flexible Disc

● OPERATION MAST

Max. Height of Mast 7 Metres
Lifting System Vertical Type, Manual
Lifting Method Self-Lock Winch
Mast Stages 6
Rotation System 358° Manually
Mast Material Galvanization Steel Tube
Winch Type 1 x 1800 LBS

● LAMPS

Total Power of Lamps 4 x 1000W
Lamps Type Metal Halide Floodlights
Light Capacity 4 x 11,000 Lumens
Design Lifetime ≥5,000 Hours
Working Temp. -25℃~50℃
Light Coverage 5~7 Acres
Protection Grade IP65

CONTAINER LOADING CAPACITY

20GP Container Max. 6 Sets
40HQ Container Max. 12 Sets

CONTROL PANEL

Emergency stop button

Main circuit breaker & individual circuit bearker for lights

Hour meter

Manual/Autostart control panel

Fuel level meter

Controller power switch

Alarm buzzer


● TRAILER & SOUND ATTENUATED ENCLOSURE

Fully Weatherproof Sound Attenuated Enclosure With Internal Exhaust Silencer

Highly Corrosion Resistant Construction

○ Heavy-duty single axle trailer with 13'' tyres


WARRANTY

12 months or 1000 working hours, whichever comes first


OPTIONS

○ SMARTGEN automatic lighting controller ALC404 (Sunrise & Sunset Start/Stop Fuction)
