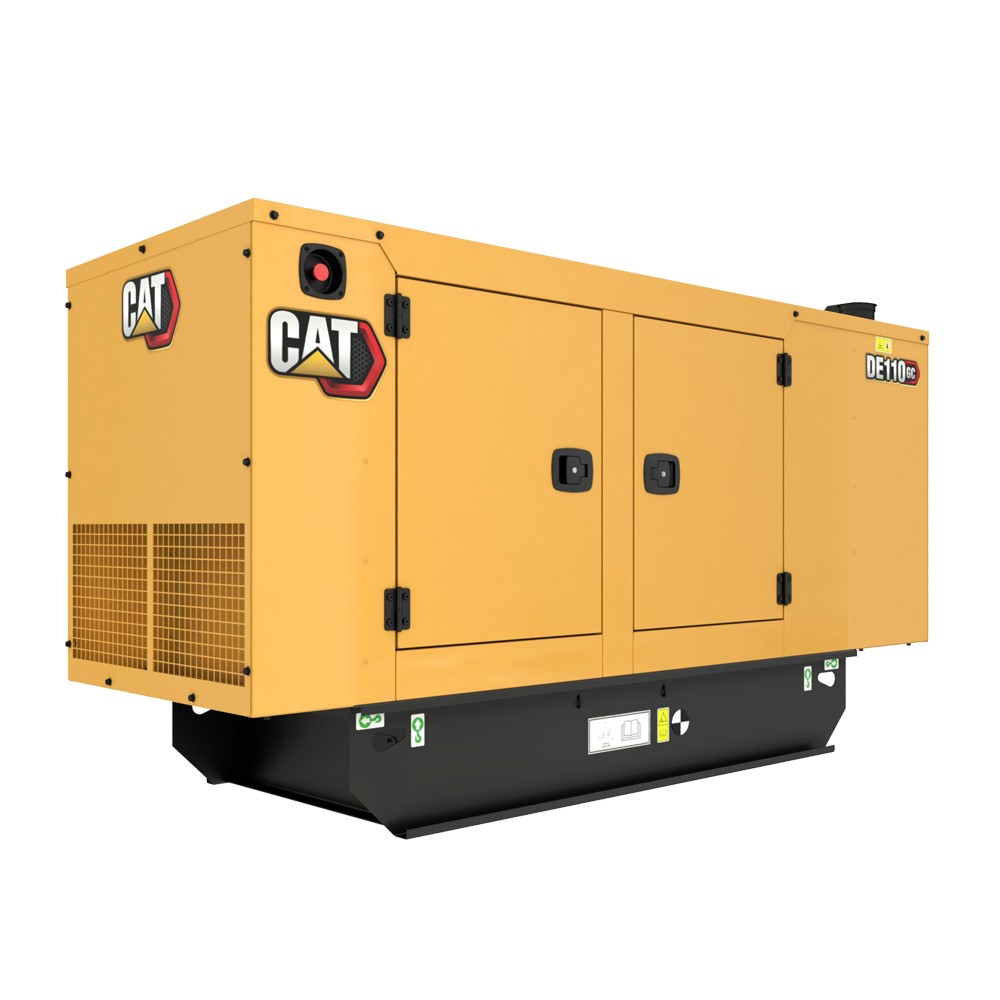

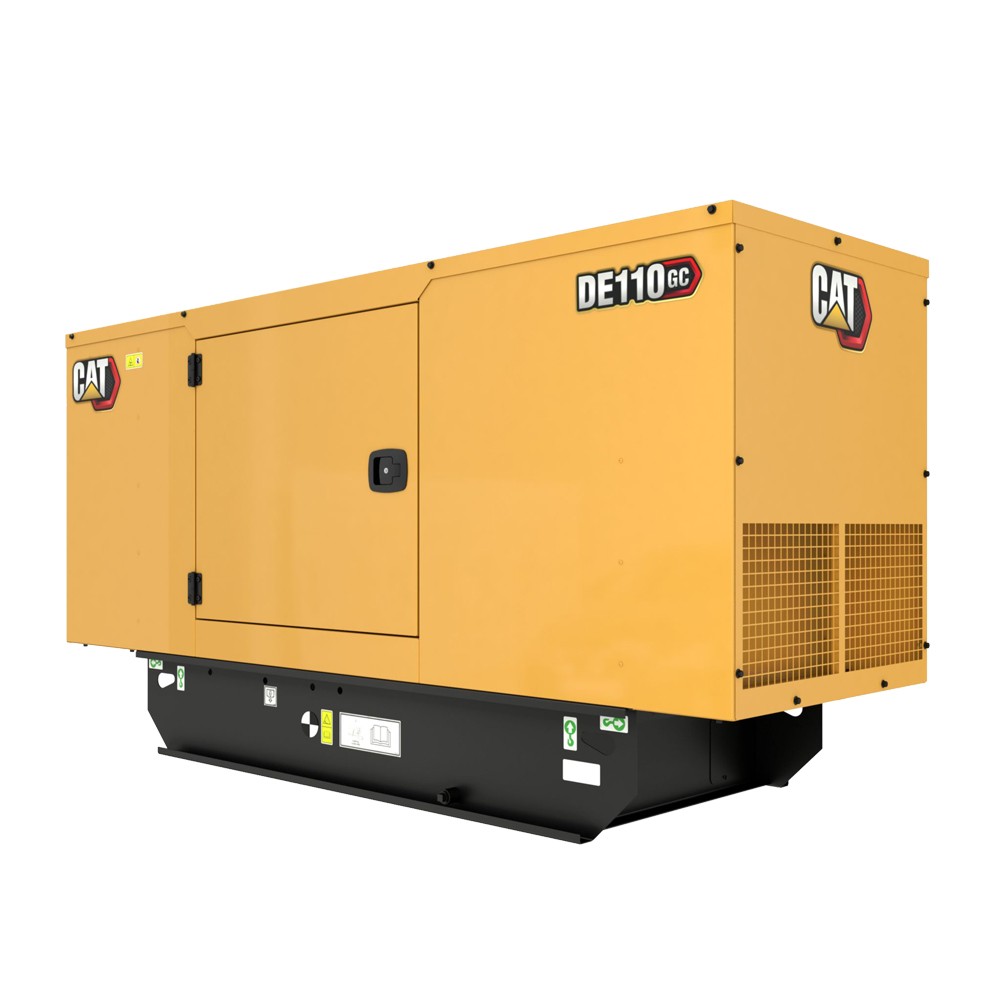

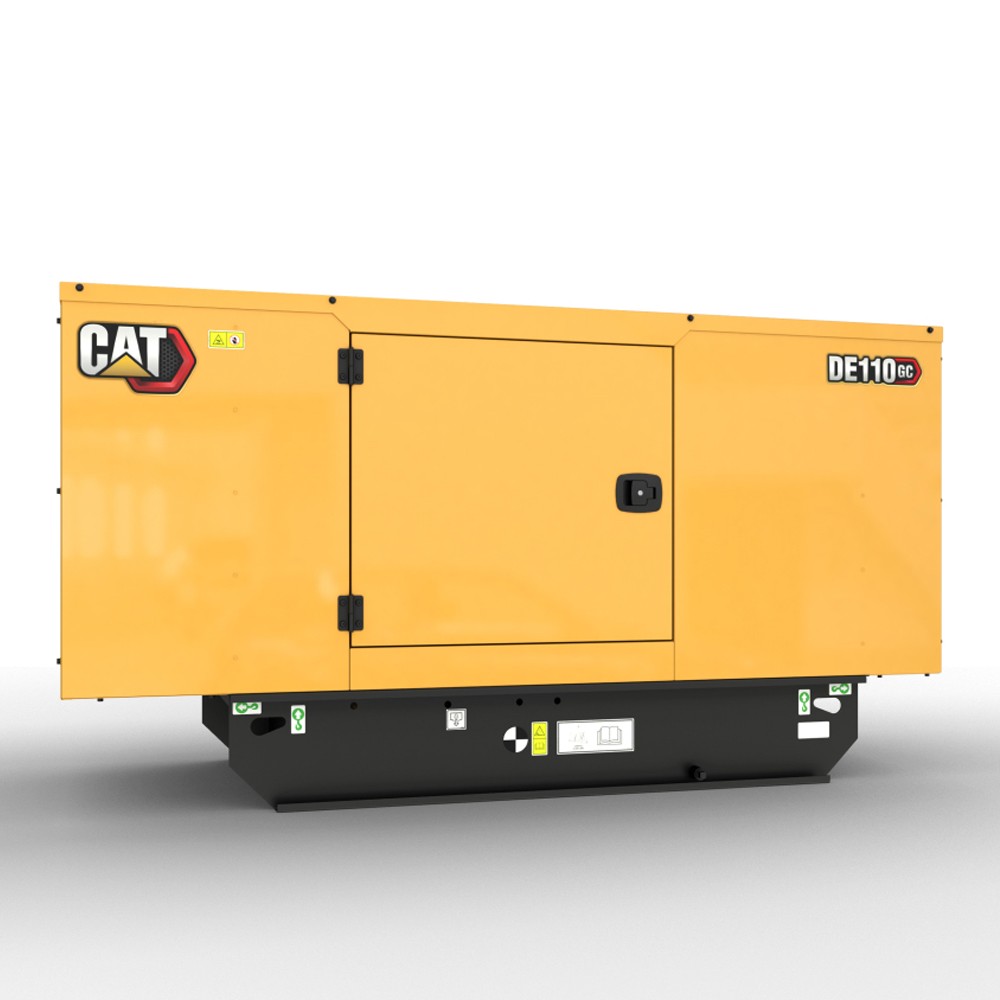

DE110GC Standby 110KVA Caterpillar Diesel Generator
Short Description
Producing 110 kVA of reliable power at 50 Hz, the CATERPILLAR DE110 GC diesel generator set is designed to meet ISO 8528-5 transient response requirements.
- ModelCATERPILLAR DE110GC
- Prime Power (PRP)N/A
- Standby Power (ESP)88kW/110kVA
- EngineC4.4
- Fuel consumption (100%)24.4L/H
Product Details
Product Tags
Video
Introduction
The Caterpillar DE110 GC diesel generator set provides 110kVA/88kW standby power for commercial, industrial, construction, agricultural and backup power applications. Designed for 50Hz operation, the generator set delivers stable three-phase power with a 380~415V rated voltage and 0.8 power factor.
Powered by a Caterpillar C4.4 inline four-cylinder, four-stroke diesel engine, the DE110 GC features turbocharged, air-to-air charge cooled induction, inline fuel injection and a mechanical governor. The generator set is equipped with a CATERPILLAR GCCP1.1 control panel, ABB main circuit breaker and a weatherproof sound attenuated enclosure with an internal exhaust silencer.
Generator Set
| Genset Model | Caterpillar DE110 GC |
| Standby Power | 110kVA/88kW |
| Phase & Wire | 3 Phase, 4 Wires |
| Power Factor | 0.8 |
| Frequency | 50Hz |
| Rated Voltage | 380~415V |
Diesel Engine
| Engine Model | CAT C4.4 Inline 4-Stroke Diesel |
| Bore x Stroke | 105 x 127 mm |
| Displacement | 4.4L |
| Compression Ratio | 18.23:1 |
| Aspiration | Turbocharged, Air to Air Charge Cooled |
| Fuel Injection System | Inline |
| Governor Type | Mechanical |
Fuel Consumption
| 100% Load with Fan | 24.4L/H |
| 75% Load with Fan | 18.4L/H |
| 50% Load with Fan | 12.8L/H |
Control Panel
| ○ Emergency stop button | ○ ABB brand main circuit breaker |
| ○ CATERPILLAR GCCP1.1 control panel |
Sound Attenuated Enclosure
○ Fully weatherproof sound attenuated enclosure with internal exhaust silencer
○ Highly corrosion resistant construction
Applications
The Caterpillar DE110 GC 110kVA diesel generator set is suitable for a wide range of standby and backup power applications, including:
○ Commercial buildings
○ Industrial facilities
○ Construction sites
○ Agricultural facilities
○ Telecommunication facilities
○ Emergency and backup power applications
