50Hz 64kW 80kVA Diesel Generator with Deutz BF4M2012C G1 Engine
Introduction
The GENLITEC POWER GPD80D5 / GPD80S5 diesel generator set is a reliable power solution designed for industrial, commercial, construction and standby power applications.
Powered by a DEUTZ BF4M2012C G1 diesel engine, the generator set delivers 64kW/80kVA prime power and 70kW/88kVA standby power at 50Hz and 1500 RPM. With a 120L fuel tank and multiple available voltage configurations, including 220/380V, 230/400V and 240/415V, it is suitable for a wide range of commercial, industrial, telecommunications and backup power applications.
Generator Set
| Open Type Model | GPD80D5 |
| Silent Type Model | GPD80S5 |
| Frequency | 50Hz |
| Phase & Wires | 3 Phase, 4 Wires |
| Power Factor | 0.8 |
| Prime Power | 64kW/80kVA |
| Standby Power | 70kW/88kVA |
| Rated Voltage | 220/380V; 230/400V; 240/415V |
| Rated Speed | 1500 RPM |
| Fuel Tank Capacity | 120L |
Diesel Engine
| Engine Brand | DEUTZ |
| Engine Model | BF4M2012C G1 |
| Cylinder Number | 4 |
| Cylinder Arrangement | In-line |
| Engine Type | 4-Stroke Diesel |
| Aspiration System | Turbocharged, Charge Air Cooled (CAC) |
| Cooling Method | Water Cooled |
| Governor Type | Mechanical or Electronic Governor, Depending on Configuration |
| Bore x Stroke | 101 x 126 mm |
| Compression Ratio | 19:1 |
| Rated Speed | 1500 RPM |
| Displacement | 4.04L |
| Power Level | G1 |
| Emission Standard | COM II |
| LTP Gross Engine Power | 74.9kW @ 1500 RPM |
| LTP Net Flywheel Power | 70kW @ 1500 RPM |
| Prime Power Standard (PRP) | 71kW Gross |
| Continuous Power | 64kW Gross |
| Fuel System | Single Injection Pump System |
| Oil Capacity (Sump) | 8.5L |
| Coolant Capacity (Engine) | 6.0L |
| Coolant Capacity (Including Cooling Unit) | 15.9L |
| Engine Dry Weight (Without Cooling System) | 405kg |
| Engine Weight (With Cooling System) | 473kg |
| Electric Starting System | DC 24V |
| Starter Power | 6kW |
| Battery Charging Alternator Output | 35A |
| Battery Capacity | 2 x 100Ah |
Fuel Consumption
| 100% Load | 18.1L/H |
| 75% Load | 13.3L/H |
| 50% Load | 8.9L/H |
| 25% Load | 5.0L/H |
Alternator
| Number of Phase | 3 |
| Rated Power | 64kW/80kVA |
| Frequency | 50Hz |
| Power Factor | 0.8 |
| Poles | 4 |
| Temperature Rise | 125K |
| Terminals | 6/12 |
| Insulation Class | H Class |
| Ambient Temperature | 40°C |
| IP Rating | IP23 |
| Excitation System | Self-Excited |
| Bearing | Single Bearing |
| Coating | Vacuum Impregnation |
| Voltage Regulator | AVR |
| Coupling | Flexible Disc |
Control Panel
| ○ Emergency stop button | ○ Main circuit breaker |
| ○ Float battery charger | ○ Manual/Auto start control panel |
| ○ Fuel level meter | ○ Controller power switch |
| ○ Alarm buzzer | ○ Remote monitoring interface |
SOUND ATTENUATED ENCLOSURE

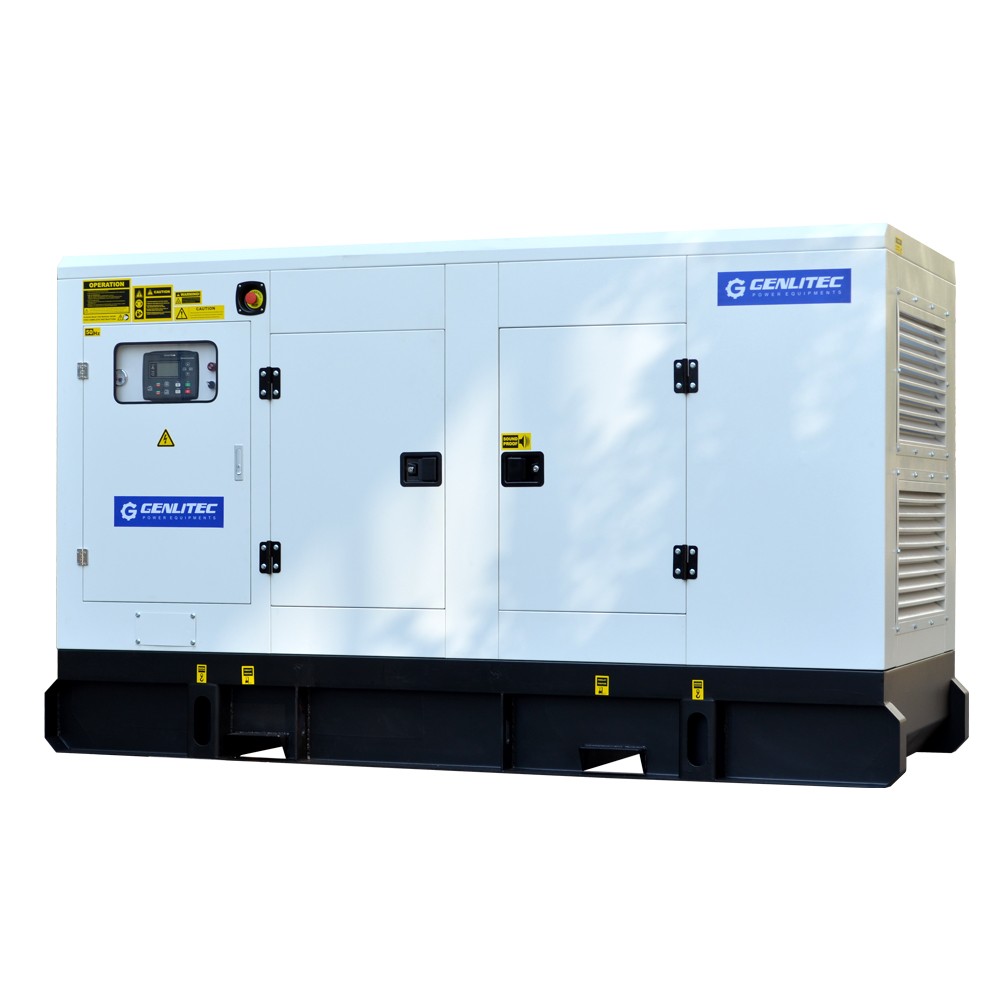

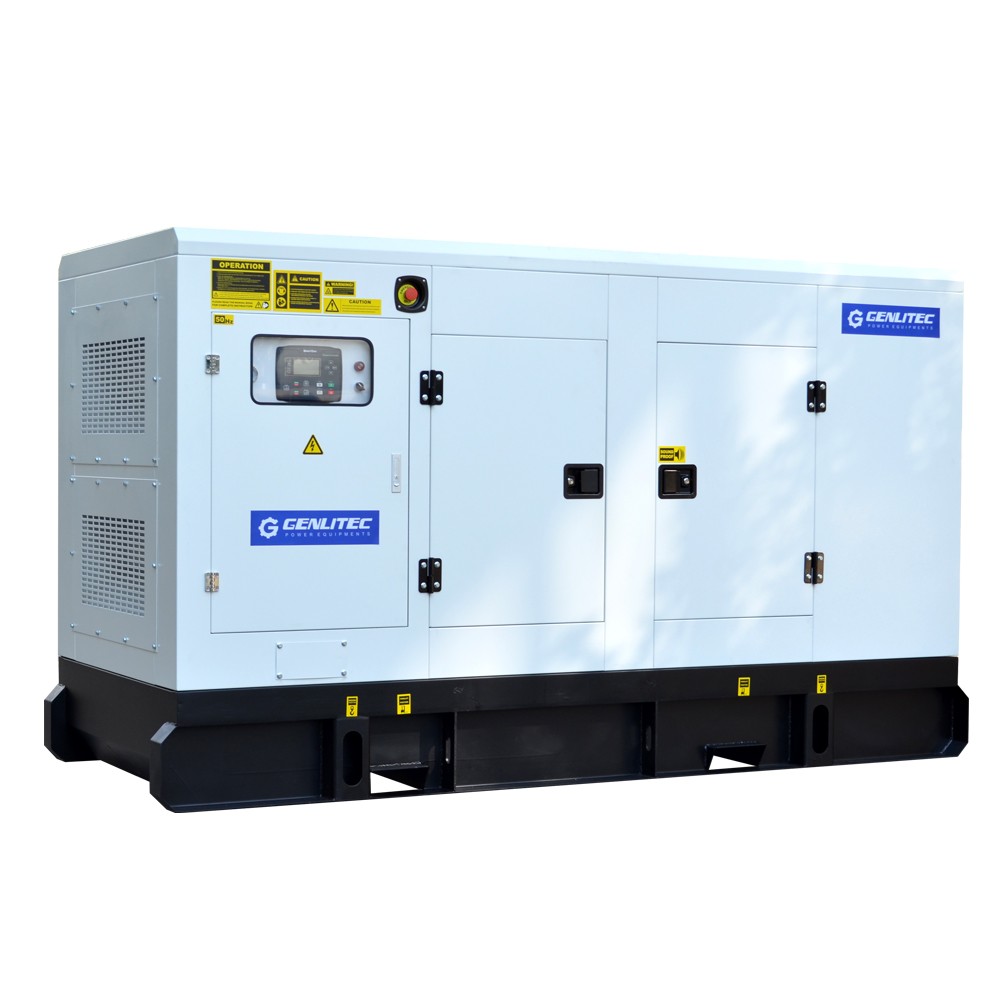

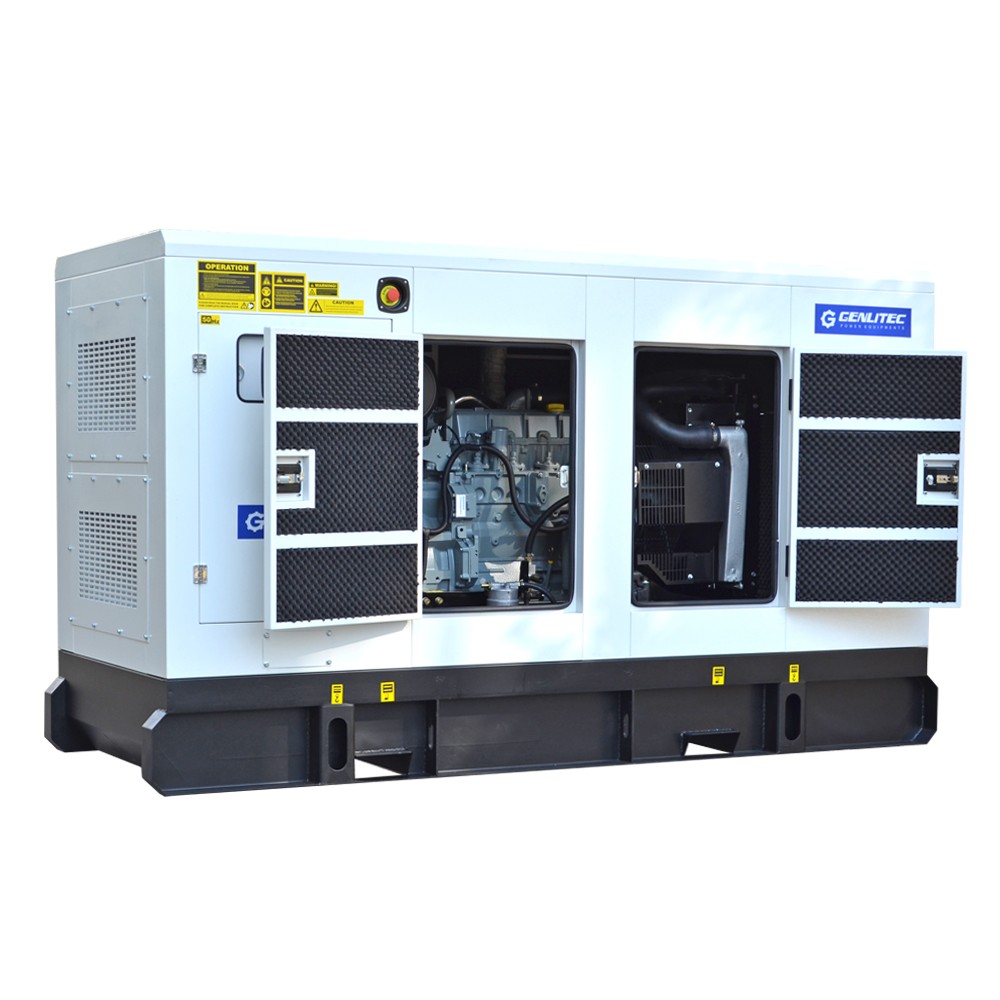

The GPD80S5 silent type generator set is equipped with a sound-attenuated enclosure designed to reduce operating noise and provide protection for outdoor applications.
○ Sound-attenuated enclosure for reduced noise levels
○ Weatherproof design for outdoor installation
○ Internal exhaust silencer for effective noise reduction
○ Corrosion-resistant construction for long-term outdoor use
○ Service access doors for convenient maintenance
○ Suitable for commercial, industrial and standby power applications
Options
○ ATS for automatic start and stop when utility power fails or returns
○ Remote Monitoring System
○ Water-Jacket Heater
○ 24-hour fuel tank
○ 48-hour fuel tank
○ Power sockets, including CEE or AUS standards
Applications
The GENLITEC POWER 64kW/80kVA diesel generator set is suitable for a wide range of prime, standby and backup power applications, including:
○ Commercial and office buildings
○ Industrial facilities
○ Construction and job sites
○ Agricultural and rural facilities
○ Telecommunication and remote sites
○ Emergency and standby power systems
Why Choose GENLITEC POWER
GENLITEC POWER diesel generator sets are designed to provide dependable power, practical configuration and reliable performance for a wide range of applications.
○ DEUTZ diesel engine for reliable power generation
○ Prime and standby power configurations for different operating requirements
○ Multiple voltage configurations available
○ Open and silent type configurations available
○ Suitable for commercial, industrial and backup power applications
○ Factory-direct supply with customized generator set solutions
For more information, please visit the GENLITEC POWER® Why Choose GENLITEC POWER page.
Warranty
GENLITEC POWER provides a standard warranty of 12 months or 1000 working hours, whichever comes first. For details, please refer to the GENLITEC POWER® Warranty Policy.
