50Hz 72kW 90kVA Diesel Generator with Deutz BF4M2012C G2 Engine
Introduction
The GENLITEC POWER GPD90D5 / GPD90S5 diesel generator set is a reliable power solution designed for prime power, standby power and backup power applications.
Powered by a DEUTZ BF4M2012C G2 diesel engine, the generator set delivers 72kW/90kVA prime power and 80kW/100kVA standby power at 50Hz and 1500RPM. Equipped with a 135L fuel tank, it is suitable for commercial buildings, industrial facilities, construction sites, telecommunications installations and other applications requiring dependable three-phase power. Multiple voltage configurations are available, including 220/380V, 230/400V and 240/415V.
Generator Set
| Open Type Model | GPD90D5 |
| Silent Type Model | GPD90S5 |
| Frequency | 50Hz |
| Phase & Wires | 3 Phase, 4 Wires |
| Power Factor | 0.8 |
| Prime Power | 72kW/90kVA |
| Standby Power | 80kW/100kVA |
| Rated Voltage | 220/380V; 230/400V; 240/415V |
| Rated Speed | 1500 RPM |
| Fuel Tank Capacity | 135L |
Diesel Engine
| Engine Model | DEUTZ BF4M2012C G2 |
| Cylinder Number | 4 |
| Cylinder Arrangement | In-line |
| Engine Type | 4-Stroke Diesel |
| Aspiration System | Turbocharged, Charge-Air Cooled (CAC) |
| Cooling Method | Water Cooled |
| Governor Performance | Mechanical Governor Speed Droop: 4–5%; Electronic Governor Speed Droop: 0–3% |
| Governing Standard | ISO 8528 Parts 1 and 5, Class G2 |
| Bore x Stroke | 101 x 126 mm |
| Compression Ratio | 18.1:1 |
| Rated Speed | 1500 RPM |
| Displacement | 4.04L |
| Standby Power (Net Flywheel, LTP) | 88.1kW @ 1500 RPM |
| Prime Power (Gross, PRP) | 85kW @ 1500 RPM |
| Continuous Power (Gross) | 78kW @ 1500 RPM |
| Fuel System | Single Injection Pumps |
| Oil Capacity | 8.5L |
| Coolant Capacity (Engine) | 6.0L |
| Coolant Capacity (Including Cooling Unit) | 15.9L |
| Electrical System | DC 24V |
| Starter Motor | 6kW |
| Alternator Output | 35A |
| Dry Engine Weight (Without Cooling System) | 405kg |
| Engine Weight (With Cooling System) | 473kg |
Fuel Consumption
| 25% Load | 5.9L/H |
| 50% Load | 10.8L/H |
| 75% Load | 15.9L/H |
| 100% Load | 21.3L/H |
Alternator
| Number of Phase | 3 |
| Rated Power | 75kW/93.8kVA |
| Frequency | 50Hz |
| Power Factor | 0.8 |
| Poles | 4 |
| Temperature Rise | 125K |
| Terminals | 6/12 |
| Insulation Class | H Class |
| Ambient Temperature | 40℃ |
| IP Rating | IP23 |
| Excitation System | Self-Excited |
| Bearing | Single Bearing |
| Coating | Vacuum Impregnation |
| Voltage Regulator | A.V.R |
| Coupling | Flexible Disc |
Control Panel
| ○ Emergency stop button | ○ Main circuit breaker |
| ○ Float battery charger | ○ Manual/Auto start control panel |
| ○ Fuel level meter | ○ Controller power switch |
| ○ Alarm buzzer | ○ Remote monitoring interface |
SOUND ATTENUATED ENCLOSURE

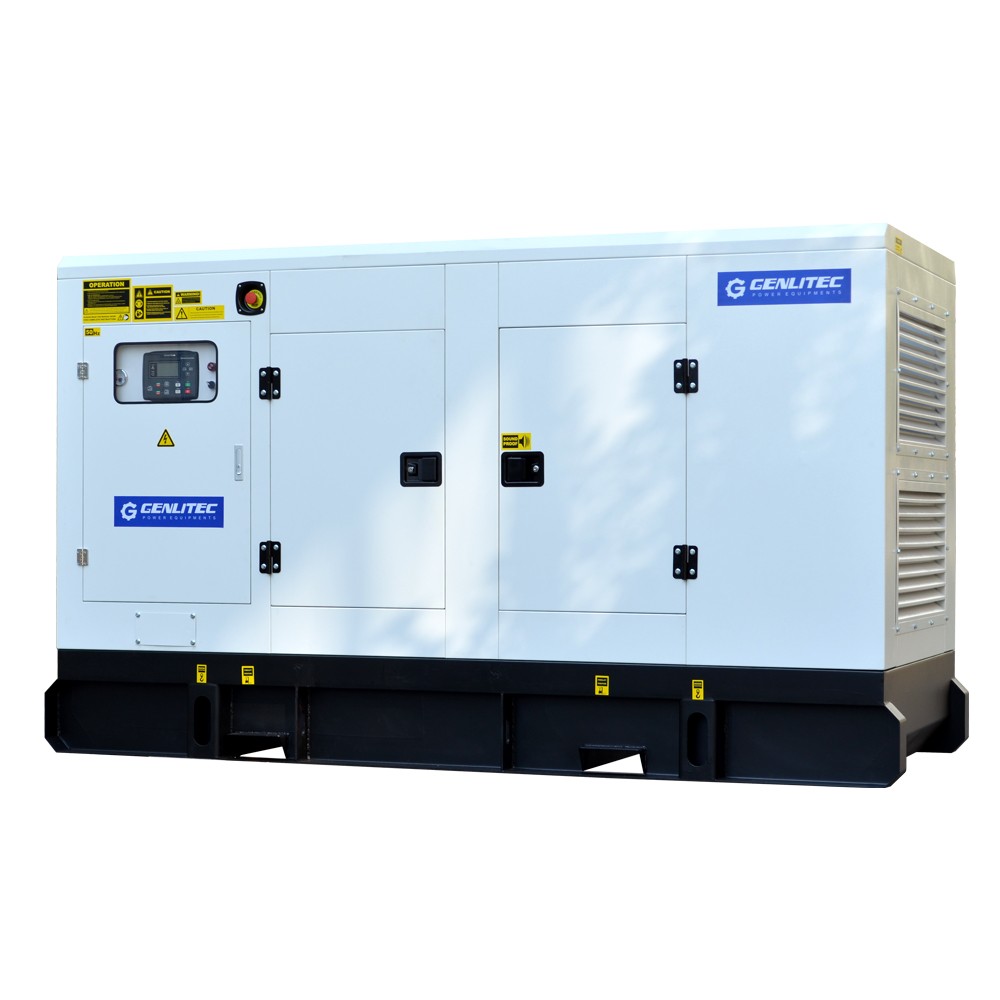

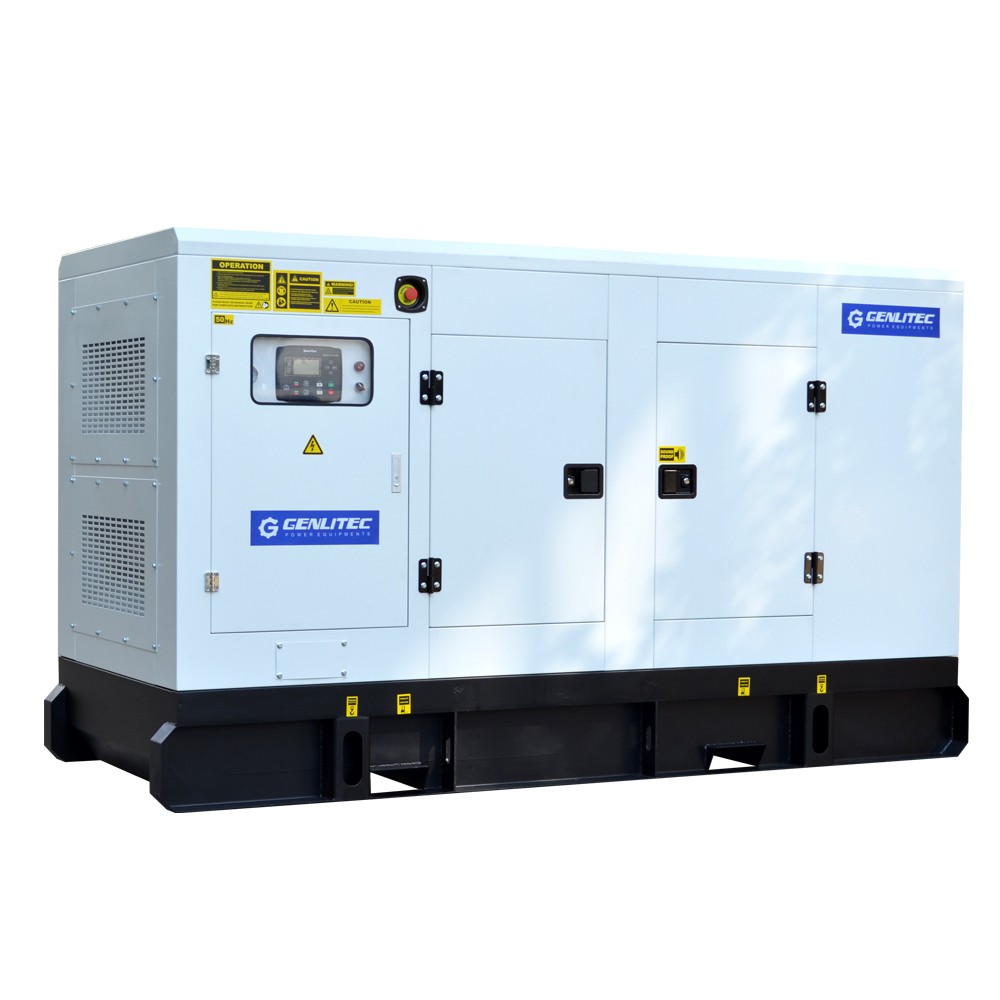

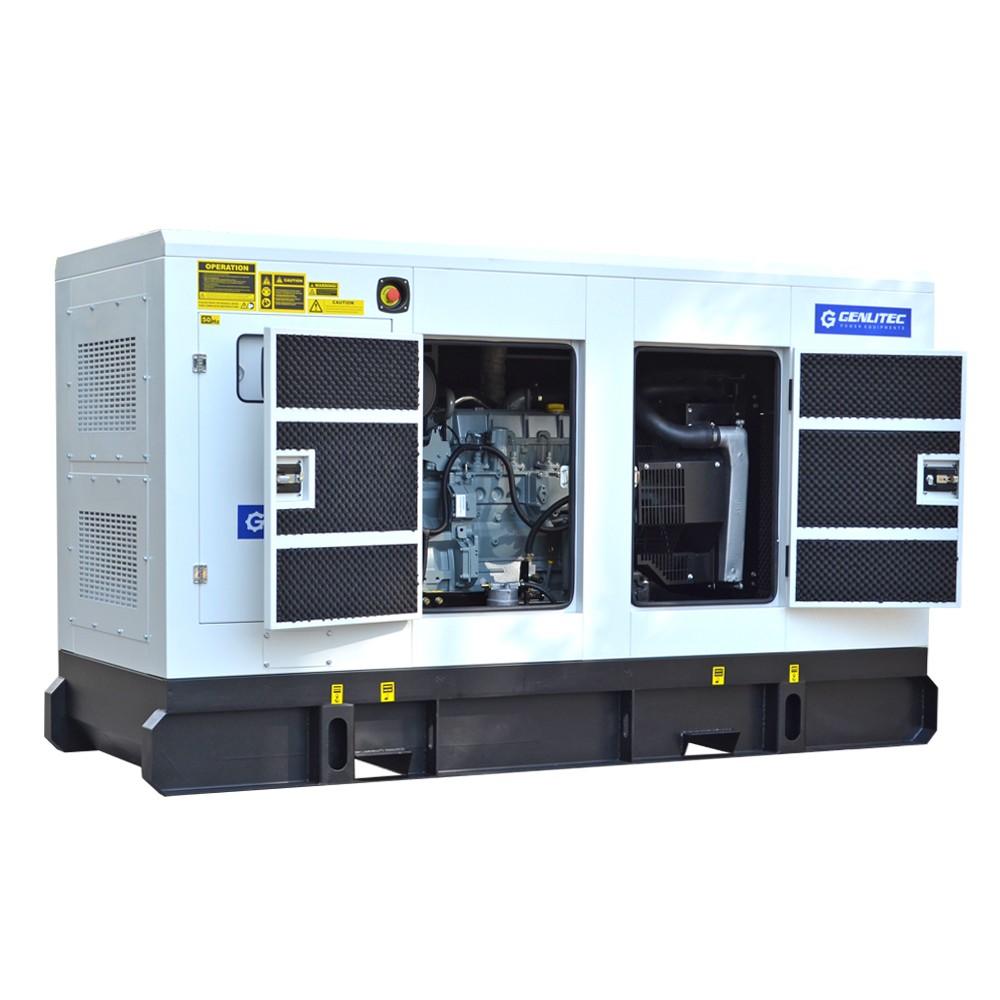

The GPD90S5 silent type generator set is equipped with a sound-attenuated enclosure designed to reduce operating noise and provide protection for outdoor installations.
○ Sound-attenuated enclosure for reduced noise levels
○ Weatherproof design for outdoor installation
○ Internal exhaust silencer for effective noise reduction
○ Corrosion-resistant construction for long-term outdoor use
○ Service access doors for convenient maintenance
○ Suitable for commercial, industrial and standby power applications
Options
○ ATS for automatic start and stop when utility power fails or returns
○ Remote Monitoring System
○ Water-Jacket Heater
○ 24-hour fuel tank
○ 48-hour fuel tank
○ Power sockets, including CEE or AUS standards
Applications
The GENLITEC POWER 72kW/90kVA diesel generator set is suitable for a wide range of prime, standby and backup power applications, including:
○ Commercial and office buildings
○ Industrial facilities
○ Construction and job sites
○ Agricultural and rural facilities
○ Telecommunication and remote sites
○ Emergency and standby power systems
Why Choose GENLITEC POWER
GENLITEC POWER diesel generator sets are designed to provide dependable power, practical configuration and reliable performance for a wide range of applications.
○ DEUTZ diesel engine for reliable power generation
○ Prime and standby power configurations for different operating requirements
○ Multiple voltage configurations available
○ Open and silent type configurations available
○ Suitable for commercial, industrial and backup power applications
○ Factory-direct supply with customized generator set solutions
For more information, please visit the GENLITEC POWER® Why Choose GENLITEC POWER page.
Warranty
GENLITEC POWER provides a standard warranty of 12 months or 1000 working hours, whichever comes first. For details, please refer to the GENLITEC POWER® Warranty Policy.
