9m Manual 4x1000W MH Light Tower with REHLKO KDW1003 Diesel Engine
Short Description
GENLITEC POWER® GLT4000-9MR is a 9m mobile light tower with EU Stage V & EPA Tier 4 Final engine, ideal for construction, mining, roadwork and events.
- ModelGLT4000-9MR
- Lifting System9-Meter Manual
- Power of Lamps4x1000W Metal Halide
- EngineRehlko KDW1003
- Approved EmissionEU Stage V; EPA Tier 4F
- Generator Power6.7kW/50Hz; 7.3kW/60Hz
- MOQ1 Set
Product Details
Product Tags
Video
Introduction

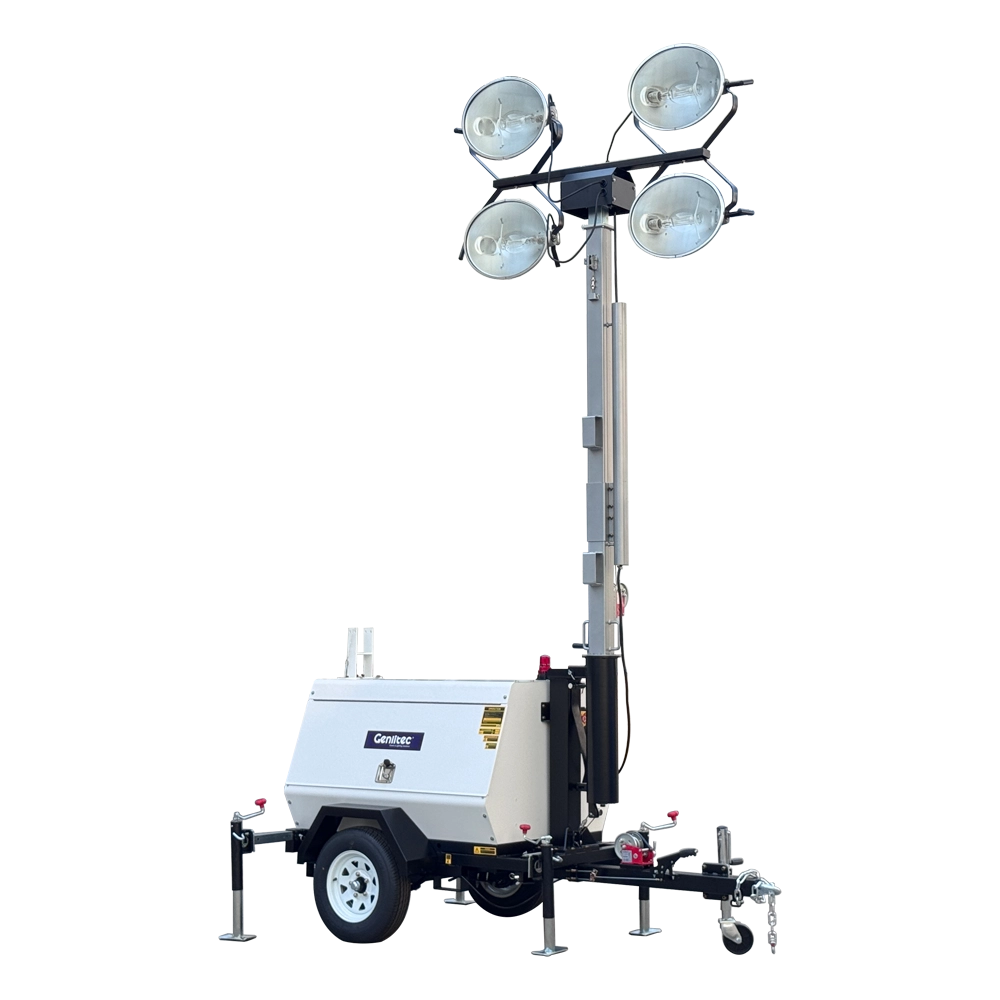

The GENLITEC POWER® GLT4000-9MR is a 9-meter manual diesel mobile light tower equipped with four 1000W metal halide floodlights. Powered by a REHLKO KDW1003 water-cooled diesel engine, this heavy-duty lighting tower provides reliable illumination and auxiliary power for construction sites, mining operations, road and highway projects, infrastructure development, outdoor events, and emergency lighting applications.

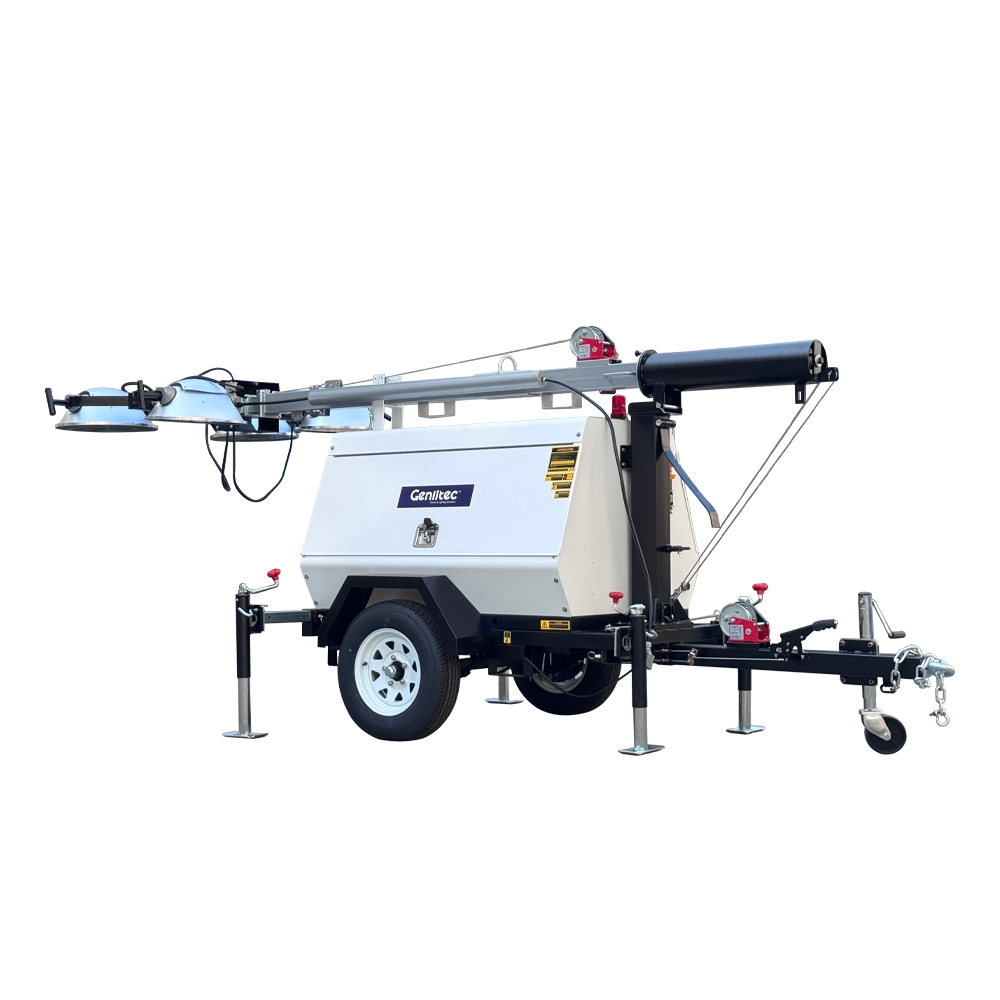

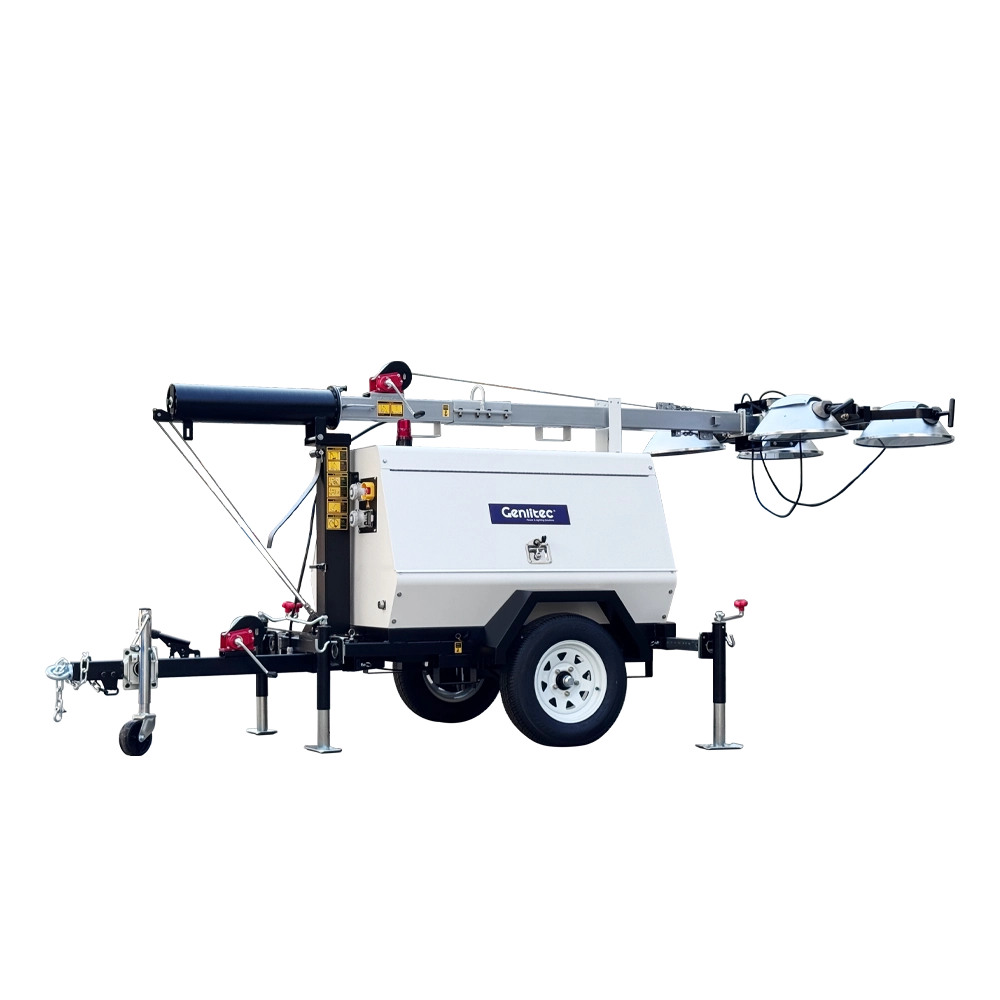

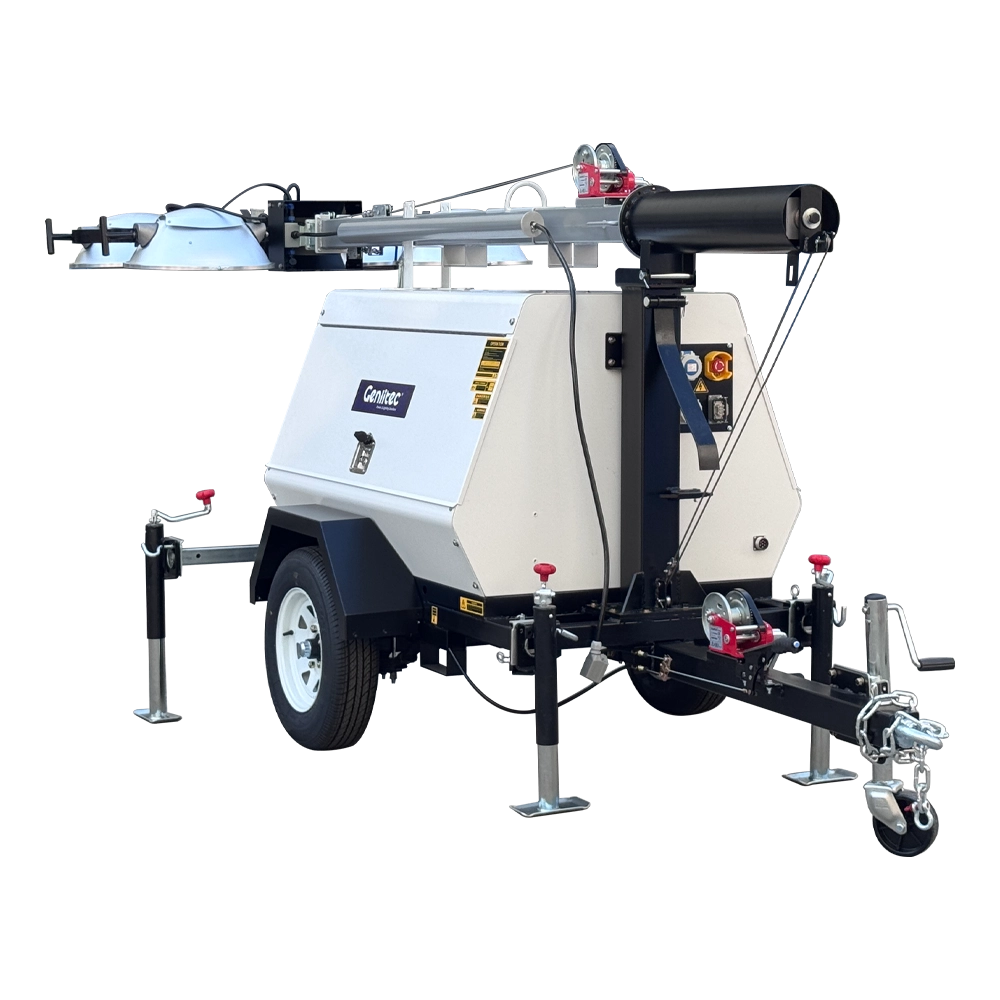

The REHLKO KDW1003 engine complies with EU Stage V and EPA Tier 4 Final emission standards, making the GLT4000-9MR suitable for demanding markets with strict emissions requirements. The manual mast extends to a maximum height of 9 meters and uses a self-lock winch lifting system with 358° manual rotation for flexible lighting positioning. The trailer-mounted configuration allows convenient transportation and rapid deployment, while the four 1000W metal halide floodlights provide powerful illumination with a total lighting capacity of 300,000 lumens.
Light Tower
| Model | GLT4000-9MR |
| Lifting System | 9 Metres, Manual Lifting |
| Mast Rotation System | 358° Manual |
| Total Power of Lights | 4 x 1000W Metal Halide Lamps |
| Frequency | 50/60Hz |
| Voltage | 110~240V |
| Phase | Single |
| Rated Power | 6.0KW/50Hz; 7.0KW/60Hz |
| Trailer Structure | Single Axle, 13-inch Tyres |
Diesel Engine
| Engine Model | REHLKO KDW1003 |
| Cylinder Number | 3 |
| Aspiration System | Natural |
| Cooling Method | Water Cooled |
| Combustion System | Indirect Injection |
| Bore x Stroke | 75 x 77.6 mm |
| Compression Ratio | 22.8:1 |
| Engine Speed | 1500/1800RPM |
| Displacement | 1.028L |
| Rated Power | 8.0KW/1500RPM; 9.0KW/1800RPM |
| Oil Capacity | 2.4L |
| Governor Type | Centrifugal |
| Electric Starting System | DC 12V |
| Emission Standard | EU Stage V; EPA Tier 4 Final |
Alternator
| Number of Phase | Single |
| Rated Power | 6~8KW |
| Frequency | 50/60Hz |
| Power Factor | 1.0 |
| Temp. Rise | 125K |
| Insulation Class | H |
| Ambient Temp. | 40°C |
| IP Rating | IP23 |
| Excitation System | Self-Excited |
| Bearing | Single |
| Coating | Vacuum Impregnation |
| Voltage Regulator | A.V.R |
| Coupling | Flexible Disc |
Operation Mast
| Max. Height of Mast | 9 Meters |
| Lifting System | Manual |
| Lifting Method | Self-Lock Winch |
| Mast Stages | 3 |
| Rotation System | 358° Manually |
| Mast Material | Galvanization Steel Tube |
| Winch Type | 2 x 1500 LBS |
Metal Halide Lamps
| Total Power of Lamps | 4 x 1000W |
| Lamps Type | Metal Halide Floodlights |
| Light Capacity | 4 x 75,000 Lumens |
| Design Lifetime | ≥10,000 Hours |
| Working Temp. | -25°C~50°C |
| Light Coverage | 5~7 Acres |
| Protection Grade | IP65 |
Control Panel
| ○ SMARTGEN HGM1790N digital controller | ○ Emergency stop button |
| ○ Main circuit breaker and individual circuit breakers for lights | ○ Hour meter |
| ○ Manual/Auto start control panel | ○ Fuel level meter |
| ○ Controller power switch | ○ Alarm buzzer |
Trailer and Sound Attenuated Enclosure
○ Fully weatherproof sound-attenuated enclosure with internal exhaust silencer
○ Highly corrosion-resistant construction
○ Heavy-duty single-axle trailer with 13-inch tyres
○ Fuel tank for extended outdoor operation
Container Loading Capacity
| 20GP CONTAINER | Max. 8 Sets |
| 40HQ CONTAINER | Max. 16 Sets |
Applications
The GLT4000-9MR diesel mobile light tower is designed for reliable temporary lighting and auxiliary power in demanding outdoor environments. Its 9-meter manual mast, four 1000W metal halide floodlights, and REHLKO KDW1003 diesel engine make it suitable for a wide range of professional applications, including:
○ Construction sites
○ Mining operations
○ Road and highway projects
○ Railway and infrastructure projects
○ Oil and gas sites
○ Outdoor events and temporary lighting
○ Emergency and disaster-response lighting
Why Choose GENLITEC POWER
GENLITEC POWER is a professional manufacturer and exporter of diesel generator sets and mobile lighting towers, providing reliable power generation and lighting solutions for construction, mining, infrastructure, industrial, commercial, and other demanding applications.
The GLT4000-9MR combines a 9-meter manual mast, four 1000W metal halide floodlights, a REHLKO KDW1003 diesel engine, and a heavy-duty trailer structure. The engine's EU Stage V and EPA Tier 4 Final emissions compliance makes this model an attractive solution for customers requiring lower-emission diesel lighting equipment for regulated markets.
○ Professional manufacturer of diesel generator sets and mobile lighting towers
○ REHLKO KDW1003 diesel engine configuration
○ EU Stage V and EPA Tier 4 Final emission standard
○ Four 1000W metal halide floodlights with high-output illumination
○ 9-meter manual lifting mast with 358° rotation
○ International export experience and technical support
Warranty
12 months or 1000 working hours, whichever comes first. For details, please refer to the GENLITEC POWER® Warranty Policy.
