60Hz 17kW 21kVA Diesel Generator with Kubota V2203-E2BG Diesel Engine
Short Description
GENLITEC POWER GPK21D6/GPK21S6 diesel generator set powered by original KUBOTA V2203-E2BG-CHN, with prime power 17KW/21KVA, standby power 19KW/24KVA.
- ModelGPK21D6 | GPK21S6
- Frequency60Hz
- Prime Power17KW/21KVA
- Standby Power19KW/24KVA
- EngineKUBOTA V2203-E2BG-CHN
- AlternatorStamford/Leroy Somer/Genlitec Power
- Fuel Consumption (100% Load)5.6L/H
- MOQ1 Set
Product Details
Product Tags
Introduction

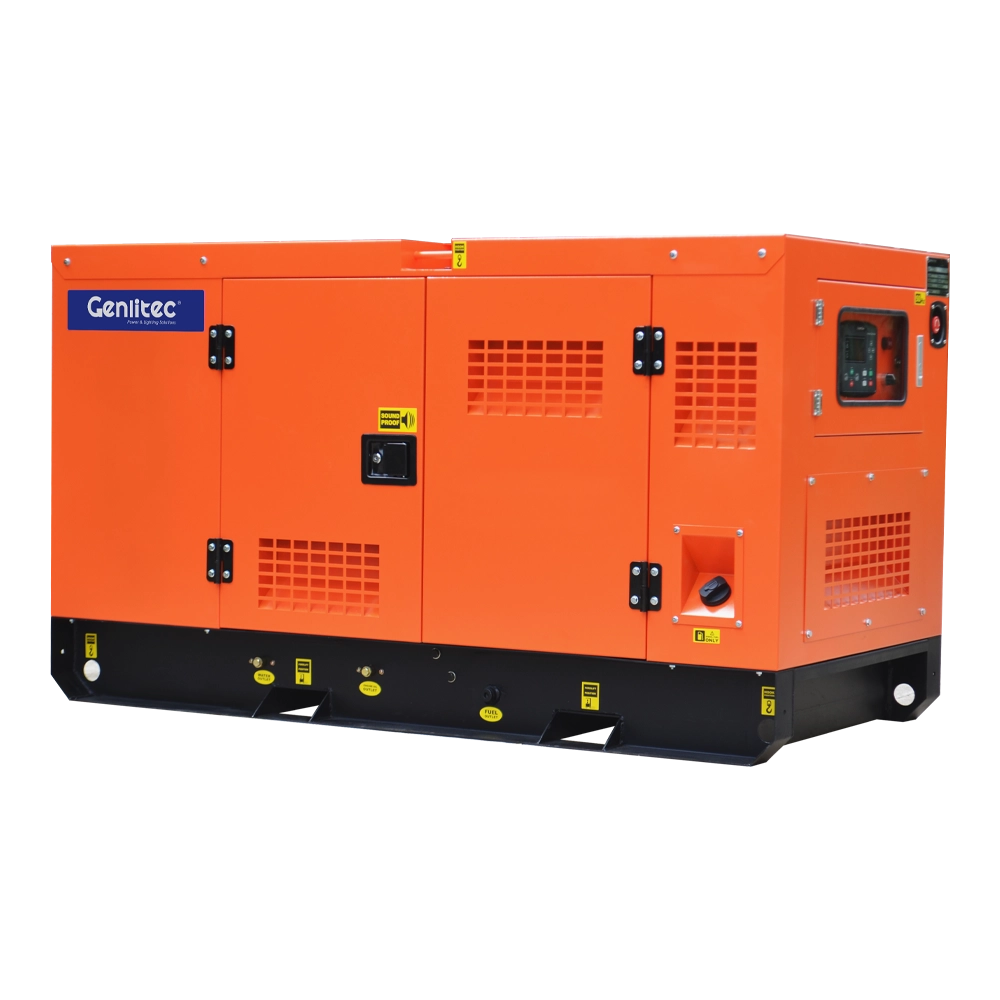

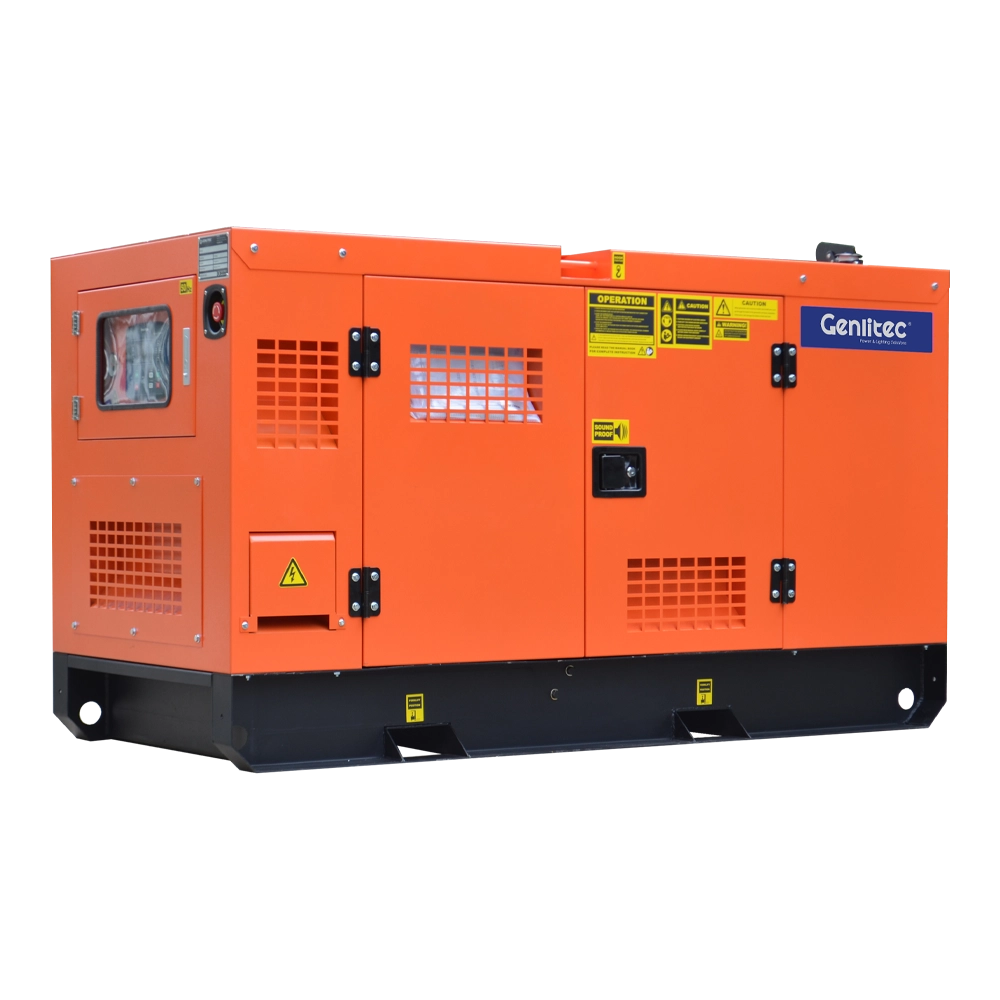

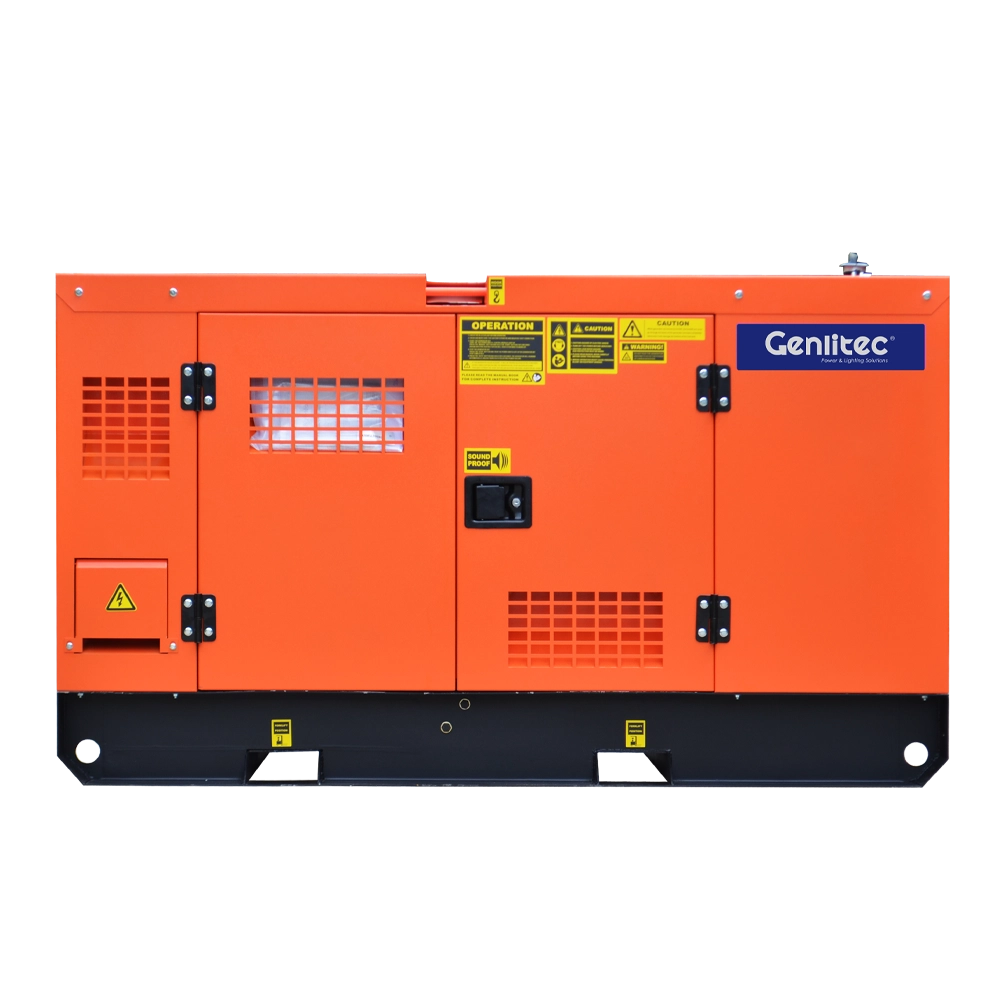

The GENLITEC POWER® GPK21D6 open type and GPK21S6 silent type diesel generator sets deliver 17kW/21kVA prime power and 19kW/24kVA standby power. Powered by a reliable Kubota V2203-E2BG-CHN diesel engine and matched with a high-quality alternator, these generator sets provide stable and dependable power for commercial, industrial, construction, agricultural and standby applications.
With a 4-cylinder, naturally aspirated and water-cooled diesel engine operating at 1800 RPM, the GPK21D6 and GPK21S6 are designed for 60Hz applications. The generator sets feature a 3-phase, 4-wire electrical system and support rated voltage options of 120/208V, 127/220V and 220/380V.
Generator Set
| Open Type Model | GPK21D6 |
| Silent Type Model | GPK21S6 |
| Prime Power | 17KW/21KVA |
| Standby Power | 19KW/24KVA |
| Phase & Wires | 3 Phase, 4 Wires |
| Power Factor | 0.8 |
| Frequency | 60Hz |
| Rated Voltage | 120/208V; 127/220V; 220/380V |
| Fuel Tank Capacity | 45L |
Diesel Engine
| Engine Model | Kubota V2203-E2BG-CHN |
| Cylinder Number | 4 |
| Aspiration System | Natural |
| Cooling Method | Water Cooled |
| Combustion System | E-TVCS |
| Bore x Stroke | 87 x 92.4mm |
| Compression Ratio | 23:1 |
| Rated Speed | 1800 RPM |
| Displacement | 2.197L |
| Rated Power | 20.2KW |
| Standby Power | 24.2KW |
| Fuel Injection Pump | Bosch Type PFR MD Pump |
| Oil Capacity | 9.7L |
| Charger Alternator Capacity | 12V |
| Electric Starting System | DC 12V |
Fuel Consumption
| 100% Prime Load | 5.6L/H |
| 75% Prime Load | 4.2L/H |
| 50% Prime Load | 2.8L/H |
| 25% Prime Load | - |
Alternator
| Number of Phase | 3 |
| Rated Power | 18.8KW/23.5KVA |
| Frequency | 60Hz |
| Power Factor | 0.8 |
| Poles | 4 |
| Temperature Rise | 125K |
| Insulation Class | H |
| Ambient Temperature | 40℃ |
| IP Rating | IP23 |
| Excitation System | Self-excited |
| Bearing | Single |
| Coating | Vacuum Impregnation |
| Voltage Regulator | A.V.R |
Control Panel
| ○ Digital generator controller | ○ LCD display for operating parameters |
| ○ Engine monitoring and protection | ○ Generator voltage and frequency monitoring |
| ○ Automatic shutdown protection | ○ Emergency stop button |

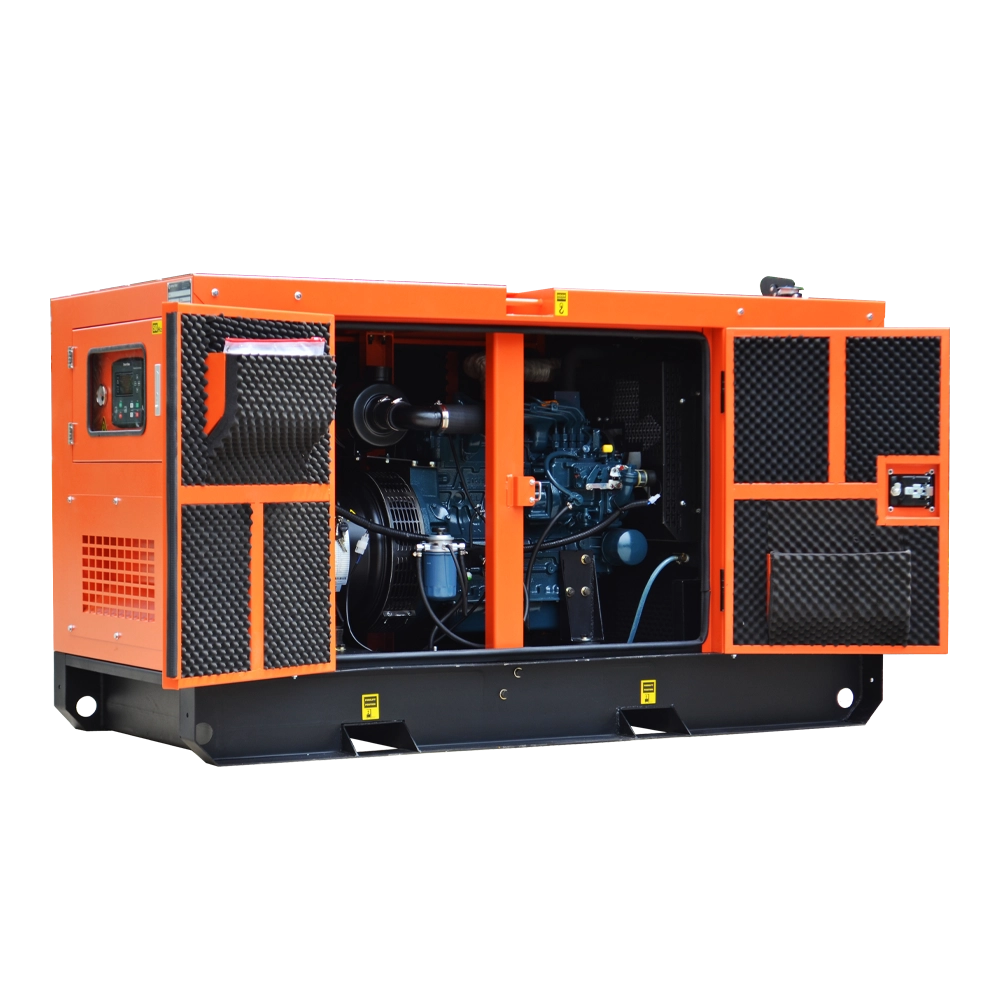

Sound Attenuated Enclosure
○ Fully weatherproof sound-attenuated enclosure with internal exhaust silencer
○ Highly corrosion-resistant construction
○ Available for GPK21S6 silent type generator set
Options
○ ATS for automatic start and stop when utility power fails or returns
○ Single axle trailer
○ 12-hour fuel tank
○ 24-hour fuel tank
○ Power sockets, including CEE or AUS standards
Applications
The GPK21D6 and GPK21S6 diesel generator sets are suitable for a wide range of prime and standby power applications, including:
○ Commercial and office buildings
○ Small industrial facilities
○ Construction and job sites
○ Agricultural and rural facilities
○ Telecommunication and remote sites
○ Emergency and backup power systems
Why Choose GENLITEC POWER
GENLITEC POWER is a professional manufacturer and exporter of diesel generator sets and mobile lighting towers, providing reliable power solutions for construction, mining, telecommunications, infrastructure, industrial, commercial and other demanding applications. Founded in 2016, GENLITEC POWER has more than 10 years of industry experience and provides complete power solutions from product selection and system configuration to production, testing, delivery and after-sales support.
○ Founded in 2016 with more than 10 years of industry experience
○ Annual production capacity of more than 2,500 generator sets
○ 66,000 m² manufacturing park with more than 7,000 m² assembly workshop
○ Diesel generator sets covering approximately 9.5kVA to 2500kVA
○ Multiple engine, alternator and controller brand options
○ Customized generator configurations for different applications and markets
○ Products and power solutions supplied to customers in more than 50 countries
○ Professional quality control, testing and technical support
○ International project experience across construction, mining, telecommunications, infrastructure and industrial applications
○ Complete after-sales support and standard warranty service
Warranty
GENLITEC POWER provides a standard warranty of 12 months or 1000 working hours, whichever comes first. For details, please refer to the GENLITEC POWER® Warranty Policy.
Frequently Asked Questions
Q: What is the prime power of the GPK21D6 and GPK21S6?
A: The GPK21D6 and GPK21S6 provide 17kW/21kVA prime power and 19kW/24kVA standby power.
Q: Which diesel engine is used in the GPK21?
A: The GPK21 uses a Kubota V2203-E2BG-CHN four-cylinder, naturally aspirated and water-cooled diesel engine.
Q: What frequency does the GPK21 generator set operate at?
A: The GPK21D6 and GPK21S6 are designed for 60Hz operation at a rated speed of 1800 RPM.
Q: What voltage options are available?
A: The available rated voltage options are 120/208V, 127/220V and 220/380V.
Q: Is the GPK21 available in both open and silent versions?
A: Yes. The GPK21D6 is the open type model, while the GPK21S6 is the silent type model.
Q: What is the fuel tank capacity?
A: The standard fuel tank capacity of the GPK21 is 45 liters.
Q: What is the fuel consumption of the GPK21?
A: Fuel consumption is approximately 5.6L/H at 100% prime load, 4.2L/H at 75% prime load and 2.8L/H at 50% prime load.
Q: What type of alternator is used?
A: The GPK21 uses a three-phase, four-pole alternator rated at 18.8kW/23.5kVA, with self-excited excitation and an A.V.R. voltage regulator.
Q: What applications are suitable for the GPK21?
A: The GPK21 is suitable for commercial buildings, small industrial facilities, construction sites, agricultural facilities, telecommunications sites, remote locations and emergency backup power applications.
Q: What is the standard warranty for the GPK21?
A: GENLITEC POWER provides a standard warranty of 12 months or 1000 working hours, whichever comes first.
