60Hz 6.4kW 8KVA Diesel Generator with Kubota D905-E2BG Diesel Engine
Short Description
GPK8D6 and GPK8S6 are 60Hz 6.4kW 8kVA diesel generators with Kubota D905-E2BG engines for reliable commercial, industrial and backup power.
- ModelGPK8D6 | GPK8S6
- Frequency60Hz
- Prime Power6.4KW/8KVA
- Standby Power7KW/8.8KVA
- EngineKUBOTA D905-E2BG-CHN
- AlternatorStamford/Leroy Somer/Genlitec Power
- Fuel Consumption (100% Load)2.5L/H
- MOQ1 Set
Product Details
Product Tags
Introduction
The GENLITEC POWER® GPK8D6 and GPK8S6 are 8kVA Kubota diesel generator sets designed to provide reliable power for residential, commercial, construction, agricultural, backup and other small-scale power applications. The generator sets provide 6.4kW/8kVA prime power and 7kW/8.8kVA standby power at 60Hz.
Powered by the Kubota D905-E2BG-CHN three-cylinder, 0.898-liter water-cooled diesel engine, the GPK8 series combines compact dimensions, efficient operation and dependable power output. The engine provides 7.8kW prime power and 8.9kW standby power at 1800 RPM, and features natural aspiration, E-TVCS combustion technology, a Bosch Type PFR MD fuel injection pump and a 22:1 compression ratio.

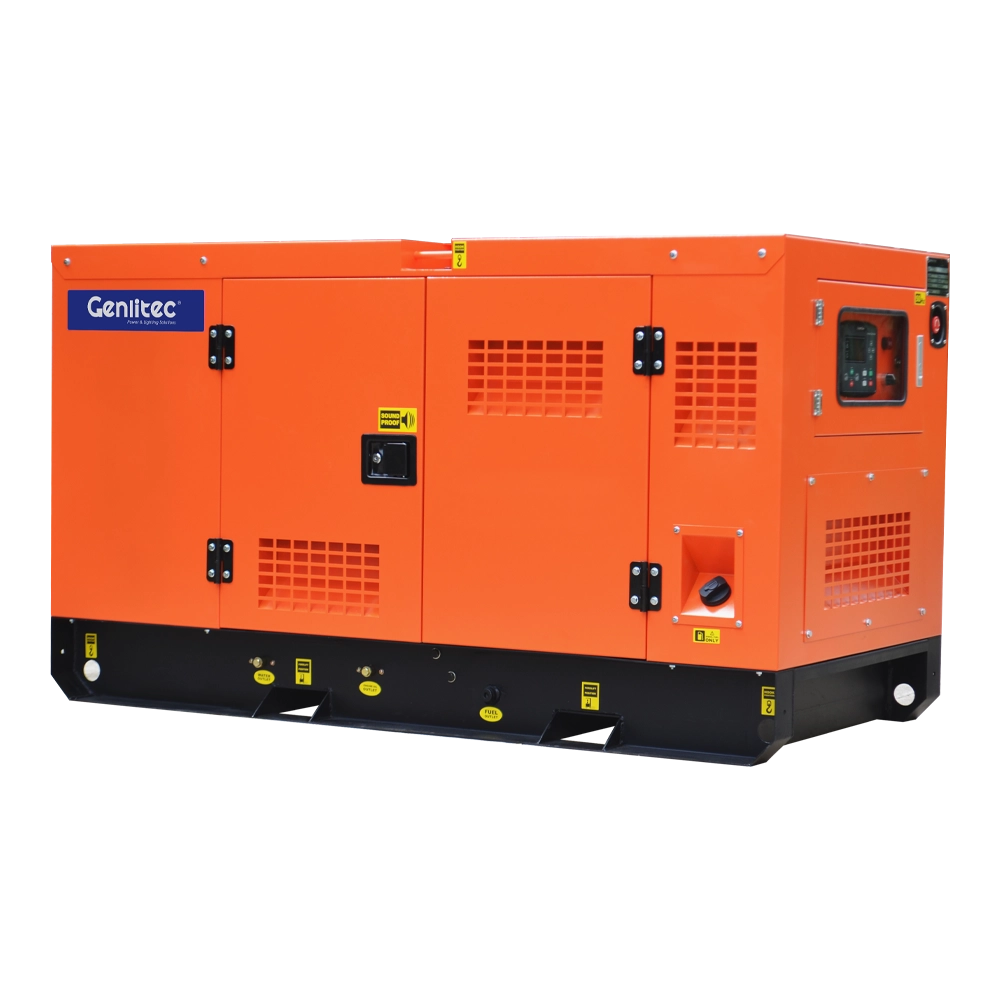

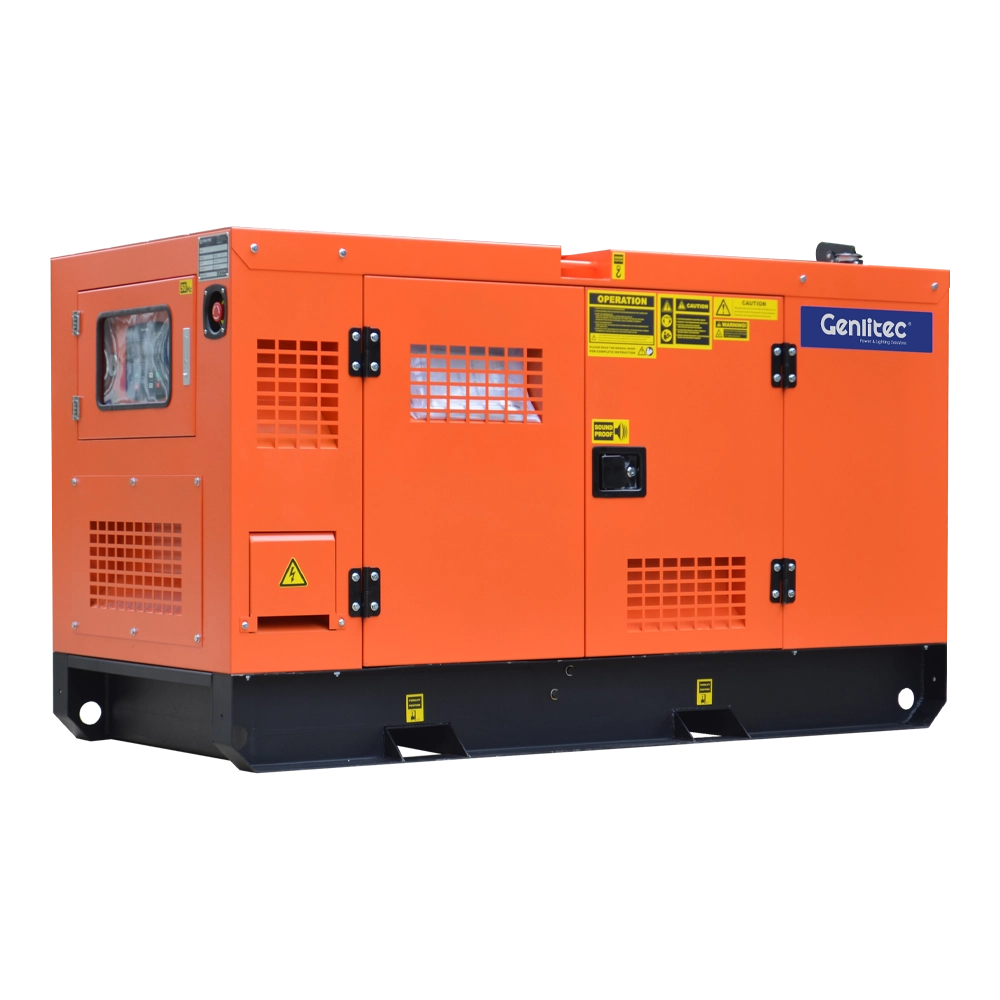

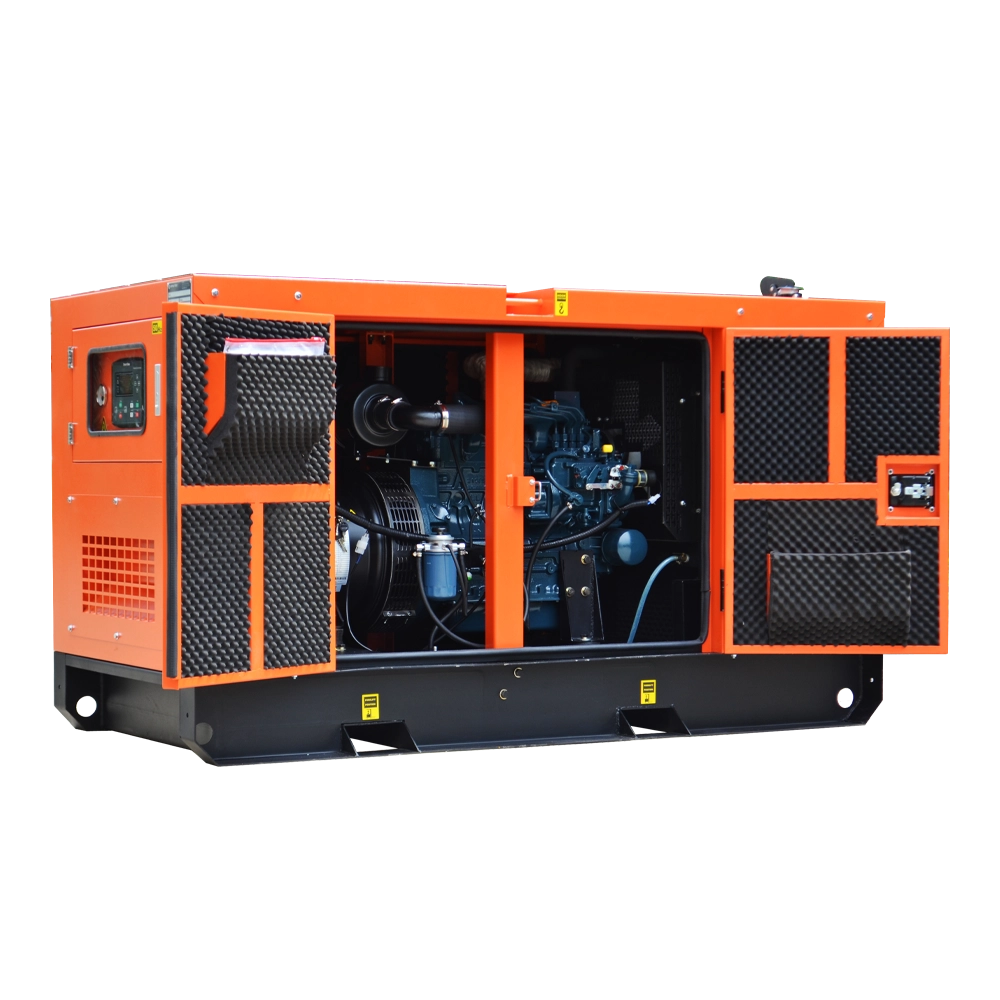

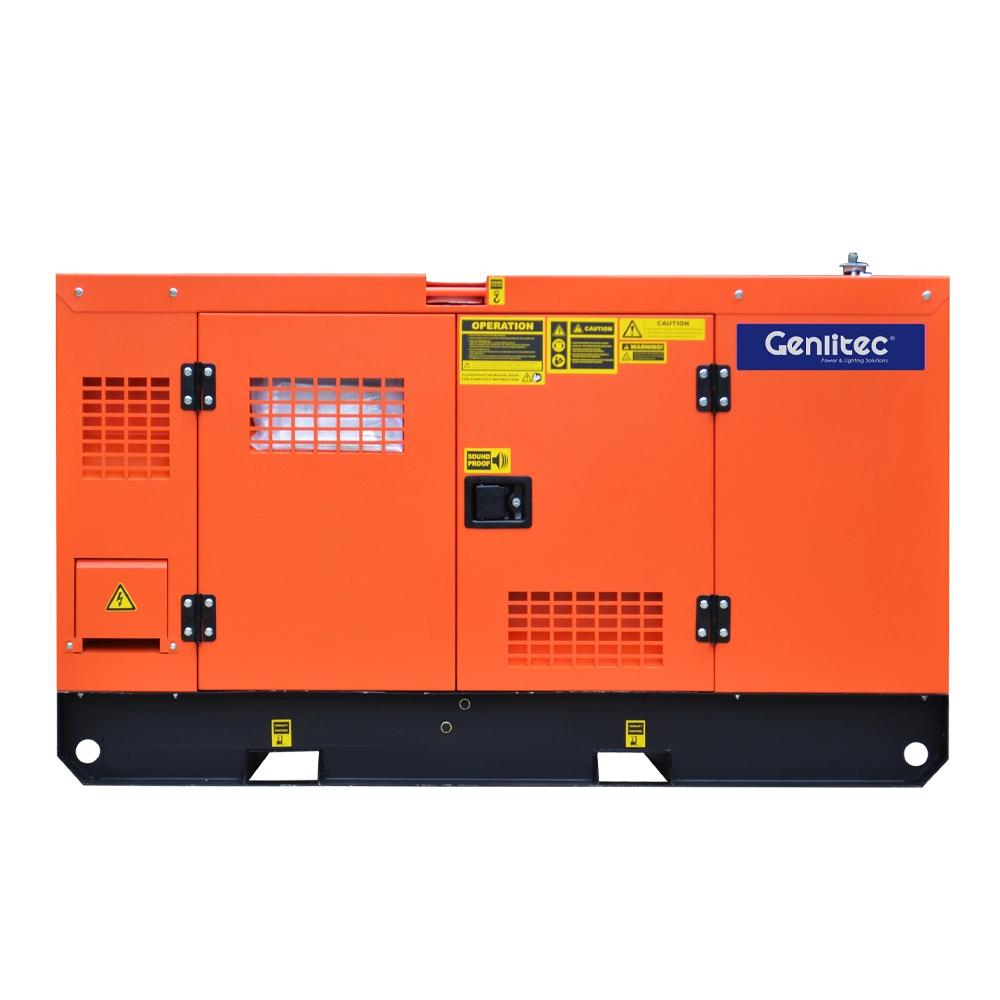

The GPK8 generator set is available in both open and silent configurations. The GPK8D6 open type is suitable for generator rooms and installations where ventilation and easy maintenance are required, while the GPK8S6 silent type provides additional noise attenuation and protection for outdoor or noise-sensitive applications. A 45L fuel tank is provided for extended operating periods.
Generator Set
| Open Type Model | GPK8D6 |
| Silent Type Model | GPK8S6 |
| Prime Power | 6.4KW/8KVA |
| Standby Power | 7KW/8.8KVA |
| Phase & Wires | 3 Phase, 4 Wires |
| Power Factor | 0.8 |
| Frequency | 60Hz |
| Rated Voltage | 120/208V, 127/220V, 220/380V |
| Fuel Tank Capacity | 45L |
Diesel Engine
| Engine Model | Kubota D905-E2BG-CHN |
| Cylinder Number | 3 |
| Aspiration System | Natural |
| Cooling Method | Water Cooled |
| Combustion System | E-TVCS |
| Bore x Stroke | 72 x 73.6mm |
| Compression Ratio | 22:1 |
| Rated Speed | 1800 RPM |
| Displacement | 0.898L |
| Engine Prime Power | 7.8KW/1800 RPM |
| Engine Standby Power | 8.9KW/1800 RPM |
| Fuel Injection Pump | Bosch Type PFR MD Pump |
| Oil Capacity | 5.1L |
| Charger Alternator Capacity | 12V-12.5A |
| Electric Starting System | DC 12V |
Fuel Consumption
| Load | Fuel Consumption |
| 100% Prime Load | 2.5L/H |
| 75% Prime Load | - |
| 50% Prime Load | - |
| 25% Prime Load | - |
Alternator
| Coupling | Flexible Disc |
| Number of Phase | 3 |
| Rated Power | 8KW/10KVA |
| Frequency | 60Hz |
| Power Factor | 0.8 |
| Poles | 4 |
| Temperature Rise | 125K |
| Insulation Class | H |
| Ambient Temperature | 40℃ |
| IP Rating | IP23 |
| Excitation System | Self-excited |
| Bearing | Single |
| Coating | Vacuum Impregnation |
| Voltage Regulator | A.V.R |
Control Panel
| ○ Emergency stop button | ○ Main circuit breaker |
| ○ Float battery charger | ○ Manual/Auto start control panel |
| ○ Fuel level meter | ○ Controller power switch |
| ○ Alarm buzzer |
Sound Attenuated Enclosure
○ Weatherproof sound-attenuated enclosure with internal exhaust silencer
○ Corrosion-resistant construction for outdoor installation
○ Available for GPK8S6 silent type generator set
Options
○ ATS panel
○ 12-hour fuel tank
○ 24-hour fuel tank
○ Water-jacket heater
○ Other heaters
○ Remote & Monitoring System
Applications
The GENLITEC POWER 6.4kW/8kVA Kubota diesel generator set is suitable for reliable prime and standby power in small-scale applications, including:
○ Residential buildings and homes
○ Small commercial buildings and shops
○ Construction sites and tools
○ Agricultural and farm applications
○ Telecom and remote facilities
○ Backup power for essential equipment
○ Emergency and standby power applications
Why Choose GENLITEC POWER
Reliable Power Performance
GENLITEC POWER generator sets are engineered for stable power output, dependable operation and long service life in demanding working environments.
Quality Components
The GPK8 series combines a genuine Kubota diesel engine with a high-quality alternator and reliable control system to provide efficient and dependable power.
Flexible Configurations
Open and silent configurations are available to meet different installation requirements, while ATS, fuel tank, heater and remote monitoring options can be customized.
Professional Manufacturing
GENLITEC POWER manufactures diesel generator sets according to strict production and testing procedures, ensuring consistent quality and reliable performance.
Warranty
GENLITEC POWER provides a standard warranty of 12 months or 1000 working hours, whichever comes first. For details, please refer to the GENLITEC POWER® Warranty Policy.
FAQ
A: The GPK8D6 open type and GPK8S6 silent type provide 6.4kW/8kVA prime power and 7kW/8.8kVA standby power at 60Hz.
A: The GPK8 series is powered by the Kubota D905-E2BG-CHN, a three-cylinder 0.898L water-cooled diesel engine with natural aspiration and E-TVCS combustion technology.
A: The engine provides 7.8kW prime power and 8.9kW standby power at 1800 RPM.
A: The standard fuel tank is 45L. Fuel consumption is approximately 2.5L/H at 100% prime load.
A: The GPK8 generator set operates at 60Hz with three-phase, four-wire output. Available rated voltages are 120/208V, 127/220V and 220/380V.
A: Both use the same Kubota engine and ratings. GPK8D6 is open type, while GPK8S6 has a sound-attenuated enclosure for reduced noise and outdoor installation.
A: Yes. It is rated at 6.4kW/8kVA prime power and can be used for suitable continuous or long-duration applications when operated within specified load and environmental conditions.
A: Yes. ATS, automatic start/stop, remote monitoring and other options can be configured according to project requirements.
A: It is suitable for residential buildings, small commercial facilities, farms, construction sites, telecommunications, remote facilities and other compact reliable backup or prime power applications.
A: The standard warranty is 12 months or 1000 working hours, whichever comes first.
