50Hz 9kW 11kVA Diesel Generator with Kubota V1505-E2BG Diesel Engine
Short Description
GENLITEC POWER GPK11D5/GPK11S5 diesel generator set powered by original KUBOTA V1505-E2BG-CHN, with prime power 9KW/11.3KVA, standby power 10KW/12.5KVA.
- ModelGPK11S5
- Prime Power (PRP)9kW/11.3kVA
- Standby Power (ESP)10kW/12.5kVA
- EngineV1505-E2BG-CHN
- Fuel consumption (100%)3.28L/H
Product Details
Product Tags
Introduction
The GENLITEC POWER GPK11D5/GPK11S5 is a compact 50Hz diesel generator set rated at 9kW/11.3kVA prime power and 10kW/12.5kVA standby power. It is powered by a reliable Kubota V1505-E2BG-CHN diesel engine and designed for dependable standby and prime power applications.

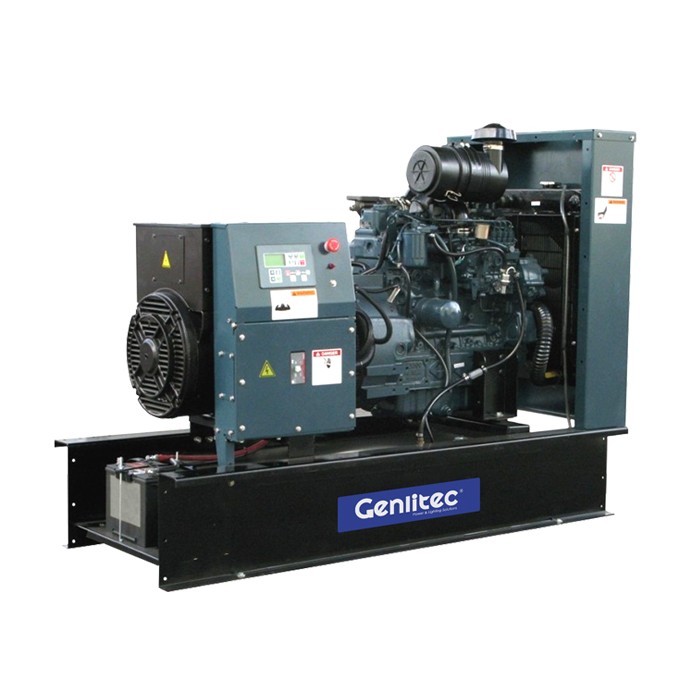

The GPK11D5 is the open type version, while the GPK11S5 features a sound attenuated enclosure for applications requiring reduced operating noise and weather protection. With a 50L fuel tank and compact configuration, the GPK11 series is suitable for commercial, residential, agricultural and remote power applications.
Generator Set
| Open Type Model | GPK11D5 |
| Silent Type Model | GPK11S5 |
| Frequency | 50Hz |
| Phase & Wires | 3 Phase, 4 Wires |
| Power Factor | 0.8 |
| Prime Power | 9KW/11.3KVA |
| Standby Power | 10KW/12.5KVA |
| Rated Voltage | 380~415V |
| Fuel Tank Capacity | 50L |
Diesel Engine
| Engine Model | Kubota V1505-E2BG-CHN |
| Aspiration System | Natural |
| Cooling Method | Water Cooled |
| Combustion System | E-TVCS |
| Bore x Stroke | 78 x 78.4mm |
| Compression Ratio | 22:1 |
| Rated Speed | 1500 RPM |
| Displacement | 1.498L |
| Rated Power | 11.1KW |
| Standby Power | 12.5KW |
| Fuel Injection Pump | Bosch Type PFR MD Pump |
| Cylinder Number | 3 |
| Oil Capacity | 6.0L |
| Charger Alternator Capacity | 12V-30A |
| Electric Starting System | DC 12V |
Fuel Consumption
| 100% Prime Load | 3.28L/H |
| 75% Prime Load | 2.42L/H |
| 50% Prime Load | 1.61L/H |
| 25% Prime Load | - |
Alternator
| Number of Phase | 3 |
| Rated Power | 10.8KW/13.5KVA |
| Frequency | 50Hz |
| Power Factor | 0.8 |
| Poles | 4 |
| Temp. Rise | 125K |
| Insulation Class | H |
| Ambient Temp. | 40℃ |
| IP Rating | IP23 |
| Excitation System | Self-excited |
| Bearing | Single |
| Coating | Vacuum Impregnation |
| Voltage Regulator | A.V.R |
Control Panel
| ○ Emergency Stop | ○ Main Circuit Breaker |
| ○ Float Battery Charger | ○ Manual / Auto Start |
| ○ Fuel Level Meter | ○ Controller Power Switch |
| ○ Alarm Buzzer |
Sound Attenuated Enclosure
The GPK11S5 is equipped with a sound attenuated enclosure designed for outdoor operation and reduced operating noise.
Options
Applications
Why Choose GENLITEC POWER
GENLITEC POWER is a professional manufacturer and exporter of diesel generator sets and mobile lighting towers, providing reliable power generation solutions for customers worldwide. Since its establishment, GENLITEC POWER has focused on generator manufacturing, engineering support and international power projects.
For more information, please visit the GENLITEC POWER® Why Choose GENLITEC POWER page.
Warranty
GENLITEC POWER provides a standard warranty of 12 months or 1000 working hours, whichever comes first, covering manufacturing defects under normal operation and maintenance.
For detailed warranty terms, please visit the GENLITEC POWER Warranty Policy.
Frequently Asked Questions
A: The GPK11D5/GPK11S5 provides 9kW/11.3kVA prime power and 10kW/12.5kVA standby power at 50Hz.
A: The generator set is powered by a Kubota V1505-E2BG-CHN diesel engine with a 1.498L displacement and 1500 RPM rated speed.
A: The Kubota V1505-E2BG-CHN engine has a rated power of 11.1kW and a standby power of 12.5kW.
A: The standard fuel tank capacity is 50L. Fuel consumption is approximately 3.28L/H at 100% prime load, 2.42L/H at 75% load and 1.61L/H at 50% load.
A: The GPK11 series operates at 50Hz with a rated voltage range of 380~415V and a three-phase, four-wire configuration.
A: The GPK11D5 is the open type model, while the GPK11S5 is equipped with a sound attenuated enclosure for reduced noise and outdoor protection.
A: Yes. The GPK11D5/GPK11S5 is rated for 9kW/11.3kVA prime power and can be used for applications requiring continuous or regular power generation within its rated capacity.
A: Yes. An ATS is available as an option for automatic transfer between the utility power supply and the generator set.
A: The GPK11 series is suitable for residential and commercial backup power, construction sites, workshops, agricultural applications, telecom sites, remote locations and emergency power.
A: GENLITEC POWER provides a standard warranty of 12 months or 1000 working hours, whichever comes first, covering manufacturing defects under normal operation and maintenance.
