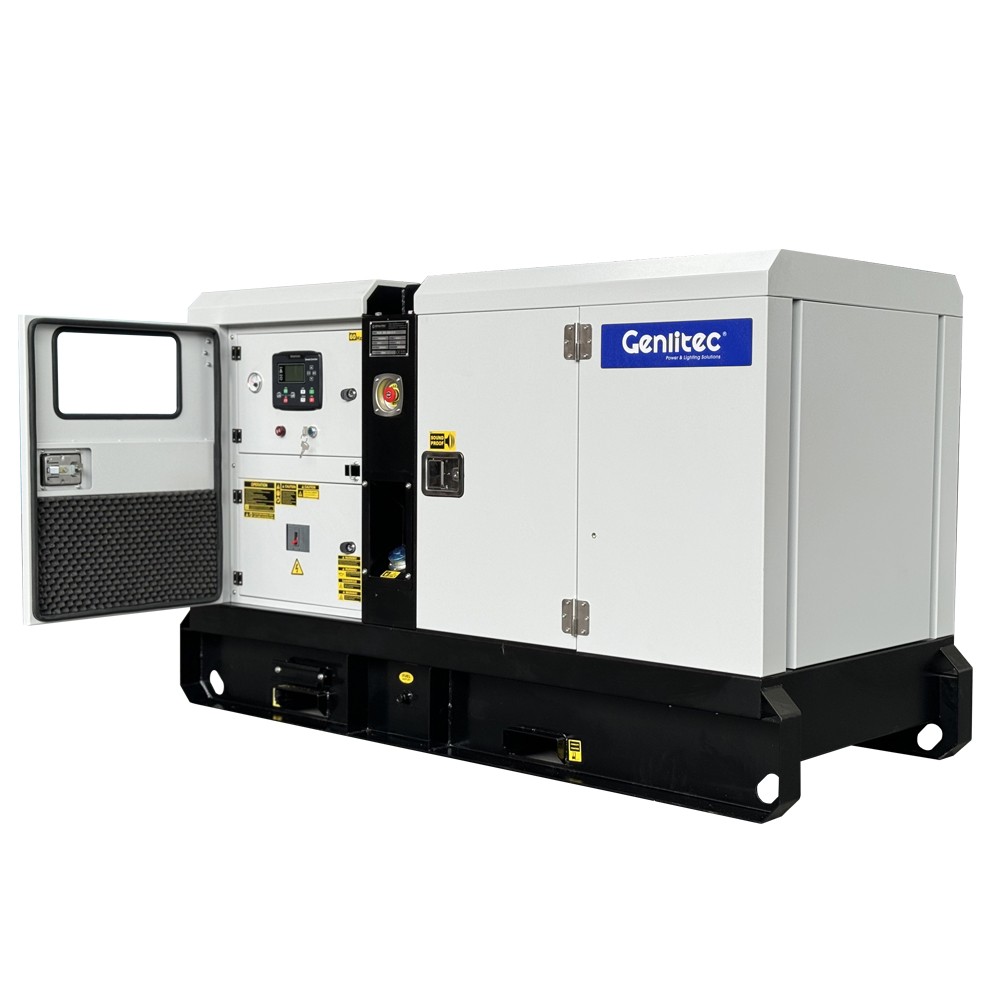

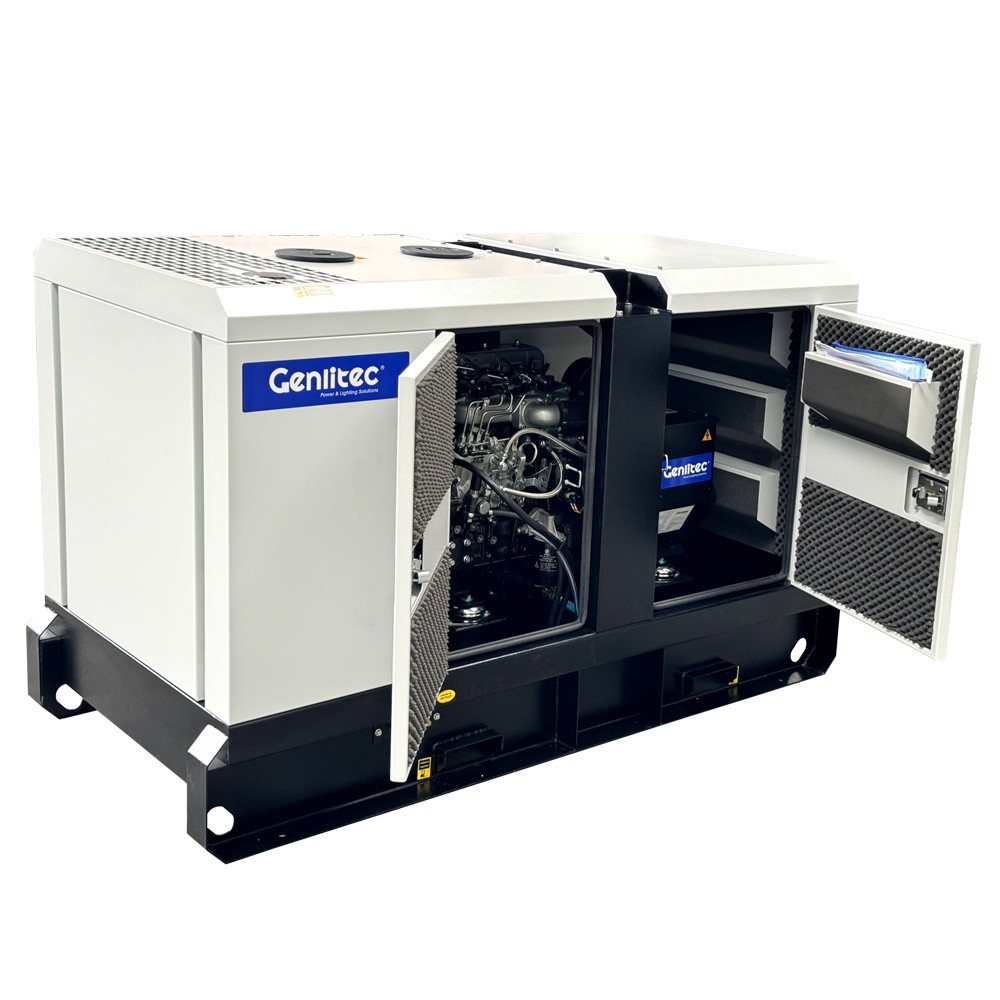

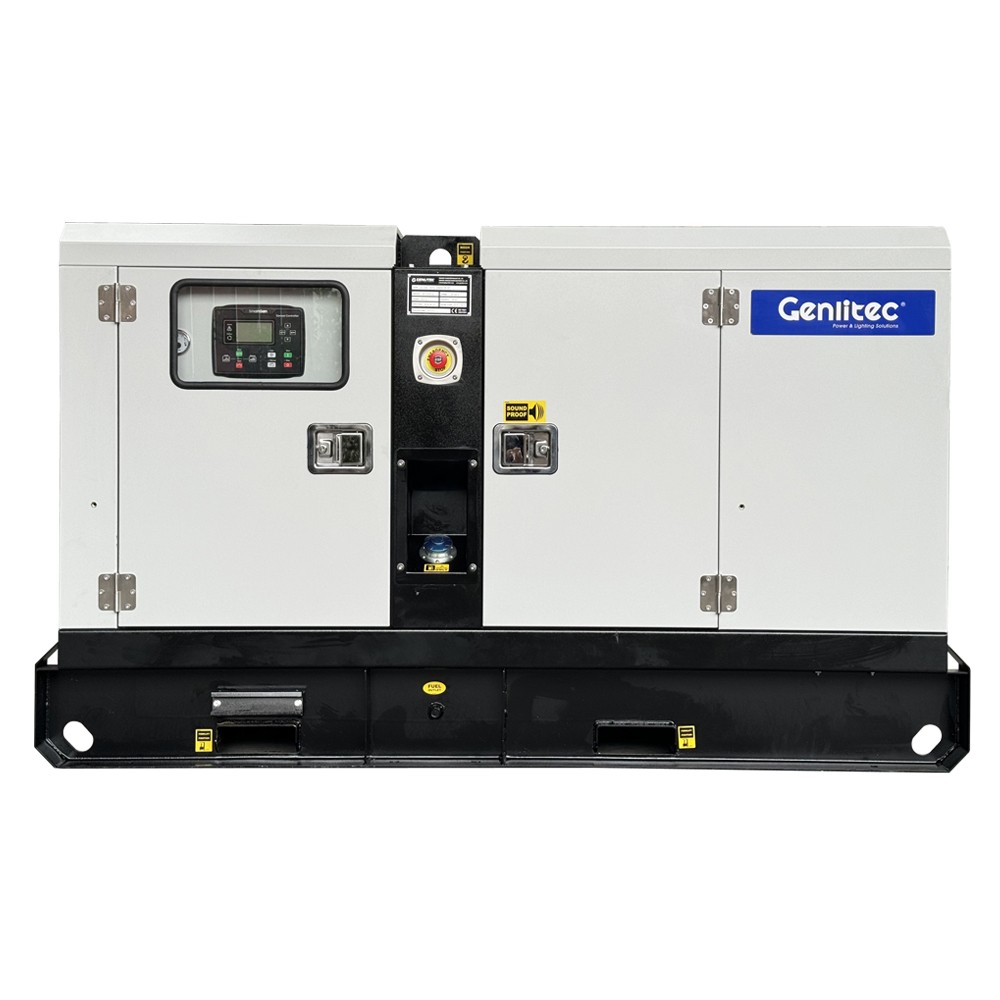

16KW/20KVA SDEC (4Z2.7-G11) Diesel Generator-50Hz

16KW/20KVA SDEC (4Z2.7-G11) Diesel Generator-50Hz
  • 16KW/20KVA SDEC (4Z2.7-G11) Diesel Generator-50Hz
  • 16KW/20KVA SDEC (4Z2.7-G11) Diesel Generator-50Hz
  • 16KW/20KVA SDEC (4Z2.7-G11) Diesel Generator-50Hz
  • 16KW/20KVA SDEC (4Z2.7-G11) Diesel Generator-50Hz
  • 16KW/20KVA SDEC (4Z2.7-G11) Diesel Generator-50Hz
  • 16KW/20KVA SDEC (4Z2.7-G11) Diesel Generator-50Hz

Short Description:

GENLITEC POWER® GSC20D5-I (open type), GSC20S5-I (silent type) diesel generator powered by original SDEC diesel engine 4Z2.7-G11, with prime power 16KW/20KVA and standby power 17.6KW/22KVA....

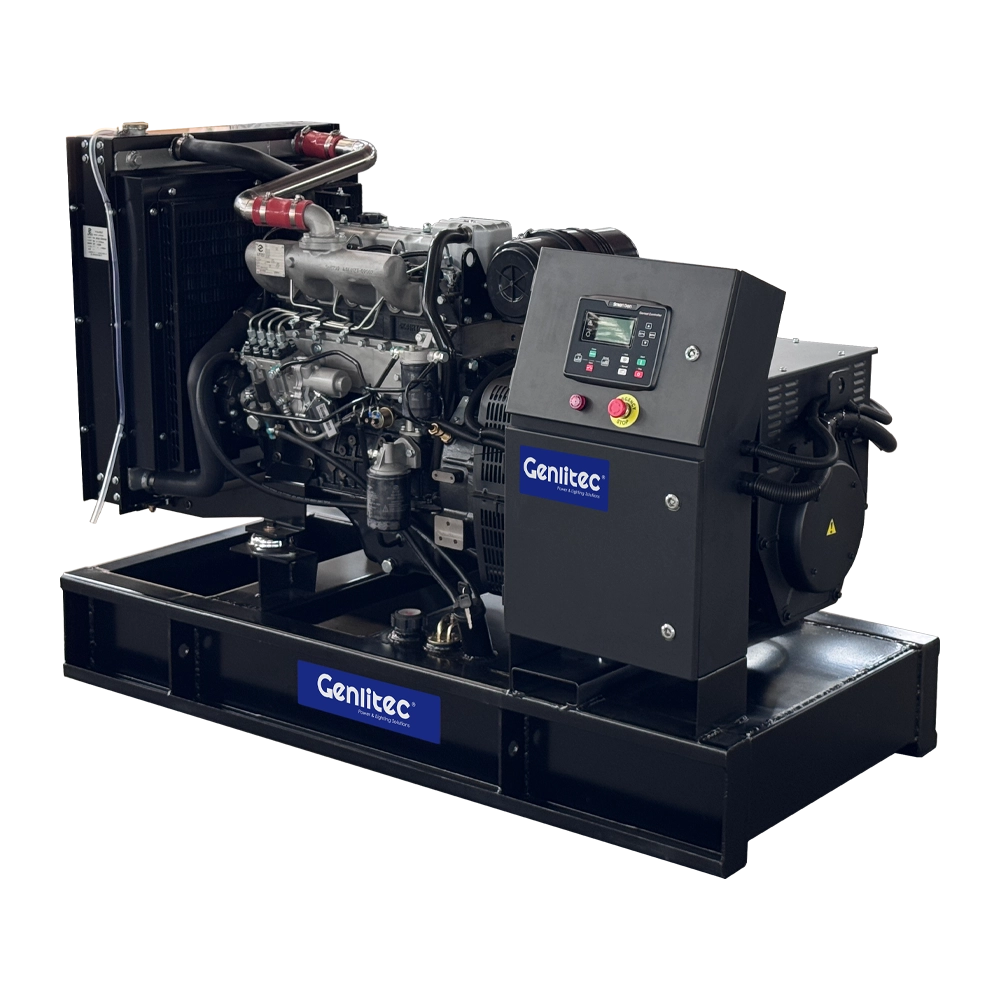

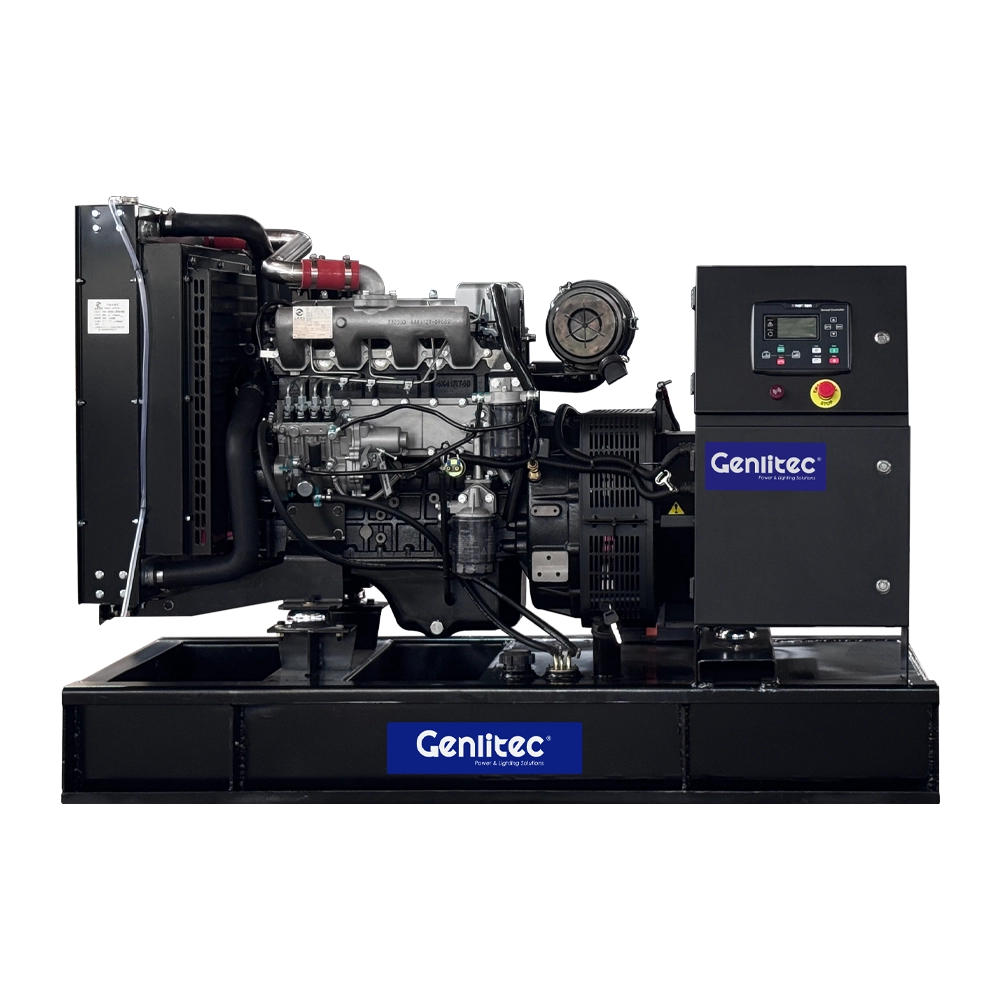

  • Open Type Model: GSC20D5-I
  • Silent Type Model: GSC20S5-I
  • Engine: SDEC 4Z2.7-G11
  • Prime Power: 16KW/20KVA
  • Standby Power: 17.6KW/22KVA

Product Details

Product Tags

Product Video


GENLITEC POWER® 16KW/20KVA SDEC DIESEL GENERATOR SET FEATURES

○ Brand new original SDEC 4Z2.7-G11 brand water cooled diesel engine

STAMFORD, LEROY SOMER or GENLITEC POWER® single bearing 100% copper brushless alternator

○ Rating 230/400V, 3-Phase, 50Hz, 1500RPM, 0.8PF, IP23, H insulation class

○ 50℃ radiator with engine driven fan mounted on the based frame

○ Set mounted control panel equipped with DEEPSEA, COMAP, DEIF or SMARTGEN digital controller

○ Original ABB, DELIXI or CHINT brand MCCB type main circuit breaker

○ Diesel engine and alternator mounted on a based frame with anti-vibration mountings

○ 12V DC electric start system with free-maintenance lead-acid battery and float battery charger

○ Industrial silencers with blexible connects and elbow

○ Complete engine alarm system


● GENERATOR SET

Open Type Model GSC20D5-I
Silent Type Model GSC20S5-I
Prime Power 16KW/20KVA
Standby Power 17.6KW/22KVA
Phase & Wire 3 Phase, 4 Wires
Power Factor 0.8
Frequency 50Hz
Rated Voltage 220/230V, 230/400V, 240/415V
Fuel Tank Capacity 30L

● DIESEL ENGINE


Engine Model SDEC 4Z2.7-G11
Cylinder Number 4
Aspiration System Naturally
Cooling Method Water Cooled
Governor Type Mechanical
Bore x Stroke 90 x 105 mm
Compression Ratio 18:1
Rated Speed 1500 RPM
Displacement 2.7L
Rated Power 22KW
Standby Power 24KW
Fuel System Direct Injection
Oil Capacity 10L
Coolant Capacity 2.3L (Engine Only)
Electric Starting System DC 12V

● FUEL CONSUMPTION

100% Prime Load 4.68L/H
75% Prime Load 3.6L/H
50% Prime Load 2.6L/H
25% Prime Load 1.64L/H

ALTERNATOR


Number of Phase 3
Rated Power 16KW/20KVA
Frequency 50Hz
Power Factor 0.8
Poles 4
Temp. Rise 125K
Terminals 6/12
Insulation Class H
Ambient Temp. 40℃
IP Rating IP23
Excitation System Self-Excited
Bearing Single Bearing
Coating Vacuum Impregnation
Voltage Regulator A.V.R
Coupling Flexible Disc

CONTROL PANEL


Emergency stop button

Main circuit breaker

Float baterry charger

Manual/Autostart control panel

Fuel level meter

Controller power switch

Alarm buzzer


● GENLITEC POWER® A-TYPE SOUND ATTENUATED ENCLOSURE


Fully Weatherproof Sound Attenuated Enclosure With Internal Exhaust Silencer

Highly Corrosion Resistant Construction


WARRANTY

12 months or 1000 working hours, whichever comes first


OPTIONS

ATS (for automatic start & stop when electricity power off & on)

Single axle trailer

12 hours fuel tank

24 hours fuel tank

Power Sockets (CEE or AUS standard)
