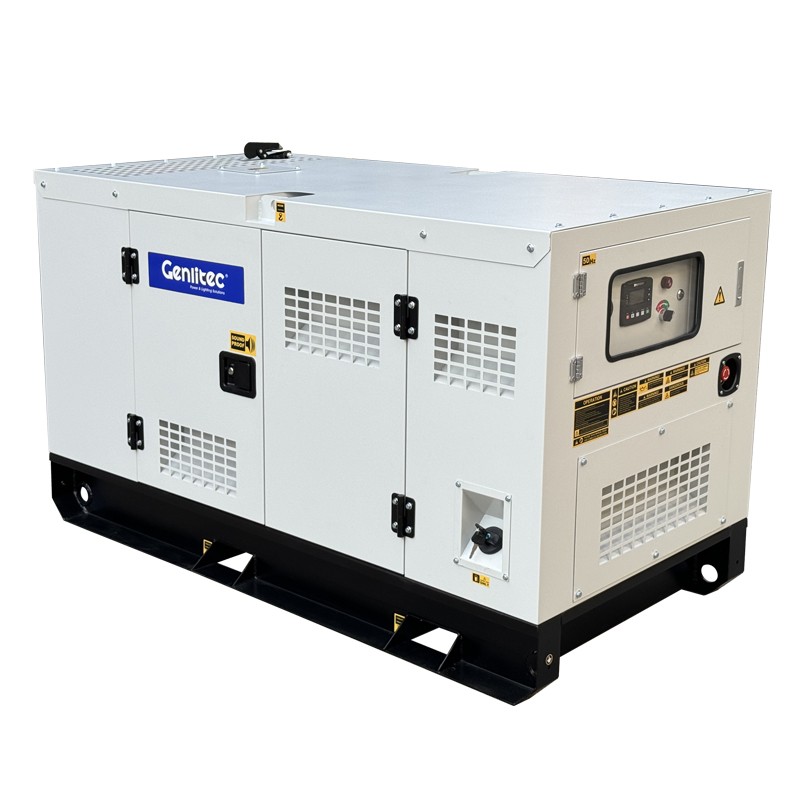

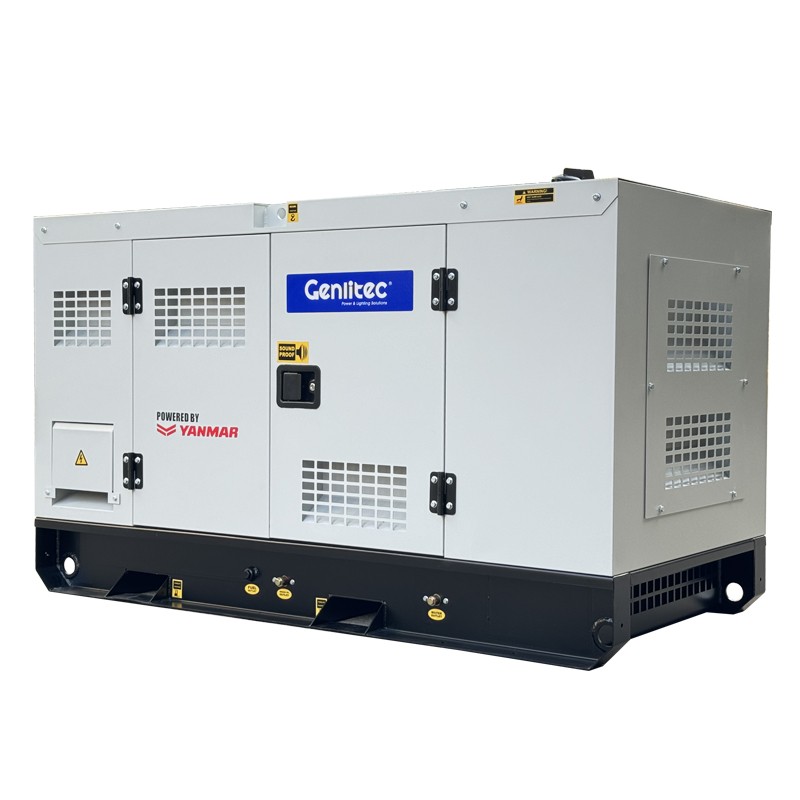

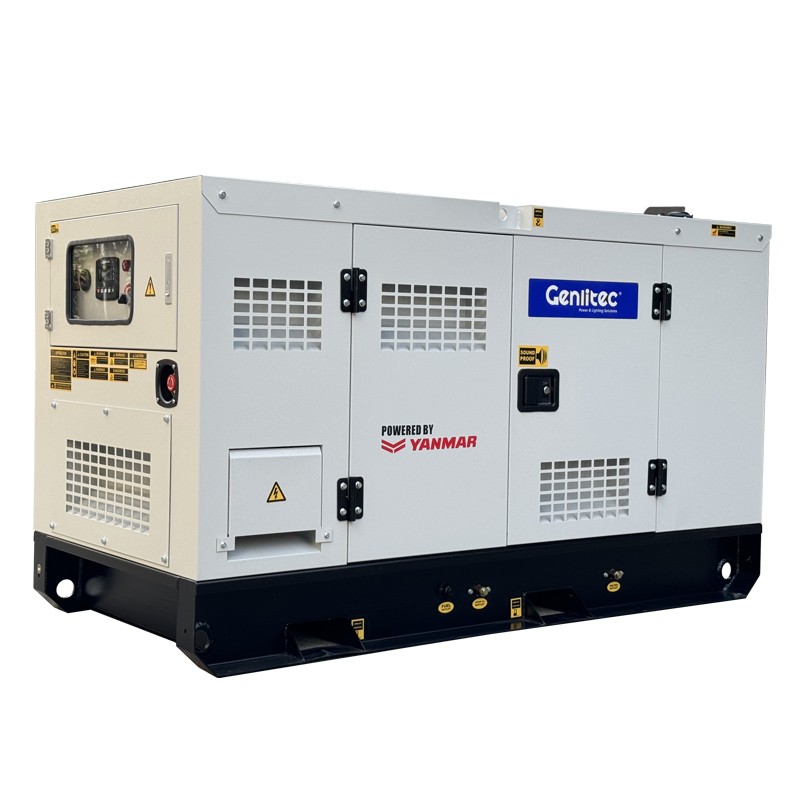

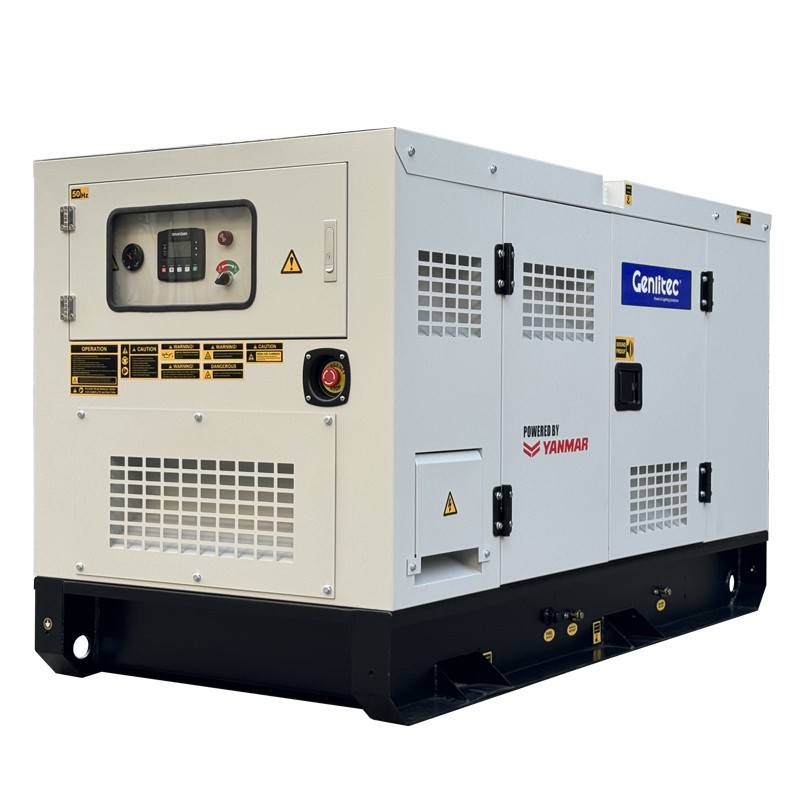

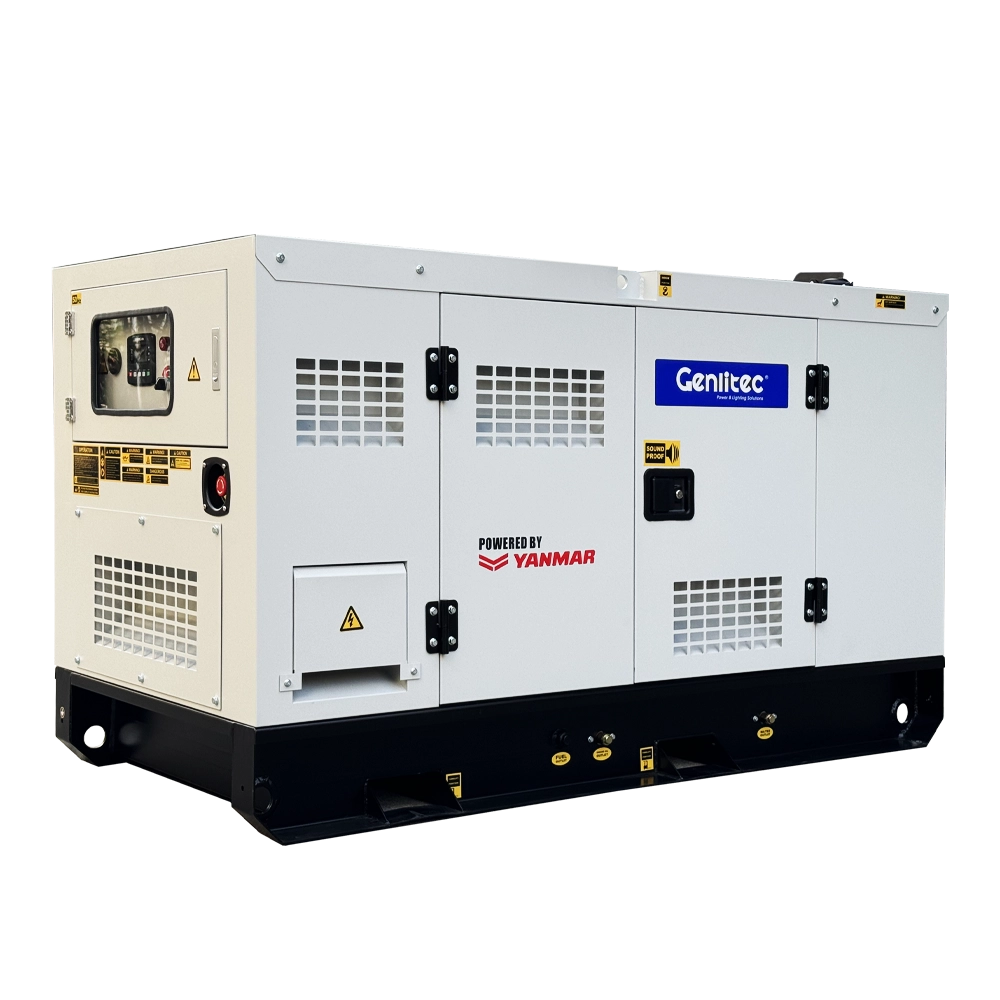

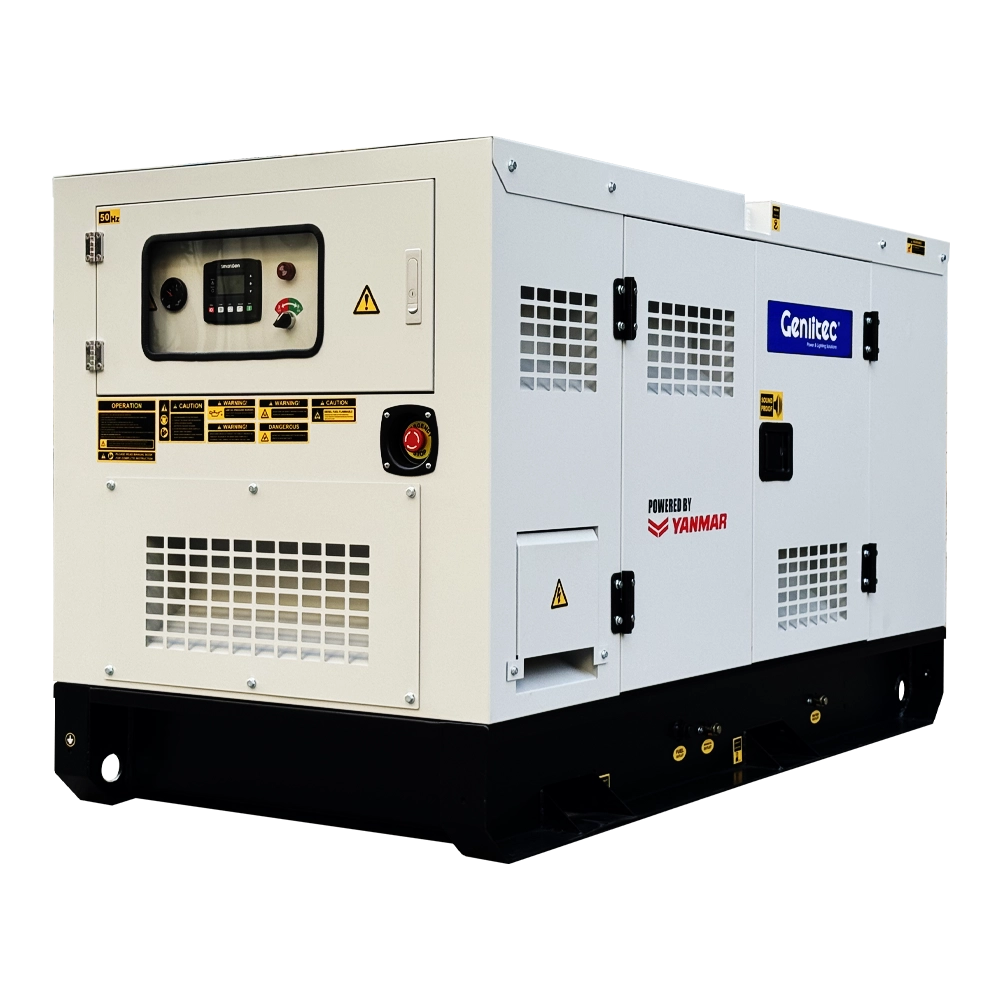

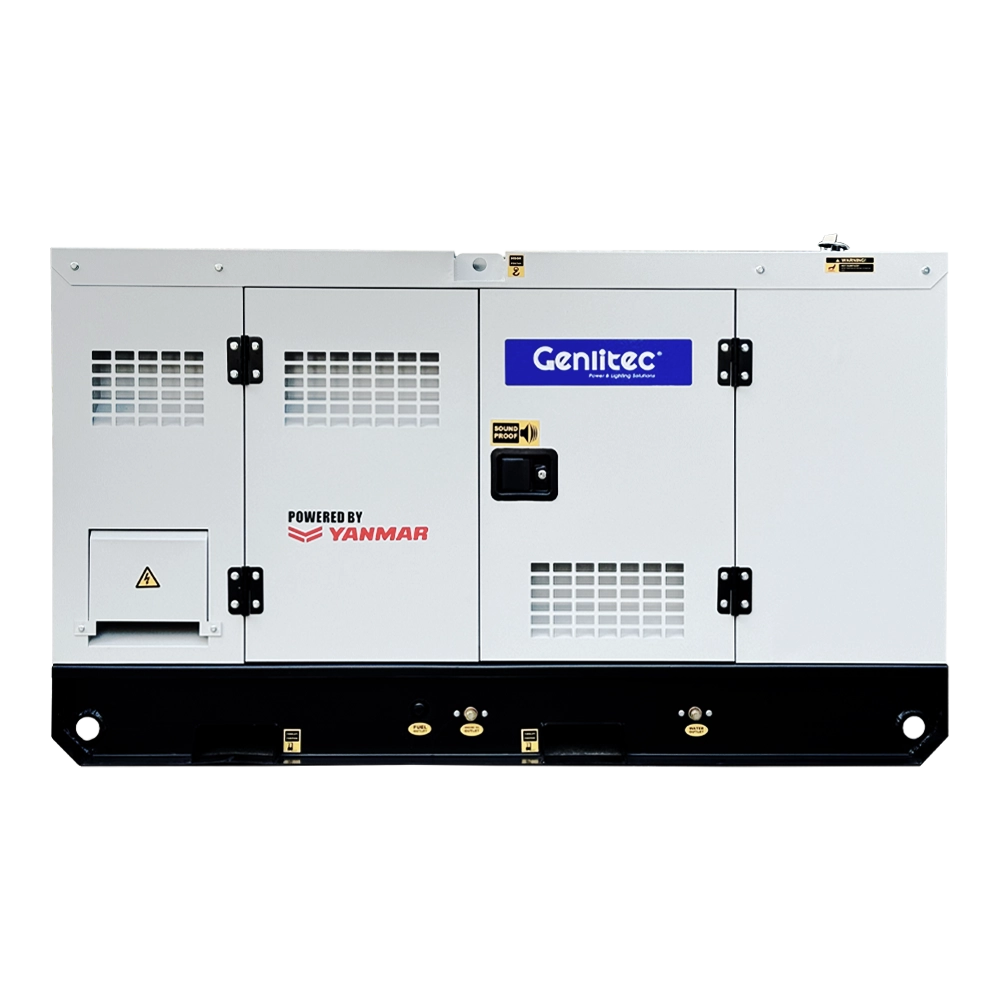

8KW/10KVA Yanmar Diesel Generator-50Hz

8KW/10KVA Yanmar Diesel Generator-50Hz
  • 8KW/10KVA Yanmar Diesel Generator-50Hz
  • 8KW/10KVA Yanmar Diesel Generator-50Hz
  • 8KW/10KVA Yanmar Diesel Generator-50Hz
  • 8KW/10KVA Yanmar Diesel Generator-50Hz
  • 8KW/10KVA Yanmar Diesel Generator-50Hz

Short Description:

GENLITEC POWER® GYM10D5 (open type), GYM10S5 (silent type) diesel generator sets powered by original YANMAR 3TNV82A-GGE, with prime power 8KW/10KVA and standby power 8.8KW/11KVA....


  • Open Type Model: GYM10D5
  • Silent Type Model: GYM10S5
  • Prime Power: 8KW/10KVA
  • Standby Power: 8.8KW/11KVA
  • Engine Model: YANMAR 3TNV82A-GGE

Product Details

Product Tags

Product Video

GENLITEC POWER® 8KW/10KVA YANMAR DIESEL GENERATOR SET FEATURES

○ Brand new original YANMAR 3TNV82A-GGE water cooled diesel engine

○ Original STAMFORD, LEROY SOMER or GENLITEC POWER® single bearing 100% copper brushless alternator

○ Rating 380/400/415V, 3-Phase 4-Wires, 50Hz, 1500RPM, 0.8PF, IP23, H insulation class

○ 50℃ radiator with engine driven fan mounted on the based frame

○ Set mounted control panel equipped with DEEPSEA, COMAP, DEIF or SMARTGEN digital controller

○ Original ABB, DELIXI or CHINT brand MCCB type main circuit breaker

○ Diesel engine and alternator mounted on a based frame with anti-vibration mountings

○ 12V DC electric start system with free-maintenance lead-acid battery and float battery charger

○ Industrial silencers with blexible connects and elbow

○ Complete engine alarm system

○ CE, ISO9001:2015


● GENERATOR SET

Open Type Model GYM10D5
Silent Type Model GYM10S5
Prime Power 8KW/10KVA
Standby Power 8.8KW/11KVA
Phase & Wire 3 Phase, 4 Wires
Power Factor 0.8
Frequency 50Hz
Rated Power 220/380V, 230/400V, 240/415V
Fuel Tank Capacity 20L

● DIESEL ENGINE


Model YANMAR 3TNV82A-GGE
Aspiration System Natuarl
Cooling Method Water Cooled
Governor Type Mechanical
Bore x Stroke 82 x 84 mm
Compression Ratio 17.5:1
Rated Speed 1500 RPM
Displacement 1.331L
Rated Power 9.9KW
Standby Power 11KW
Fuel System Direct Injection
Oil Capacity 5.5L
Coolant Capacity 1.8L
Electric Starting System DC 12V
Cylinder Number 3

● FUEL CONSUMPTION

100% Prime Load 3.1L/H
75% Prime Load -
50% Prime Load -
25% Prime Load -

ALTERNATOR


Number of Phase 3
Rated Power 8.0KW/10KVA
Frequency 50Hz
Power Factor 0.8
Poles 4
Temp. Rise 125K
Terminals 6/12
Insulation Type H Class
Ambient Temo. 40℃
IP Rating IP23
Excitation System Self-Excited
Bearing Single Bearing
Coating Vacuum Impregnation
Voltage Regulator A.V.R
Coupling Flexible Disc

CONTROL PANEL


Emergency stop button

Main circuit breaker

Float baterry charger

Manual/Autostart control panel

Fuel level meter

Controller power switch

Alarm buzzer

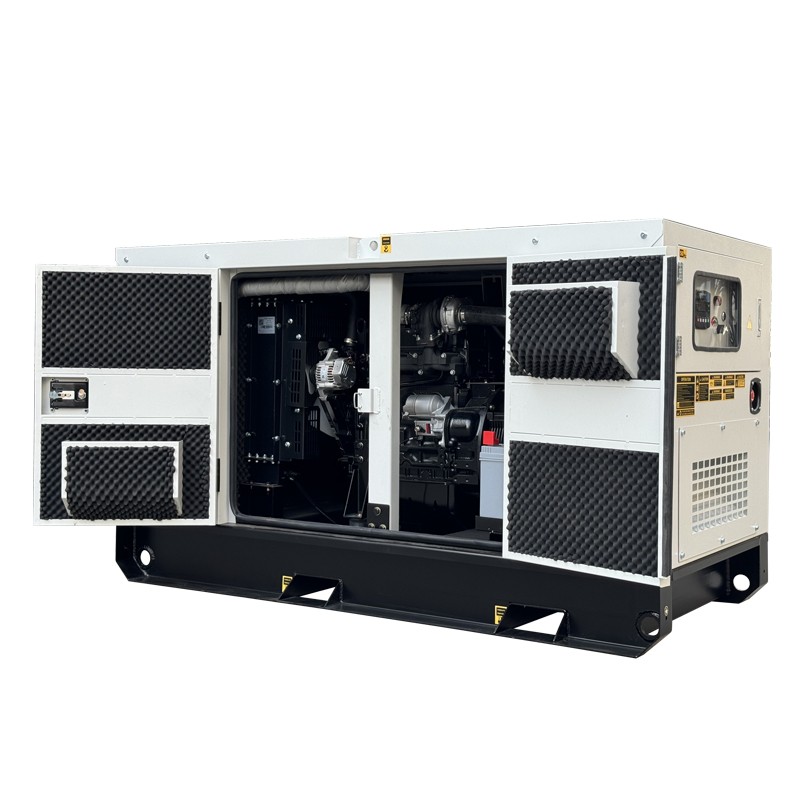

● GENLITEC POWER® D-TYPE SOUND ATTENUATED ENCLOSURE


Fully Weatherproof Sound Attenuated Enclosure With Internal Exhaust Silencer

Highly Corrosion Resistant Construction


WARRANTY

12 months or 1000 working hours, whichever comes first


OPTIONS

ATS (for automatic start & stop when electricity power off & on)

Single axle trailer

12 hours fuel tank

24 hours fuel tank

Power Sockets (CEE or AUS standard)

Remote Monitoring System (4G, WIFI)
