60Hz 7.2kW 9kVA Diesel Generator with Yanmar 3TNV76-GGE Diesel Engine
Short Description
GENLITEC POWER GYM9D6/GYM9S6 diesel generator sets powered by original YANMAR 3TNV76-GGE, with prime power 7.2KW/9KVA and standby power 8KW/10KVA.
- ModelGYM9D6 | GYM9S6
- Frequency60Hz
- Prime Power7.2KW/9KVA
- Standby Power8KW/10KVA
- Engine ModelYanmar 3TNV76-GGE
- AlternatorStamford/Leroy Somer/Genlitec Power
- Fuel Consumption (100% Load)3.03L/H
- MOQ1 Set
Product Details
Product Tags
Video
Introduction
The GENLITEC POWER® GYM9D6 open type and GYM9S6 silent type diesel generator sets provide 7.2kW/9kVA prime power and 8kW/10kVA standby power. Powered by a YANMAR 3TNV76-GGE three-cylinder, water-cooled diesel engine and coupled with a brushless copper alternator, these generator sets are designed to provide stable and dependable power for commercial, industrial, agricultural, construction and backup applications.
Designed for 60Hz operation at 1800RPM, the generator sets provide three-phase, four-wire power with flexible voltage configurations of 120/208V, 127/220V, 220/380V and 254/440V. The generator package features a DC 12V electric starting system, water-cooled engine, anti-vibration mountings and a control panel for reliable operation and convenient monitoring.

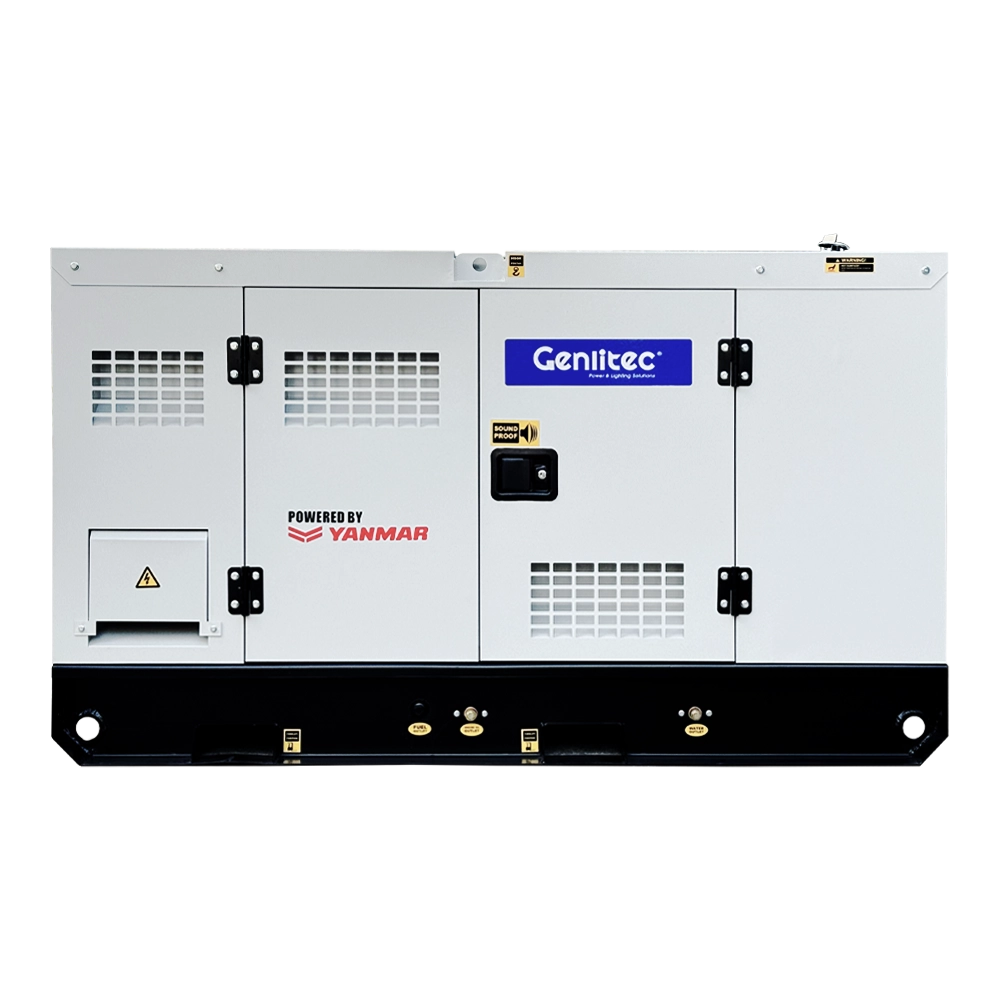

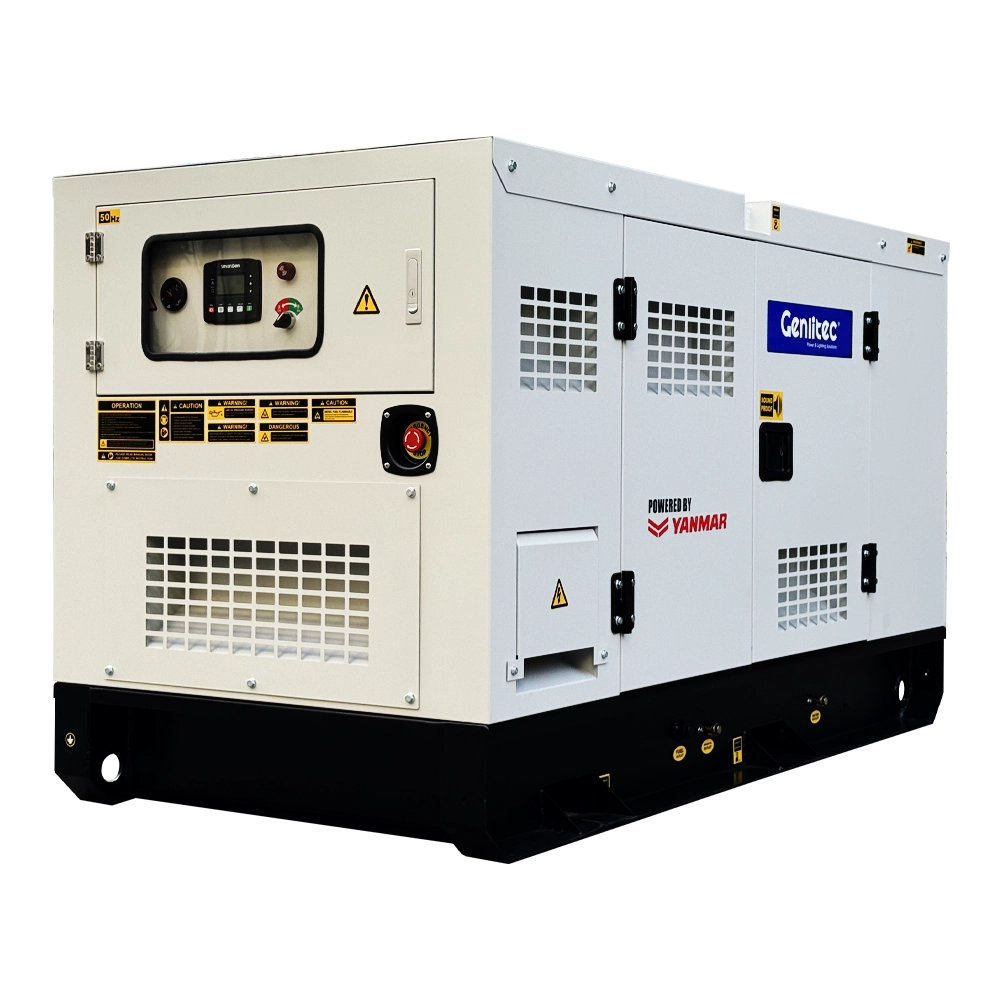

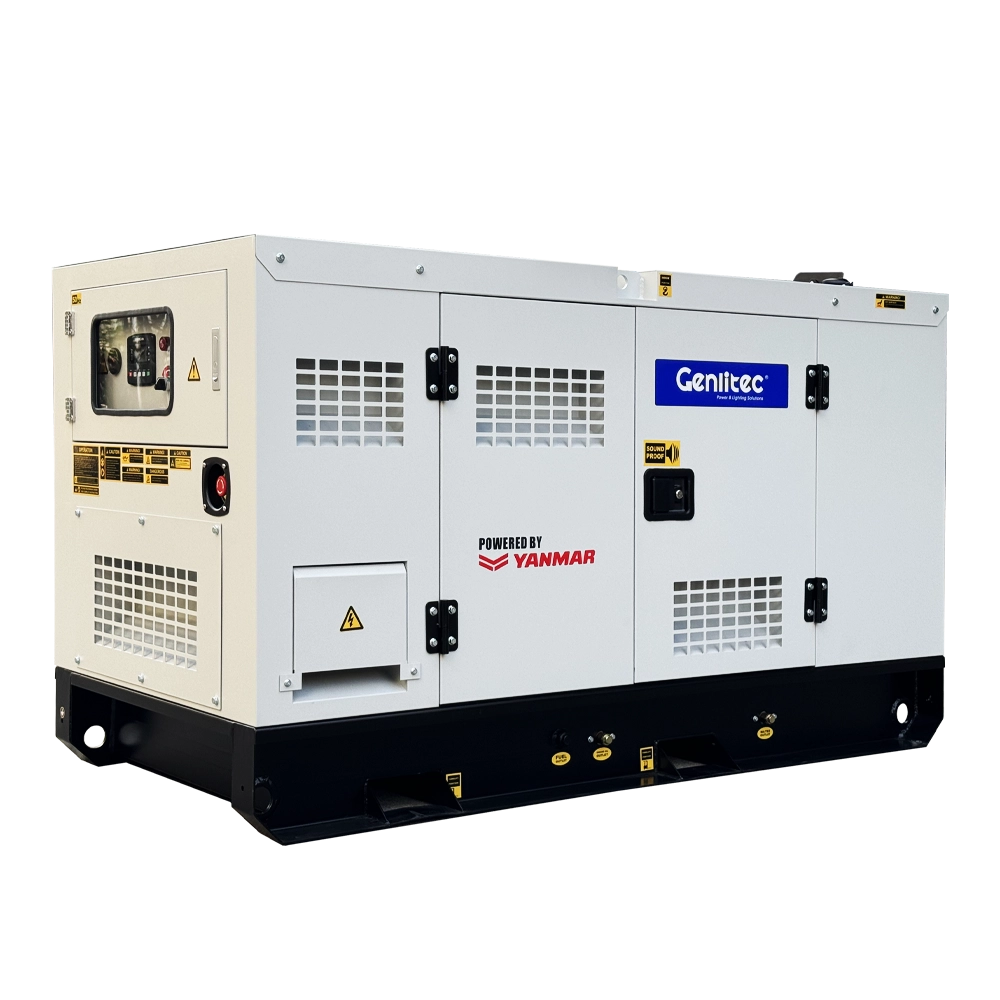

The GYM9D6 open type is suitable for installations where ventilation, service access and convenient maintenance are important. The GYM9S6 silent type can be equipped with a weatherproof sound-attenuated enclosure with an internal exhaust silencer, making it suitable for applications requiring reduced operating noise and improved protection in outdoor environments.
Generator Set
| Open Type Model | GYM9D6 |
| Silent Type Model | GYM9S6 |
| Prime Power | 7.2kW/9kVA |
| Standby Power | 8kW/10kVA |
| Phase & Wire | 3 Phase, 4 Wires |
| Power Factor | 0.8 |
| Frequency | 60Hz |
| Rated Voltage | 120/208V; 127/220V; 220/380V; 254/440V |
| Rated Speed | 1800RPM |
| Fuel Tank Capacity | 50L |
Diesel Engine
| Engine Model | YANMAR 3TNV76-GGE |
| Cylinder Number | 3 |
| Aspiration System | Natural |
| Cooling Method | Water Cooled |
| Governor Type | Mechanical |
| Bore x Stroke | 76 x 82 mm |
| Compression Ratio | 17.5:1 |
| Rated Speed | 1800RPM |
| Displacement | 1.116L |
| Rated Power | 9.8kW |
| Standby Power | 10.7kW |
| Fuel System | Ball-Type Swirl Chamber |
| Oil Capacity | 3.4L |
| Coolant Capacity | 0.9L |
| Electric Starting System | DC 12V |
Fuel Consumption
| 100% Prime Load | 3.03L/H |
| 75% Prime Load | 2.27L/H |
| 50% Prime Load | 1.56L/H |
| 25% Prime Load | - |
Alternator
| Number of Phase | 3 |
| Rated Power | 8.2kW/10.2kVA |
| Frequency | 60Hz |
| Power Factor | 0.8 |
| Poles | 4 |
| Temperature Rise | 125K |
| Terminals | 6/12 |
| Insulation Class | H Class |
| Ambient Temperature | 40°C |
| IP Rating | IP23 |
| Excitation System | Self-Excited |
| Bearing | Single Bearing |
| Coating | Vacuum Impregnation |
| Voltage Regulator | AVR |
| Coupling | Flexible Disc |
Control Panel
| ○ Emergency stop button | ○ Main circuit breaker |
| ○ Float battery charger | ○ Manual/Auto start control panel |
| ○ Fuel level meter | ○ Controller power switch |
| ○ Alarm buzzer |
Sound Attenuated Enclosure
○ Weatherproof sound-attenuated enclosure with internal exhaust silencer
○ Corrosion-resistant construction for outdoor installation
○ Available for GYM9S6 silent type generator set
Options
○ ATS for automatic start and stop when utility power fails or returns
○ Single axle trailer
○ 12-hour fuel tank
○ 24-hour fuel tank
○ Power sockets, including CEE or AUS standards
Applications
The GENLITEC POWER 7.2kW/9.0kVA diesel generator set is suitable for a wide range of prime, standby and backup power applications, including:
○ Commercial and office buildings
○ Industrial facilities
○ Construction and job sites
○ Agricultural and rural facilities
○ Telecommunication and remote sites
○ Emergency and standby power systems
Why Choose GENLITEC POWER
GENLITEC POWER is a professional manufacturer and exporter of diesel generator sets and mobile lighting towers, providing reliable power generation solutions for construction, mining, telecommunications, infrastructure, industrial, commercial and other demanding applications. With international project experience and a flexible product portfolio, GENLITEC POWER supports customers with equipment selection, customized configurations, quality control, export service and technical support.
○ Diesel generator sets and mobile lighting towers from one supplier
○ Multiple engine, alternator and controller brand options
○ Flexible generator configurations for different applications
○ Professional manufacturing and quality control
○ International export and project experience
○ Technical support and after-sales service
For more information, please visit the GENLITEC POWER® Why Choose GENLITEC POWER page.
Warranty
GENLITEC POWER provides a standard warranty of 12 months or 1000 working hours, whichever comes first. For details, please refer to the GENLITEC POWER® Warranty Policy.
