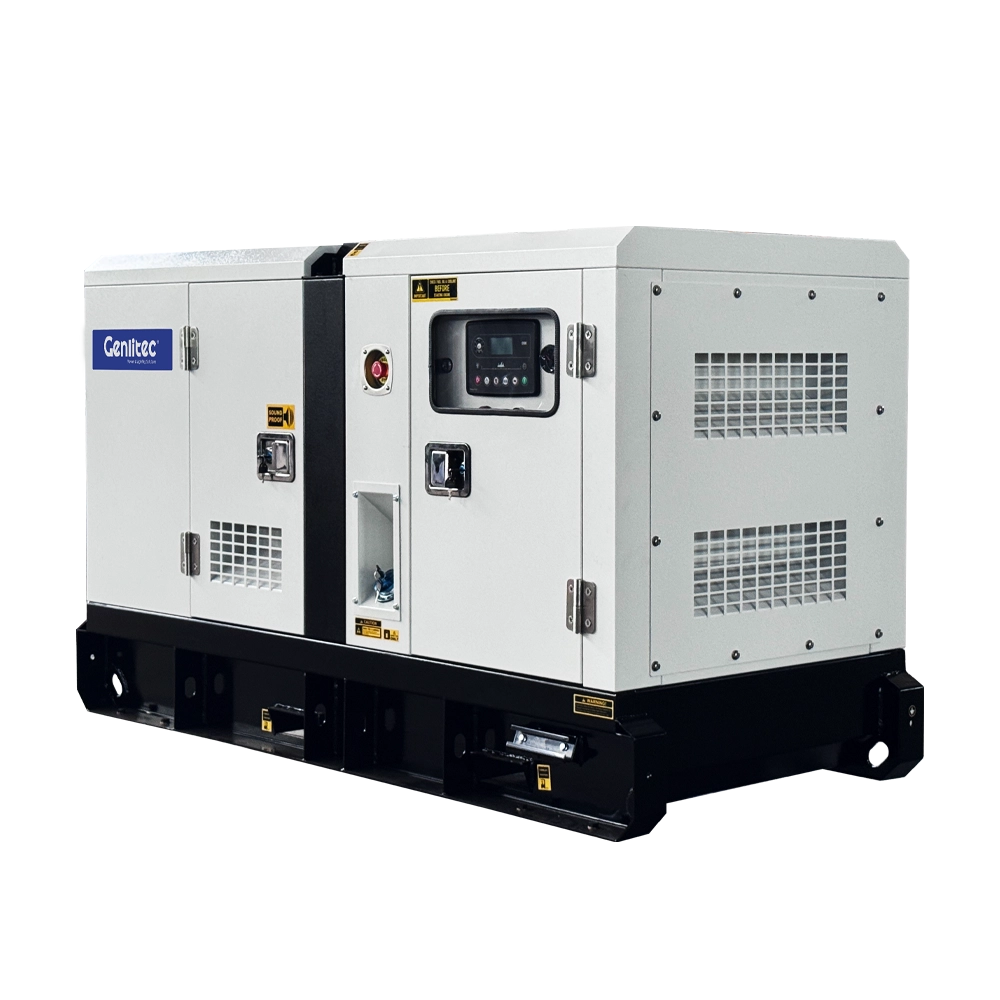

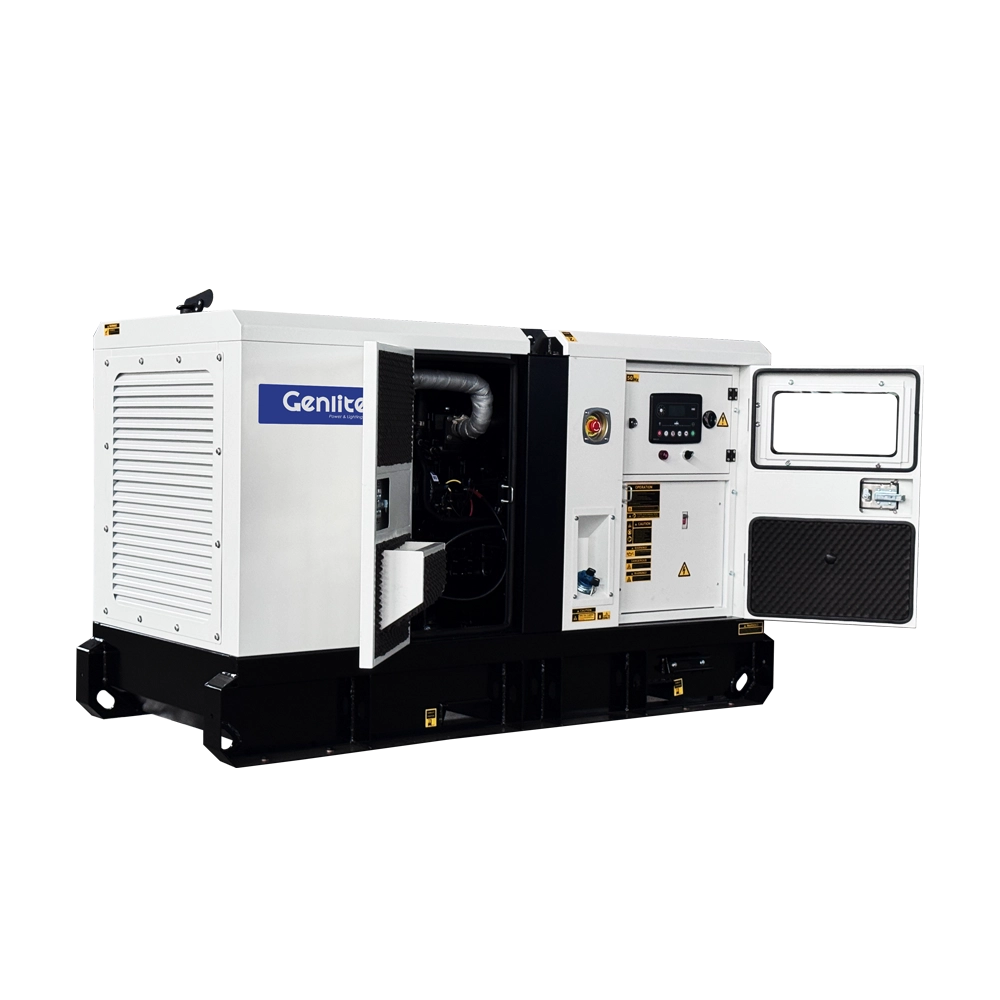

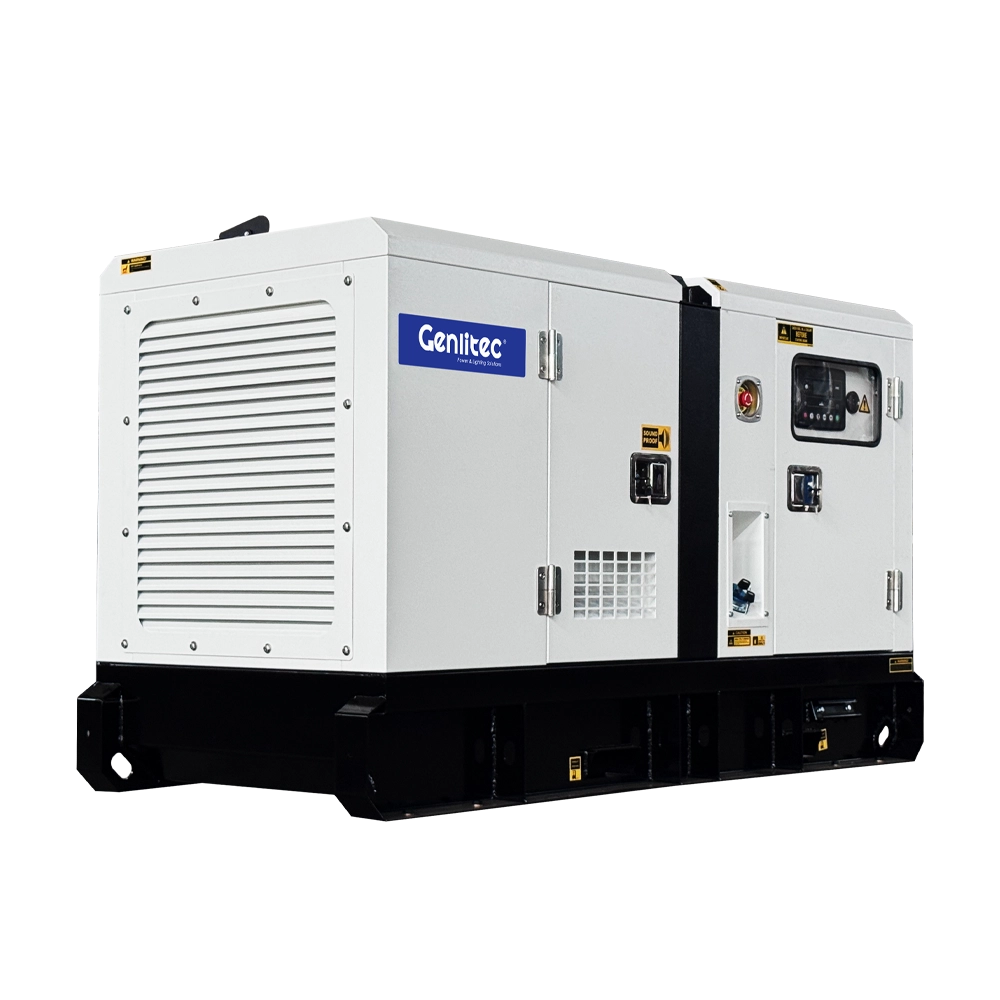

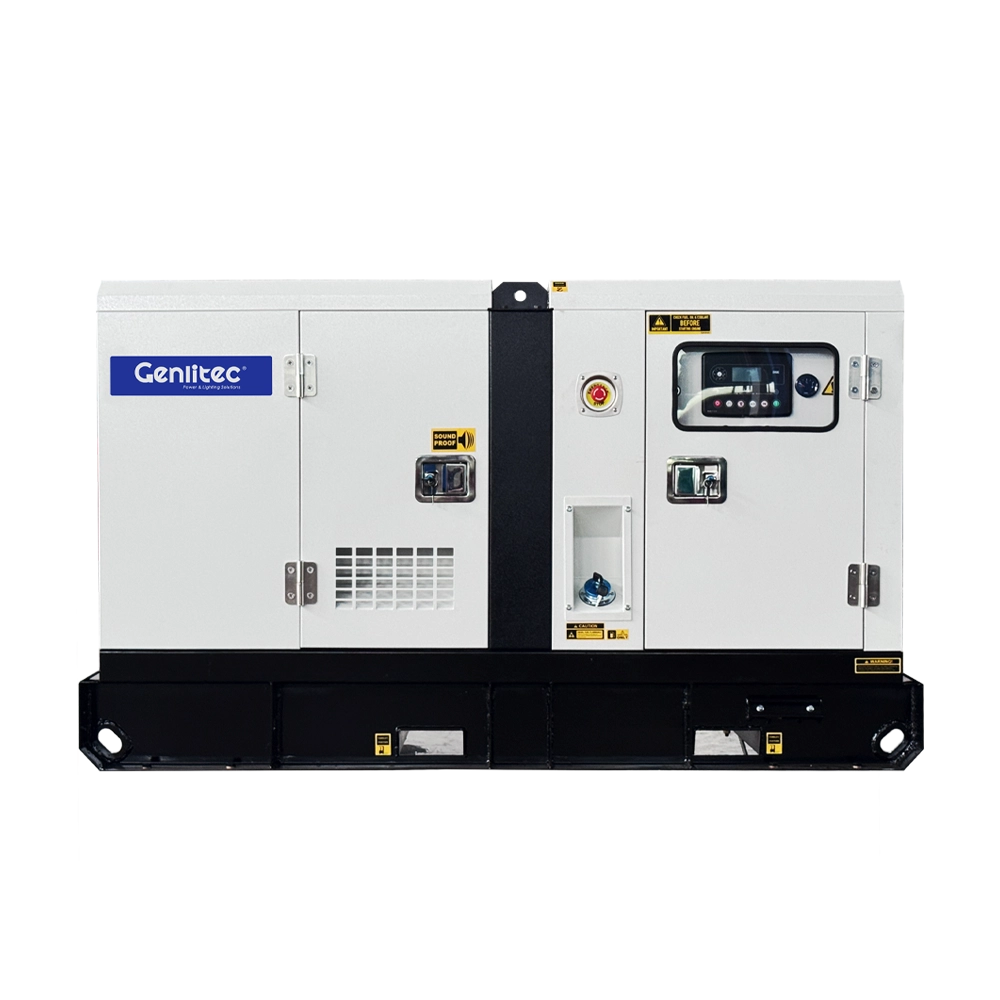

50Hz 10kW 12.5kVA Diesel Generator with Perkins 403D-15G Engine
Introduction
The GENLITEC POWER GPP13D5-II / GPP13S5-II is a 10KW/12.5KVA prime diesel generator set with 11KW/14KVA standby power, designed for reliable prime, standby and backup power applications. It operates at 50Hz and 1500 RPM, with rated voltage configurations of 220/380V, 230/400V and 240/415V.
Powered by a Perkins 403D-15G 3-cylinder diesel engine and matched with a 10.8KW/13.5KVA alternator, the GPP13D5-II open type and GPP13S5-II silent type generator sets provide a practical power solution for commercial buildings, industrial facilities, construction sites, agricultural applications, telecommunications and emergency backup power systems.
Generator Set
| Open Type Model | GPP13D5-II |
| Silent Type Model | GPP13S5-II |
| Frequency | 50Hz |
| Phase & Wires | 3 Phase, 4 Wires |
| Power Factor | 0.8 |
| Prime Power | 10KW/12.5KVA |
| Standby Power | 11KW/14KVA |
| Rated Voltage | 220/380V; 230/400V; 240/415V |
| Rated Speed | 1500 RPM |
| Fuel Tank Capacity | 50L |
Diesel Engine
| Engine Model | Perkins 403D-15G |
| Cylinder Number | 3 |
| Cylinder Arrangement | Vertical In-line |
| Cycle | 4 Stroke |
| Aspiration System | Naturally Aspirated |
| Cooling Method | Water Cooled |
| Governor Type | Mechanical |
| Bore x Stroke | 84 x 90 mm |
| Compression Ratio | 22.5:1 |
| Rated Speed | 1500 RPM |
| Displacement | 1.496L |
| Rated Power | 12.2KW |
| Standby Power | 13.5KW |
| Fuel System | Indirect Injection |
| Oil Capacity | 6L |
| Coolant Capacity | 6L |
| Electric Starting System | DC 12V |
Fuel Consumption
| 100% Prime Load | 3.6L/H |
| 75% Prime Load | 2.8L/H |
| 50% Prime Load | 2.0L/H |
| 25% Prime Load | - |
Alternator
| Number of Phase | 3 |
| Rated Power | 10.8KW/13.5KVA |
| Frequency | 50Hz |
| Power Factor | 0.8 |
| Poles | 4 |
| Temperature Rise | 125K |
| Terminals | 6/12 |
| Insulation Class | H Class |
| Ambient Temperature | 40℃ |
| IP Rating | IP23 |
| Excitation System | Self-Excited |
| Bearing | Single Bearing |
| Coating | Vacuum Impregnation |
| Voltage Regulator | A.V.R |
| Coupling | Flexible Disc |
Control Panel
| ○ Emergency stop button | ○ Main circuit breaker |
| ○ Float battery charger | ○ Manual/Auto start control panel |
| ○ Fuel level meter | ○ Controller power switch |
| ○ Alarm buzzer |
○ Weatherproof sound-attenuated enclosure with internal exhaust silencer
○ Corrosion-resistant construction for outdoor installation
○ Available for GPP13S5-II silent type generator set
Options
○ ATS for automatic start and stop when utility power fails or returns
○ Remote monitoring system
○ Single axle trailer
○ 24-hour fuel tank
○ 48-hour fuel tank
○ Power sockets, including CEE or AUS standards
Applications
The GENLITEC POWER 10KW/12.5KVA diesel generator set is suitable for a wide range of prime, standby and backup power applications, including:
○ Commercial and office buildings
○ Industrial facilities
○ Construction and job sites
○ Agricultural and rural facilities
○ Telecommunication and remote sites
○ Emergency and standby power systems
Why Choose GENLITEC POWER
GENLITEC POWER diesel generator sets are designed to provide dependable power, practical configuration and reliable performance for a wide range of applications.
○ Perkins diesel engine for reliable and efficient power generation
○ Prime and standby power configurations for different operating requirements
○ Multiple voltage configurations available
○ Open and silent type configurations available
○ Suitable for commercial, industrial and backup power applications
○ Factory-direct supply with customized generator set solutions
For more information, please visit the GENLITEC POWER® Why Choose GENLITEC POWER page.
Warranty
GENLITEC POWER provides a standard warranty of 12 months or 1000 working hours, whichever comes first. For details, please refer to the GENLITEC POWER® Warranty Policy.
