50Hz 5.6kW 7KVA Diesel Generator with Kubota D905-E2BG Diesel Engine
Short Description
GENLITEC POWER® GPK7D5/GPK7S5 diesel generator set powered by original KUBOTA D905-E2BG-CHN, with prime power 5.6KW/7KVA, standby power 6KW/7.5KVA.
- ModelGPK7D5 | GPK7S5
- Frequency50Hz
- Prime Power5.6KW/7KVA
- Standby Power6KW/7.5KVA
- EngineKUBOTA D905-E2BG-CHN
- AlternatorStamford/Leroy Somer/Genlitec Power
- Fuel Consumption (100% Load)2.1L/H
- MOQ1 Set
Product Details
Product Tags
Introduction
The GENLITEC POWER® GPK7D5 and GPK7S5 are 7kVA Kubota diesel generator sets designed to provide reliable power for residential, commercial, construction, agricultural, backup and other small-scale power applications. The generator sets provide 5.6kW/7kVA prime power and 6kW/7.5kVA standby power at 50Hz.

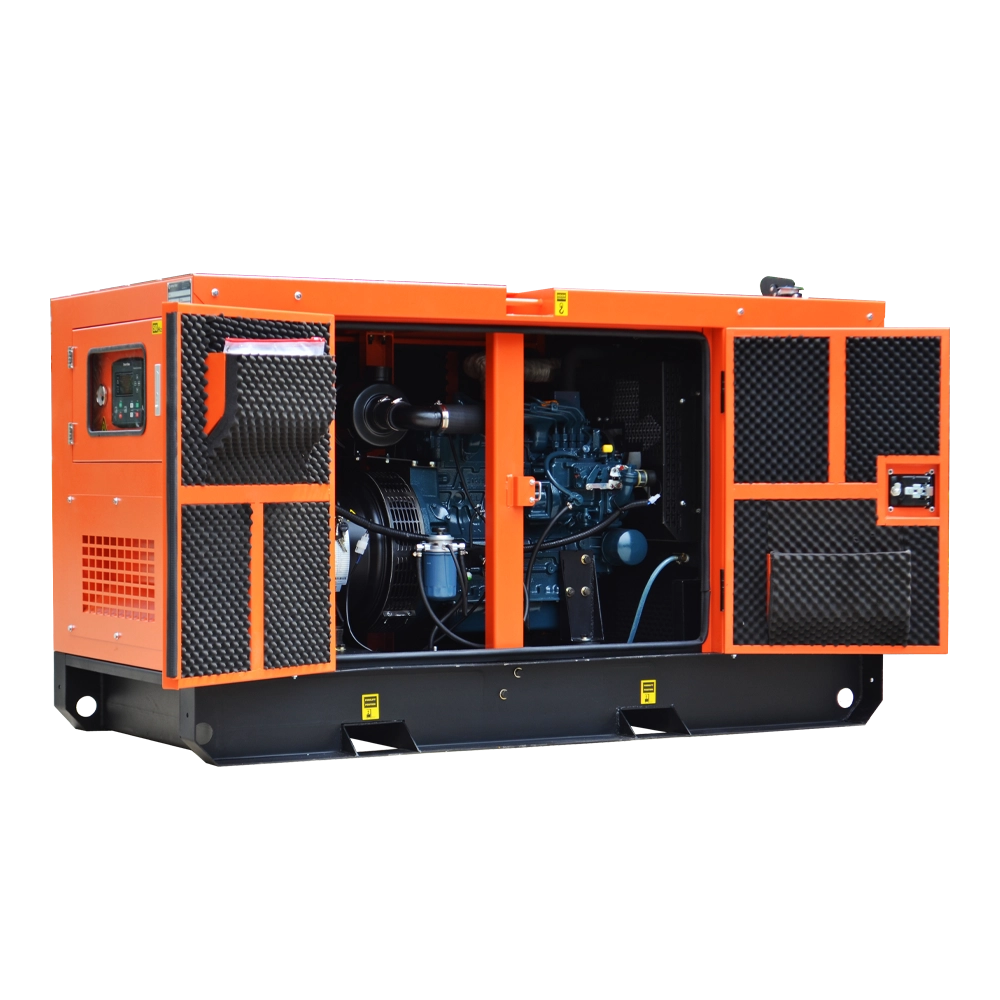

Powered by the Kubota D905-E2BG-CHN three-cylinder, 0.898-liter water-cooled diesel engine, the GPK7 series combines compact dimensions, efficient operation and dependable power output. The engine features natural aspiration, E-TVCS combustion technology, a Bosch Type PFR MD fuel injection pump and a 22:1 compression ratio.

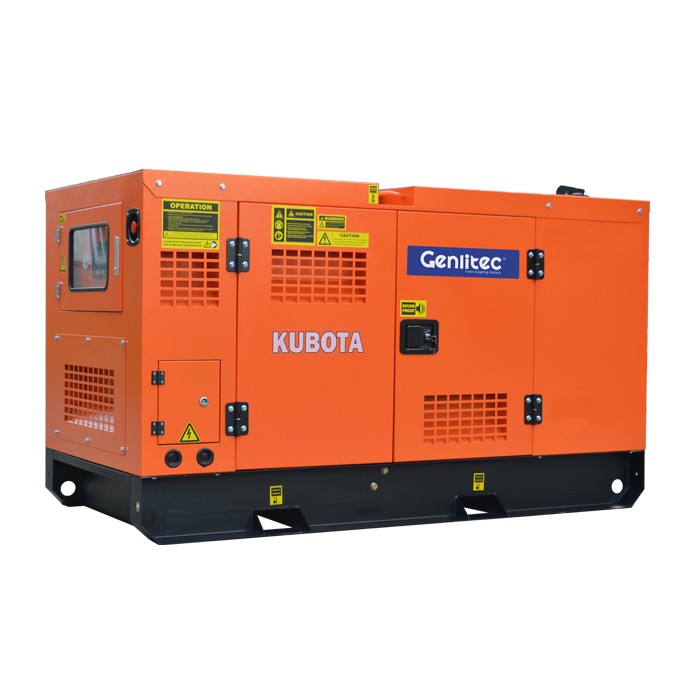

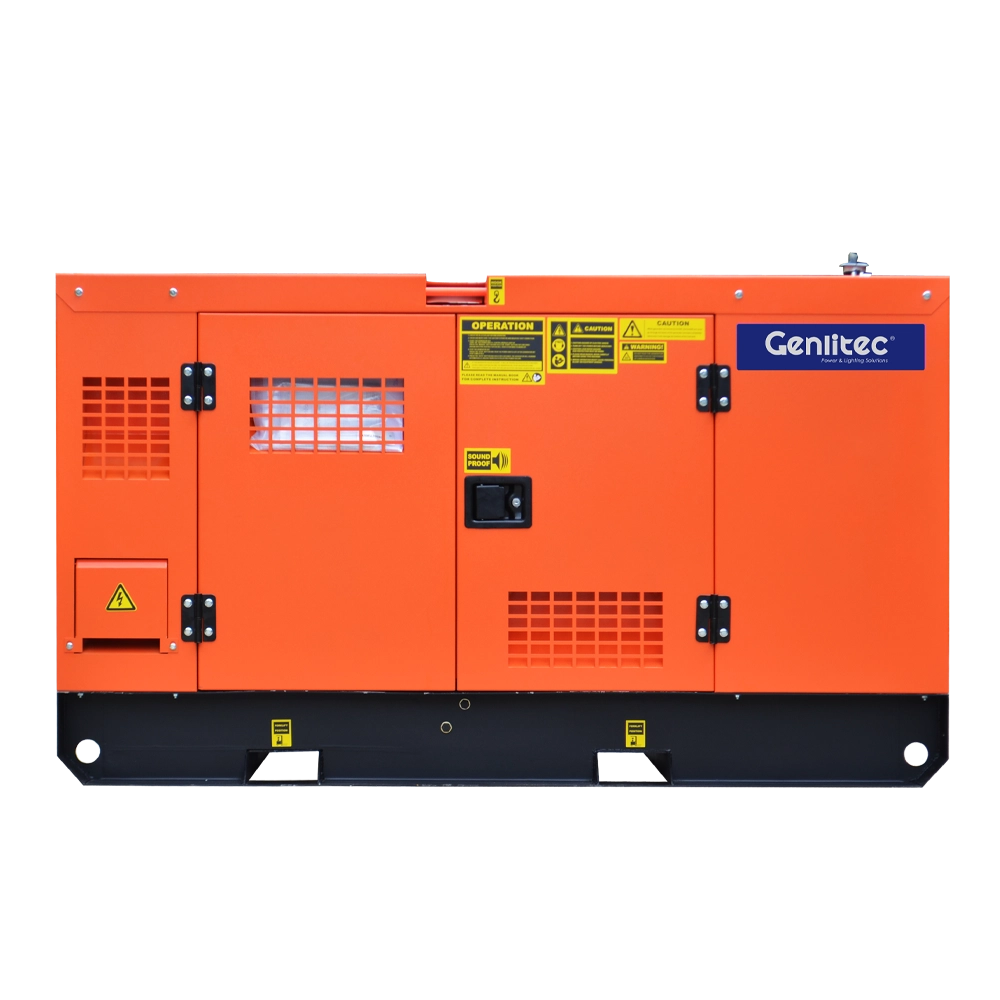

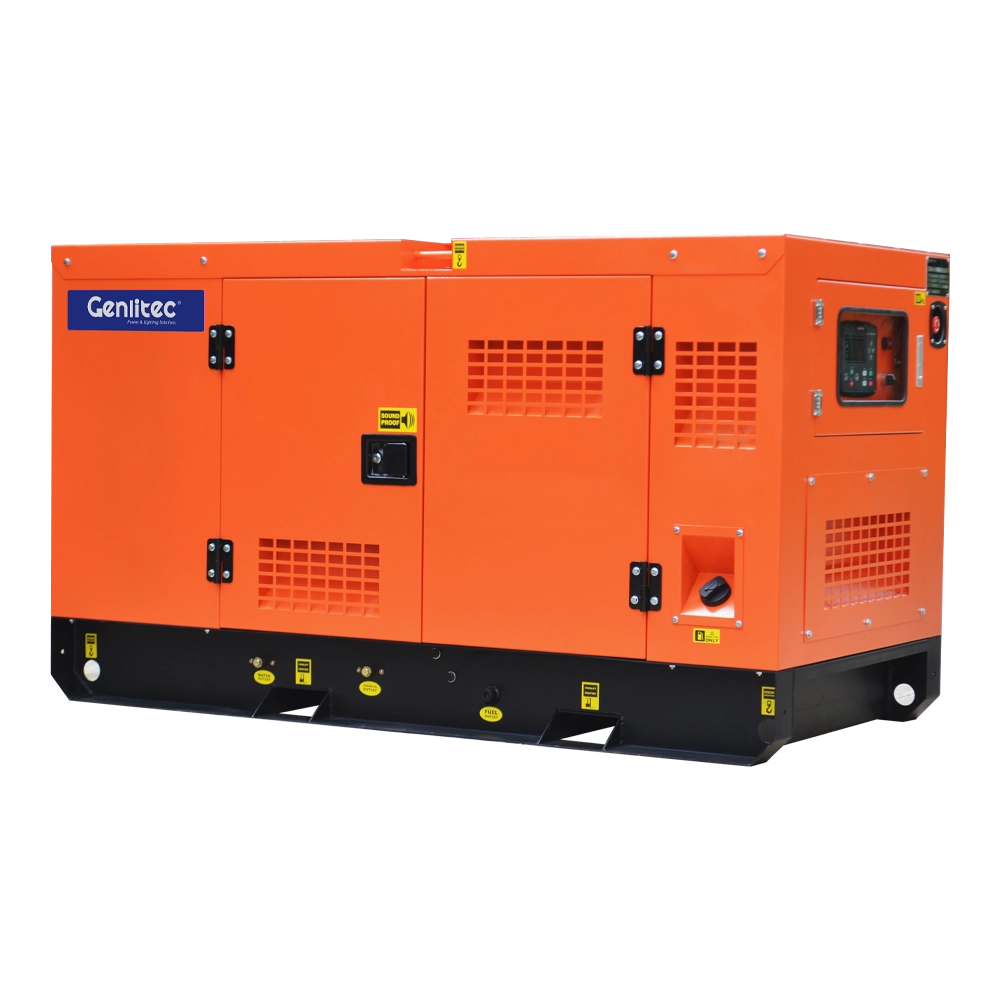

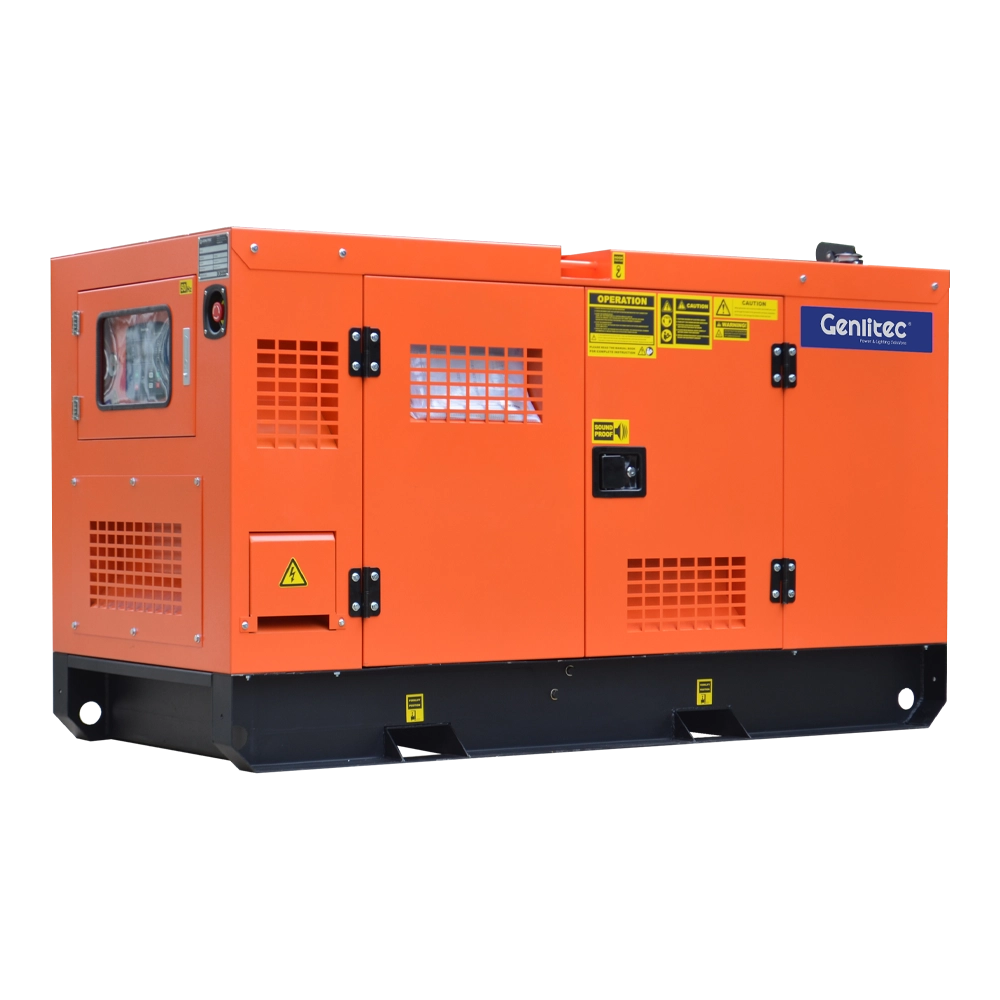

The GPK7 generator set is available in both open and silent configurations. The GPK7D5 open type is suitable for generator rooms and installations where ventilation and easy maintenance are required, while the GPK7S5 silent type provides additional noise attenuation and protection for outdoor or noise-sensitive applications. A 45L fuel tank is provided for extended operating periods.
Generator Set
| Open Type Model | GPK7D5 |
| Silent Type Model | GPK7S5 |
| Prime Power | 5.6KW/7KVA |
| Standby Power | 6KW/7.5KVA |
| Phase & Wires | 3 Phase, 4 Wires |
| Power Factor | 0.8 |
| Frequency | 50Hz |
| Rated Voltage | 380~415V |
| Fuel Tank Capacity | 45L |
Diesel Engine
| Engine Model | Kubota D905-E2BG-CHN |
| Cylinder Number | 3 |
| Aspiration System | Natural |
| Cooling Method | Water Cooled |
| Combustion System | E-TVCS |
| Bore x Stroke | 72 x 73.6mm |
| Compression Ratio | 22:1 |
| Rated Speed | 1500 RPM |
| Displacement | 0.898L |
| Rated Power | 6.6KW |
| Standby Power | 7.4KW |
| Fuel Injection Pump | Bosch Type PFR MD Pump |
| Oil Capacity | 5.1L |
| Charger Alternator Capacity | 12V-12.5A |
| Electric Starting System | DC 12V |
Fuel Consumption
| 100% Prime Load | 2.1L/H |
| 75% Prime Load | 1.6L/H |
| 50% Prime Load | - |
| 25% Prime Load | - |
Alternator
| Coupling | Flexible Disc |
| Number of Phase | 3 |
| Rated Power | 6KW/7.5KVA |
| Frequency | 50Hz |
| Power Factor | 0.8 |
| Poles | 4 |
| Temperature Rise | 125K |
| Insulation Class | H |
| Ambient Temperature | 40℃ |
| IP Rating | IP23 |
| Excitation System | Self-excited |
| Bearing | Single |
| Coating | Vacuum Impregnation |
| Voltage Regulator | A.V.R |
Control Panel
| ○ Emergency stop button | ○ Main circuit breaker |
| ○ Float battery charger | ○ Manual/Auto start control panel |
| ○ Fuel level meter | ○ Controller power switch |
| ○ Alarm buzzer |
Sound Attenuated Enclosure
○ Weatherproof sound-attenuated enclosure with internal exhaust silencer
○ Corrosion-resistant construction for outdoor installation
○ Available for GPK7S5 silent type generator set
Options
○ ATS panel
○ 12-hour fuel tank
○ 24-hour fuel tank
○ Water-jacket heater
○ Other heaters
○ Remote & Monitoring System
Applications
The GENLITEC POWER 5.6kW/7kVA Kubota diesel generator set is suitable for reliable prime and standby power in small-scale applications, including:
○ Residential buildings and homes
○ Small commercial buildings and shops
○ Construction sites and tools
○ Agricultural and farm applications
○ Telecom and remote facilities
○ Backup power for essential equipment
○ Emergency and standby power applications
Why Choose GENLITEC POWER
GENLITEC POWER is a professional manufacturer and exporter of diesel generator sets and mobile lighting towers, providing reliable power generation solutions for customers worldwide. Since its establishment, GENLITEC POWER has focused on generator manufacturing, engineering support and international power projects.
○ Founded in 2016 with more than 10 years of experience in the power generation industry
○ 66,000 m² manufacturing park with more than 7,000 m² assembly workshop
○ Annual production capacity of more than 2,500 generator sets
○ Diesel generator sets from 5kVA to 2,500kVA
○ Engine solutions from Cummins, Perkins, Caterpillar, Yanmar, Kubota, Isuzu, Deutz, SDEC, Weichai and Yuchai
○ Alternator solutions from Stamford, Leroy Somer and GENLITEC
○ Professional engineering support for ATS, synchronization, paralleling and remote monitoring systems
○ Quality control, factory testing and inspection before shipment
○ Products supplied to customers and projects in more than 50 countries
○ OEM and customized power generation solutions according to customer requirements
For more information, please visit the GENLITEC POWER® Why Choose GENLITEC POWER page.
Warranty
GENLITEC POWER provides a standard warranty of 12 months or 1000 working hours, whichever comes first. For details, please refer to the GENLITEC POWER® Warranty Policy.
