50Hz 6.7kW 8.4kVA Diesel Generator with Kubota D1105-E2BG Diesel Engine
Short Description
GENLITEC POWER GPK8D5/GPK8S5diesel generator set powered by original KUBOTA D1105-E2BG-CHN, with prime power 6.7KW/8.4KVA, standby power 7.4KW/9.2KVA.
- ModelGPK8S5
- Prime Power (PRP)6.7kW/8.4kVA
- Standby Power (ESP)7.4kW/9.2kVA
- EngineD1105-E2BG-CHN
- Fuel consumption (100%)2.5L/H
Product Details
Product Tags
Introduction
The GENLITEC POWER GPK8D5 and GPK8S5 are compact 8.4kVA diesel generator sets powered by a reliable Kubota D1105-E2BG-CHN diesel engine. Designed for stable and efficient power generation, this model provides 6.7kW/8.4kVA prime power and 7.4kW/9.2kVA standby power at 50Hz.
Available in open and silent configurations, the GPK8 series combines a compact design, water-cooled diesel engine and reliable alternator technology, making it suitable for backup power, commercial facilities, small industrial applications, construction sites and other locations requiring dependable three-phase power.
Generator Set
| Open Type Model | GPK8D5 |
| Silent Type Model | GPK8S5 |
| Frequency | 50Hz |
| Phase & Wires | 3 Phase, 4 Wires |
| Power Factor | 0.8 |
| Prime Power | 6.7KW/8.4KVA |
| Standby Power | 7.4KW/9.2KVA |
| Rated Voltage | 380~415V |
| Fuel Tank Capacity | 50L |
Diesel Engine
| Engine Model | Kubota D1105-E2BG-CHN |
| Aspiration System | Natural |
| Cooling Method | Water Cooled |
| Combustion System | E-TVCS |
| Bore x Stroke | 78 x 78.4mm |
| Compression Ratio | 22:1 |
| Rated Speed | 1500 RPM |
| Displacement | 1.123L |
| Rated Power | 8.4KW |
| Standby Power | 9.5KW |
| Fuel Injection Pump | Bosch Type PFR MD Pump |
| Cylinder Number | 3 |
| Oil Capacity | 5.1L |
| Charger Alternator Capacity | 12V-30A |
| Electric Starting System | DC 12V |
Fuel Consumption
| Load | Fuel Consumption |
| 100% Prime Load | 2.5L/H |
| 75% Prime Load | 1.9L/H |
| 50% Prime Load | 1.25L/H |
| 25% Prime Load | - |
Alternator
| Coupling | Flexible Disc |
| Number of Phase | 3 |
| Rated Power | 8.8KW/11KVA |
| Frequency | 50Hz |
| Power Factor | 0.8 |
| Poles | 4 |
| Temp. Rise | 125K |
| Insulation Class | H |
| Ambient Temp. | 40℃ |
| IP Rating | IP23 |
| Excitation System | Self-excited |
| Bearing | Single |
| Coating | Vacuum Impregnation |
| Voltage Regulator | A.V.R |
Control Panel
| ○ Emergency Stop | ○ Main Circuit Breaker |
| ○ Float Battery Charger | ○ Manual / Auto Start |
| ○ Fuel Level Meter | ○ Controller Power Switch |
| ○ Alarm Buzzer |
Sound Attenuated Enclosure
○ Weatherproof and sound attenuated enclosure
○ Internal exhaust silencer for reduced operating noise
○ Corrosion-resistant construction for outdoor installation
○ Designed to protect the generator set from weather and environmental conditions
Options
○ ATS
○ 12-hour fuel tank
○ 24-hour fuel tank
○ Water-jacket heater
○ Other heaters
○ Remote & Monitoring System
Applications
○ Residential and commercial backup power
○ Small commercial buildings and facilities
○ Construction sites
○ Workshops and small industrial facilities
○ Agricultural and farm applications
○ Telecom and remote locations
○ Emergency and standby power applications
Why Choose GENLITEC POWER
GENLITEC POWER is a professional manufacturer and exporter of diesel generator sets and mobile lighting towers, providing reliable power generation solutions for customers worldwide. Since its establishment, GENLITEC POWER has focused on generator manufacturing, engineering support and international power projects.
○ Founded in 2016 with more than 10 years of experience in the power generation industry
○ 66,000 m² manufacturing park with more than 7,000 m² assembly workshop
○ Annual production capacity of more than 2,500 generator sets
○ Diesel generator sets from 5kVA to 2,500kVA
○ Engine solutions from Cummins, Perkins, Caterpillar, Yanmar, Kubota, Isuzu, Deutz, SDEC, Weichai and Yuchai
○ Alternator solutions from Stamford, Leroy Somer and GENLITEC
○ Professional engineering support for ATS, synchronization, paralleling and remote monitoring systems
○ Quality control, factory testing and inspection before shipment
○ Products supplied to customers and projects in more than 50 countries
○ OEM and customized power generation solutions according to customer requirements
For more information, please visit the GENLITEC POWER® Why Choose GENLITEC POWER page.
Warranty
GENLITEC POWER provides a standard warranty of 12 months or 1000 working hours, whichever comes first, covering manufacturing defects under normal operation and maintenance.
For detailed warranty terms, please visit the GENLITEC POWER Warranty Policy.
Frequently Asked Questions
Q1. What is the rated power of the GPK8D5 and GPK8S5?
A: The generator set provides 6.7kW/8.4kVA prime power and 7.4kW/9.2kVA standby power at 50Hz.
Q2. Which engine is used in the GPK8 series?
A: The GPK8D5 and GPK8S5 are powered by the Kubota D1105-E2BG-CHN three-cylinder diesel engine.
Q3. What is the rated engine power?
A: The Kubota D1105-E2BG-CHN engine has a rated power of 8.4kW and standby power of 9.5kW at 1500 RPM.
Q4. What is the fuel tank capacity and fuel consumption?
A: The standard fuel tank capacity is 50L. Fuel consumption is 2.5L/H at 100% prime load and 1.9L/H at 75% prime load.
Q5. What voltage and frequency does the generator provide?
A: The generator is designed for 50Hz operation with a rated voltage range of 380~415V and a three-phase, four-wire configuration.
Q6. What is the difference between GPK8D5 and GPK8S5?

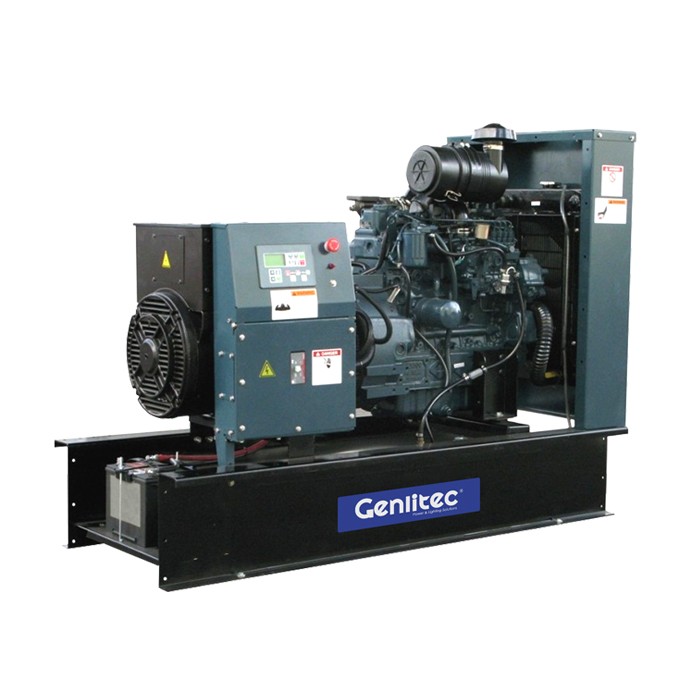

A: GPK8D5 is the open type model, while GPK8S5 is the silent type model with a sound attenuated enclosure for reduced noise and outdoor use.
Q7. Is the GPK8 suitable for prime power applications?
A: Yes. The GPK8 provides 6.7kW/8.4kVA prime power and can be used for continuous-duty power applications within its rated load range.
Q8. Can the GPK8 be equipped with an automatic transfer switch?
A: Yes. An ATS can be supplied as an optional configuration for automatic mains failure and standby power applications.
Q9. Where can the GPK8 diesel generator be used?
A: It is suitable for commercial buildings, construction sites, workshops, agricultural applications, telecom sites, remote locations and emergency backup power.
Q10. What is the warranty period?
A: GENLITEC POWER provides a standard warranty of 12 months or 1000 working hours, whichever comes first.
