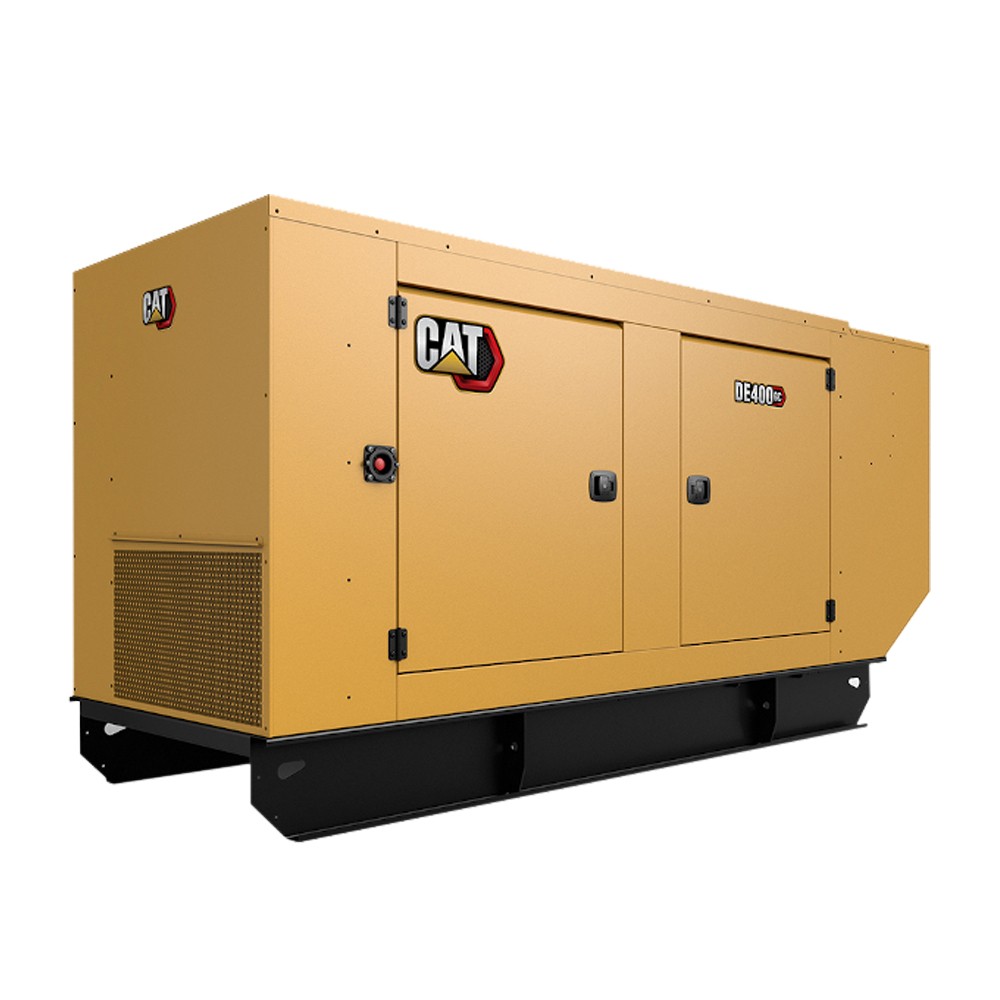

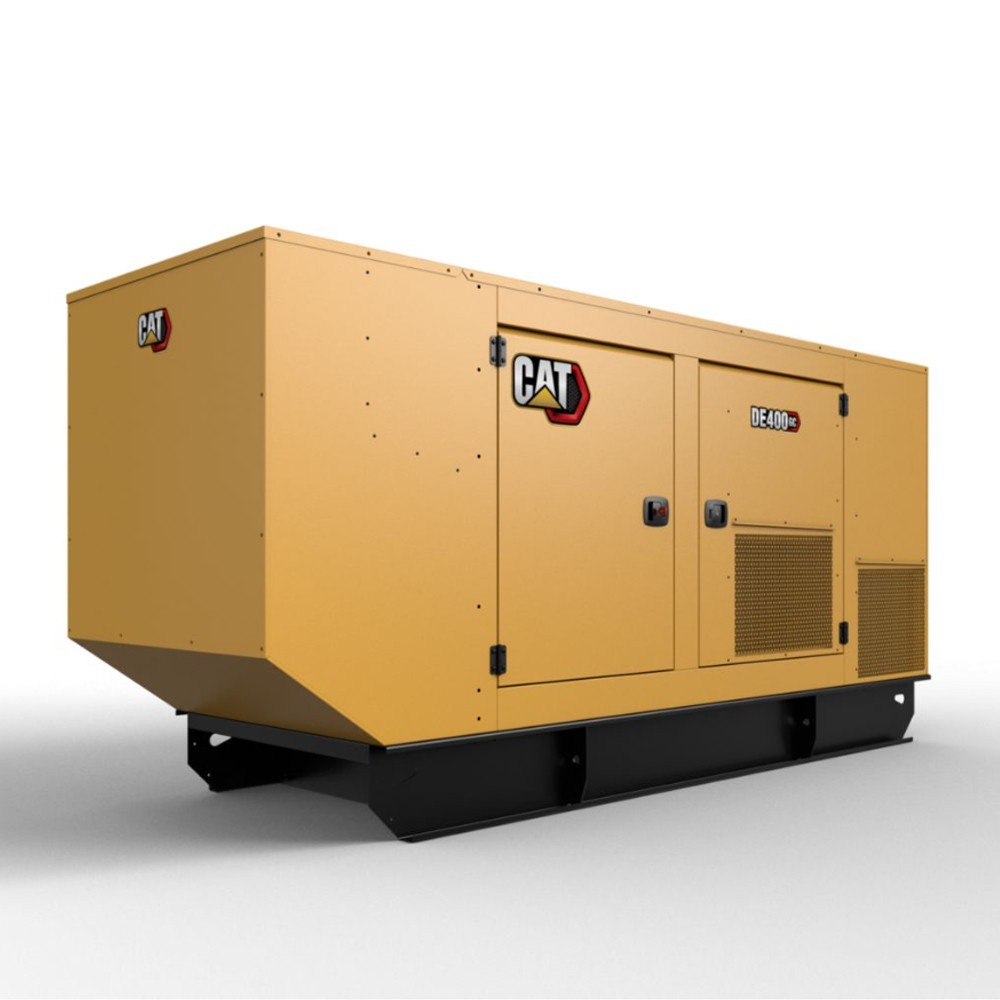

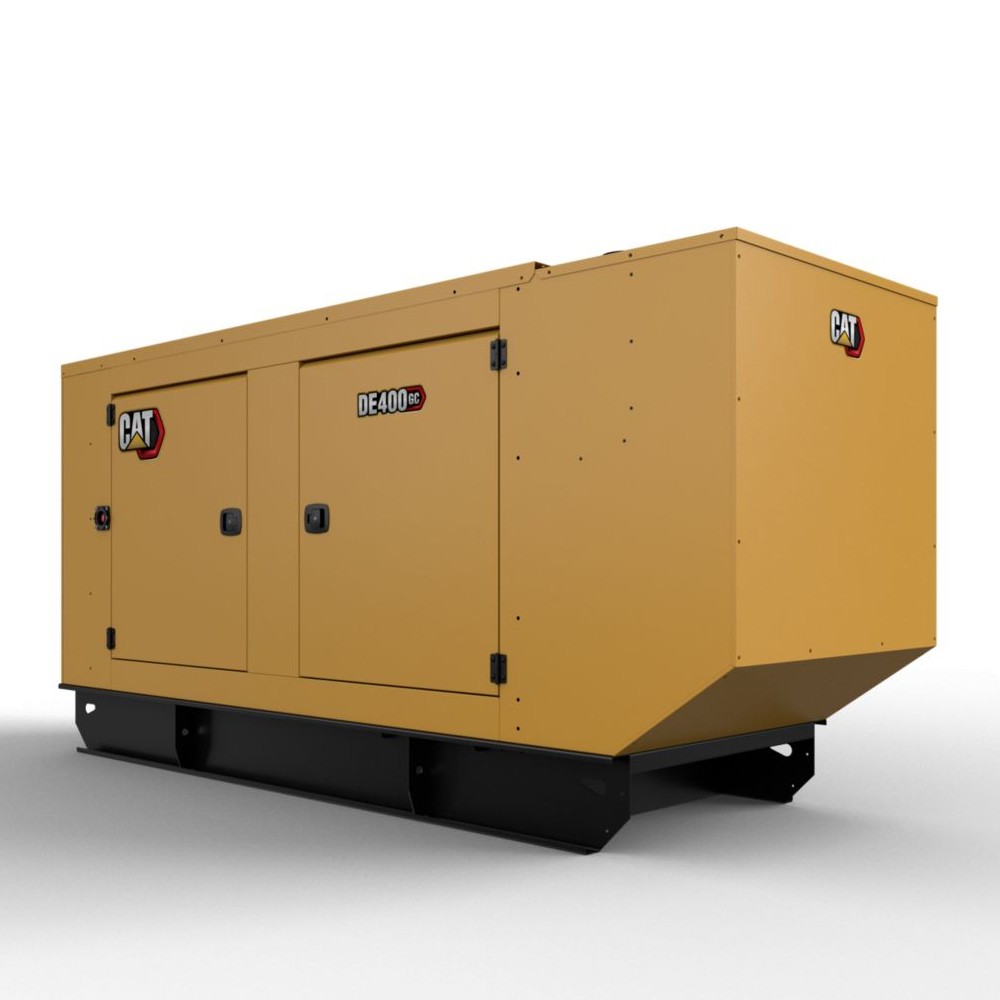

DE400 GC Standby 400KVA Caterpillar Diesel Generator
Short Description
Producing 400 kVA of reliable power at 50 Hz, the CATERPILLAR DE400 GC diesel generator set is designed to meet ISO 8528-5 transient response requirements.
- ModelDE400 GC
- Prime Power (PRP)N/A
- Standby Power (ESP)320kW/400kVA
- EngineC9.3B
- Fuel consumption (100%)81.3L/H
Product Details
Product Tags
Video
Introduction
The Caterpillar DE400 GC diesel generator set provides 400kVA/320kW standby power for commercial, industrial, construction, agricultural and backup power applications. Designed for 50Hz operation, the generator set delivers stable three-phase power with a 380~415V rated voltage and 0.8 power factor.
Powered by a Caterpillar C9.3B inline six-cylinder, four-stroke diesel engine, the DE400 GC features turbocharged, air-to-air aftercooled induction, common rail fuel injection and an electronic ADEM A6 governor. The generator set is equipped with a CATERPILLAR GCCP1.1 control panel, ABB main circuit breaker and a weatherproof sound attenuated enclosure with an internal exhaust silencer.
Generator Set
| Genset Model | Caterpillar DE400 GC |
| Standby Power | 400kVA/320kW |
| Phase & Wire | 3 Phase, 4 Wires |
| Power Factor | 0.8 |
| Frequency | 50Hz |
| Rated Voltage | 380~415V |
Diesel Engine
| Engine Model | Caterpillar C9.3B Inline 6 Cylinder, 4-Stroke Diesel |
| Bore x Stroke | 115 x 149 mm |
| Displacement | 9.3L |
| Compression Ratio | 16.5:1 |
| Aspiration | Turbocharged, Air to Air Aftercooled |
| Fuel Injection System | Common Rail |
| Governor Type | Electronic ADEM A6 |
Fuel Consumption
| 100% Load with Fan | 81.3L/H |
| 75% Load with Fan | 61.0L/H |
| 50% Load with Fan | 42.1L/H |
Control Panel
| ○ Emergency stop button | ○ ABB brand main circuit breaker |
| ○ CATERPILLAR GCCP1.1 control panel |
Sound Attenuated Enclosure
○ Fully weatherproof sound attenuated enclosure with internal exhaust silencer
○ Highly corrosion resistant construction
Applications
The Caterpillar DE400 GC 400kVA diesel generator set is suitable for a wide range of standby and backup power applications, including:
○ Commercial buildings
○ Industrial facilities
○ Construction sites
○ Agricultural facilities
○ Telecommunication facilities
○ Emergency and backup power applications
