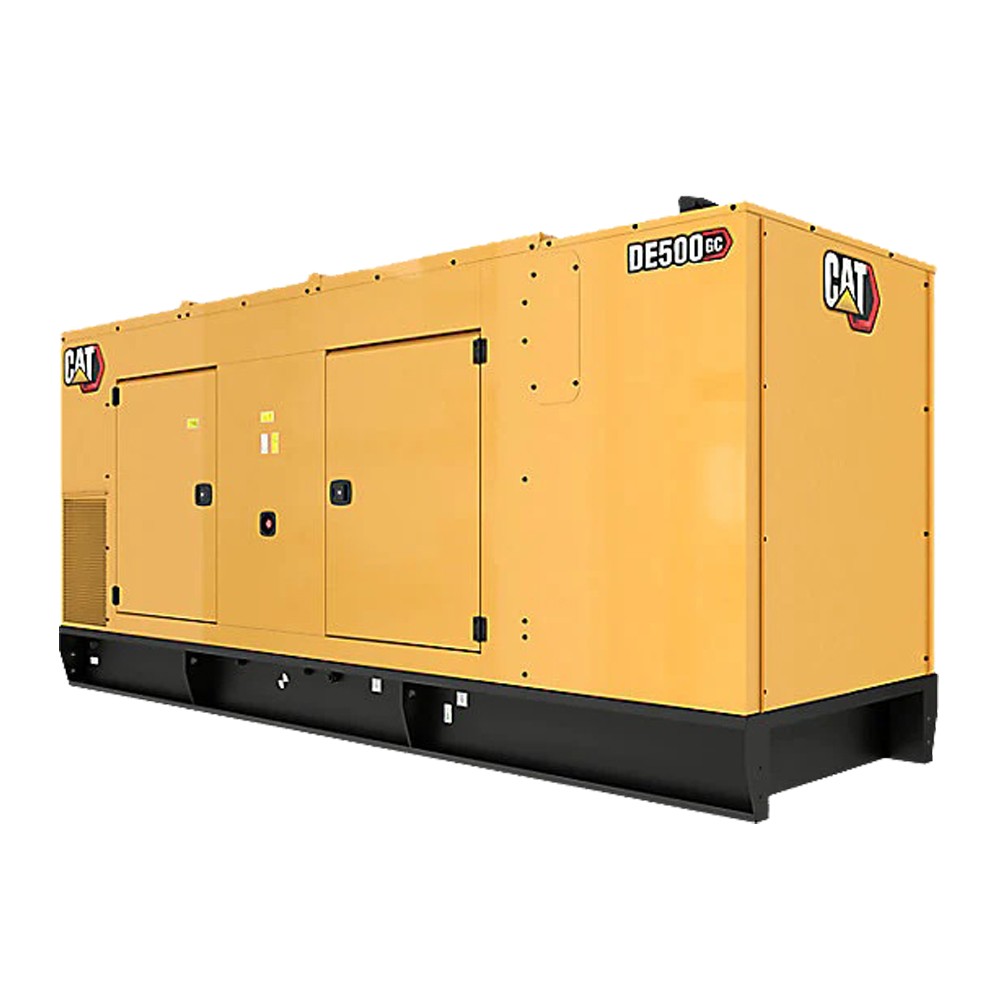

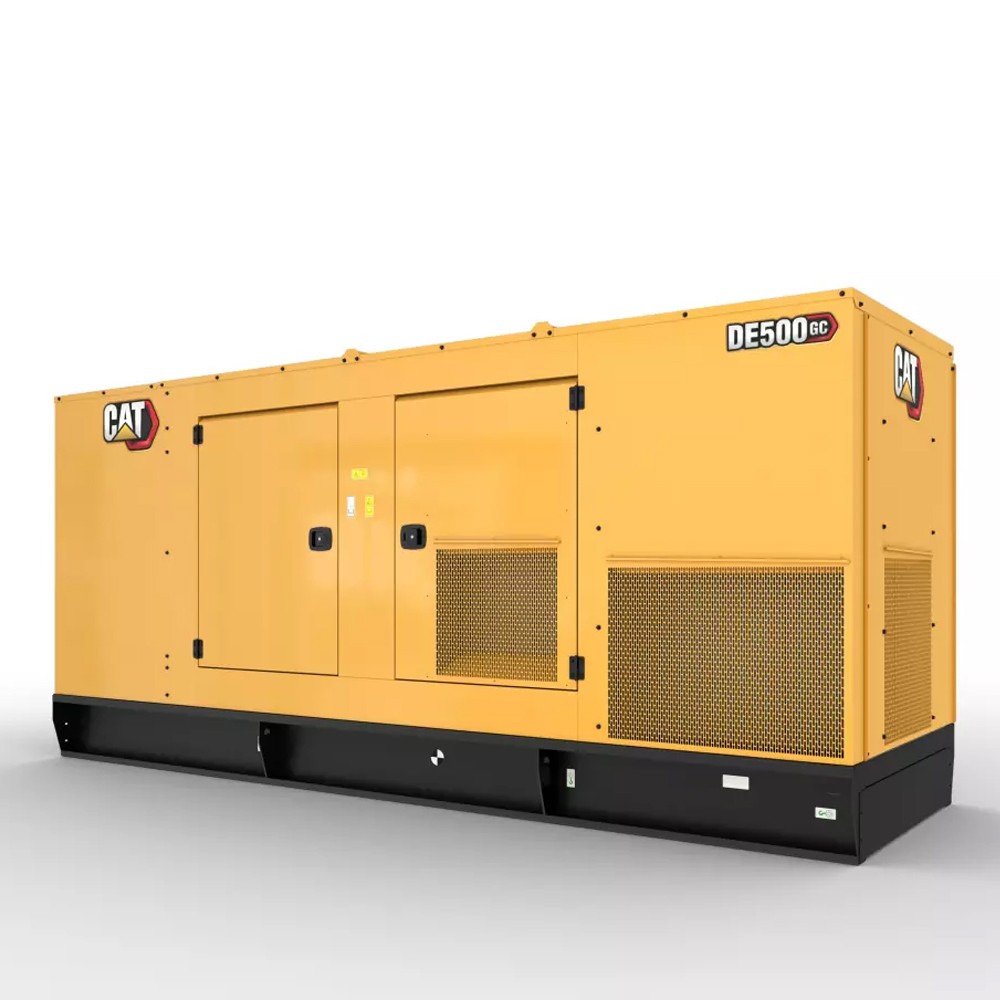

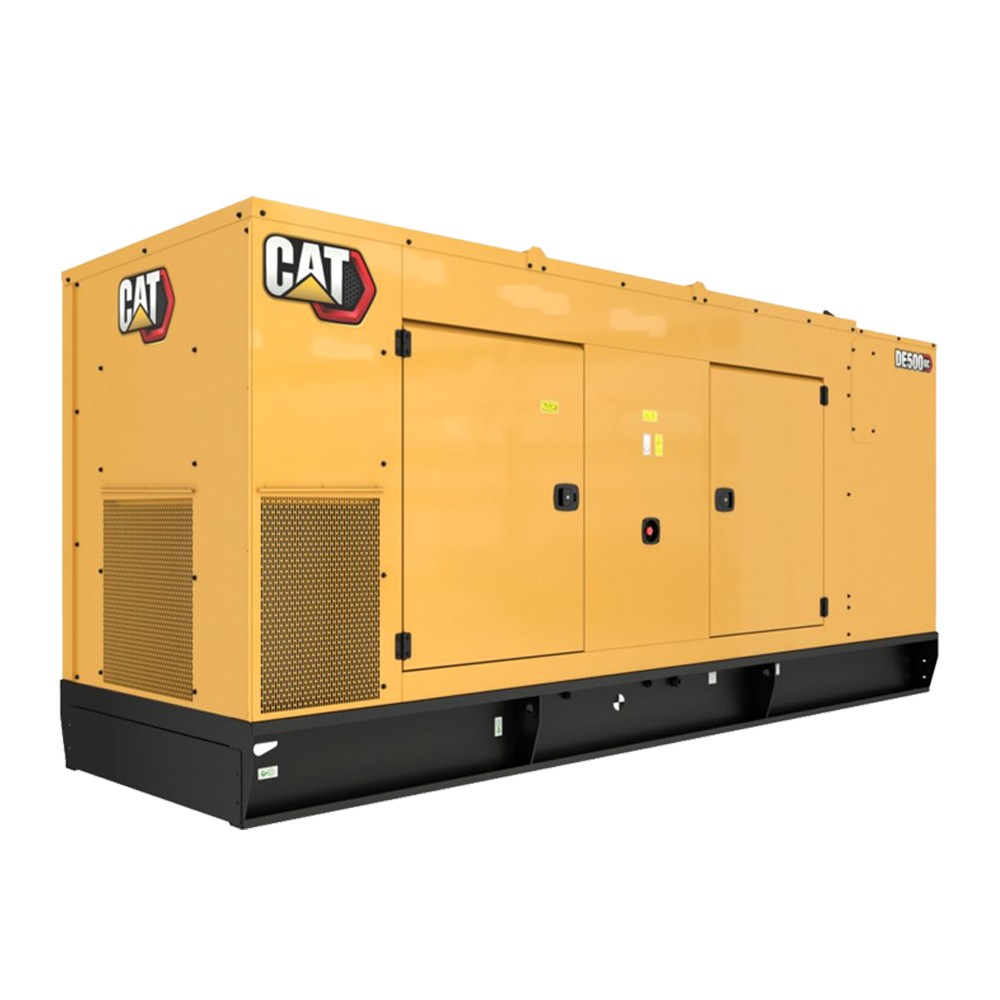

DE500GC Standby 500KVA Caterpillar Diesel Generator-50Hz

DE500GC Standby 500KVA Caterpillar Diesel Generator-50Hz
  • DE500GC Standby 500KVA Caterpillar Diesel Generator-50Hz
  • DE500GC Standby 500KVA Caterpillar Diesel Generator-50Hz
  • DE500GC Standby 500KVA Caterpillar Diesel Generator-50Hz

Short Description:

Producing 500 kVA of reliable power at 50 Hz, the CATERPILLAR DE500 GC diesel generator set is designed to meet ISO 8528-5 transient response requirements....


  • Brand: CATERPILLAR
  • Genset Model: DE500GC
  • Standby Power: 500KVA/400KW
  • Engine: CATERPILLAR C13

Product Details

Product Tags

Product Video

GENLITEC POWER® STANDBY 500KVA CATERPILLAR DIESEL GENERATOR SET FEATURES

○ Brand new original CATERPILLAR DE500 GC diesel generator set

○ Reliable, rugged and durable designed CAT C13 diesel engine

○ Rating 380/400/415V, 3-Phase 4-Wires, 50Hz, 1500RPM, 0.8PF, H insulation class

○ 50℃ radiator with engine driven fan mounted on the based frame

○ Set mounted control panel equipped with CAT GCCP1.1 digital controller

○ Original ABB brand main circuit breaker

○ Diesel engine and alternator mounted on a based frame with anti-vibration mountings

○ 24V DC electric start system with free-maintenance lead-acid battery and float battery charger

○ Industrial silencers with blexible connects and elbow

○ Complete engine alarm system


● GENERATOR SET


Genset Model DE500 GC
Standby Power 500KVA/400KW
Phase & Wire 3 Phase, 4 Wires
Power Factor 0.8
Frequency 50Hz
Rated Voltage 380~415V

● DIESEL ENGINE

Engine Model CAT C13 Inline 6 Cylinder, 4-Stroke Diesel
Bore x Stroke 130 x 157 mm
Displacement 12.5L
Compression Ratio 15.8:1
Aspiration Turbocharged, Air to Air Aftercooled
Fuel Injection System EUI
Governor Type Electronic ADEM A4

● FUEL CONSUMPTION

100% Load with Fan 101.2L/H
75% Load with Fan 72.7L/H
50% Load with Fan 50.5L/H


CONTROL PANEL


Emergency stop button

○ ABB brand Main circuit breaker

CATERPILLAR GCCP1.1 control panel


DIMENSION & WEIGHT



SOUND ATTENUATED ENCLOSURE

Fully Weatherproof Sound Attenuated Enclosure With Internal Exhaust Silencer

Highly Corrosion Resistant Construction


WARRANTY

12 months or 1000 working hours, whichever comes first


OPTIONS

ATS (for automatic start & stop when electricity power off & on)

Single axle trailer

12 hours fuel tank

24 hours fuel tank

Power Sockets (CEE or AUS standard)

Remote Monitoring System (4G, WIFI)
