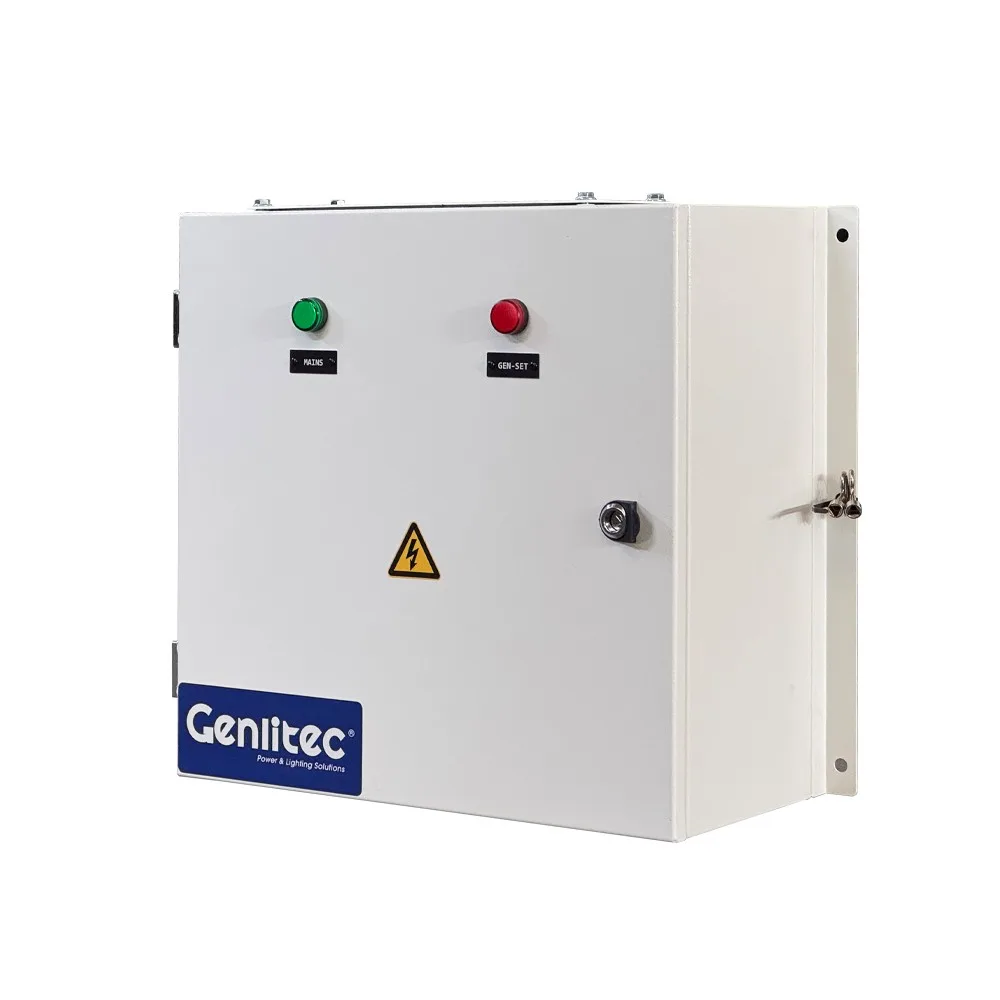

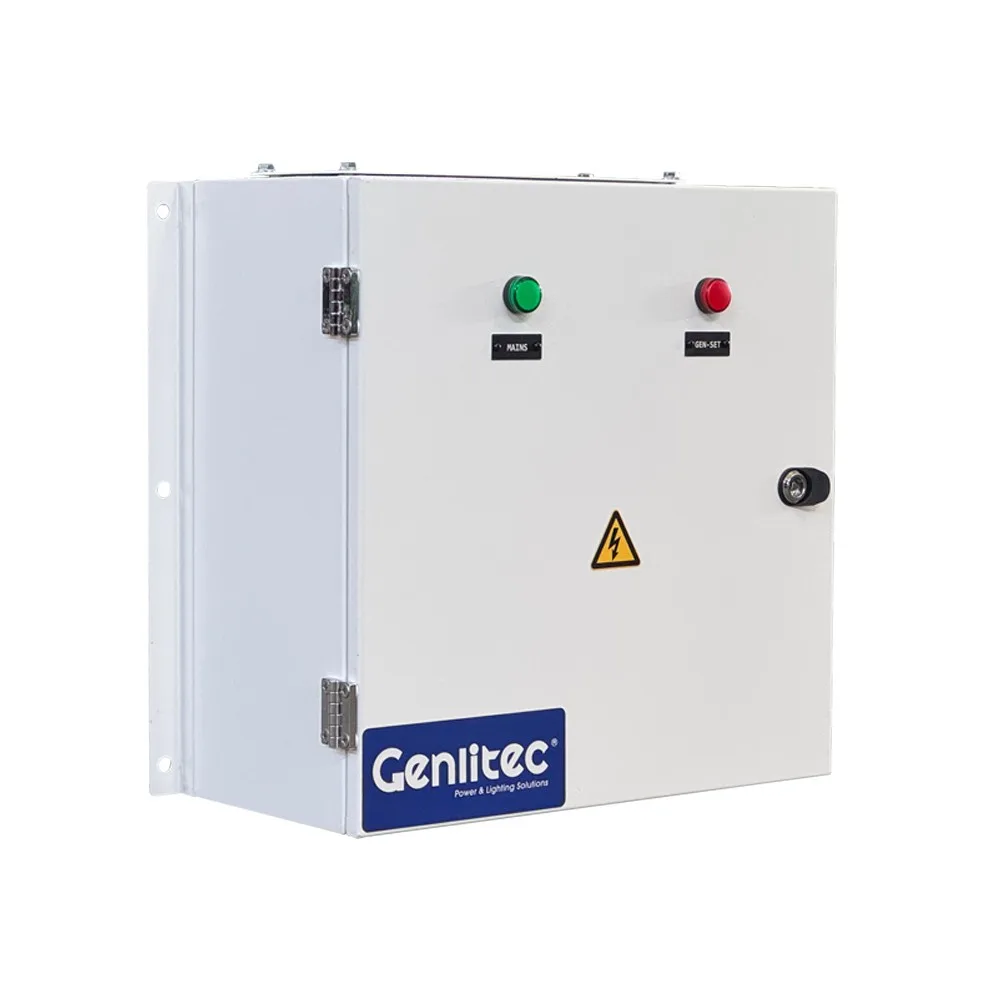

GTS100 100A Automatic Transfer Switch ATS Panel
Short Description
GENLITEC POWER 100A Automatic Transfer Switch ATS Panel for reliable backup power, automatically transferring loads between utility and diesel generators.
- ModelGTS100
- Operation Current100A
- Frequency50/60Hz
- Phase3-Phase (Single phase for option)
- Voltage208V, 220V, 380V, 400V, 415V
- MOQ1 Set
Product Details
Product Tags
GENLITEC POWER® GTS100 Automatic Transfer Switch
GENLITEC POWER® Automatic Transfer Switch (ATS) panels, also known as Automatic Mains Failure (AMF) panels, automatically transfer the electrical load to an emergency standby generator when the utility power fails or a blackout occurs.
ATS panels are widely used in industrial plants, hospitals, commercial buildings and other facilities requiring reliable backup power. GENLITEC POWER® ATS panels can be configured for automatic or manual operation according to specific project requirements.

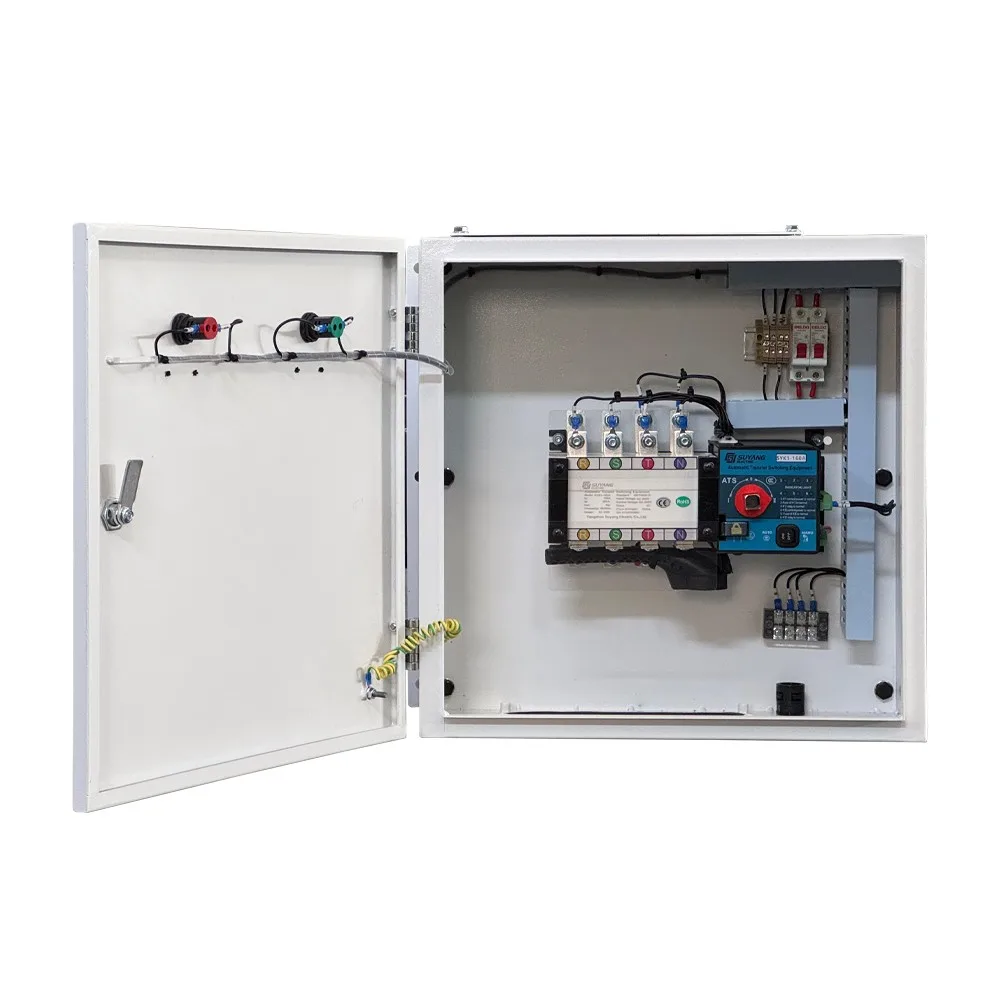

GENLITEC POWER® GTS100 ATS Panel Features
○ 1 × 4-pole load transfer switch
○ 3-phase and neutral mains detector with hysteresis

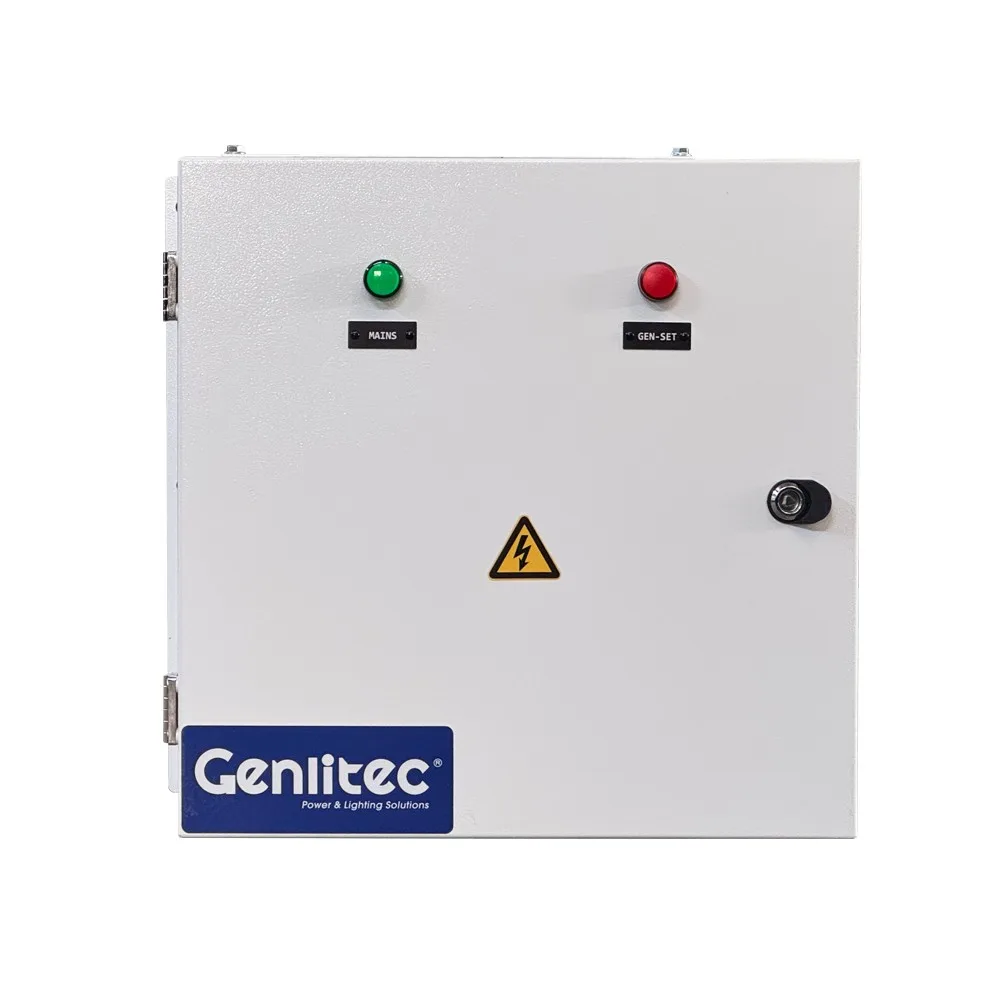

○ 2 × status indicator lamps
Parameters
| ATS Switch Model | SKT2-100A/4P (AISIKAI or SUYANG) |
| Rated Current (In) | 100A |
| Conventional Thermal Current (Ith) | 100A |
| Rated Insulation Voltage of Copper Bar (Ui) | 1000V |
| Rated Impulse Withstand Voltage (Uimp) | 12kV |
| Rated Operating Voltage of Copper Bar (Ue) | AC 440V |
| Utilization Category | AC-33A |
| Rated Limiting Short-Circuit Current | 17kA |
| Rated Limiting Short-Circuit Current - Fuses for Protection (Iq) | 100kA |
| Rated Limiting Short-Circuit Current - Breaker for Protection (Iq) | 50kA |
| Transfer Time (I-II or II-I) | 1.2s |
| Control Input Voltage | AC 220V |
| Rated Control Power - Start | 40W |
| Rated Control Power - Normal | 18W |
Benefits
○ Enhanced safety with double-throw contacts and mechanical interlocking to prevent simultaneous connection of the generator and utility power sources.
○ High reliability with a service life of more than 8,000 operations. The switch is electrically operated and mechanically held by an over-center mechanism.
○ High electromagnetic compatibility and strong resistance to electrical interference.
○ Automatic operation without the need for external control components.
○ Compact and lightweight design for convenient installation.
Options
○ SMARTGEN HAT560N ATS controller
○ ABB ATS switch
○ Schneider ATS switch
○ Socomec ATS switch
Dimensions
| Model | Length | Width | Height |
|---|---|---|---|
| GTS100 | 500mm | 300mm | 600mm |
