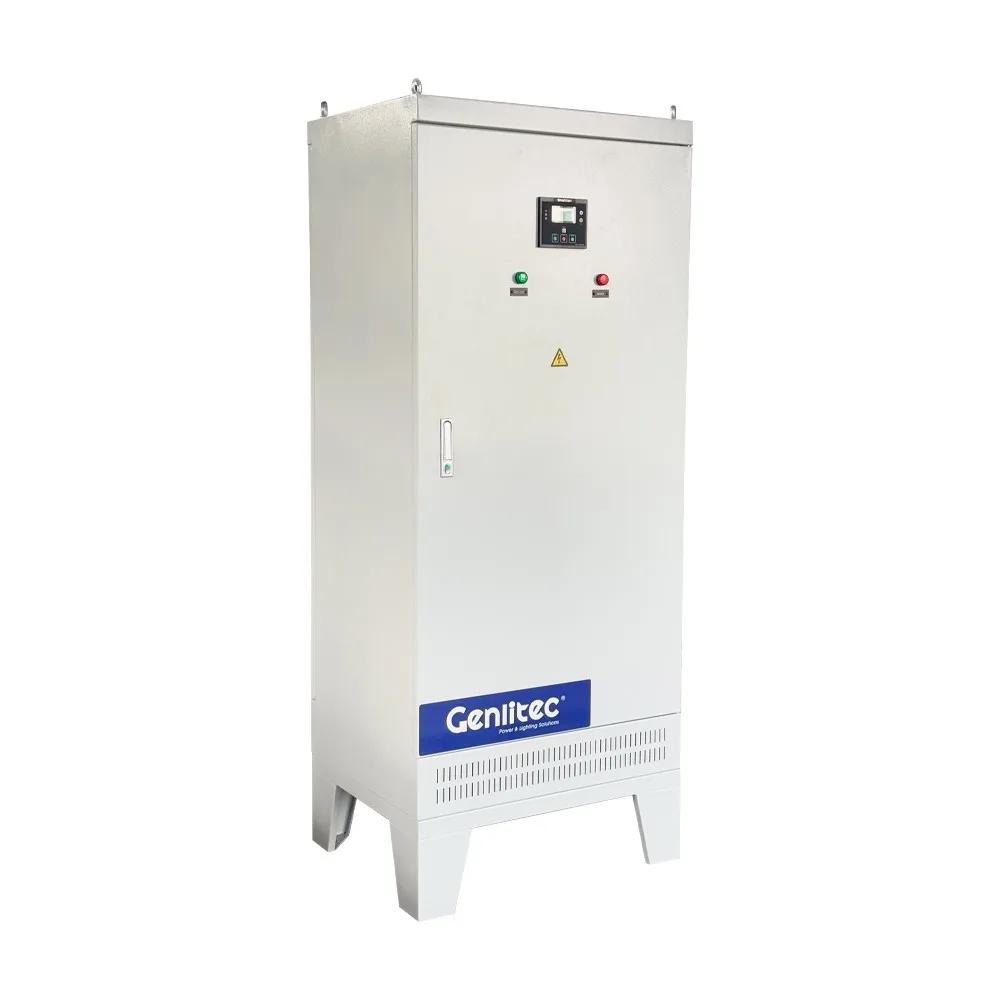

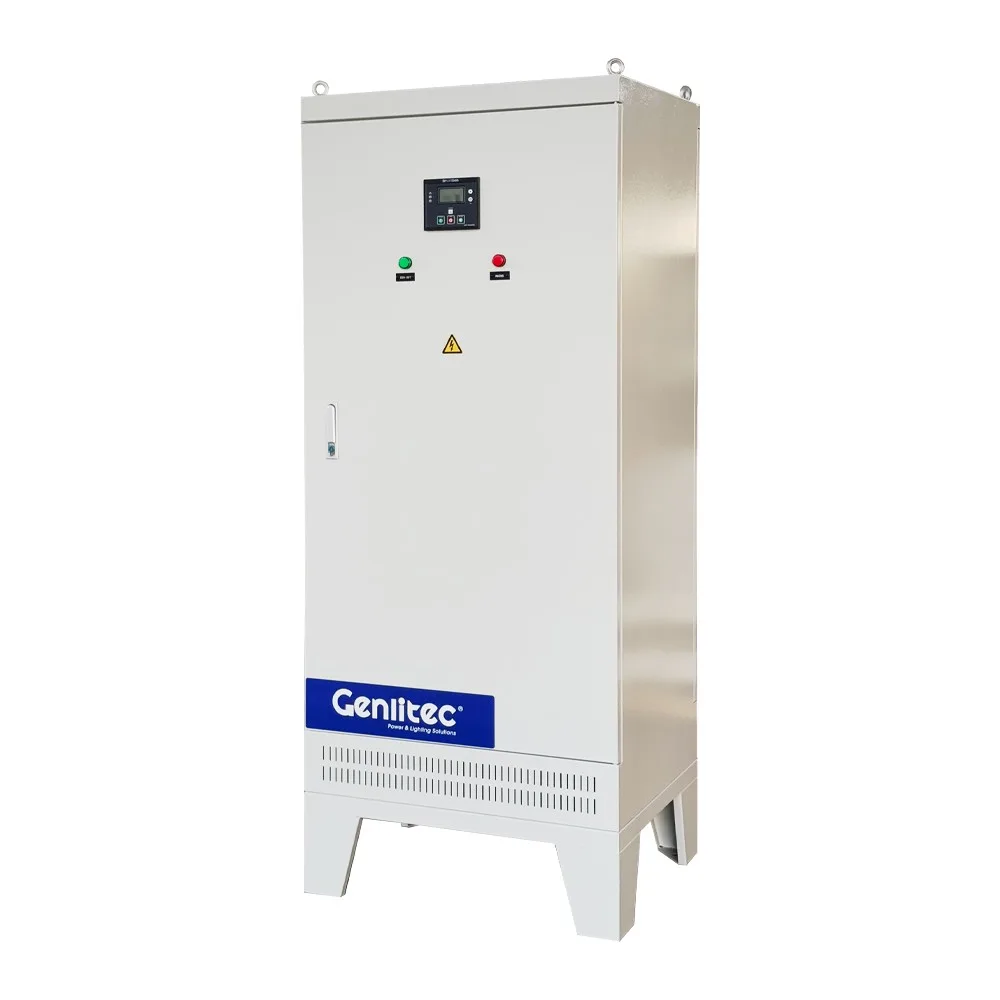

GTS1000 1000A Automatic Transfer Switch ATS Panel
Short Description
GENLITEC POWER GTS1000 1000A Automatic Transfer Switch for reliable utility-to-generator power transfer in industrial and commercial applications.
- ModelGTS1000
- Operation Current1000A
- Frequency50/60Hz
- Phase3-Phase (Single phase for option)
- Voltage208V, 220V, 380V, 400V, 415V
- MOQ1 Set
Product Details
Product Tags
GENLITEC POWER® GTS1000 Automatic Transfer Switch
GENLITEC POWER® Automatic Transfer Switch (ATS) panels, also known as Automatic Mains Failure (AMF) panels, are designed to automatically transfer the electrical load between the utility supply and a standby generator when the main power fails. This helps maintain a reliable power supply and reduces disruption to connected equipment.
These ATS panels are suitable for industrial, commercial, healthcare, processing and other applications requiring automatic power transfer. Automatic and manual operating modes can be configured according to specific project requirements.
GENLITEC POWER® GTS1000 ATS Panel Features

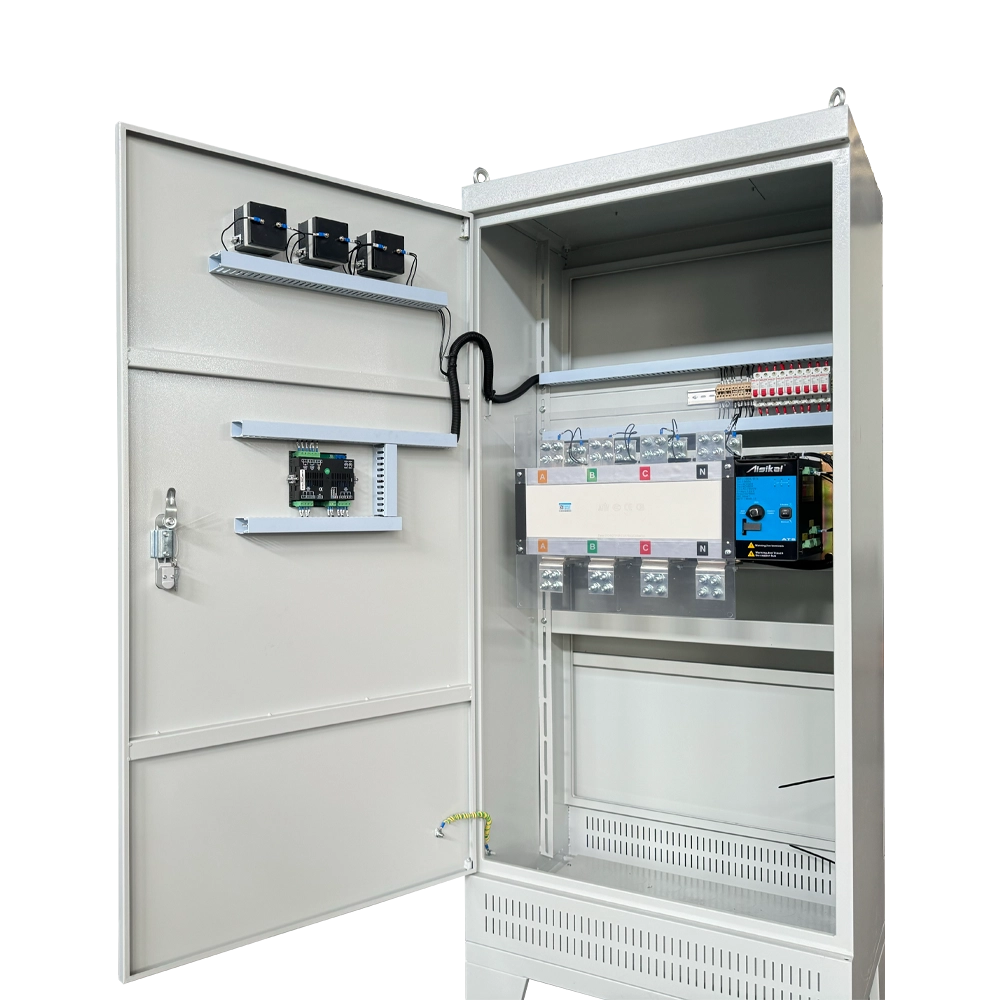

○ 1 × 4-pole load transfer switch
○ 1 × three-phase and neutral mains detector with hysteresis
○ 2 × indicator lamps
Parameters
| ATS Switch Model | SKT1-1000A/4P (AISIKAI or SUYANG) |
| Rated Current (In) | 1000A |
| Conventional Thermal Current (Ith) | 1000A |
| Rated Insulation Voltage of Copper Bar (Ui) | 1000V |
| Rated Impulse Withstand Voltage (Uimp) | 12kV |
| Rated Operating Voltage of Copper Bar (Ue) | AC 440V |
| Utilization Category | AC-33A |
| Rated Limiting Short-Circuit Current | 67.2kA |
| Rated Limiting Short-Circuit Current - Fuse Protection (Iq) | 100kA |
| Rated Limiting Short-Circuit Current - Breaker Protection (Iq) | 65kA |
| Transfer Time (I-II or II-I) | 1.2s |
| Control Input Voltage | AC 220V |
| Rated Control Power - Start | 440W |
| Rated Control Power - Normal | 95W |
Benefits
○ Enhanced safety. Double-throw contacts with mechanical interlocking help prevent simultaneous connection of the generator and utility power sources.
○ High reliability. Designed for more than 8,000 operations with an electrically operated and mechanically held transfer mechanism.
○ High electromagnetic compatibility. Strong resistance to electrical interference for stable operation.
○ Automatic operation. Integrated control design eliminates the need for additional external control components.
○ Compact design. Small size and lightweight construction make installation easier.
Options
○ SMARTGEN HAT560N ATS controller
○ ABB ATS switch
○ Schneider ATS switch
○ Socomec ATS switch
Dimension
| Model | Length | Width | Height |
| GTS1000 | 800mm | 600mm | 1800mm |
