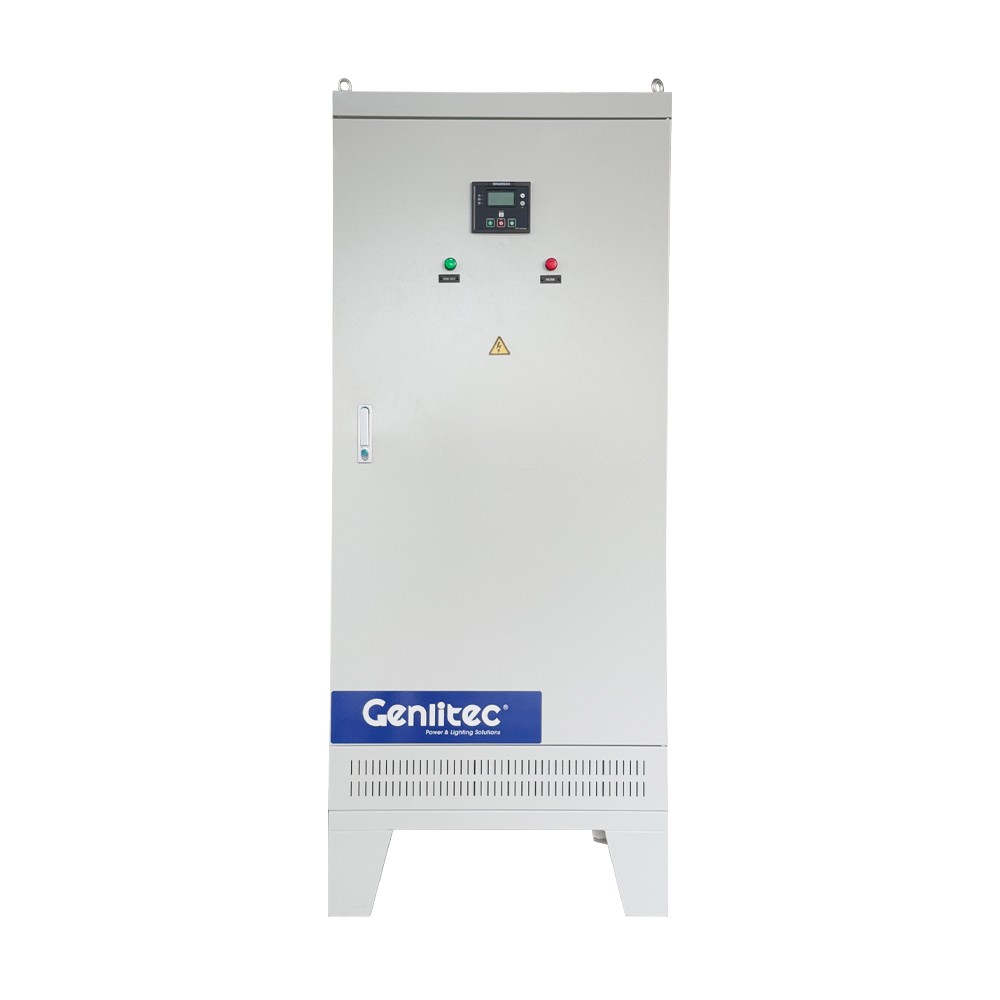

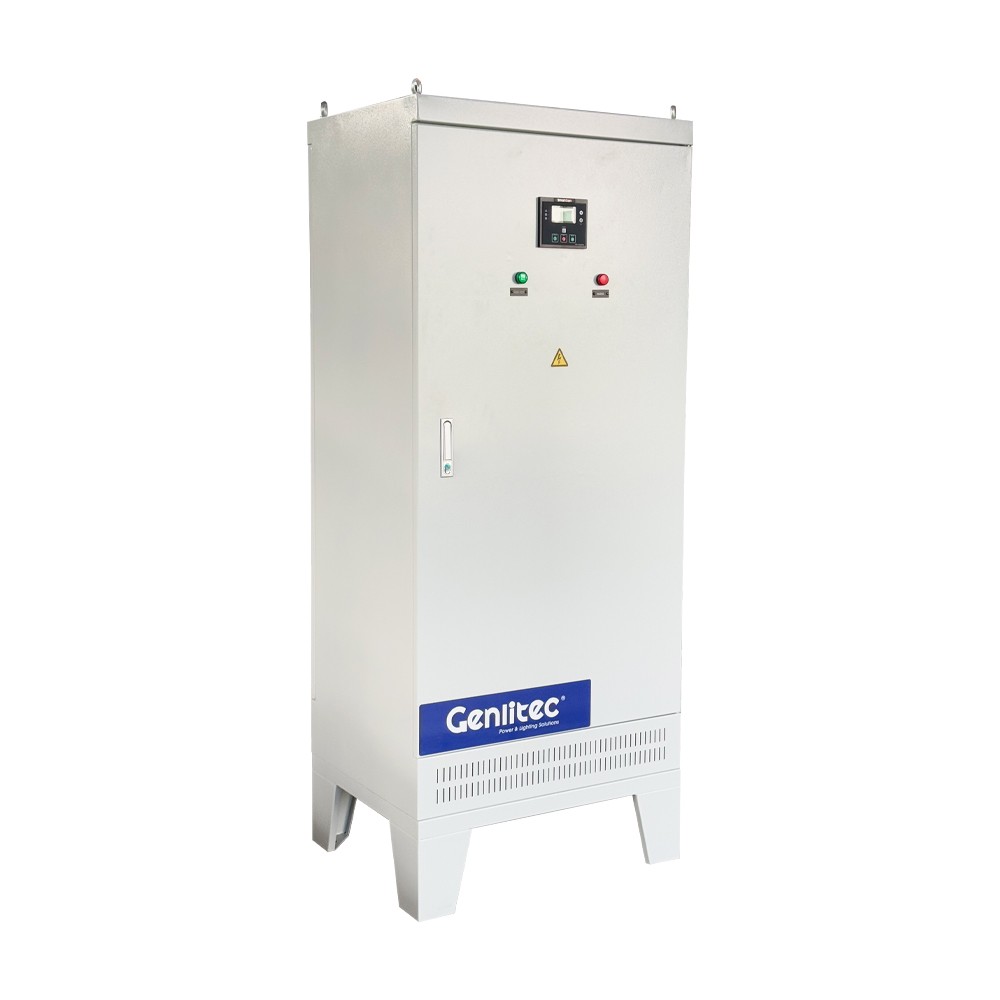

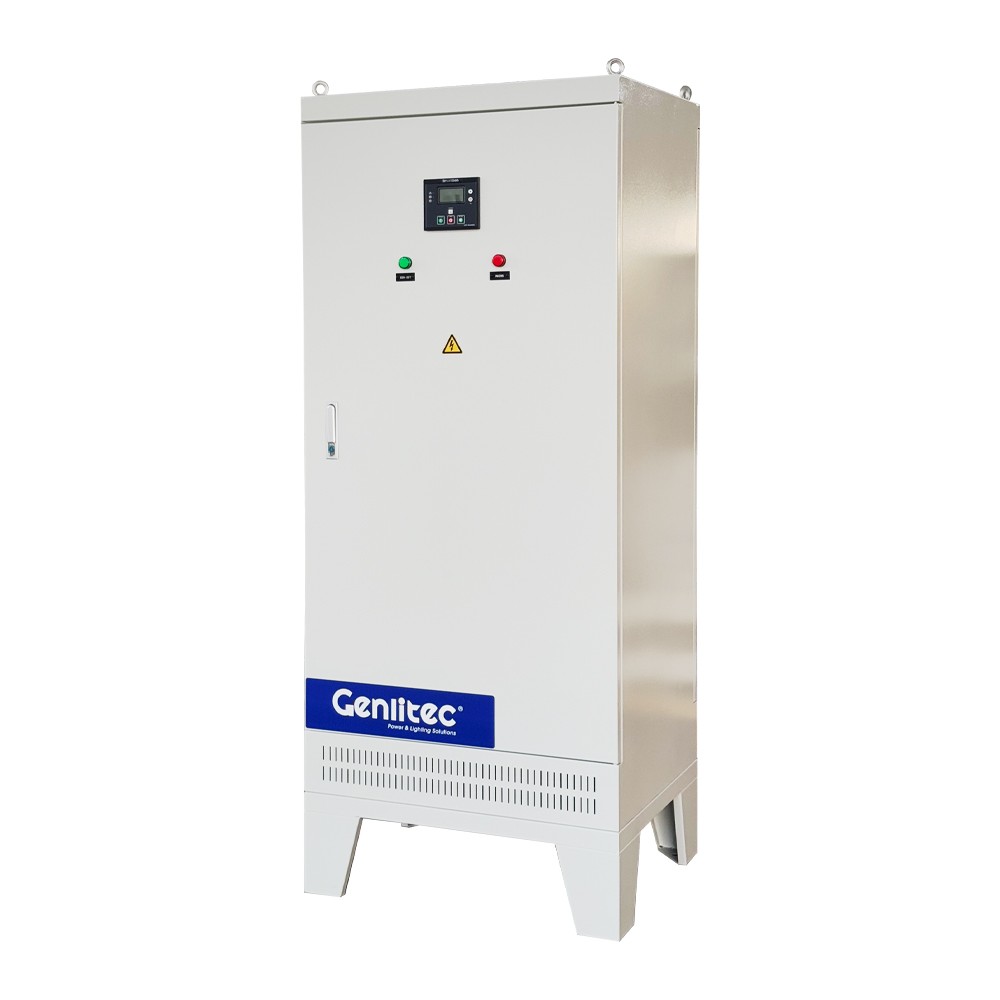

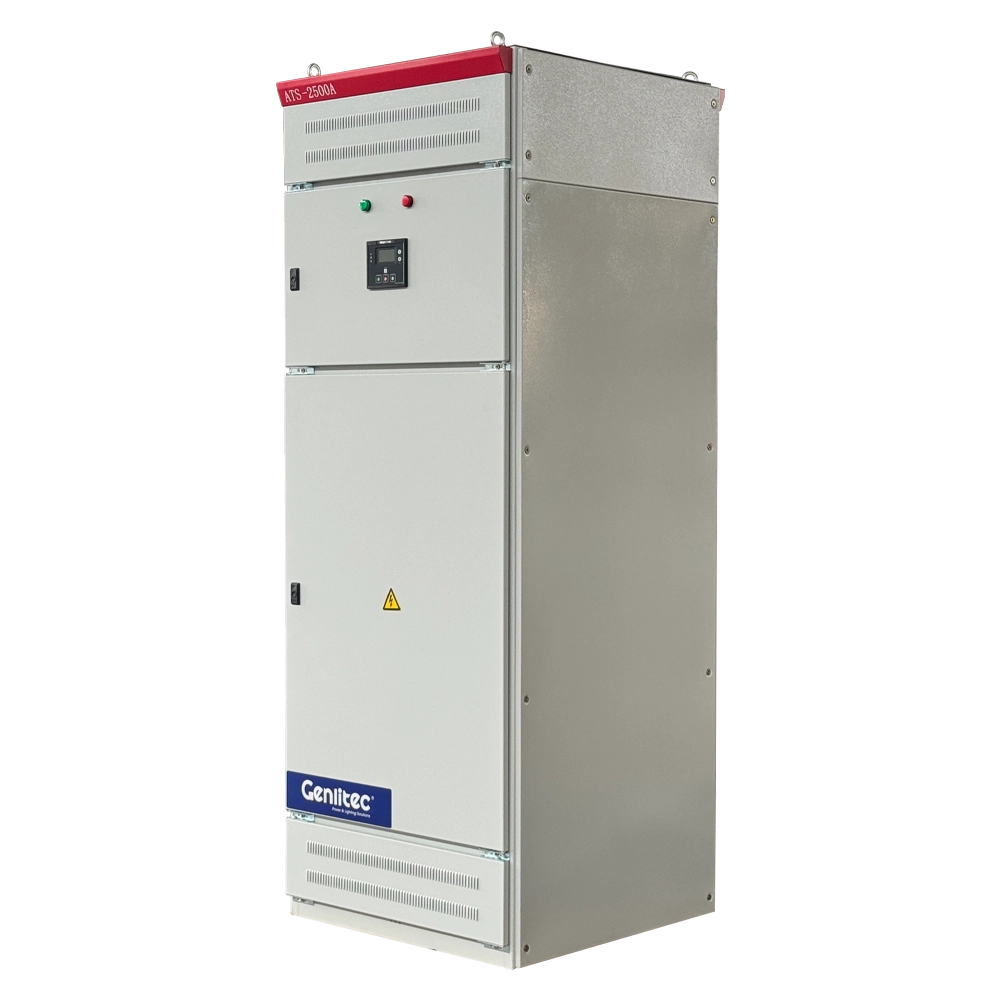

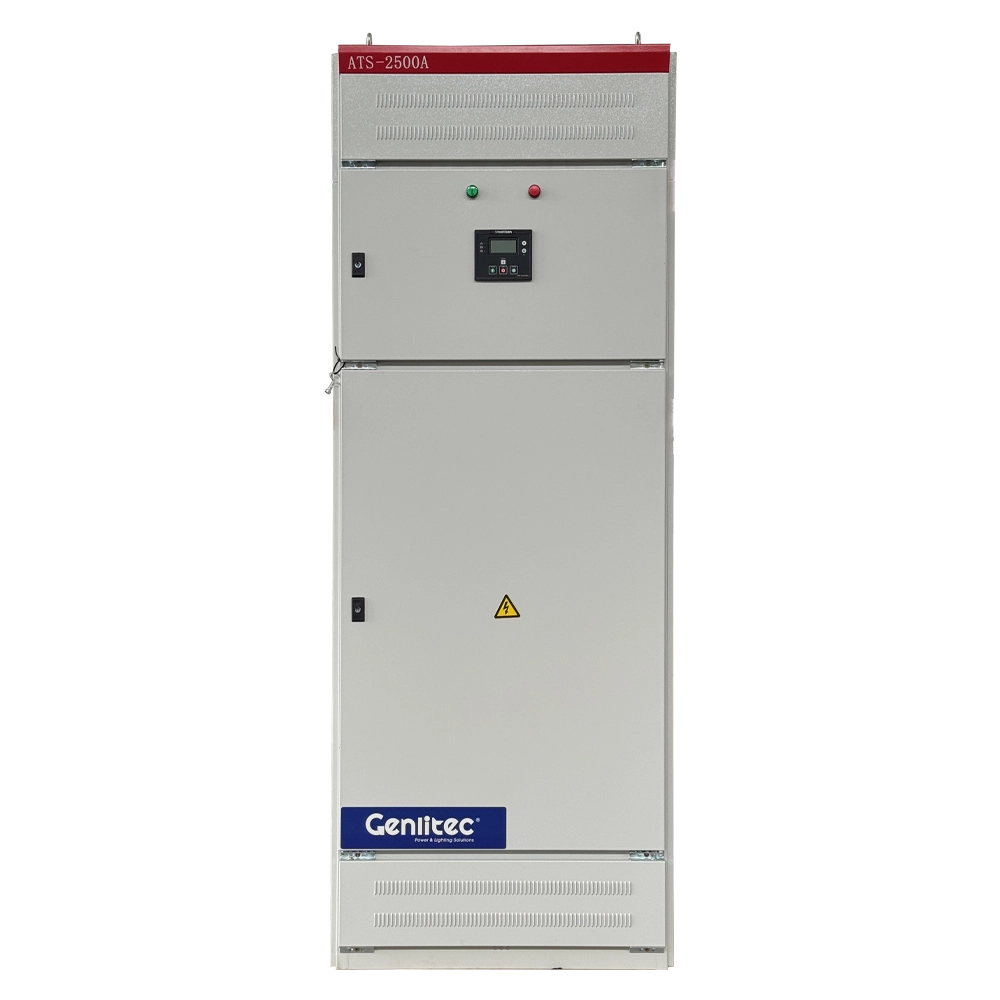

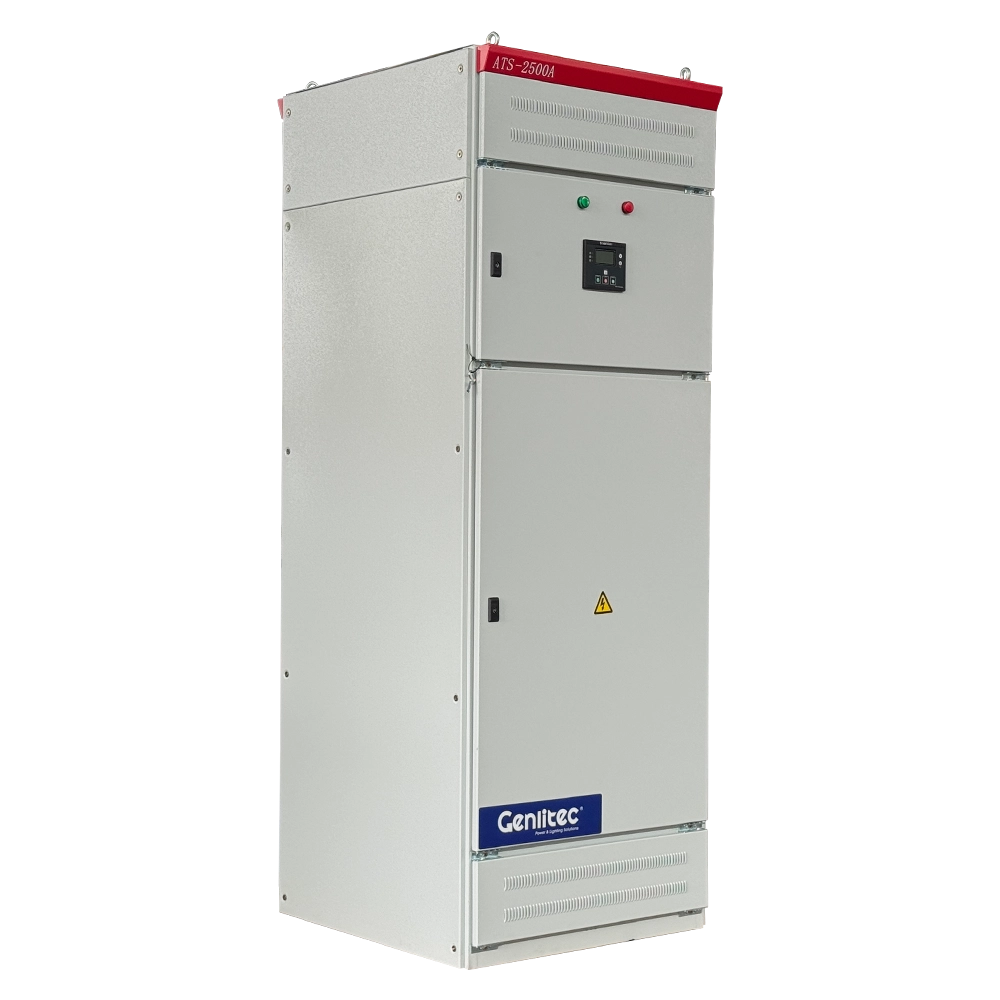

GTS2000 2000A Automatic Transfer Switch ATS Panel
Short Description
GENLITEC 2000A ATS Panel provides reliable automatic transfer between utility and generator power for demanding industrial and commercial applications.
- ModelGTS2000
- Operation Current2000A
- Frequency2000A50/60Hz
- Phase3-Phase (Single phase for option)
- Voltage208V, 220V, 380V, 400V, 415V
- Cabinet StandardGGD Cabinet Standard
- MOQ1 Set
Product Details
Product Tags
GENLITEC POWER® GTS2000 Automatic Transfer Switch
GENLITEC POWER® Automatic Transfer Switch (ATS) panels, also known as Automatic Mains Failure (AMF) panels, automatically transfer the electrical load from the utility supply to a standby generator when a significant mains power failure or blackout occurs. This automatic transfer function helps maintain power continuity, protect electrical equipment, and reduce operational disruption.
GENLITEC POWER® ATS panels are suitable for a wide range of applications, including industrial facilities, processing plants, hospitals, commercial buildings, and other critical power installations. Automatic and manual operating modes can be configured according to specific project requirements.
GENLITEC POWER® GTS2000 ATS Panel Features

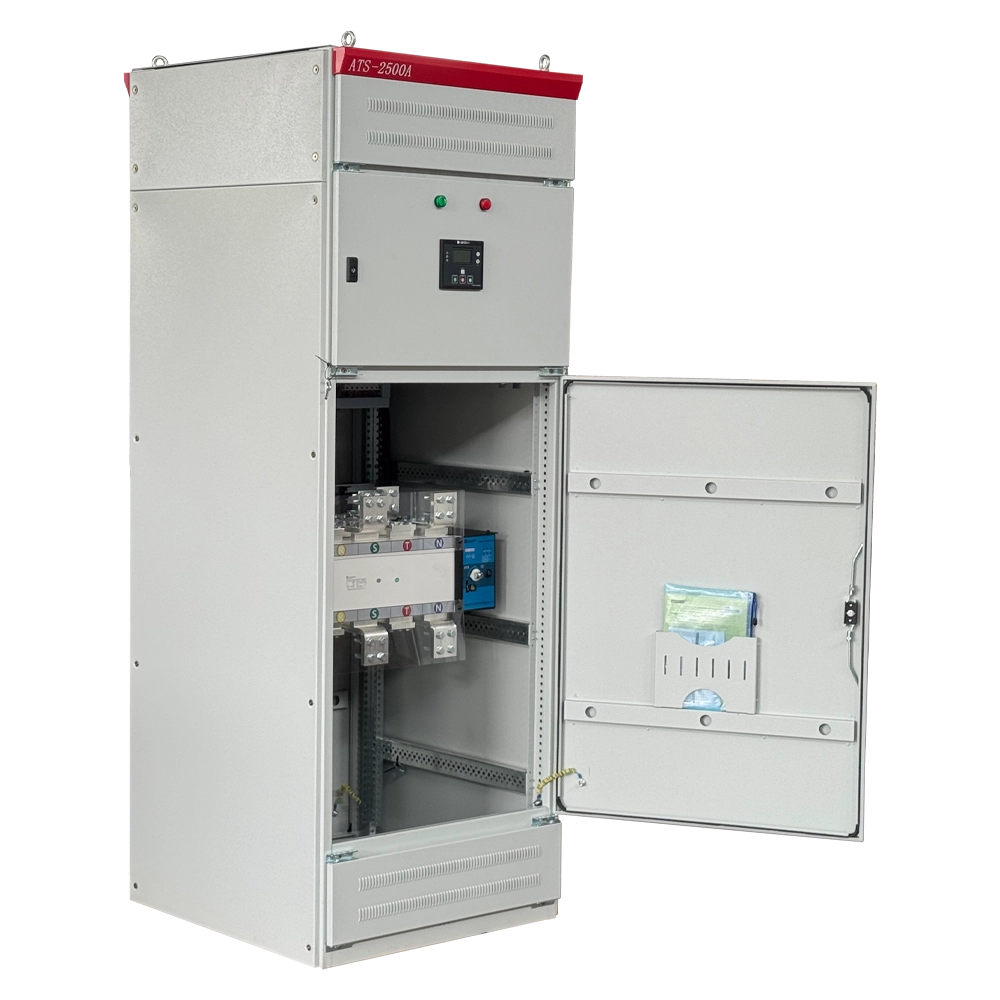

○ 1 × 4-pole load transfer switch
○ 1 × three-phase and neutral mains detector with hysteresis
○ 2 × indicator lamps
Technical Parameters
| ATS Switch Model | SKT1-2000A/4P (AISIKAI or SUYANG) |
| Rated Current (In) | 2000A |
| Conventional Thermal Current (Ith) | 2000A |
| Rated Insulation Voltage of Copper Bar (Ui) | 1000V |
| Rated Impulse Withstand Voltage (Uimp) | 12kV |
| Rated Operating Voltage of Copper Bar (Ue) | AC 440V |
| Utilization Category | AC-33A |
| Rated Limiting Short-Circuit Current | 105kA |
| Rated Limiting Short-Circuit Current - Fuse Protection (Iq) | 100kA |
| Rated Limiting Short-Circuit Current - Breaker Protection (Iq) | 65kA |
| Transfer Time (I-II or II-I) | 2.4s |
| Control Input Voltage | AC 220V |
| Rated Control Power - Start | 600W |
| Rated Control Power - Normal | 120W |
Benefits
○ Enhanced safety. Double-throw contacts with mechanical interlocking help prevent simultaneous connection of the generator and utility power sources.
○ High reliability. Designed for more than 8,000 operations, with electrical operation and mechanical holding through a reliable over-center mechanism.
○ Quality components. Main components can be supplied from internationally recognized brands according to project requirements.
○ High electromagnetic compatibility. Strong resistance to electrical interference helps ensure stable operation in demanding environments.
○ Automatic operation. Integrated control components simplify installation and operation without requiring additional external control components.
○ Compact design. The compact and lightweight structure makes the ATS panel easier to install and integrate into different power systems.
Options
○ SMARTGEN HAT560N ATS controller
○ ABB ATS switch
○ Schneider ATS switch
○ Socomec ATS switch
Dimensions
| Model | Length | Width | Height |
|---|---|---|---|
| GTS2000 | 800mm | 800mm | 2200mm |
