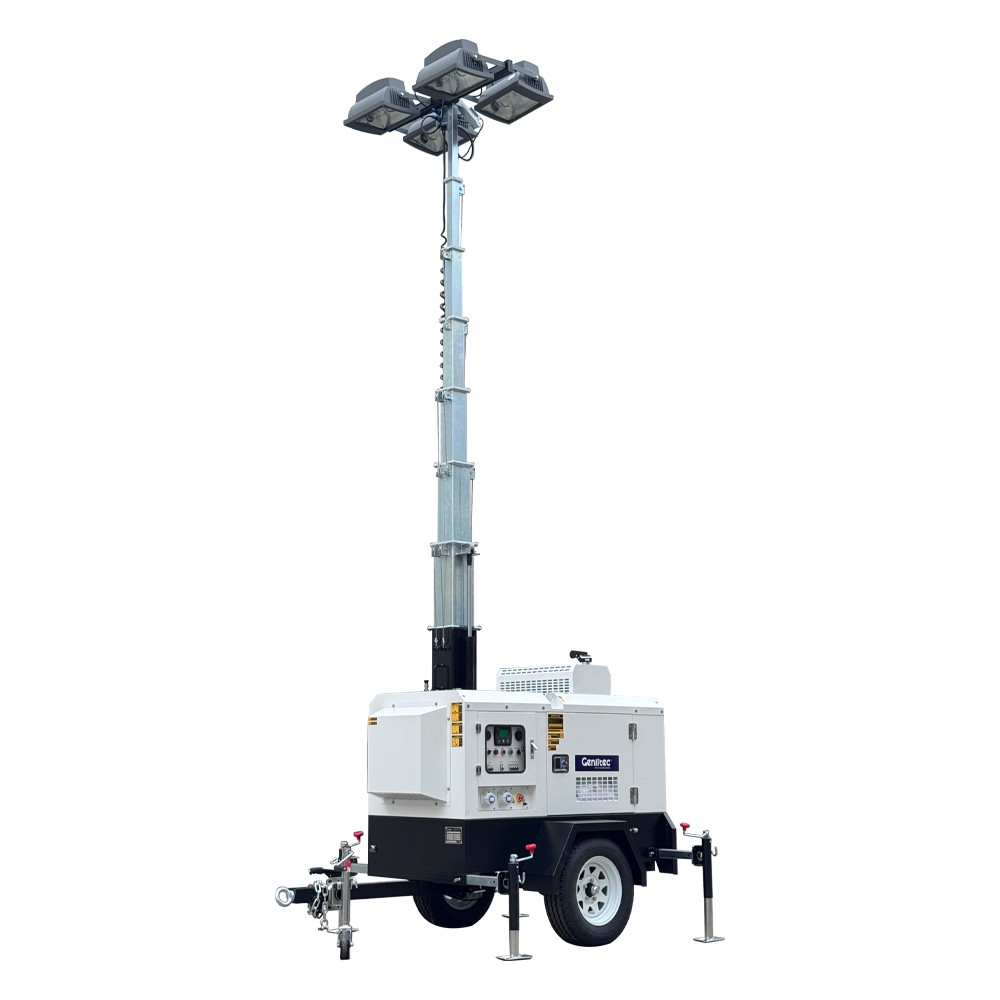

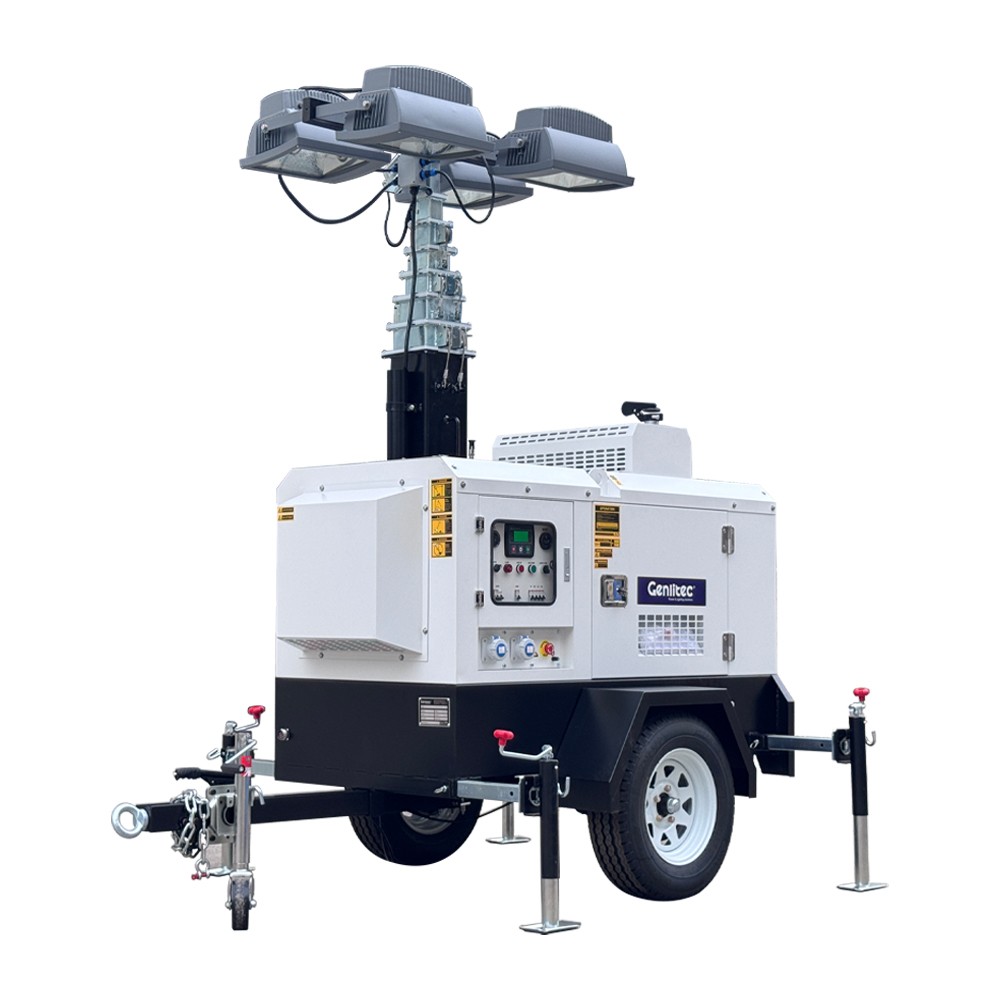

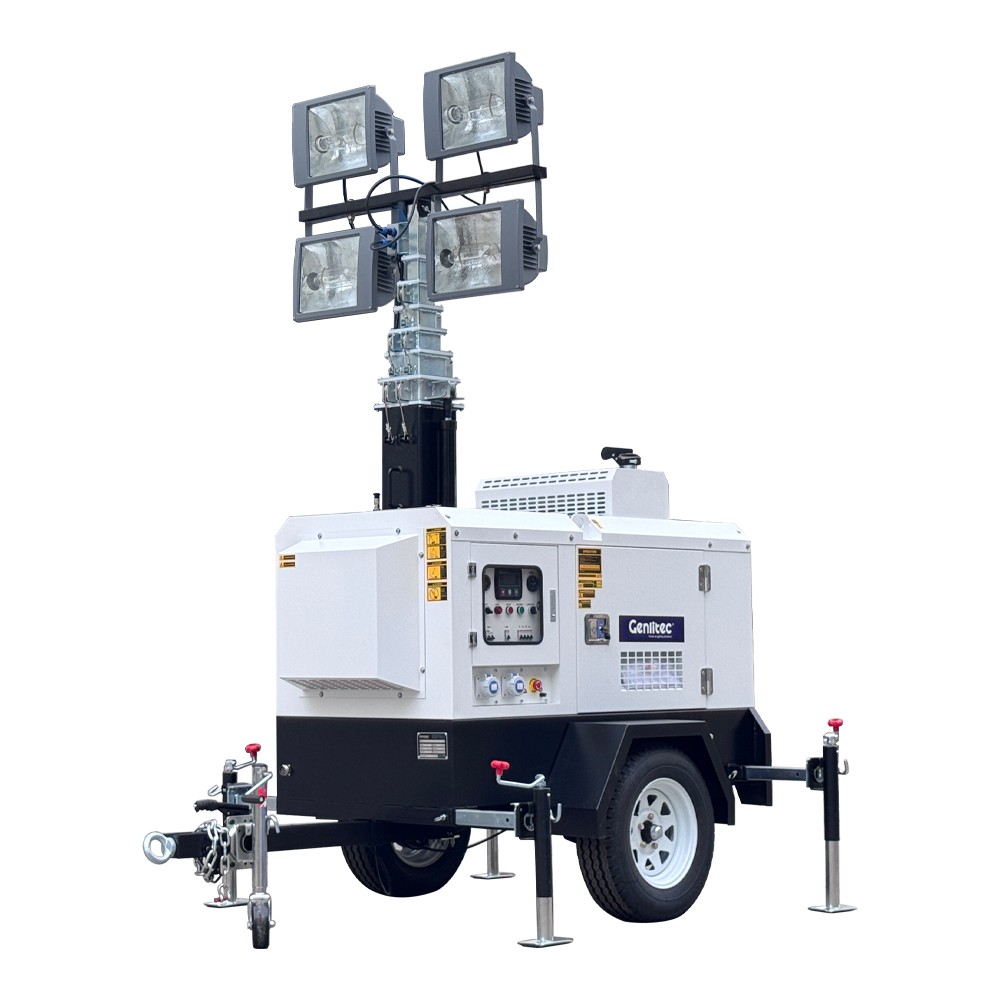

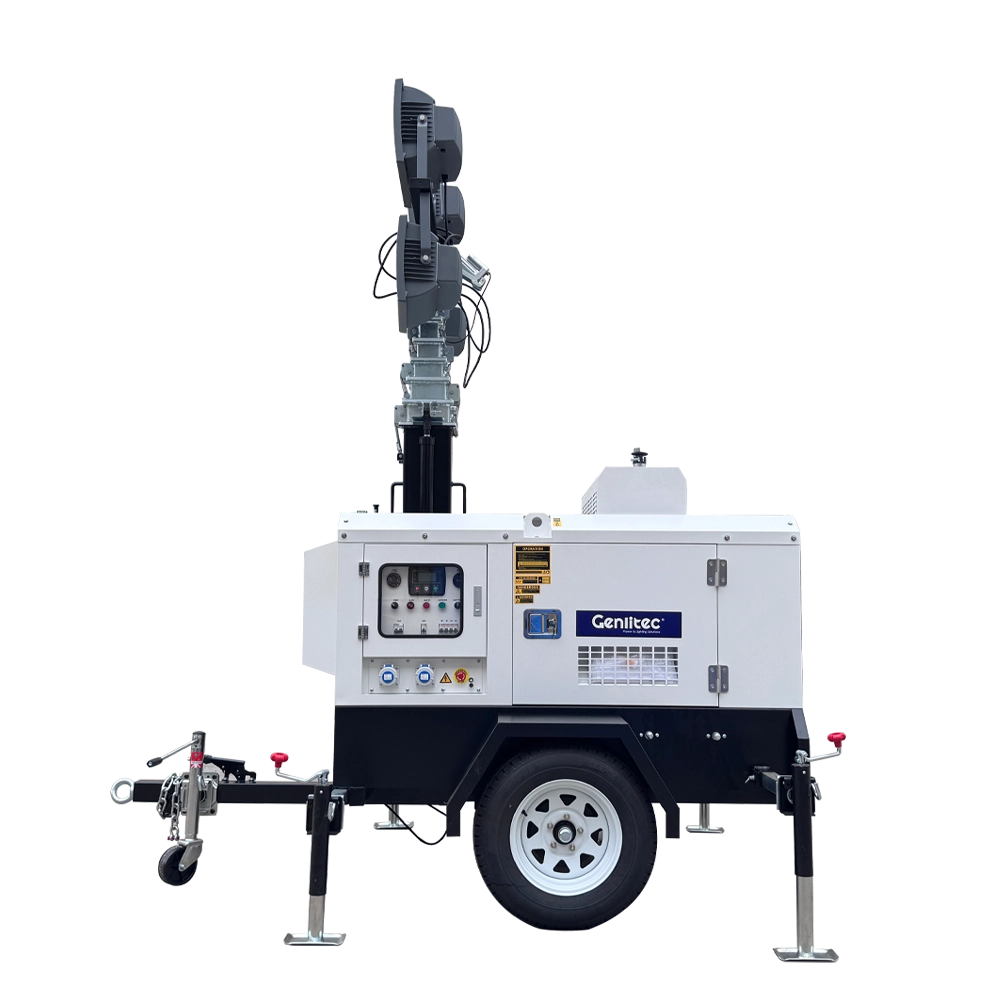

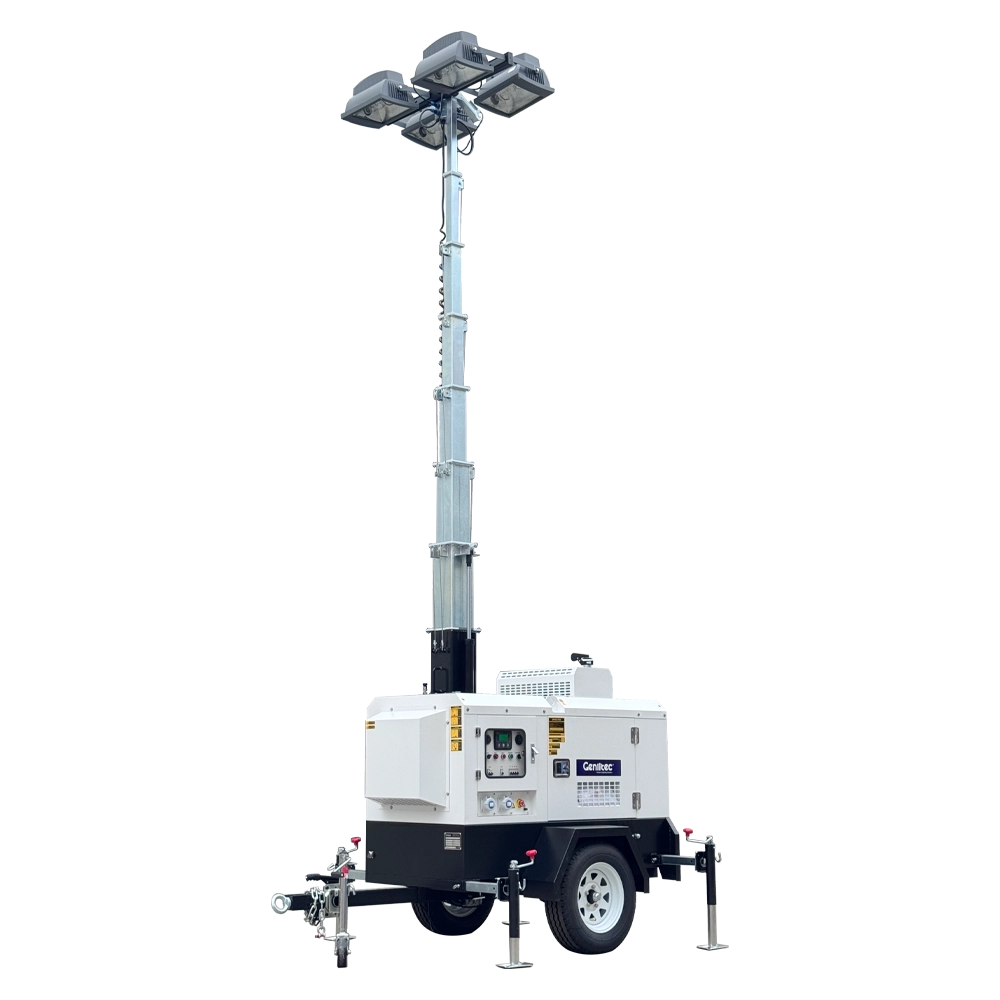

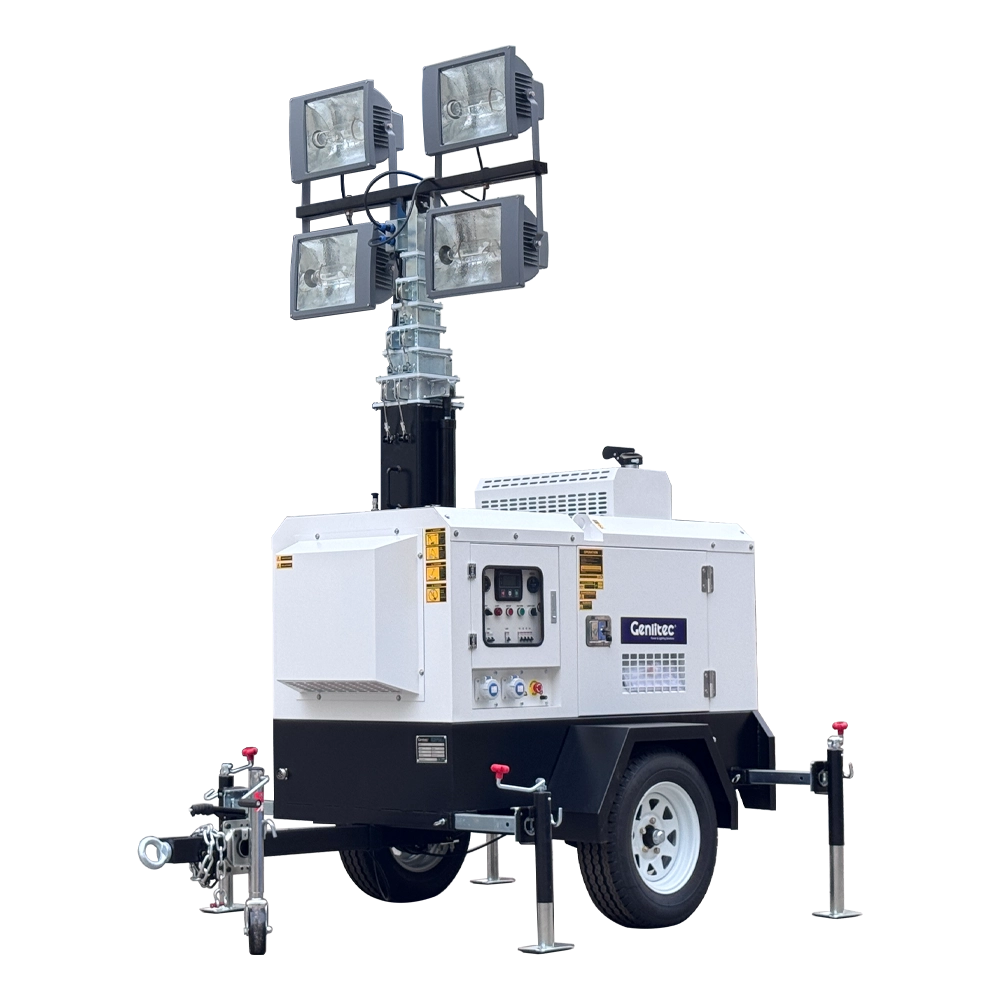

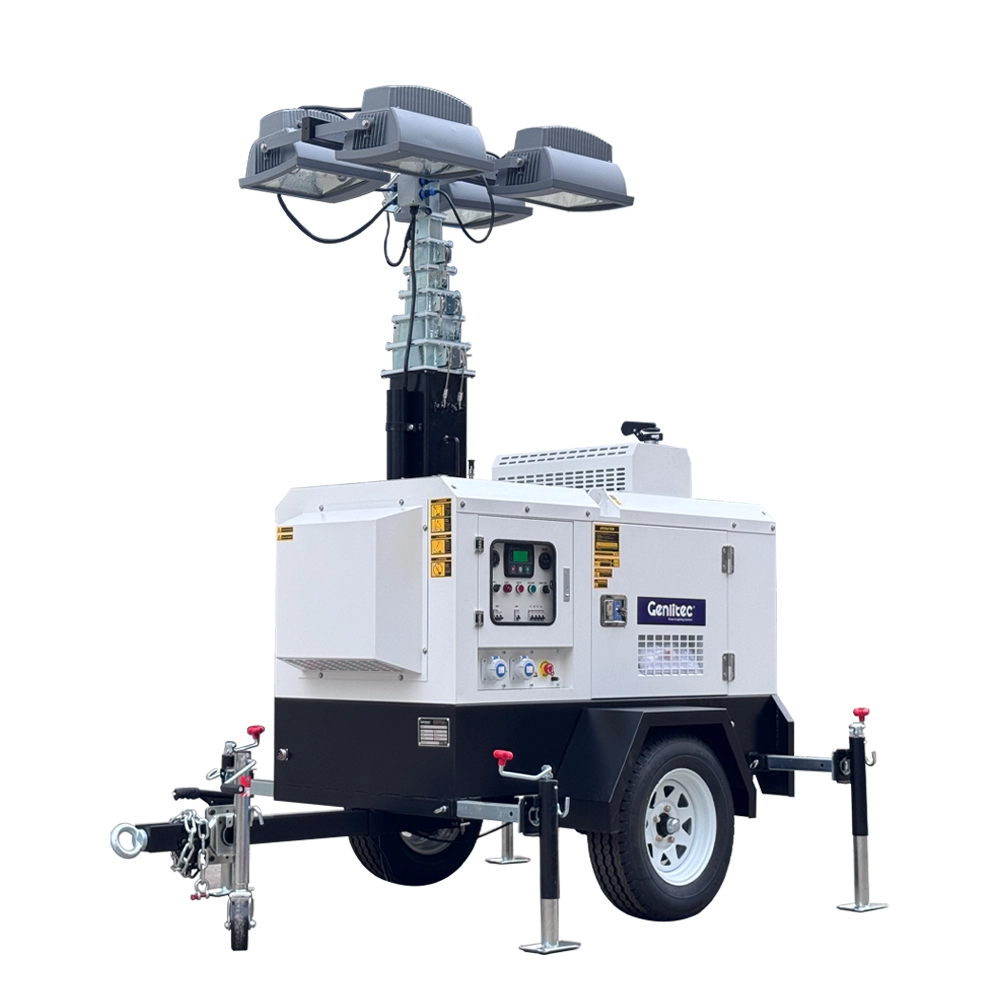

● GENLITEC POWER® 8M HYDRAULIC 4X1000W PERKINS GENERATOR LIGHT TOWER FEATURES

○ Brand new original PERKINS 403D-11G water cooled diesel engine

○ Original STAMFORD or GENLITEC POWER® single bearing 100% copper brushless alternator

○ 8 metres hydraulic lifting mast and 358° mast rotation system

○ Equipped with powerful 4x1000W metal halide lamps

○ Rating Single Phase, 50/60Hz, 1500/1800RPM, 1.0 PF, IP23, H insulation class

○ 50℃ radiator with engine driven fan mounted on the based frame

○ Control panel equipped with SMARTGEN HGM1790N digital controller, DELIXI brand main circuit breaker, each light with individual circuit breaker

○ Diesel engine and alternator mounted on a based frame with anti-vibration mountings

○ Heavy-duty fabricated steel based frame with 115L fuel tank

○ 12V DC electric start system with free-maintenance lead-acid battery

○ Heavy-duty single axle trailer Type with 14 inch tyres, soundproof and rain-proof design ensure outdoor use

○ Complete engine alarm system

○ CE, ISO 9001:2015 approved

● LIGHT TOWER

Model	GLT4000-8HP
Lifting System	8 Metres, Hydraulic Lifting
Mast Rotation System	358° Manual
Total Power of Lights	4 x 1000W Metal Halide Lamps
Frequency	50/60Hz
Voltage	110~240V
Phase	Single
Rated Power	7.2KW/50Hz; 8.0KW/60Hz
Trailer Structure	Single Axle, 14inch Tyres

● DIESEL ENGINE

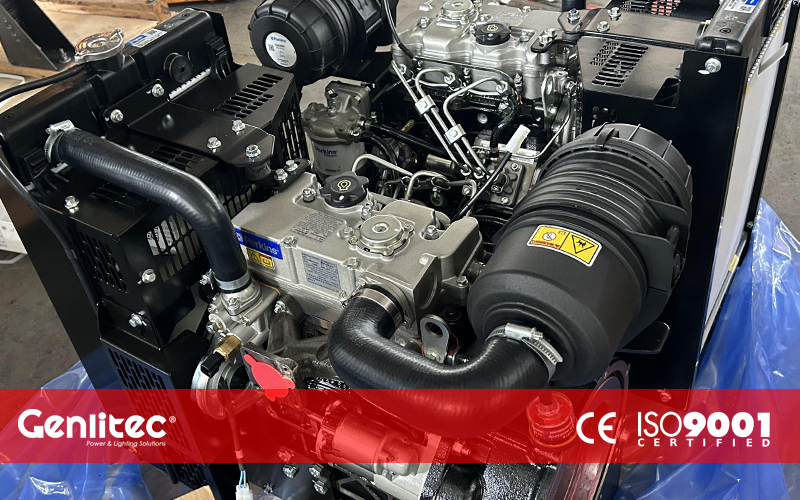

Engine Model	PERKINS 403D-11G
Cylinder Number	3
Aspiration System	Natural
Cooling Method	Water Cooled
Combustion System	Indirect injection
Bore x Stroke	77 x 81 mm
Compression Ratio	23:1
Engine Speed	1500/1800RPM
Displacement	1.131L
Rated Power	8.6KW/1500RPM; 10.7KW/1800RPM
Coolant Capacity	5.2L
Oil Capacity	4.9L
Governor Type	Mechanical
Electric Starting System	DC 12V

● ALTERNATOR

Number of Phase	Single
Rated Power	6~8KW
Frequency	50/60Hz
Power Factor	1.0
Temp. Rise	125K
Insulation Class	H
Ambient Temp.	40℃
IP Rating	IP23
Excitation System	Self-Excited
Bearing	Single
Coating	Vacuum Impregnation
Voltage Regulator	A.V.R
Coupling	Flexible Disc

● OPERATION MAST

Max. Height of Mast	8 Meters
Lifting System	Vertical Type, Hydraulic Lifting
Lifting Method	Button
Mast Stages	8
Rotation System	358° Manually
Mast Material	Galvanization Steel Tube

● LAMPS

Total Power of Lamps	4 x 1000W
Lamps Type	Metal Halide Lamps
Light Capacity	4 x 75,000 Lumens
Design Lifetime	10,000 Hours
Working Temp.	-30℃~40℃
Light Coverage	5~7 Acres
Protection Grade	IP65

● CONTAINER LOADING CAPACITY

20GP CONTAINER	Max. 4 Sets
40HQ CONTAINER	Max. 8 Sets

● CONTROL PANEL

○ Emergency stop button

○ Main circuit breaker & individual circuit bearker for lights

○ Hour meter

○ Manual/Autostart control panel

○ Fuel level meter

○ Controller power switch

○ Alarm buzzer

● TRAILER & SOUND ATTENUATED ENCLOSURE

○ Fully Weatherproof Sound Attenuated Enclosure With Internal Exhaust Silencer

○ Highly Corrosion Resistant Construction

○ Heavy-duty single axle trailer with 14'' tyres

● WARRANTY

○ 12 months or 1000 working hours, whichever comes first
