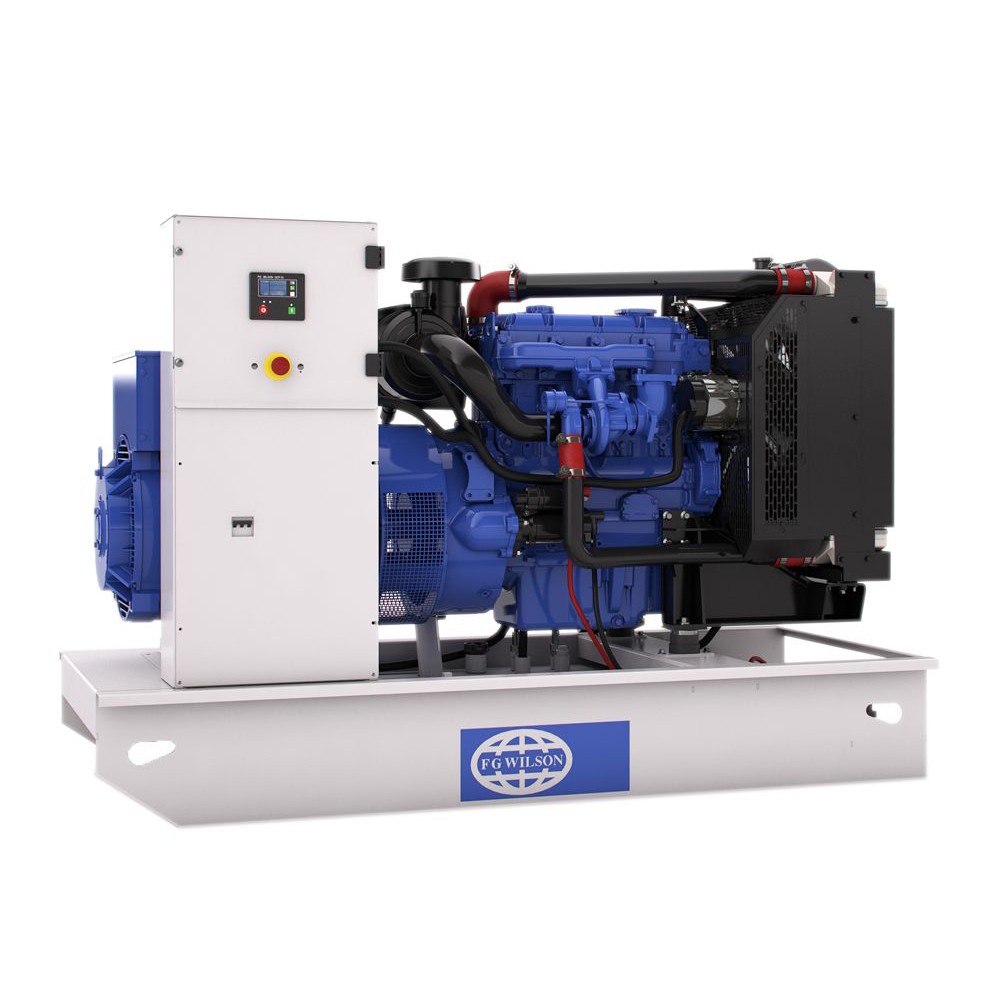

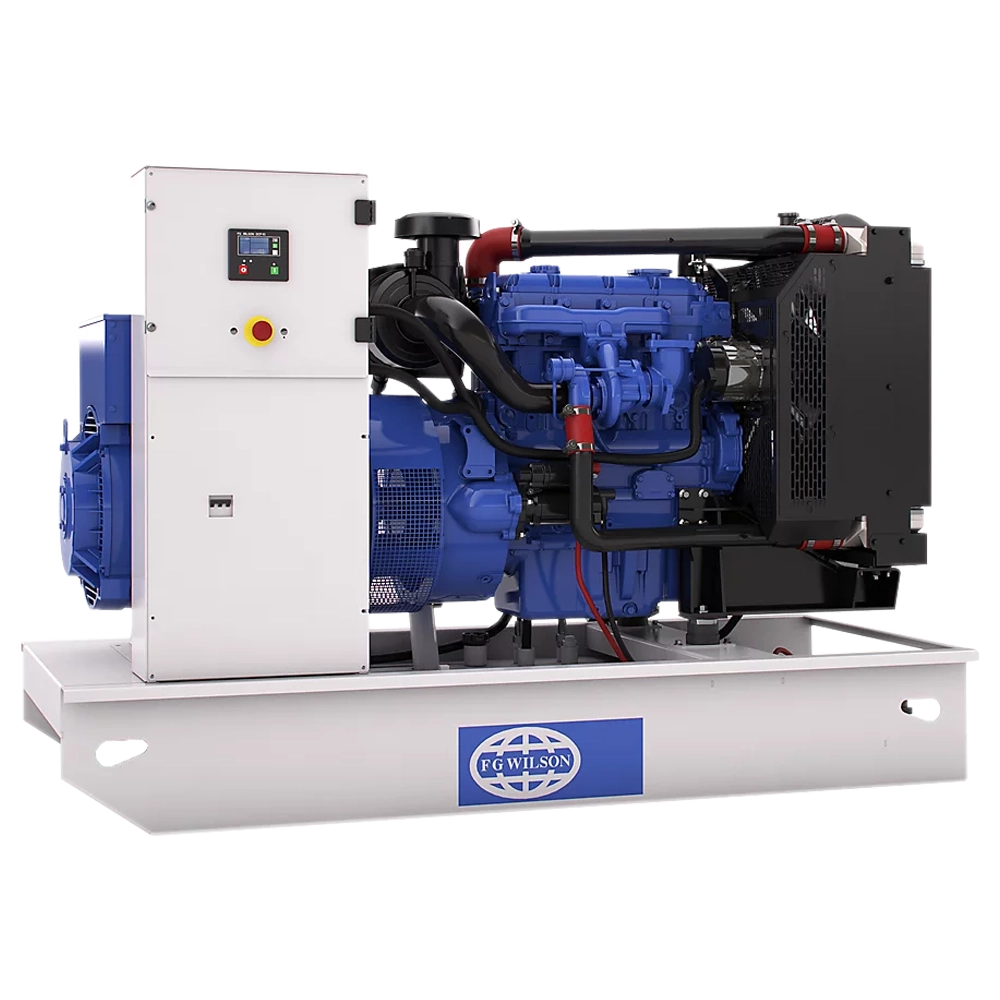

P110-3 FG Wilson 110kVA Diesel Generator
● P110-3 FG Wilson 110kVA Diesel Generator
○ Brand new original FG Wilson P110-3 diesel generator set
○ Reliable, rugged and durable designed PERKINS 1104C-44TAG2 diesel engine
○ Rating 380/400/415V, 3-Phase 4-Wires, 50Hz, 1500RPM, 0.8PF, H insulation class
○ Original radiator with engine driven fan mounted on the based frame
○ Set mounted control panel equipped with DSE4520 digital controller
○ Original ABB brand main circuit breaker
○ Diesel engine and alternator mounted on a based frame with anti-vibration mountings
○ 12V DC electric start system with free-maintenance lead-acid battery and float battery charger
○ Industrial silencers with flexible connects and elbow
○ Complete engine alarm system
● RATINGS AND PERFORMANCE DATA
Genset Model
FG Wilson P110-3
Frequency
50Hz
Prime Power
100KVA/80KW
Standby Power
110KVA/88KW
Engine
Perkins 1104C-44TAG2
Alternator
FG Wilson FGL30040
Control Panel
DSE4520
Fuel Tank Capacity
218 Litres
● DIESEL ENGINE
Engine Model
Perkins 1104C-44TAG2
No. of Cylinder
4
Bore x Stroke
105 x 127mm
Induction
Turbocharged, Air to Air Charge Cooled
Governor Type
Electronic
Displacement
4.4L
Voltage
12V
● FUEL CONSUMPTION
110% Load
23.9L/H
100% Load
21.7L/H
75% Load
16.5L/H
50% Load
11.6L/H
● CONTROL PANEL
○ Emergency stop button
○ ABB brand Main circuit breaker
○ DSE4520 control panel

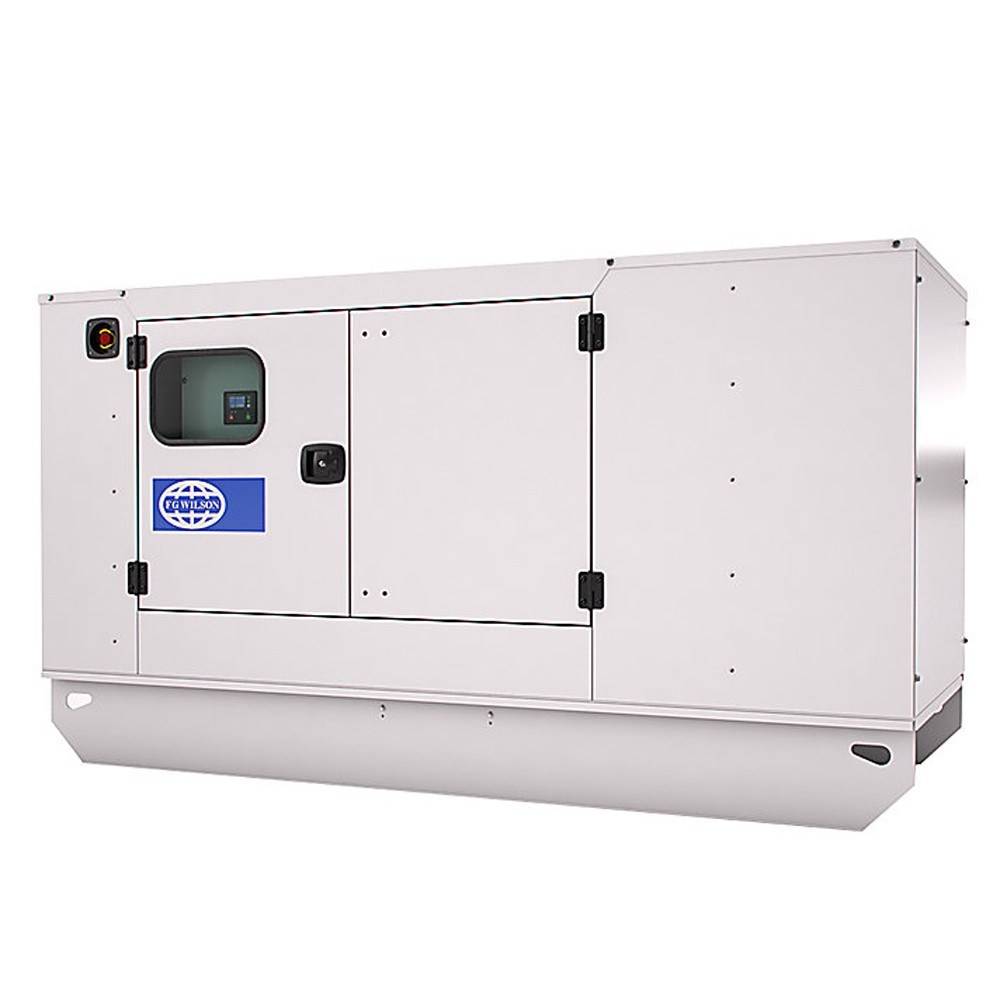

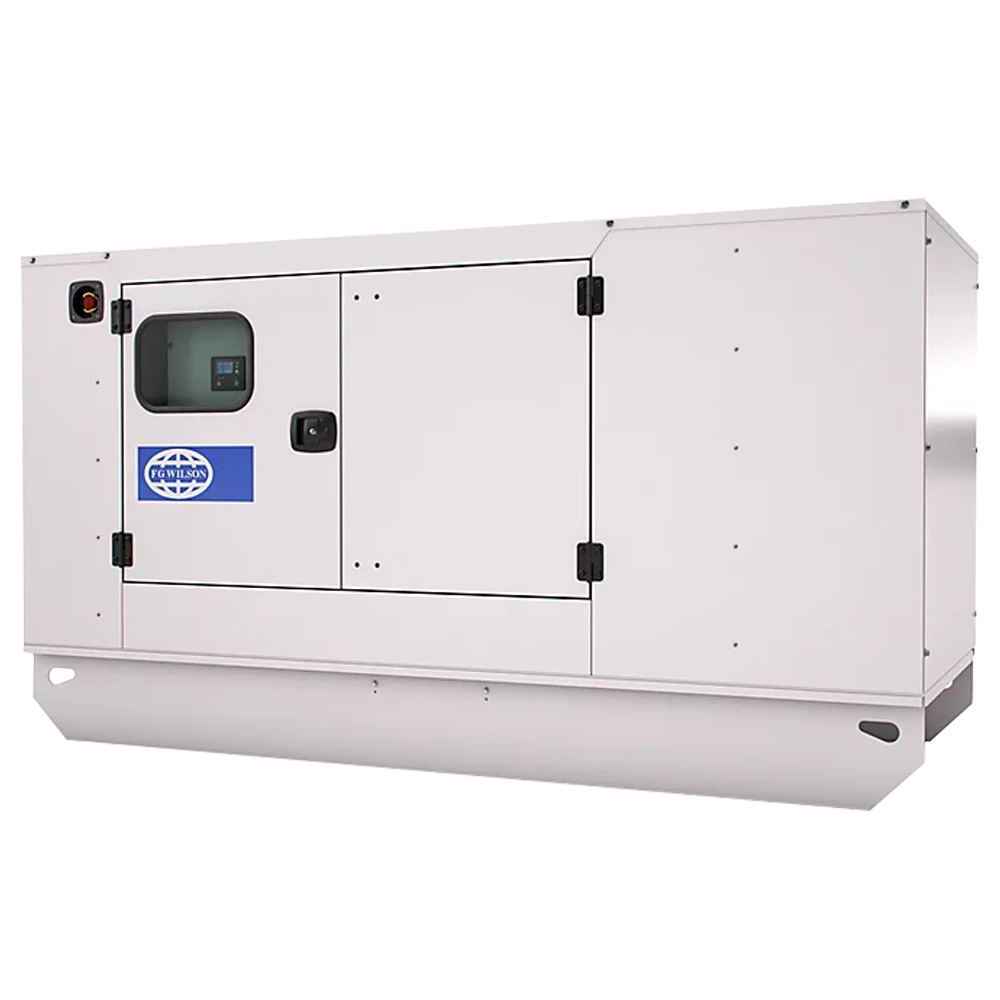

● SOUND ATTENUATED ENCLOSURE
○ Fully Weatherproof Sound Attenuated Enclosure With Internal Exhaust Silencer
○ Highly Corrosion Resistant Construction
● WARRANTY
○ 12 months or 1000 working hours, whichever comes first
