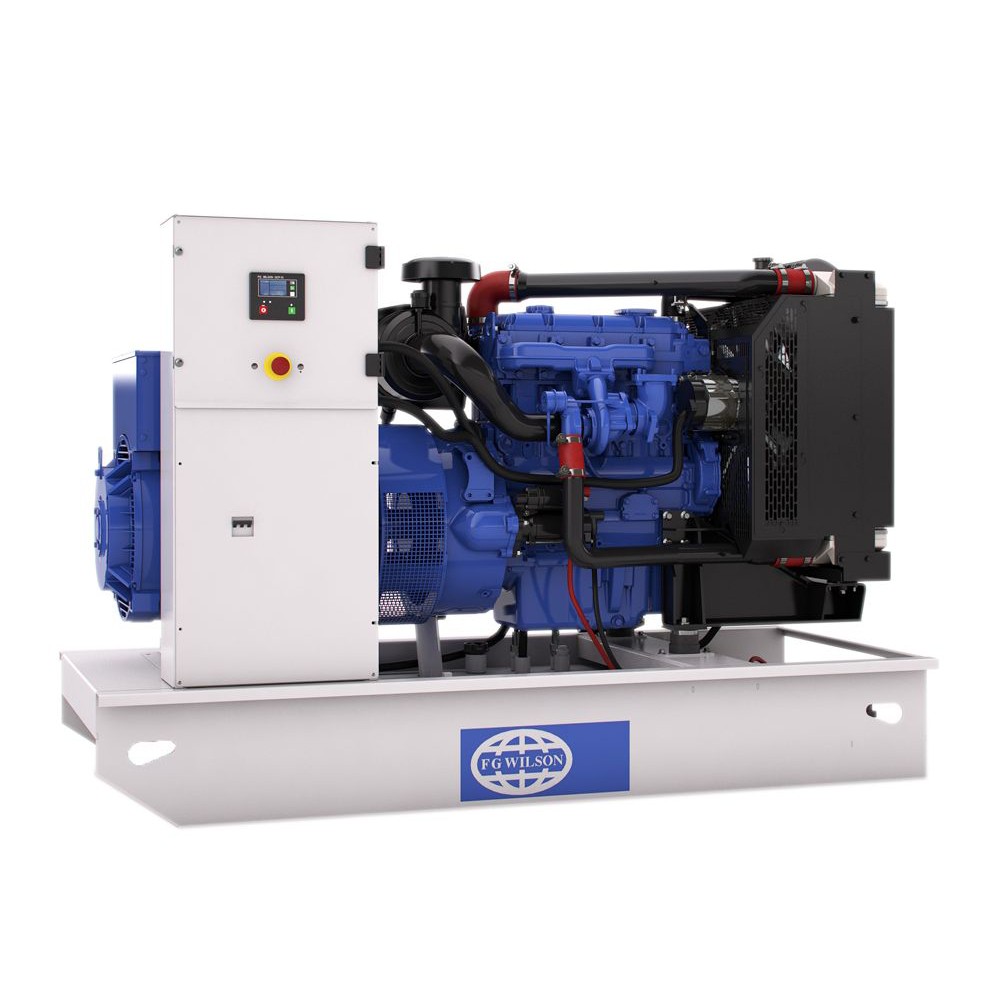

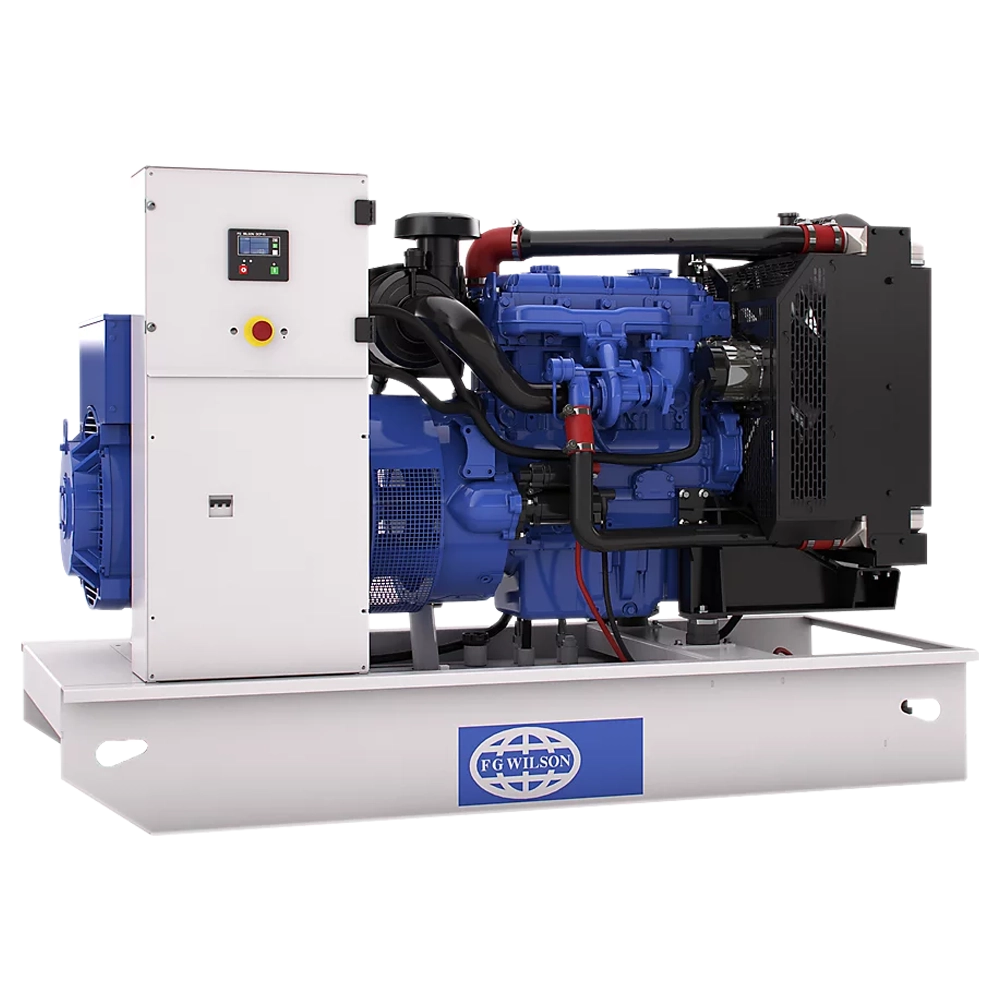

P150-5 FG Wilson 150kVA Diesel Generator
● P150-5 FG Wilson 150kVA Diesel Generator
○ Brand new original FG Wilson P150-5 diesel generator set
○ Reliable, rugged and durable designed PERKINS 1106A-70TG1 diesel engine
○ Rating 380/400/415V, 3-Phase 4-Wires, 50Hz, 1500RPM, 0.8PF, H insulation class
○ Original radiator with engine driven fan mounted on the based frame
○ Set mounted control panel equipped with DSE4520 digital controller
○ Original ABB brand main circuit breaker
○ Diesel engine and alternator mounted on a based frame with anti-vibration mountings
○ 12V DC electric start system with free-maintenance lead-acid battery and float battery charger
○ Industrial silencers with flexible connects and elbow
○ Complete engine alarm system
● RATINGS AND PERFORMANCE DATA
Genset Model
FG Wilson P150-5
Frequency
50Hz
Prime Power
135KVA/108KW
Standby Power
150KVA/120KW
Engine
Perkins 1106A-70TG1
Alternator
FG Wilson FGL30080
Control Panel
DSE4520
Fuel Tank Capacity
327 Litres
● DIESEL ENGINE
Engine Model
Perkins 1106A-70TG1
No. of Cylinder
6
Bore x Stroke
105 x 135mm
Induction
Turbocharged
Governor Type
Mechanical
Displacement
7L
Voltage
12V
● FUEL CONSUMPTION
110% Load
33.4L/H
100% Load
29.9L/H
75% Load
22.6L/H
50% Load
16.2L/H
● CONTROL PANEL
○ Emergency stop button
○ ABB brand Main circuit breaker
○ DSE4520 control panel

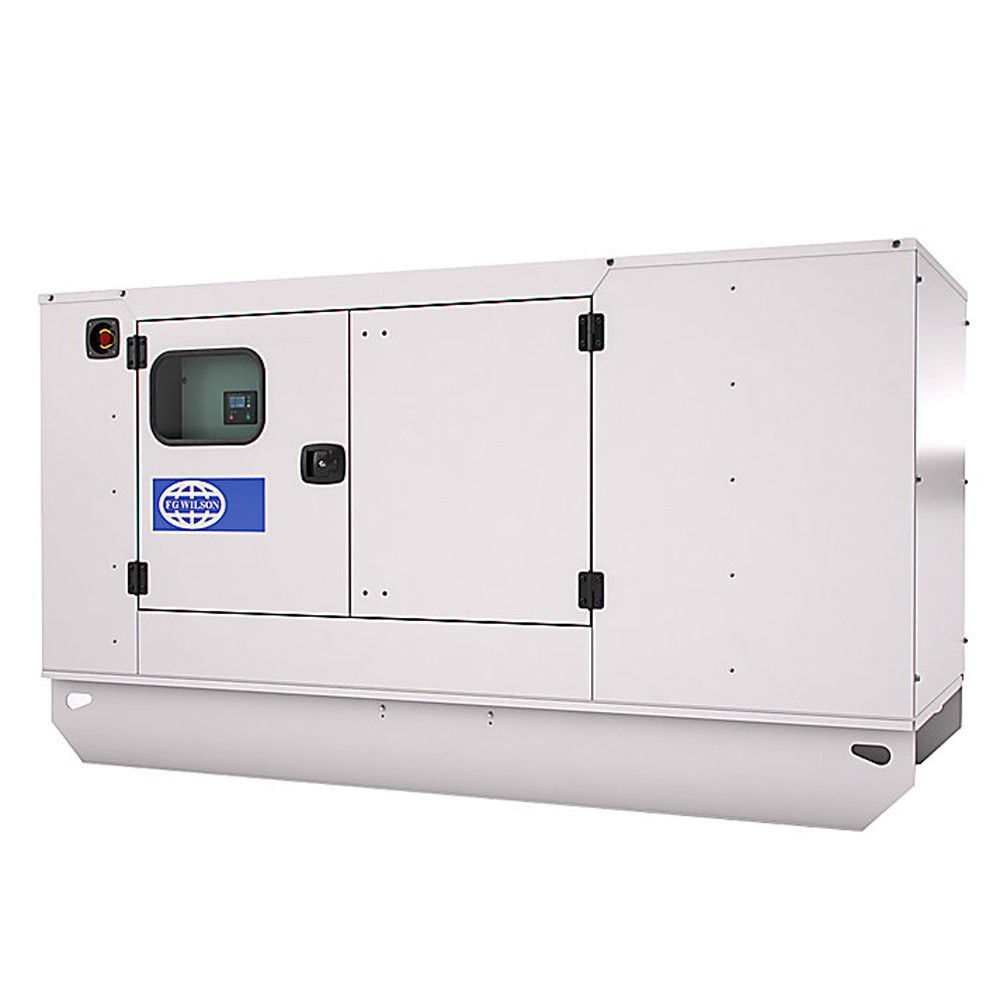

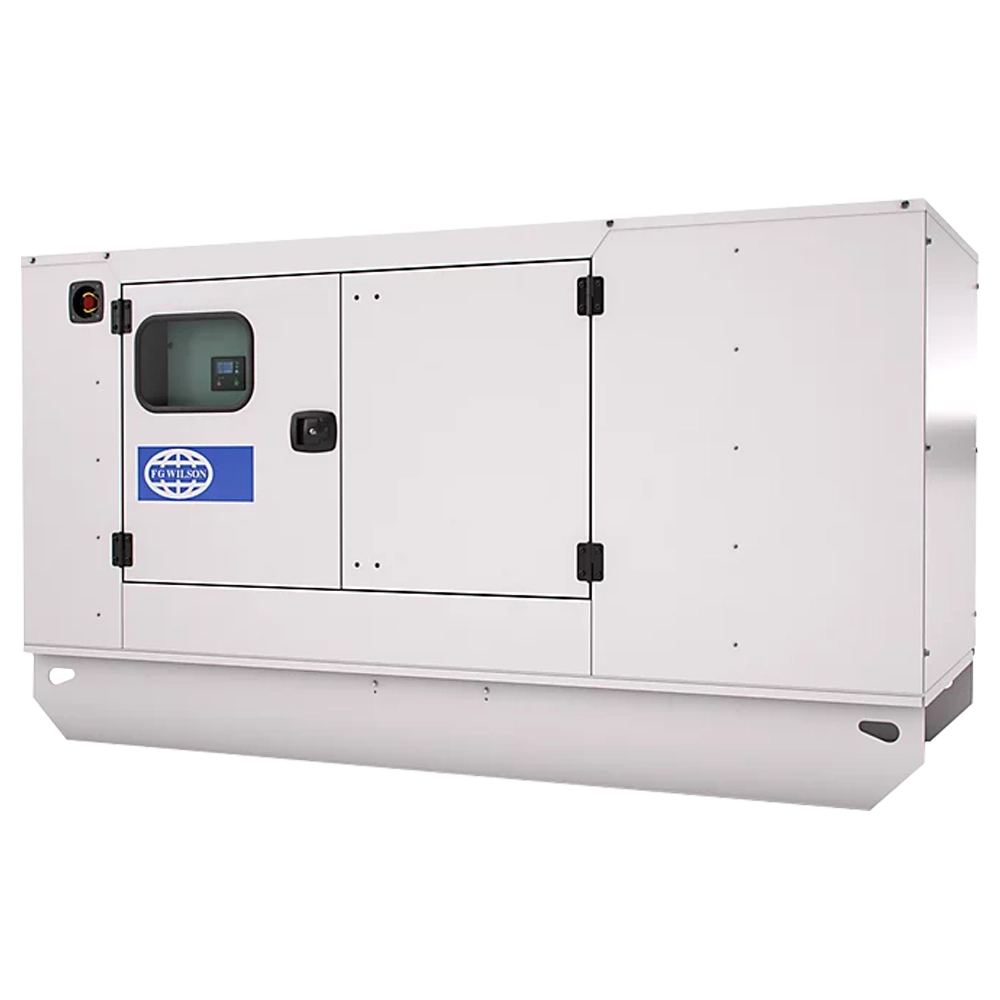

● SOUND ATTENUATED ENCLOSURE
○ Fully Weatherproof Sound Attenuated Enclosure With Internal Exhaust Silencer
○ Highly Corrosion Resistant Construction
● WARRANTY
○ 12 months or 1000 working hours, whichever comes first
