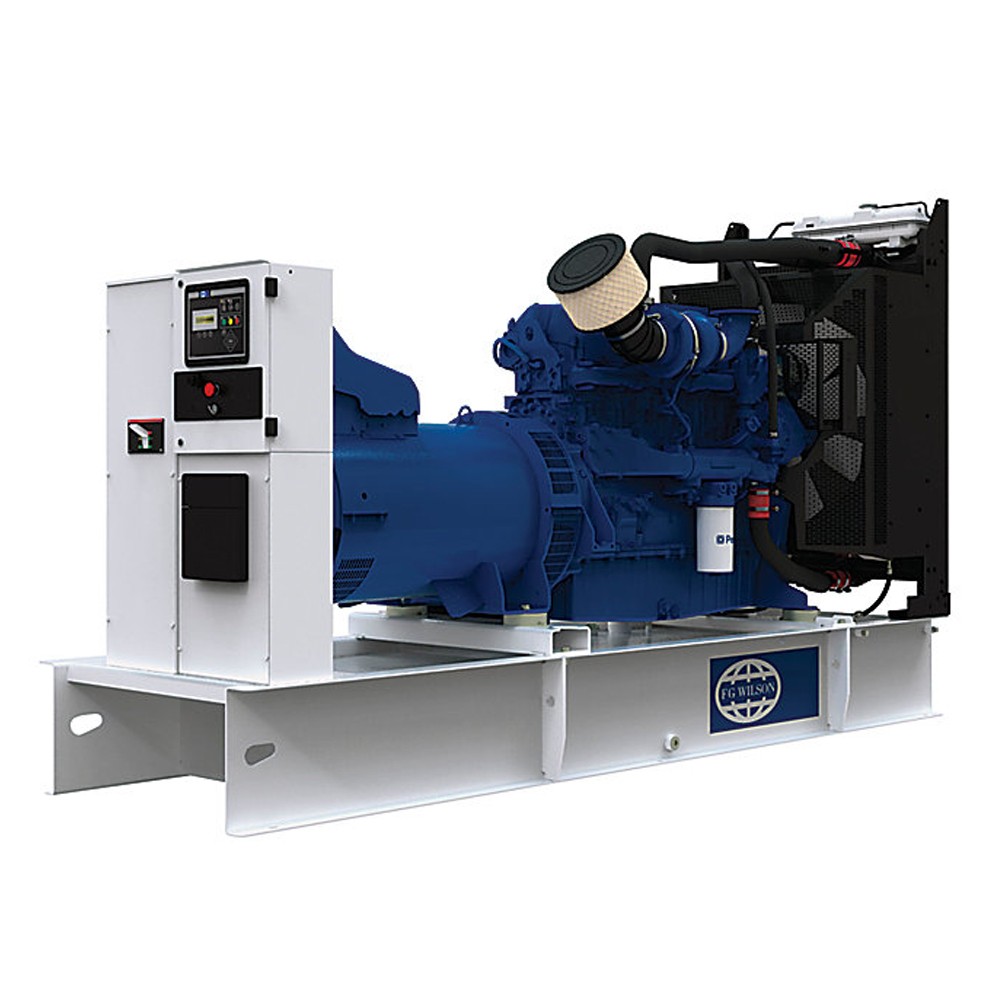

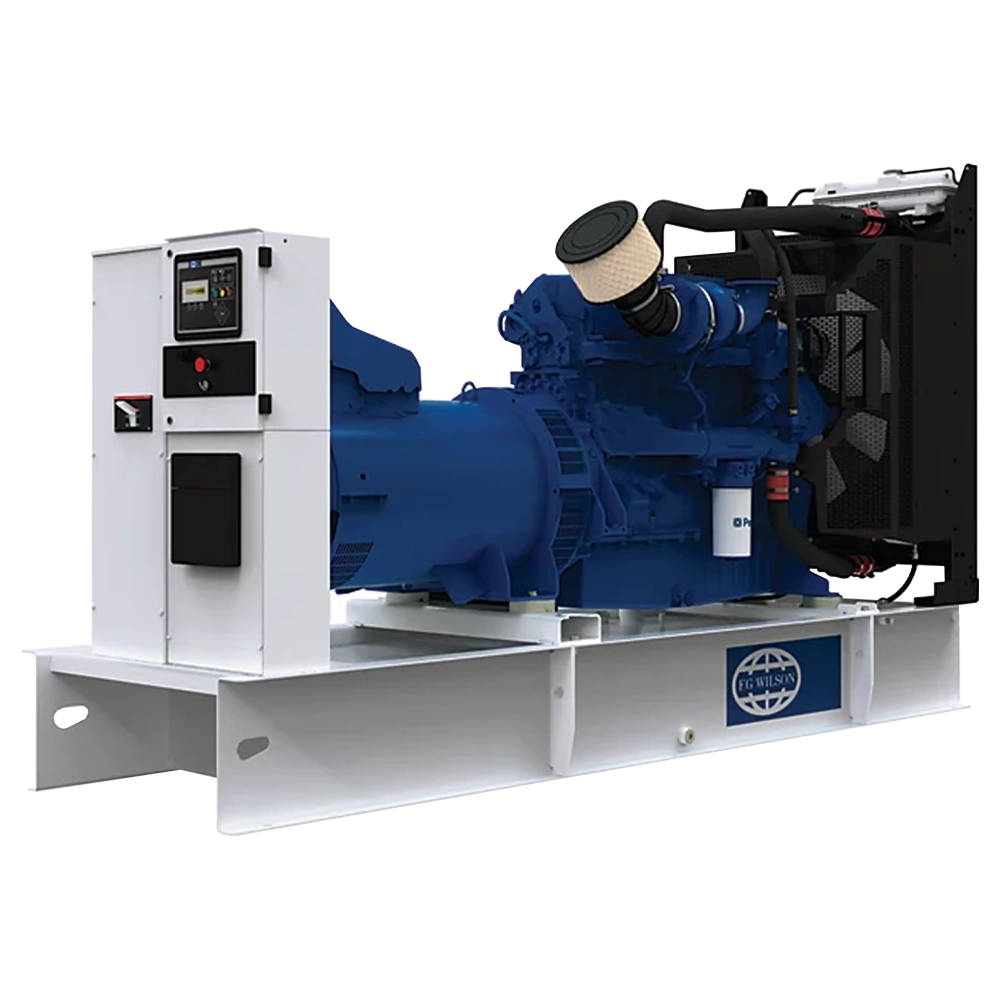

P450-3 FG Wilson 450kVA Diesel Generator
● P450-3 FG Wilson 450kVA Diesel Generator
○ Brand new original FG Wilson P450-3 diesel generator set
○ Reliable, rugged and durable designed PERKINS 2206A-E13TAG3 diesel engine
○ Rating 380/400/415V, 3-Phase 4-Wires, 50Hz, 1500RPM, 0.8PF, H insulation class
○ Original radiator with engine driven fan mounted on the based frame
○ Set mounted control panel equipped with DSE7420 digital controller
○ Original ABB brand main circuit breaker
○ Diesel engine and alternator mounted on a based frame with anti-vibration mountings
○ 24V DC electric start system with free-maintenance lead-acid battery and float battery charger
○ Industrial silencers with flexible connects and elbow
○ Complete engine alarm system
● RATINGS AND PERFORMANCE DATA
Genset Model
FG Wilson P450-3
Frequency
50Hz
Prime Power
400KVA/320KW
Standby Power
450KVA/360KW
Engine
Perkins 2206A-E13TAG3
Alternator
FG Wilson FG29A320
Control Panel
DSE7420
Fuel Tank Capacity
888 Litres
● DIESEL ENGINE
Engine Model
Perkins 2206A-E13TAG3
No. of Cylinder
6
Bore x Stroke
130 x 157mm
Induction
Turbocharged Air to Air Charge Cooled
Governor Type
Electronic
Displacement
12.5L
Voltage
24V
● FUEL CONSUMPTION
110% Load
87.2L/H
100% Load
78.2L/H
75% Load
60L/H
50% Load
41.8L/H
● CONTROL PANEL
○ Emergency stop button
○ ABB brand Main circuit breaker
○ DSE7420 control panel

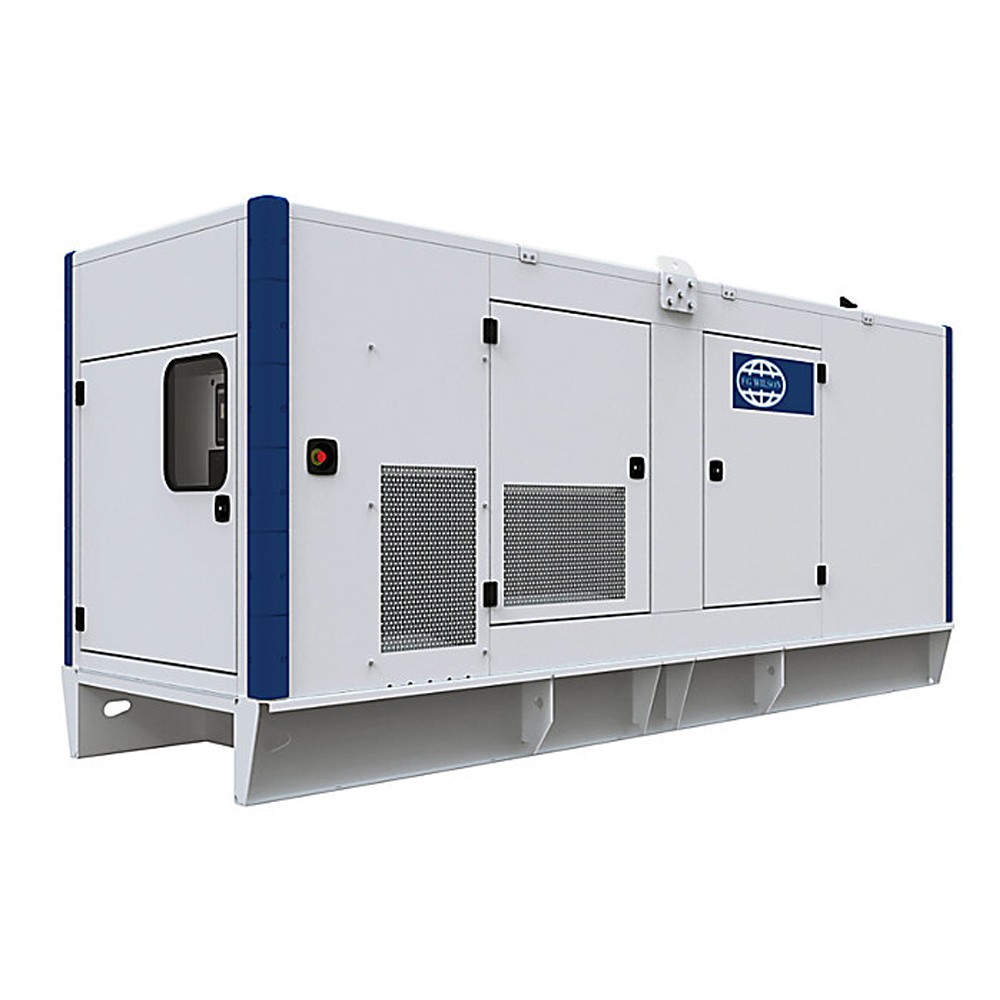

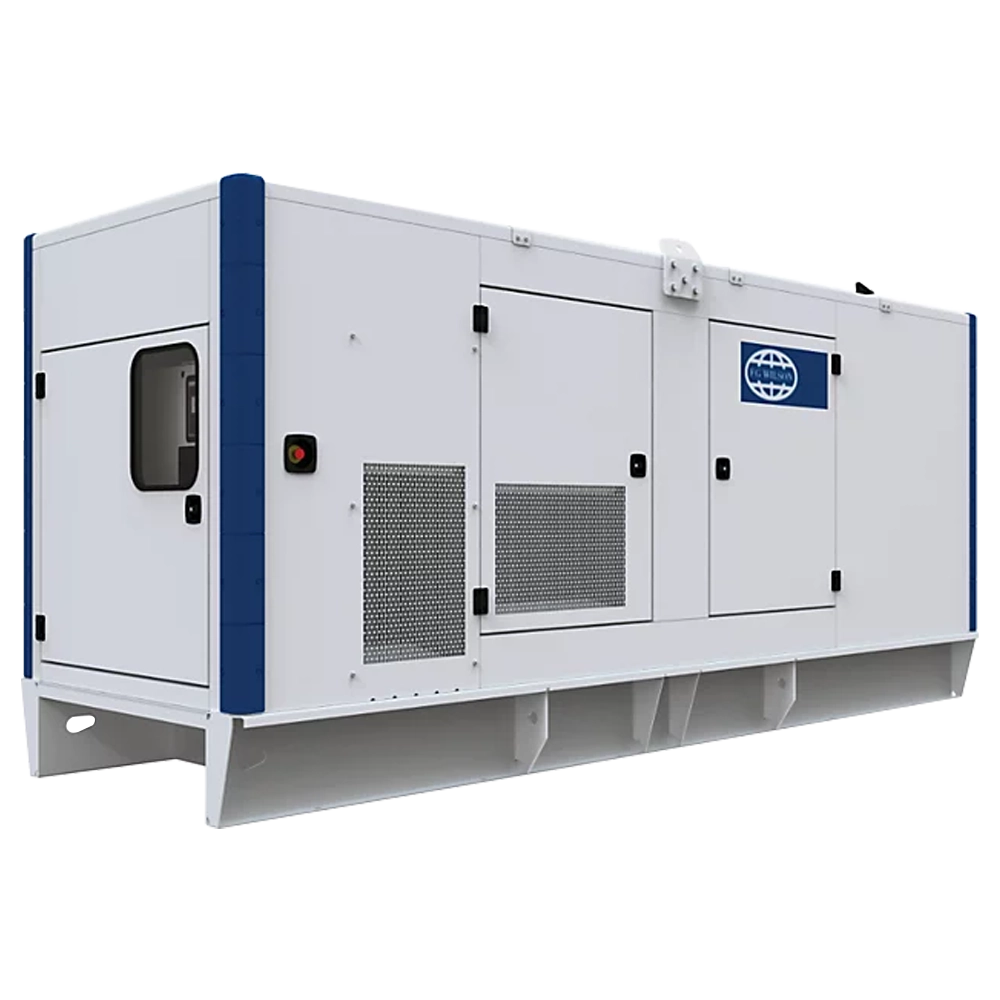

● SOUND ATTENUATED ENCLOSURE
○ Fully Weatherproof Sound Attenuated Enclosure With Internal Exhaust Silencer
○ Highly Corrosion Resistant Construction
● WARRANTY
○ 12 months or 1000 working hours, whichever comes first
