DE1400 GC Standby 1400KVA Caterpillar Diesel Generator
Short Description
Caterpillar DE1400GC diesel generator with 1400 kVA standby power, reliable performance, fuel efficiency, for industrial and commercial backup power.
- ModelDE1400 GC
- Prime Power (PRP)N/A
- Standby Power (ESP)1120kW/1400kVA
- EngineC32B
- Fuel Consumption (100%)292.1L/H
Product Details
Product Tags
Video

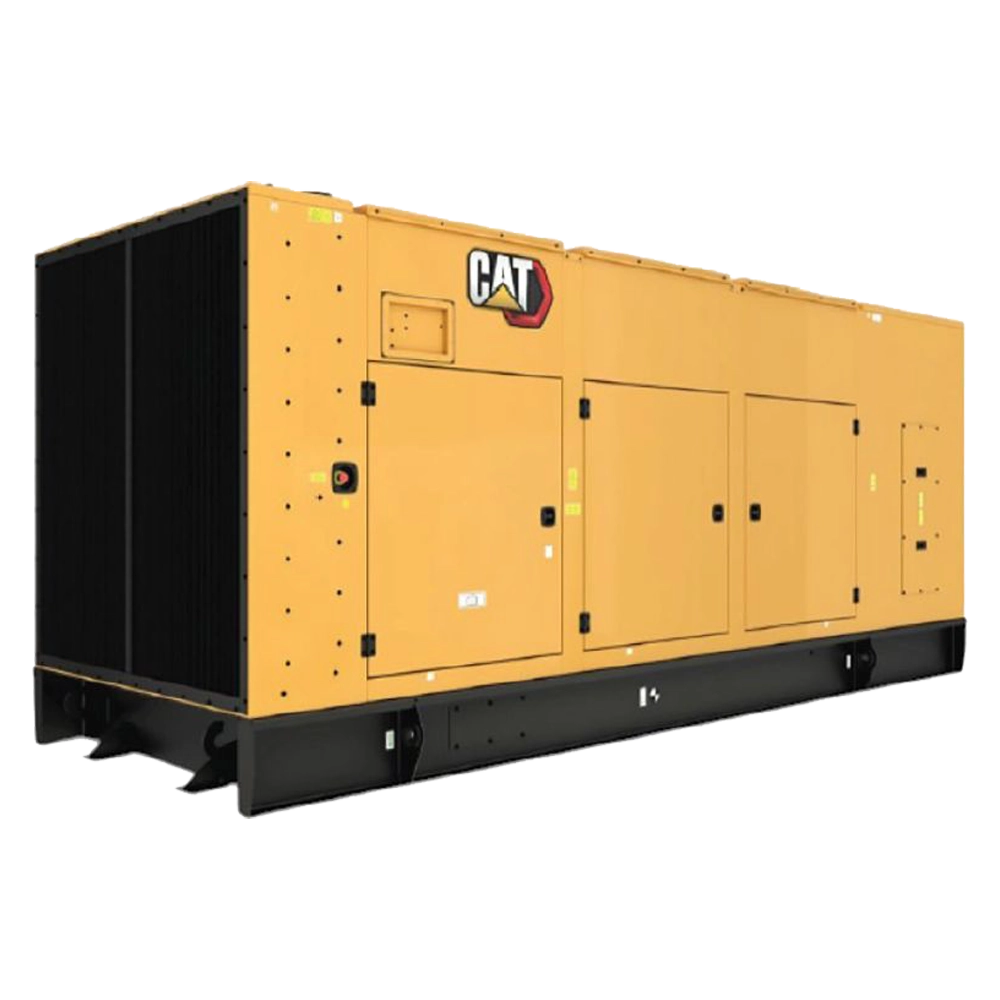

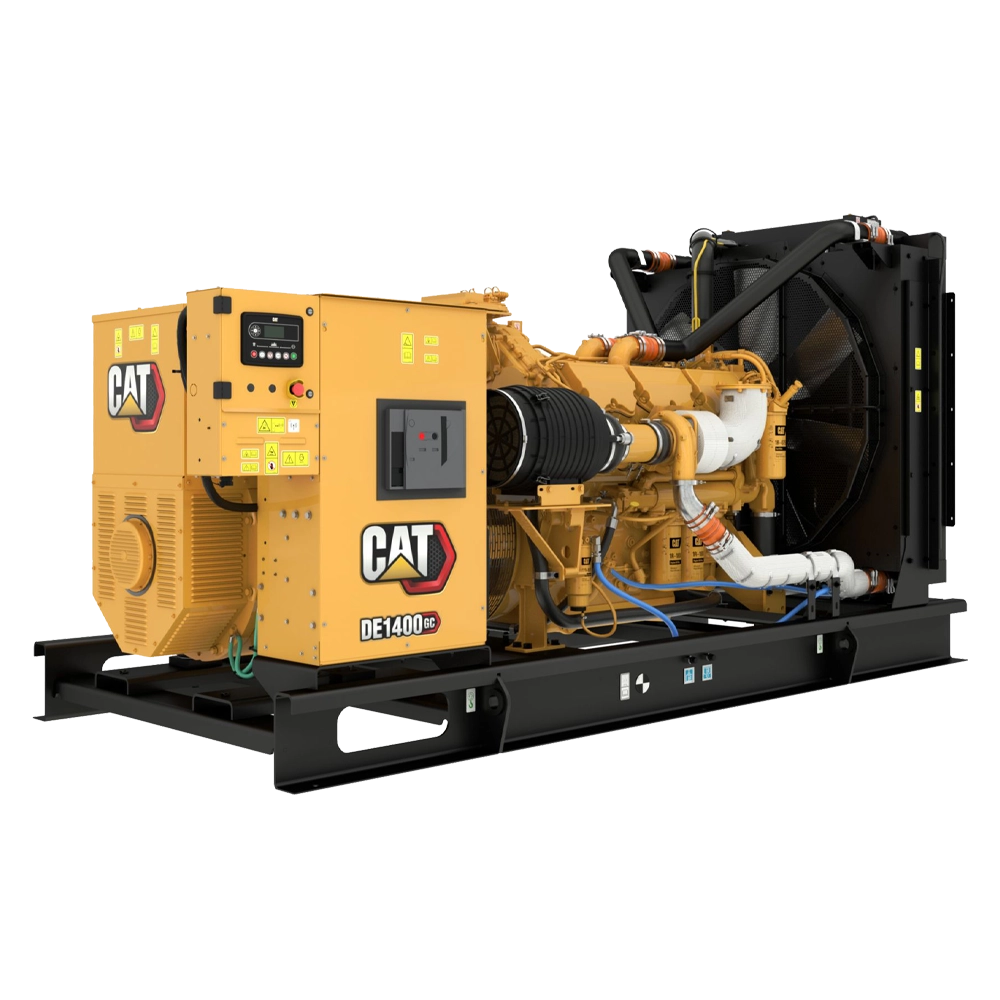

Caterpillar DE1400 GC 1400kVA Diesel Generator Set
The Caterpillar DE1400 GC 1400kVA diesel generator set is powered by a Caterpillar C32B TA V12 four-stroke, water-cooled diesel engine. Designed for 50Hz standby and mission-critical power applications, it delivers reliable backup power for commercial buildings, industrial facilities, infrastructure projects and other demanding environments. With a rated output of 1400kVA / 1120kW, the DE1400 GC features a Caterpillar GCCP1.3 control panel and radiator cooling system. It is designed to accept 100% rated load in one step and provide full power at ambient temperatures up to 50°C under specified operating conditions. Circuit breaker configuration and enclosure options can be selected according to project requirements and regional specifications.
Generator Set
| Genset Model | Caterpillar DE1400 GC |
| Standby Power | 1400kVA / 1120kW |
| Mission Critical Power | 1400kVA / 1120kW |
| Phase & Wire | 3 Phase, 4 Wires |
| Power Factor | 0.8 |
| Frequency | 50Hz |
| Rated Voltage | 400–415V |
| Rated Speed | 1500rpm |
| Cooling System | Radiator Cooled |
| Ambient Temperature | Up to 50°C under specified operating conditions |
| Dimensions (L × W × H) | 4175 × 1856 × 2268mm |
| Dry Weight | 7436kg |
Diesel Engine
| Engine Model | Caterpillar C32B TA, V12, 4-Stroke Water-Cooled Diesel |
| Cylinder Configuration | V12 Cylinder |
| Bore × Stroke | 145 × 162mm |
| Displacement | 32.1L |
| Compression Ratio | 14.0:1 |
| Aspiration | Turbocharged, Aftercooled (TA) |
| Fuel System | Electronic Unit Injection (EUI) |
| Governor Type | Electronic ADEM A4 |
Fuel Consumption
| Load | Fuel Consumption with Fan |
| 100% Load | 292.1 L/H |
| 75% Load | 217.4 L/H |
| 50% Load | 149.4 L/H |
| 25% Load | 87.9 L/H |
Control Panel
|
○ Caterpillar GCCP1.3 control panel
|
○ Generator monitoring and protection
|
|
○ Engine and generator operating data display
|
○ Circuit breaker panel according to regional and product configuration
|
|
○ Remote monitoring options available
|
○ Optional jacket water heater
|
Sound Attenuated Enclosure
○ Weatherproof sound-attenuated enclosure available
○ Exhaust silencer configuration according to package specification
○ Outdoor installation options for different site requirements
Applications
The Caterpillar DE1400 GC 1400kVA diesel generator set is suitable for a wide range of standby and backup power applications, including:
○ Commercial buildings
○ Industrial facilities
○ Construction sites
○ Mining and infrastructure projects
○ Telecommunications facilities
○ Emergency and backup power applications
Why Choose GENLITEC POWER
GENLITEC POWER provides diesel generator sets and mobile lighting towers for construction, mining, telecommunications, infrastructure, industrial, commercial and other demanding applications. We offer flexible configurations, international engine and alternator brands, customized power solutions, technical support and after-sales service.
○ Diesel generator sets and mobile lighting towers from one supplier
○ Multiple engine, alternator and controller brand options
○ Customized power solutions for different applications
○ Professional manufacturing and quality control
○ International export and project experience
○ Technical support and after-sales service
For more information, please visit the GENLITEC POWER® Why Choose GENLITEC POWER page.
Warranty
GENLITEC POWER provides a standard warranty of 12 months or 1000 working hours, whichever comes first. For details, please refer to the GENLITEC POWER® Warranty Policy.
